Video Insights

Video Insights brings self-service tooling to the Twilio Console to provide analytics and aggregations for observing your application, discovering trends, and troubleshooting rooms and participants.

Some of the key capabilities are as follows:

  • Dashboard - Usage and quality metrics across all your rooms and participants.
  • Detected issues - Rooms and participants are tagged based on quality metrics observed during the call.
  • Quality metric graphs - Per-interval quality metric graphs for all participants.

Video Insights is free for Group, Peer-to-Peer, and WebRTC Go Room developers and is available for any applications built with Twilio Video’s Javascript, iOS, and/or Android SDKs.

Visit the Video Insights Dashboard in the Twilio Console to get started.


The Video Insights Dashboard provides a bird’s-eye view of usage and quality metrics across all the rooms and participants associated with a given account SID. The dashboard provides aggregations that help teams move from being completely responsive to end-user complaints to observing quality and troubleshooting proactively. It also allows you to segment your participants by device and software characteristics such as browser or operating system, track week-over-week growth, or better understand day-of-week or time-of-day usage.

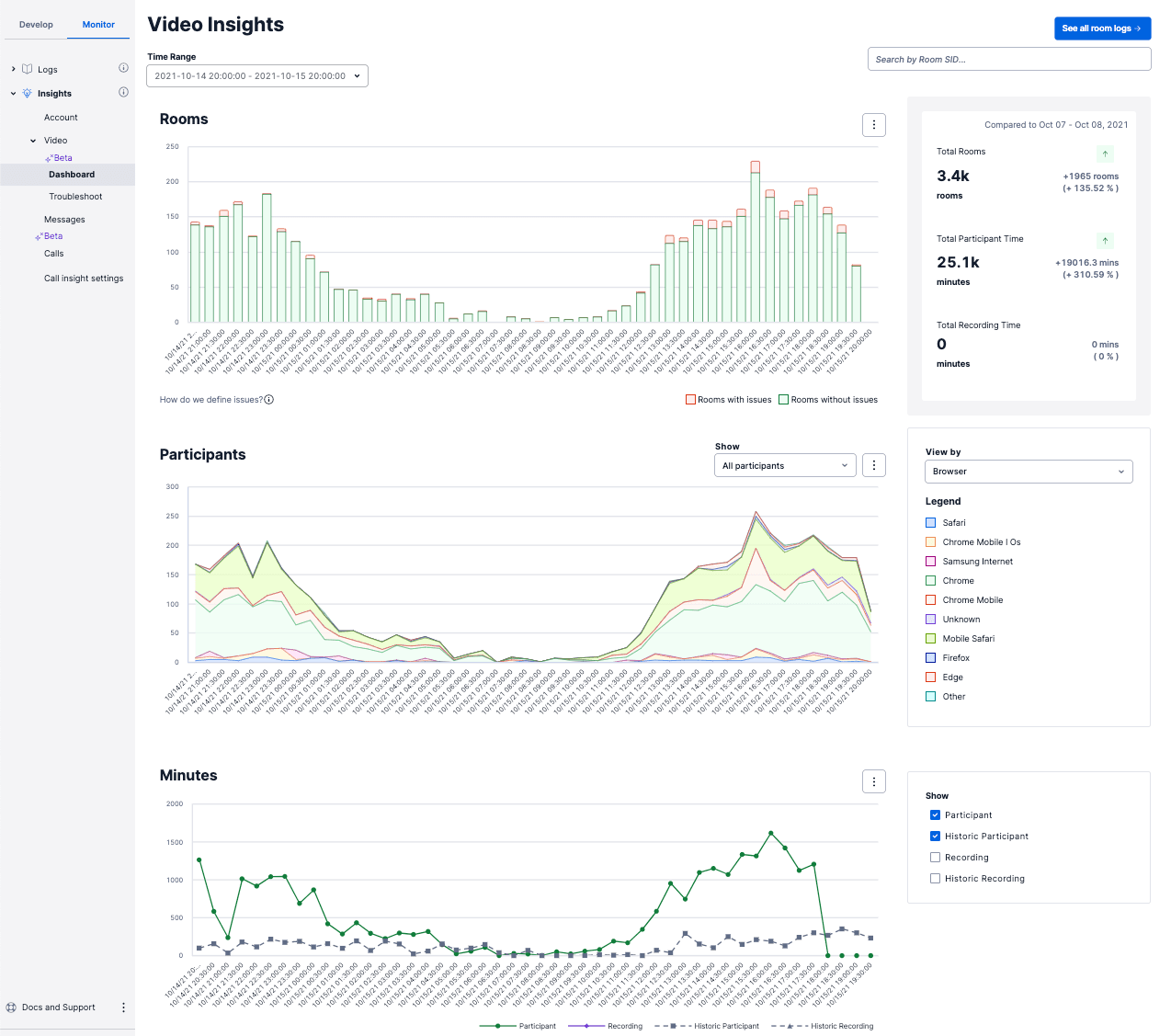

Video Insights Dashboard Overview

All insights are tied to the account_sid that is associated with your Video Rooms. If you have subaccounts, each subaccount will have a unique Insights Dashboard.

Rooms Graph

The first graph provides the number of rooms that your account has created over time, with a distribution of rooms tagged as potentially having degraded quality. Please refer to the Detected Issues section for more information on the current list of issues that Twilio could detect and the associated thresholds used.

You can use this graph to monitor the distribution of rooms being tagged and then quickly dive into the rooms with issues.

Video Insights Room Graph

Participants Graph

The participant graph allows you to segment your participants by the characteristics of their device and software setup, and filter for those tagged with issues to discover trends that you can act on.

Video Insights Participant Graph

You can segment the area graph by:

Device Manufacturer

The device manufacturers used by the participants in the time filter

Operating System

The operating systems used by the participants in the time filter


The browsers used by the participants in the time filter

Twilio SDK

The Twilio SDKs used by the participants in the time filter

Signaling region

The signaling regions used for the participants in the time filter

End Reason

The end reason observed for the participants in the time filter

Twilio parses the user agent to determine the Device Manufacturer, OS, and Browser. “Unknown” for these values means the user agent available did not have the information.

You can filter the graph by:

Participants with issues

Participants tagged with one or more issues. See Detected Issues for the current list and the associated thresholds.

Participants without issues

Participants not tagged with any Detected Issues.

Minutes Graph

The minutes graph provides the number of participant and recording minutes over time, along with historical data from the previous period, to observe week-over-week growth and better understand day-of-week or time-of-day usage.

The minutes provided are aggregated by the participant durations in seconds, and thus are not 1:1 with the minutes you will be billed for. Learn more about how billing works.



The Rooms page allows you to filter and explore your rooms from the past seven days for Group and P2P Rooms, and from the past two days for WebRTC Go Rooms.

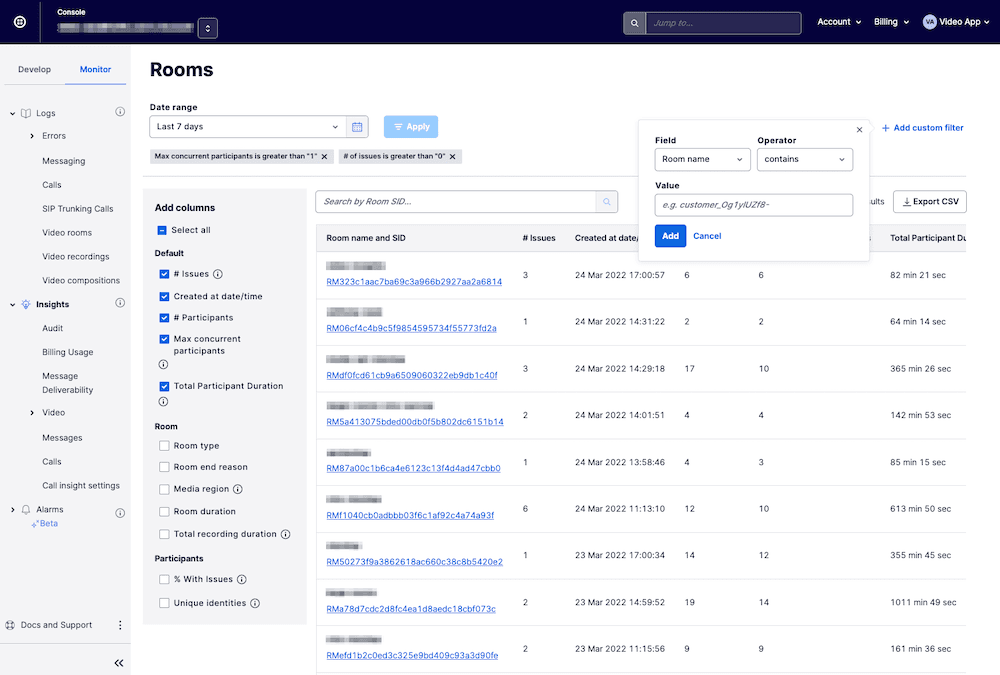

Video Insights - Rooms List

Editing the columns displayed

To the left of the table in the image above, you can see an “Add columns” section, which you can use to add and remove the columns displayed in the table.

Adding custom filters

In addition to filtering by datetime and searching by the Room SID, the rooms page offers flexible filtering to enable you to discover usage and quality trends in your rooms. When adding a custom filter, you select a field, an operator, and an expected value. Here is an example of how to add a custom filter to query for rooms that have Max concurrent participant = 1:

Video Insights - Room list - Filter max concurrent participants

Below are the fields you can filter on using the custom filter:



Room SID

The unique string that Twilio generates to identify the Room resource.

Room Name

The application-defined uniqueName for the Room resource.

Room type

The application-defined room type.

Media region

The media region that was used by Twilio’s Selective Forwarding Unit (SFU) to exchange media between participants. Only applicable to Group rooms.

Room end reason

The reason for the room ending.

Room duration

The room's duration. Units required for filtering are seconds.

# Participants

The number of participants that connected to the room over its lifetime. Note that a “Participant” is an instance of a connection to the room, meaning that if an end-user leaves and rejoins the room, there will be a new Participant SID generated and this will count as 2 distinct Participants.

Unique identities

The number of distinct application-defined uniqueIdentities across all the Participants that connected to the room.

Max concurrent participants

The maximum number of participants that were in the room at the same time.

Total participant duration

The total duration that participants were connected to the room, summed across all participants. Units required for filtering are seconds.

Total recording duration

The total recording duration, summed across all the recording tracks in the room. Units required for filtering are seconds.

# of issues

The total number of Detected Issues observed in the room, summed across all participants.

# of participants with issues

The total number of participants in the room that were tagged with Detected Issues.

Issue type

The type of Detected Issues observed in the room.

Saving and sharing queries

As you add columns and adjust the filters, the URL is updated to depict the state of the page. This means you are able to bookmark queries/selected columns and share link(s) with teammates.

Room Summary

The Room Summary provides metadata about the Room, surfaces any Detected Issues, and lists the room’s participants.

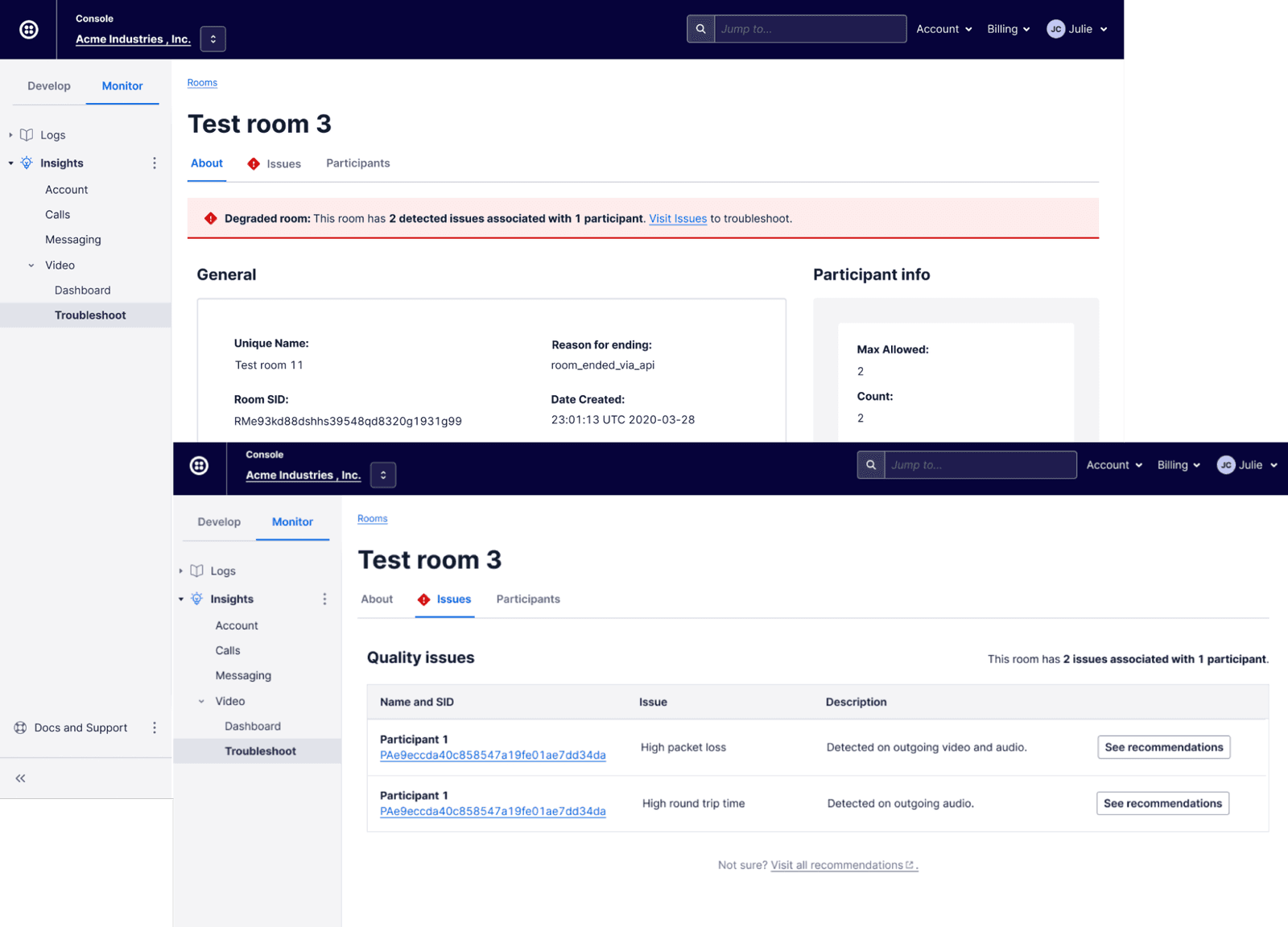

Insights Room Summary view

Participant Summary

The Participant Summary provides details to help you troubleshoot issues and assess the media quality for individual users. For each participant, you are provided relevant participant characteristics (ex. OS, Browser, SDK versions) as well as per-interval quality metrics (bitrate, packet loss, round trip time) for the duration of their time in the Room.

Video Insights Participant Summary

Quality Metrics Graphs

Quality metrics are provided on a per room, per participant basis and are displayed in 10 second intervals. On the send (publishing) side, metrics for bitrate, packet loss, and round trip time (rtt) are provided on a per track basis to assess the quality of the participants outgoing audio or video. On the receive (subscribing) side, the total inbound bitrate for the connection is provided to help you diagnose when a participant has low downlink bandwidth.

A few things to note:

  • Quality metrics are sourced client-side from the WebRTC getStats() function and then processed
  • You may see multiple video tracks for a given participant. This will happen if
    • you implement the behavior of unpublishing / publishing tracks when an end-user turns their camera off, or
    • an end-user shares their screen
  • If you are using simulcast, the layers are merged to provide one metric for a given track. Please refer to the below sections for how these are calculated.
Send Tab (outgoing metrics)


Bitrate refers to the rate at which data (measured in bits) can be transferred between two endpoints in a given period of time. Low uplink bandwidth can lead to video freezing, video downscaling, frame-rate drops, and choppy audio. In addition, exceeding the available bandwidth of a receiver can overwhelm their network, cause degradation of the media quality, and potentially lead to dropped connections.

As mentioned above, bitrate is provided on a per track basis on the send side. Please refer to the Minimum Bandwidth Requirements documentation to better understand the bitrates required for the associated track characteristics.

If you have simulcast enabled, the bitrate you will see with video tracks is based on the sum of the bandwidth for all the layers.

Packet Loss

Packet loss is the measurement of packets that are expected but never arrive. High packet loss can result in frequent video freezing, video frame rate drops, and choppy audio. Packet loss is usually caused by overloaded routers or high CPU load on the machine. Packet loss might also occur if there is a large number of routers in the connection path between a Participant and Twilio's servers.

If you have simulcast enabled, packet loss for video tracks is calculated by summing the packets lost and packets sent across all layers then applying the formula: (packets lost /( packets lost + packets sent)) * 100. This means that it’s possible that the individual streams forwarded by the SFU to subscribers may have varying levels of packet loss.

Round trip time

Round trip time is the time a packet of data takes to travel from sender to receiver and back. High round trip time is the cause of lag in media playback and occasional video freezing and drops in video frame rate. It can lead to end-users talking over one another. Round trip time is usually attributed to slow or overloaded networks. High round trip times can also occur when a Participant connects to a Twilio server that is far from their location. See Video Regions and Global Low Latency for more information.

If you have simulcast enabled, the round trip time (rtt) displayed is the maximum round trip time of all the individual layers. This means that it’s possible that certain streams forwarded by the SFU, based on the receiving participants downlink bandwidth, will experience less round trip time than what is displayed.

Receive Tab (incoming metrics)


The bitrate provided on the receive side is the total inbound bitrate received from the peer connection. Consistently low incoming bitrate can lead to video freezing, video downscaling, frame-rate drops, and choppy audio, regardless of the quality of the publisher’s media.

If you are using Group rooms, the Selective Forwarding Unit (SFU) acts as the peer connection, so this metric will represent the total bitrate received from all participants for all subscribed tracks. If you are using P2P rooms, you will see the inbound bitrate received for each peer connection.

The configured maxSubscriptionBitrate can impact this metric.


The Participant Summary provides characteristics about each participant that may be helpful for diagnosing issues. Some useful characteristics to look for are as follows:


The operating system and associated version used by the Participant.


The browser and associated version used by the Participant.


The device manufacturer and model used by the Participant.


The SDK and the associated version used by the Participant.

Tracks Published

Number of published tracks of the participant.

Detected Issues

Video Insights processes metrics and events and surfaces any potential issues detected by Twilio. The issues detected by Twilio are not exhaustive, but rather, are meant to provide a mechanism for easily identifying common issues and to assist in addressing issues in a more proactive manner. To start, Twilio is focusing on quality-related tagging on participants based on their published tracks (outgoing media). If any participants in the room are tagged with issues, then we will classify the room as having issues as well. The current list of detected issues is as follows:


High Threshold

Issue Metadata

Participant Packet Loss

Cumulative packet loss >= 5%

Whether it was detected on the outgoing audio, video, or both.

Participant Round Trip Time

Average round trip time > 300 ms

Whether it was detected on the outgoing audio, video, or both.

A few things to note:

  • If packet loss or round trip time is detected on any of the outgoing tracks, then the participant is tagged as having an issue.
  • It is possible that participants’ metrics will exceed the thresholds for portions of their time in video call but will not be tagged with an issue. Tagging is based on the entire duration of the track to avoid over-tagging in cases where there are blips of poor quality but ultimately, the overall experience was acceptable. You can visit the Participant Summaries to further analyze the per-interval metrics over the course of their time in the room.
  • Packet loss and round trip time are objective metrics that can be used to predict when an end-user could have had a degraded quality of experience. Quality of experience is subjective and thus, it’s possible we detect an issue but the end-user was happy with the experience (or vise versa).

Detected Issues are used throughout the Video Insights product:

  • Providing the distribution of rooms with issues in the Dashboard
  • Providing the ability to filter by participants with issues in the Dashboard
  • Providing the ability to filter by rooms with issues in the Rooms view
  • Aggregating and surfacing any detected issues in the Room Summary

Data Retention Policy

The data retention policy for Video Insights is as follows:

Insights Dashboard

Rooms and Participants

Group and P2P Rooms

14 days*

7 days

WebRTC Go Rooms

2 days

2 days

* Filtering is available up to 7 days in the past. Historical data from the previous week is also available, but not filterable.
