Using WiFi for Silent Network Auth

All traffic on all operating systems will favor WiFi above cellular connections. However for Silent Network Auth, the API request must be made using the cellular connection. We realize that users are unlikely to turn off WiFi and so the following code is provided for both iOS and Android to include in your applications that will allow a small payload (~40 bytes) to be delivered over the cellular modem, even when WiFi is connected.

(error)

Danger

This article is for apps only.

Only downloadable and installable applications are suitable for this fix. If you are attempting to use Silent Network Auth in a website this solution will not work. You should instruct users to turn off WiFi.

Android Sample Code

The following will allow Android applications using API Release M and above to use Cellular for the Silent Network Auth API request.


_26@TargetApi(Build.VERSION_CODES.LOLLIPOP)
_26public static void doAPIonCellularNetwork(Context context, final String url) {
_26
_26       ConnectivityManager connectivityManager = (ConnectivityManager) context.getSystemService(CONNECTIVITY_SERVICE);
_26
_26       NetworkRequest request = new NetworkRequest.Builder()
_26               .addTransportType(NetworkCapabilities.TRANSPORT_CELLULAR)
_26               .addCapability(NetworkCapabilities.NET_CAPABILITY_INTERNET).build();
_26
_26       connectivityManager.requestNetwork(request, new ConnectivityManager.NetworkCallback() {
_26
_26           @Override
_26           public void onAvailable(final Network network) {
_26         OkHttpClient okHttpClient = new OkHttpClient.Builder().socketFactory(network.getSocketFactory()).build();
_26         Request request = new Request.Builder()
_26               .url(url)
_26               .build();
_26         try {
_26            Response response = okHttpClient.newCall(request).execute();
_26            Log.i("", "doAPIonCellularNetwork RESULT:\n" + response.body().string());
_26         } catch (Exception ex) {
_26                ex.printStackTrace();
_26         }
_26           }
_26       });
_26   }

iOS Sample Code

For iOS, start by downloading the library from here.

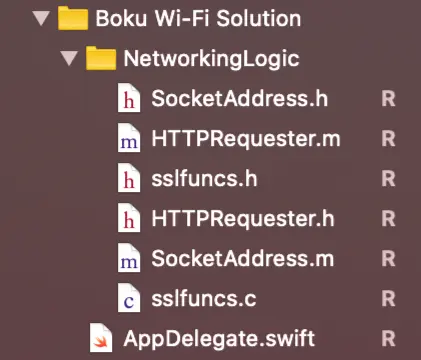

Add the NetworkingLogic folder, which contains six files, to your project folder as shown below.

File structure that begins with a directory named Boku Wi-Fi Solution with a directory under it named NetworkingLogic.

Include #import "HTTPRequester.h in the Swift bridging header file. Also, include the code below as a member function in the ViewController that fires the EVURL.


_56//
_56//  EvurlRequestWithCellularData.swift
_56//
_56//  Created by BENJAMIN BRYANT BUDIMAN on 05/09/18.
_56//  Copyright © 2021 Boku, Inc. All rights reserved.
_56//
_56
_56import Foundation
_56
_56/**
_56Requests the EvURL with cellular data, and checks whether the Silent Network Auth process completes or not.
_56Important note: this function shall always return false if cellular data is not available.
_56
_56 - Parameter evurl: The EvURL to be requested
_56 - Returns: true if the Silent Network Auth process is successful and vice versa
_56 */
_56func requestEvurlWithCellularData(evurl:String) -> Bool {
_56    let response = requestHelper(url: evurl)
_56
_56    // If any internal and network errors occured in HTTPRequester.performGetRequest, the function will return "ERROR"
_56    if response == "ERROR" {
_56        return false;
_56    }
_56
_56    // Boku returns "ErrorCode=0&ErrorDescription=Success" only when the Silent Network Auth process is complete
_56    if response.range(of:"ErrorCode=0&ErrorDescription=Success") != nil {
_56        return true;
_56    }
_56
_56    // Any HTTP responses without the above substring indicate an incomplete Silent Network Auth process
_56    return false;
_56}
_56
_56/**
_56 Recursive function that keeps requesting a new URL with cellular data when the HTTP request returns a HTTP redirect code (3xx)
_56
_56 - Parameter url: The URL to be requested
_56 - Returns: string response from the HTTP request
_56 */
_56func requestHelper(url:String) -> String {
_56    // If the HTTP GET request returns a HTTP redirect code (3xx), HTTPRequester.performGetRequest returns a
_56    // formatted string that contains the redirect URL. The formatted string starts with "REDIRECT:"
_56    // and it's followed with the redirect URL (e.g. REDIRECT:https://www.boku.com)
_56    var response = HTTPRequester.performGetRequest(URL(string: url))
_56
_56    if response!.range(of:"REDIRECT:") != nil {
_56        // 1. Get the redirect URL by getting rid of the "REDIRECT:" substring
_56        let redirectRange = response!.index(response!.startIndex, offsetBy: 9)...
_56        let redirectLink = String(response![redirectRange])
_56
_56        // 2. Make a request to the redirect URL
_56        response = requestHelper(url: redirectLink)
_56    }
_56
_56    return response!
_56}

Execute the EVURL as shown in the code sample below. Please note the EVURL will change and must be created each time.


_10override func viewDidLoad() {
_10  super.viewDidLoad()
_10
_10  let EVURL = "http://boku-url/cimi/evurl?SKEY=BEHBuKkD3yxt6dD6NgEHKhjBLZTPwQgT2Yb06NMnCilwuVgEetIlH7lUL%2BgmAEY%2FlaFVkoxzfdndPlVmP9FBRycx%2BhKZeLAo1gmvBP9qdb0%3D"
_10
_10  _ = requestEvurlWithCellularData(evurl: EVURL)
_10}

(warning)

Warning

EVURLs are Unique!

EVURLs are unique to each request, do not hard code one. EVURLs can be created manually using the Create an EVURL endpoint.
