Using Linked Audiences with Braze

The following engagement tool is available for use with Linked Audiences in Segment:

Segment sends data from your Linked Audiences to actions-based destinations. For example, you could send account information for the audience profiles with past due accounts to an email platform.

You can configure multiple triggers per audience (for example, one for account entry, and one for account exit).

Braze's action-based delivery campaigns store the entity personalization payload as nested objects in custom events.

Complete the following setup steps before you configure an action based delivery campaign in Braze.

In Segment, make sure you have:

• Set up your Linked Audience.
• A copy of your Linked Audience Event Personalization Payload, event name, and Braze user id.
• Set up Braze as an actions destination.
• Set up a Track Event destination action and the relevant trigger using the Linked Audiences workflow.

In Braze, make sure you have:

• Permissions to access the application, or access to someone with permissions.
• Created all Segment profiles as Braze profiles using the Update User Profile destination action through Connections or Reverse ETL. This is a requirement for the profiles to receive an action-based campaign.
• Created a Braze profile that has an email address you can access. You'll use this profile for campaign testing in a later step.
• Familiarity with the Liquid templating syntax.

To use Linked Audiences you must set up an action-based delivery campaign in Braze.

In Braze, do the following:

1. Create a new email Campaign.
2. Create an email using the HTML Editor and personalize it using Liquid tags.
   1. Reference your personalization payload schema from Segment to determine what properties to include in your message.
   2. Translate the Segment event properties in the payload schema into Liquid syntax for custom events, and enter it in the Braze HTML editor. See the following personalization examples for more details on how you can personalize your campaign.
3. Next, schedule your campaign delivery:
   1. Select Action-based delivery > New Trigger Action: Perform Custom Event > Add Trigger.
   2. Search for and select the name of the Segment custom event you previously set up and tested in Segment.
   3. Select Delivery Controls > Allow users to become re-eligible to receive campaigns checkbox, and select 0 minutes. This is necessary for Step 2. Test your campaign flow so that you don't have to wait for a user to become re-eligible while testing. You can adjust these settings after you have finished testing.
4. Select your target Audience:
   1. Add a filter to target users without a segment.
   2. Search for and select the name of the Segment custom event you previously set up and tested in Segment.
   3. Select More than 0 times as the timeframe for this filter.
5. Update any additional settings that apply to your campaign, then review and deploy your campaign and continue to Step 2: Test your campaign flow.

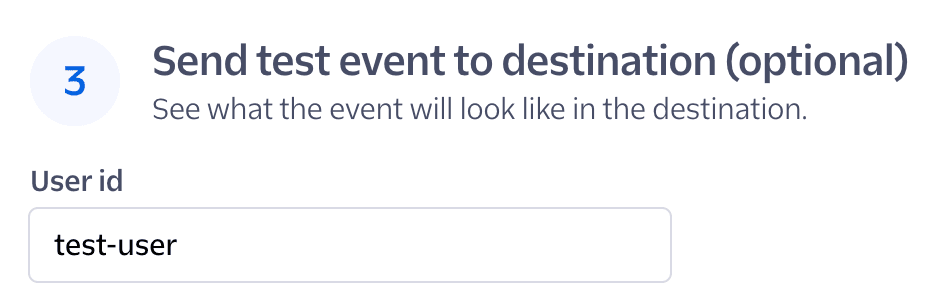

Open the Segment app and send yourself a test email for review. Add your Braze user id and click Send test event to destination. Review the email you received, and ensure it is formatted properly.

Expand image

1. If the event is sent successfully to Braze, you will see a "message": "success" response in Segment.
2. Open Braze and check your campaign dashboard (Braze > [Your Unique Campaign] > Analytics) to confirm that Braze sent the message. It can take up to 15 minutes for Braze to send the email.
3. If your email doesn't look the way you want it to, adjust the Liquid syntax in Braze and send another test event in Segment. See the following personalization examples for more specific details.
4. When you're finished testing your campaign, proceed to Enable your Linked Audience.

Use the following examples as context and information to experiment with setting up your campaign in Braze.

The following is an example of what your payload data might look like with nested payload properties:

1
{
2
   "event": "abandoned_carts_linked_audience",
3
   "properties": {
4
      "first_name": "Andrew",
5
      "last_name": "Shopper",
6
      "shopping_cart__id": "123",
7
      "shopping_cart__products": [
8
         {
9
            "id": "324",
10
            "product_name": "Premium Tennis Shoes",
11
            "product_price": "$140",
12
            "__entity": "product"
13
         },
14
         {
15
             "id": "489",
16
             "product_name": "Premium Jacket",
17
             "product_price": "$200",
18
            "__entity": "product"
19
          }
20
       ],
21
       "__entity": "cart"
22
     }
23
 }

The following helps translate your payload data into Liquid syntax:

• To reference a specific event property:
  • Use the following liquid syntax: {{event_properties.event_property_name}}
  • An example of this property might look like: {{event_properties.first_name}}
• To reference nested event properties within an Array:
  • Use the following liquid syntax: {{event_property_name.[#_that_represents_specific_entry_in_array].nested_event_property_name }}
  • An example of this property might look like: {{event_properties.shopping_cart__products[0].product_name}}

Use the Segment payload data you copied when setting up your Linked audience to build an abandoned cart email campaign that includes specific information for the product in a customer's shopping cart.

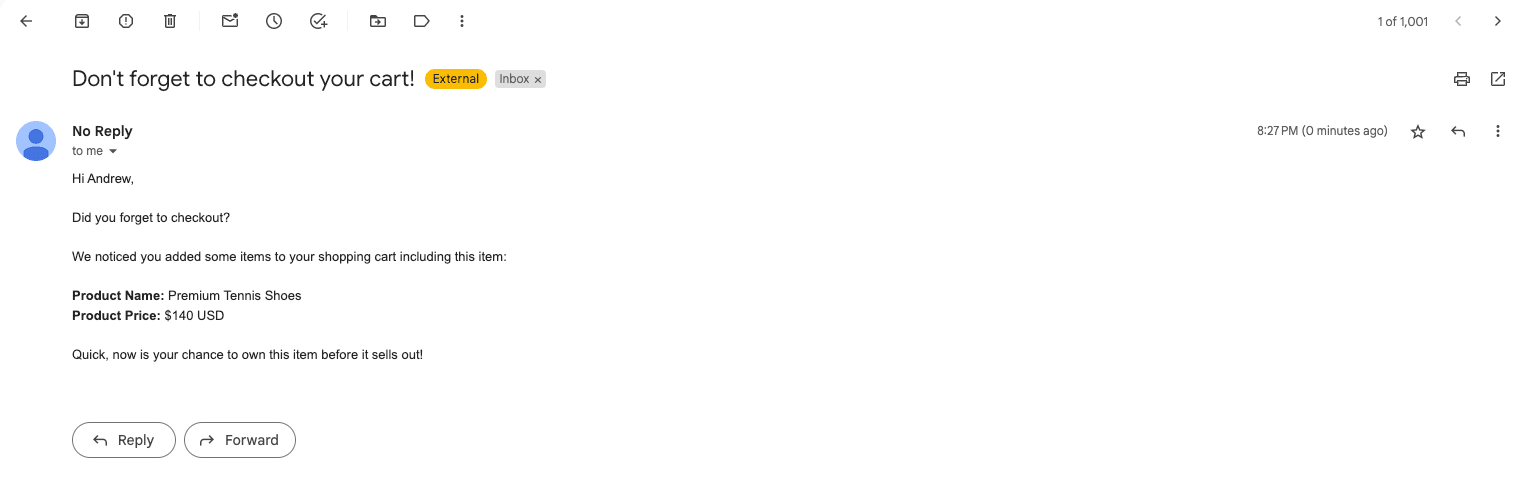

When an email is sent, it lists the specific product and its related price in your customer's shopping cart. It might look like the following screenshot:

Expand image

This is an example of what your email formatted using HTML and Liquid might look like in Braze:

1
Hi {{event_properties.first_name}},
2
<br />
3
<br />
4
Did you forget to checkout?<br />
5
<br />
6
We noticed you added some items to your shopping cart including this item: <br />
7
<br />
8
<b>Product Name: </b>
9
{{event_properties.shopping_cart__products[0].product_name}}
10
<br />
11
<b>Product Price: </b>
12
{{event_properties.shopping_cart__products[0].product_price}} USD
13
<br />
14
<br />
15

16
Quick, now is your chance to own this item before it sells out!

Use the Segment payload data you copied when setting up your Linked audience to build an abandoned cart email campaign where you can use an iteration tag to run a block of code repeatedly. In this example, you can use a for loop to list all of the products and their related prices in a customer's shopping cart.

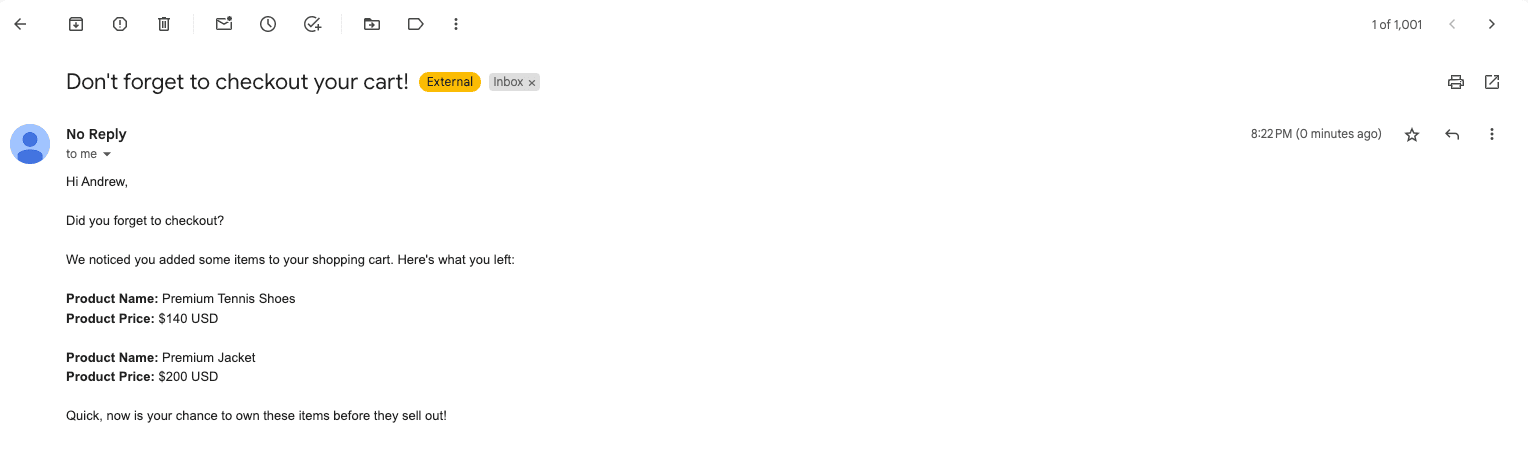

When an email is sent, it lists all of the products and their related prices in your customer's shopping cart. It might look like the following:

Expand image

This is an example of what your email formatted using HTML and Liquid might look like in Braze:

1
Hi {{event_properties.first_name}},
2
<br />
3
<br />
4
Did you forget to checkout?<br />
5
<br />
6
We noticed you added some items to your shopping cart. Here's what you left: <br />
7
<br />
8

9
{% for products in event_properties.shopping_cart__products %}
10
<b>Product Name: </b>
11
{{products.product_name}}
12
<br />
13
<b>Product Price: </b>
14
{{products.product_price}} USD
15
<br />
16
<br />
17

18
{%endfor%}
19

20
Quick, now is your chance to own these items before they sell out!
