Call Transfer via SIP REFER


Call transfer enables you to move an active call from one endpoint to another. Twilio's Elastic SIP Trunking(link takes you to an external page) product supports "blind" call transfers. This means you're now able to request a call be transferred by sending Twilio a SIP REFER message from your SIP communications infrastructure. Twilio will serve as the pivot-point and handle the call redirect thereby allowing you to free up resources in your IP communications infrastructure that are no longer needed.

Call transfers are enabled on a per-Trunk basis, this enables transfers to any SIP destination. Optionally, you may also enable call Transfers to the PSTN.

To start transferring calls, you can configure call transfers using Twilio Console(link takes you to an external page) or API.

For Console, log into Twilio Console(link takes you to an external page), and navigate to an existing Elastic SIP Trunk (or create a new Elastic SIP Trunk):

  1. Enable Call Transfers on that Trunk under General Settings
  2. Optionally enable call transfers to the PSTN via your Trunk. This is optional as you may not want to allow calls to be transferred to the PSTN given the associated billing implications of such a transfer.

Place a call via your Elastic SIP Trunk; once established, initiate a call transfer from your phone. Twilio will receive that request & transfer your call. Check your Twilio Call Log in the Console to confirm the transfer worked as requested and to see all relevant call details.


Call Transfer call flow

call-transfer-call-flow page anchor

Call Transfer to another SIP endpoint

call-transfer-to-another-sip-endpoint page anchor

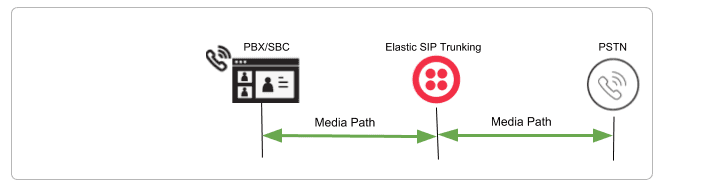

Let's start with an active Elastic SIP Trunking Call established from your PBX/SBC via Twilio to the PSTN.

Elastic SIP Trunking call.

The players are:

  • Transferor (your PBX/SBC) - The party initiating the transfer of the Transferee to the Transfer-target.
  • Transferee (Twilio/PSTN) - The party being transferred to the Transfer-target.
  • Transfer-target (your PBX/SBC) - The new party being introduced to the Transferee.

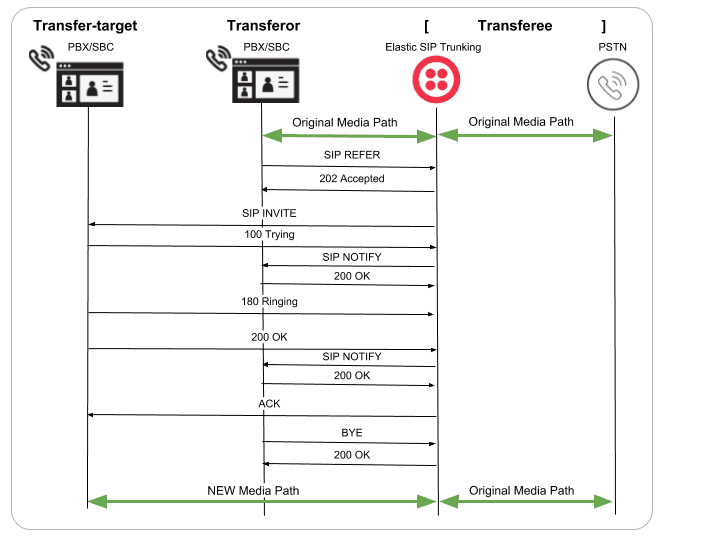

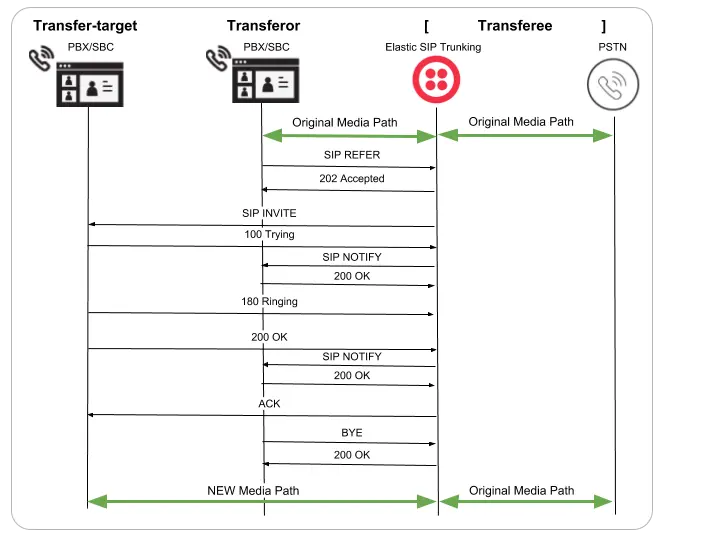

SIP REFER to SIP endpoint.

Everything kicks off with the SIP REFER message from your PBX/SBC towards Twilio. Within the SIP REFER is a Refer-to header (designating a new SIP endpoint as the Transfer-target). Upon receiving the SIP REFER, Twilio returns a 202 Accepted response to your PBX/SBC. This informs you that Twilio is willing to carry out the transfer.

The original call is placed on hold (not shown in the call flow).

The SIP REFER creates a quasi-subscription between the Transferor (your PBX/SBC) and Twilio. Even though there wasn't a SIP SUBSCRIBE message sent, for the duration of the transfer, Twilio will act as if such a subscription exists.

Twilio sends a SIP INVITE to the new SIP endpoint which processes the SIP INVITE as a normal, incoming call. At this time, Twilio will send SIP NOTIFY messages to inform the Transferor of the status (100 Trying, 200 OK) of the new call from Twilio to the new SIP endpoint.

Once the new call is answered, the Transferor will terminate the existing, held call to the original SIP endpoint.

Please note that early media with Call Transfers is not supported.

Set CallerID for call transfer

set-callerid-for-call-transfer page anchor

Twilio allows you to set the caller ID for call transfer use cases using the console. Select the Trunk(link takes you to an external page) of your choice, in the "General section" under "Call Transfer (SIP Refer)" you can see "Caller ID for Transfer Target". The default value is Transferee and you can change to Transferor based on your use cases. You can also configure the same using the API.

Call Transfer to the PSTN

call-transfer-to-the-pstn page anchor

In order to transfer a call to the PSTN you must include your Trunking Termination Domain for example sip:+14152908007@{my-trunk}.pstn.twilio.com or alternatively use a Tel-URI for example tel:+14152909007 in the Refer-To header.

Call Transfers to Emergency Services (911/933) are not supported.


If you look at your Elastic SIP Trunking call logs(link takes you to an external page), you'll notice that the Original Call has a "Child Call" representing the new call established as a result of the requested Call Transfer.


Initiating a Call Transfer via your Elastic SIP Trunk is free, however you'll continue to be responsible for the per-minute Trunking charges to the referred-to destination on your account.

Please refer to the following tables to understand the details around Billing and Call Logs:

Trunking Termination Billing/Logs with Call Transfers

trunking-termination-billinglogs-with-call-transfers page anchor
Transfer ScenarioParent Call BillingParent Call LogChild Call BillingChild Call Log
Trunking Termination (from:A to:B)

Transfer to SIP (to:C)
Trunking Termination (from:A to:B) x Parent call durationfrom:A to:BTrunking Termination (from:C to:B) x Child call durationfrom:B to:C
Trunking Termination (from:A to:B)

Transfer to PSTN (to:C)
Trunking Termination (from:A to:B) x Parent call durationfrom:A to:BTrunking Termination (from:A to:B) x Child call duration +

Trunking Termination (from:A to:C) x Child call duration
from:B to:C

Trunking Origination Billing/Logs with Call Transfers

trunking-origination-billinglogs-with-call-transfers page anchor
Transfer ScenarioParent Call BillingParent Call LogChild Call BillingChild Call Log
Trunking Origination (from:A to:B)

Transfer to Public SIP (to:C)
Trunking Origination (from:A to:B) x Parent call durationfrom:A to:BTrunking Origination (from:A to:C) x Child call durationfrom:A to:C
Trunking Origination (from:A to:B)

Transfer to PSTN (to:C)
Trunking Origination (from:A to:B) x Parent call durationfrom:A to:BTrunking Origination (from:A to:B) x Child call duration +

Trunking Termination (from:B to:C) x Child call duration
from:A to:C
