Identity Resolution Onboarding

After receiving a new event, Segment looks for profiles that match any of the identifiers on the event.

Based on the existence of a match, one of three actions can occur:

1: Create a new profile When there are no pre-existing profiles that have matching identifiers to the event, Segment creates a new user profile.

2: Add to existing profile When there is one profile that matches all identifiers in an event, Segment attempts to map the traits, identifiers, and events on the call to that existing profile. If there is an excess of any identifier on the final profile, Segment defers to the Identity Resolution rules outlined below.

3: Merge existing profiles When there are multiple profiles that match the identifiers in an event, Segment checks the Identity Resolution rules outlined below, and attempts to merge profiles.

Identity Admins should first configure Identity Resolution Settings to protect the identity graph from inaccurate merges and user profiles.

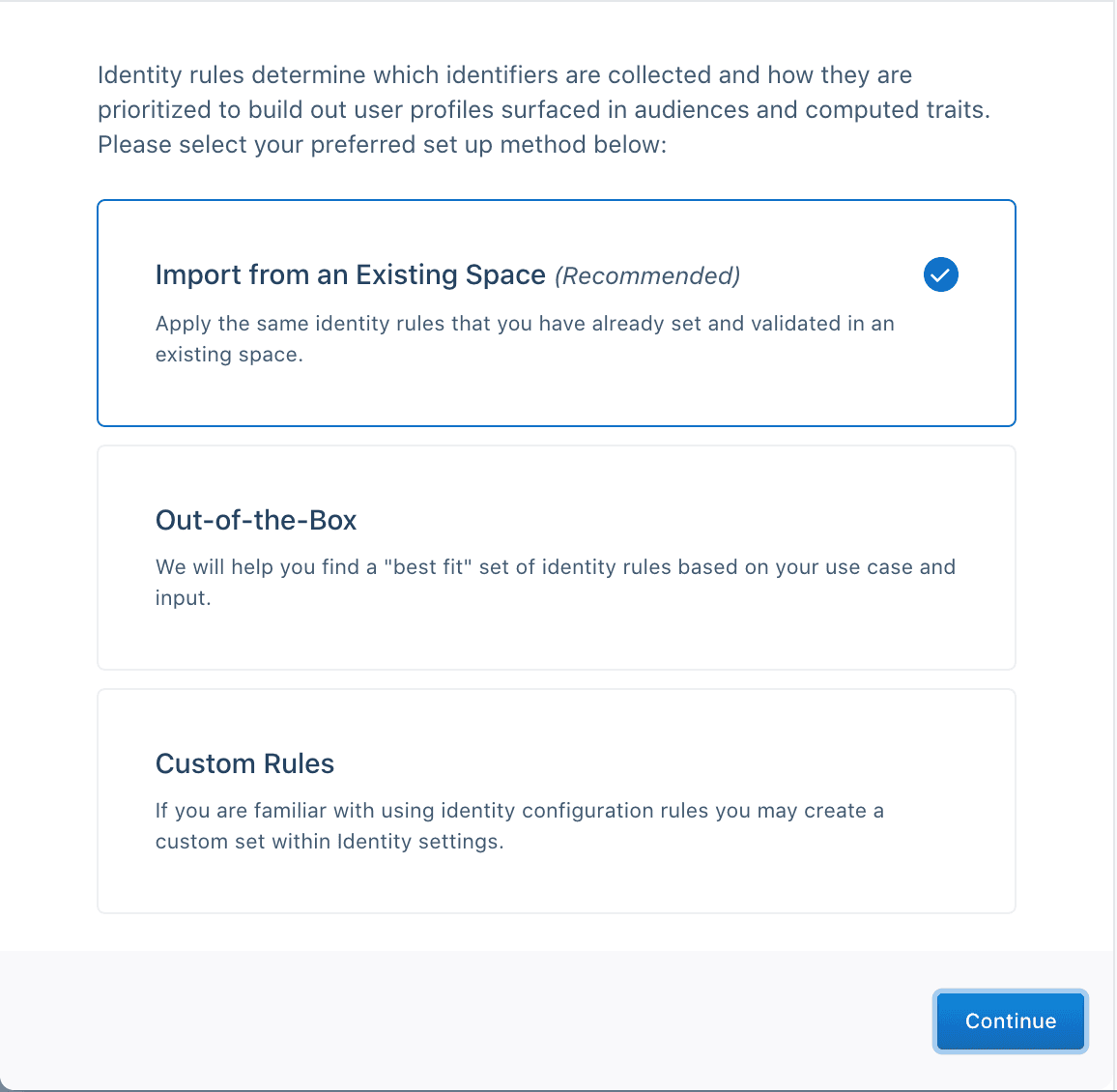

During the space creation process, the first step is to choose an Identity Resolution configuration. If this is your first space, you have the option to choose a Segment-suggested Out-of-the-Box configuration or a custom Identity Resolution setup. All other spaces have a third option of importing settings from a different space.

Expand image

For most first-time users, Segment recommends that you use the out-of-the-box configuration and answer a short series of questions for a best-fit setup for your use-case.

If you have custom unique identifiers or don't have a canonical user_id, you're automatically redirected to the Identity Resolution Settings page to complete your setup.

If you're familiar with identity or have custom identifiers, Segment recommends that you select Custom Rules.

Segment redirects you to the Identity Resolution Settings page where you can add Default Identifiers or Custom Identifiers.

Segment's 11 default are:

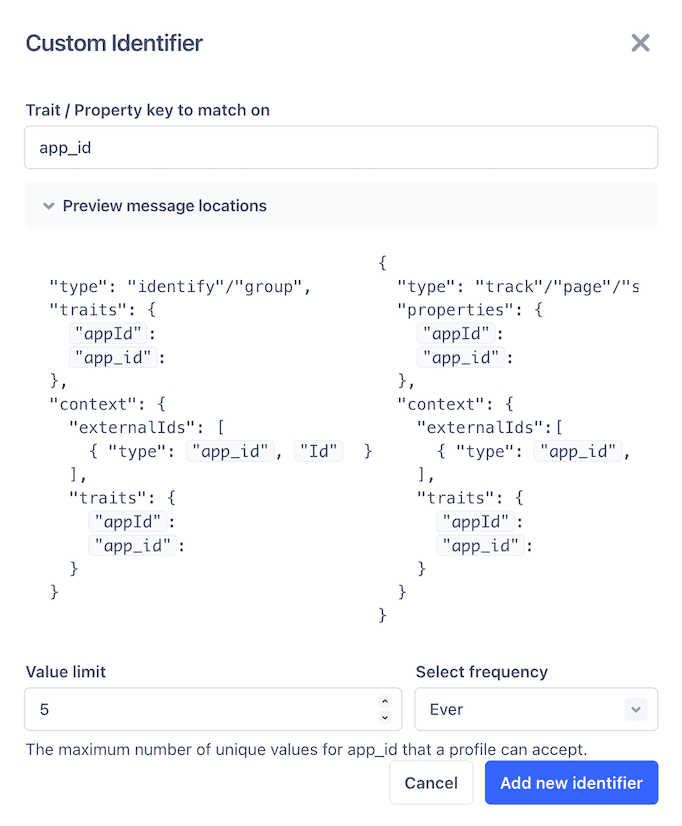

You can also provide a trait or property key to match on to add custom identifiers. You can preview the locations where Segment looks for the identifier. Segment accepts both camelCase and snake_case for context.traits, traits, and properties, but accepts lowercase types for identifiers only in the context.externalIds object.

Expand image

Segment recommends that you proactively prevent using certain values as identifiers. While these values remain in the payload on the event itself, it is not promoted to an identifier Segment uses to determine user profiles.

This is important when developers have a hard-coded value for fields like user_id during QA or development that then erroneously make it to production. This may cause hundreds of profiles to merge incorrectly and can have costly consequences if these spaces already feed data into a production email marketing tool or push notification tool downstream.

In the past, Segment has seen certain default values that cause large amounts of profiles to merge incorrectly. Segment suggests that for every identifier, customers opt into automatically blocking the following suggested values:

Expand image

Before sending data through, Segment also recommends that you add any default hard-coded values that your team uses during the development process, such as void or abc123.

Identity Admins can specify the total number of values allowed per identifier type on a profile during a certain period. For example, in the image below, the anonymous_id field has a limit of 5 Weekly.

Expand image

This will vary depending on how companies define a user today. In most cases, companies rely on user_id to distinguish user profiles and Segment defaults to the following configurations:

Specific cases may deviate from this default. For example, a case where a user can have more than one user_id but one email, like when shopify_id and an internal UUID define a user. In this case, an example configuration may be:

When you choose the limit on an identifier, ask the following questions about each of the identifiers you send to Segment:

1. Is it an immutable ID? An immutable ID, such as user_id, should have 1 ever per user profile.
2. Is it a constantly changing ID? A constantly changing ID, such as anonymous_id or ga_client_id, should have a short sliding window, such as 5 weekly or 5 monthly, depending on how often your application automatically logs out the user.
3. Is it an ID that updates on a yearly basis? Most customers will have around five emails or devices at any one time, but can update these over time. For identifiers like email, android.id, or ios.id, Segment recommends a longer limit like 5 annually.

Segment considers the priority of an identifier once that identifier exceeds the limit on the final profile.

For example, consider a Segment space with the following Identity Resolution configurations:

A profile already exists with user_id abc123 and email jane@example1.com. A new event comes in with new user_id abc456 but the same email jane@example1.com.

If this event maps to this profile, the resulting profile would then contain two user_id values and one email. Given that user_id has a limit of 1, this exceeds the limit of that identifier. As a result, Segment checks the priority of the user_id identifier. Because email and user_id are the two identifiers on the event and email ranks lower than user_id, Segment demotes email as an identifier on the incoming event and tries again.

At this point, the event searches for any profiles that match just the identifier user_id abc456. Now there are no existing profiles with this identifier, so Segment creates a new profile with user_id abc456.

By default, Segment explicitly orders user_id and email as rank 1 and 2, respectively. All other identifiers are in alphabetical order beginning from rank 3. This means that if the identifiers sent with events flowing into Segment are user_id, email, anonymous_id, and ga_client_id, the rank would be as follows:

If a new android.id identifier appeared without first giving it explicit order, the order would automatically reshuffle to:

If you require an explicit order for all identifiers, configure this in the Identity Resolution Settings page before sending in events.

Expand image

When choosing the priority of your identifier, ask the following questions about each of the identifiers you send to Segment:

1. Is it an immutable ID? Give immutable IDs, such as user_id, highest priority.
2. Are they unique IDs? Give Unique IDs such as email higher priority than possibly shared identifiers like android.id or ios.id.
3. Does it temporarily identify a user? Identifiers such as anonymous_id, ios.idfa, and ga_client_id are constantly updated or expired for a user. Generally speaking, rank these lower than identifiers that permanently identify a user.

This option is available to new spaces after you create an initial Dev space. Segment recommends this option when identity settings are validated as correct in the initial Dev space and should be copied into the Production space.

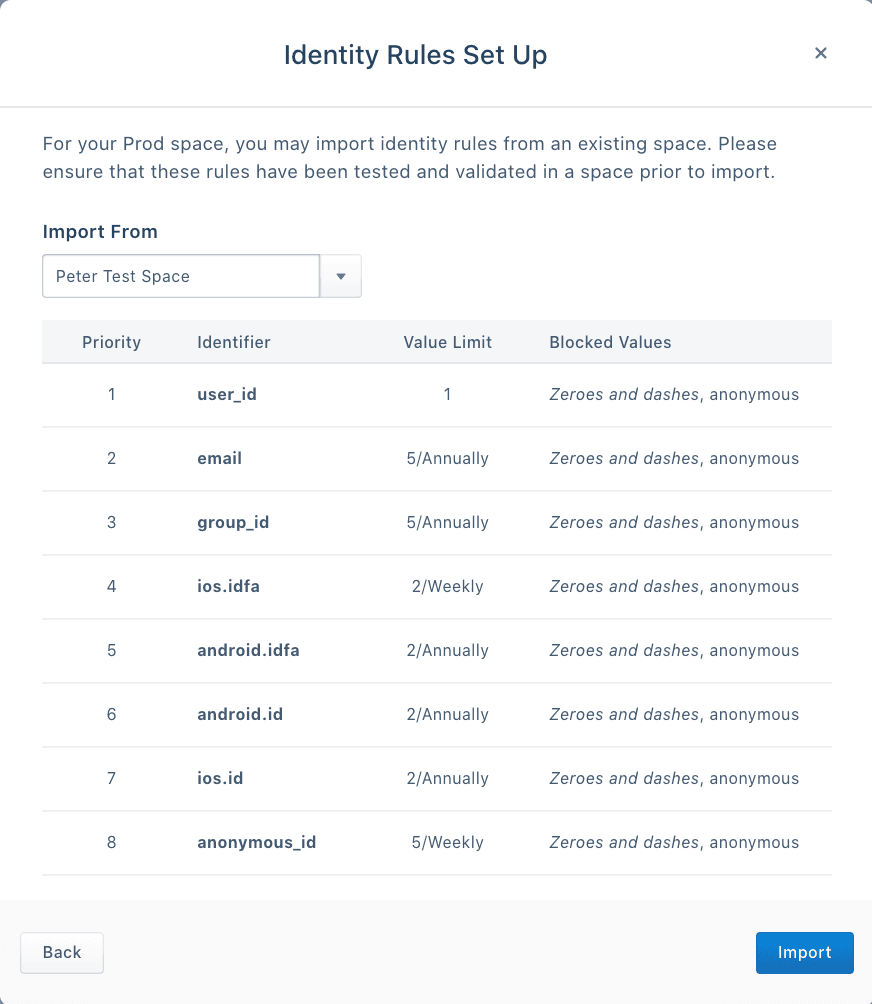

You can review the identifiers, priorities, limits, and blocked values before you complete the import.

Expand image

After you configure Identity Resolution settings, the next step is to connect a source to the Segment space.

After you connect a source, Segment creates user profiles based off of replayed and newly incoming data.

Expand image

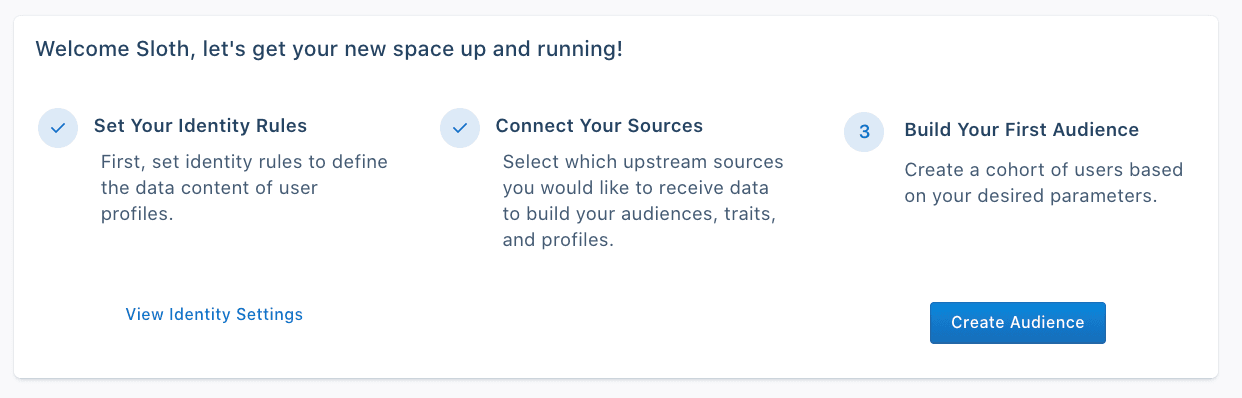

The next step, which is important in the Dev space, is to create an audience to ensure that user profiles have populated correctly and that the Identity Resolution settings follow expected business logic.

For example, if there should be 100,000 distinct users who have a user_id, this would be a great way to validate that the Identity Resolution settings have calculated profiles correctly.

For more information about how to create audiences and traits, see Segment's Audiences docs.
