Conversations Webhooks

Conversations sends pre-action and post-action webhooks for most events that happen in your application. These webhooks allow you to monitor and intercept user actions in your own backend service, in a Function, or in a Studio flow. You can also use these webhooks to store activity logs in a system of record or in a logging server as part of your own application.

Conversations webhooks have a maximum timeout of 5 seconds.

Twilio can send your web application an HTTP request when certain events happen, such as an incoming text message to one of your Twilio phone numbers. These requests are called webhooks, or status callbacks. For more, check out our guide to Getting Started with Twilio Webhooks. Find other webhook pages, such as a security guide and an FAQ in the Webhooks section of the docs.

Table of Contents

Configuring Webhook Targets and Filtering

You can configure the global (Account-level) webhook target and service-level webhook target through the Console, or through the REST API.

  • For the global webhook target, go to Conversations > Global webhooks.
  • For the service-level webhook target, select your Conversation Service, then go to Webhooks.

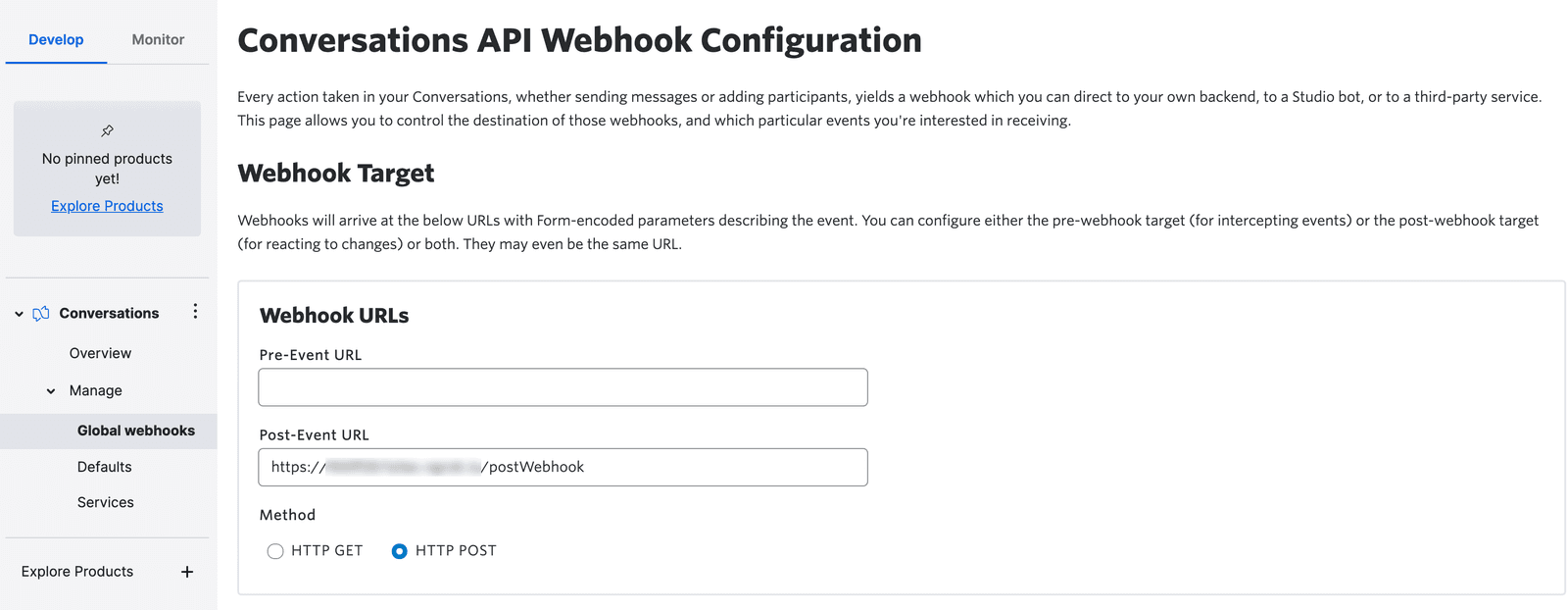

Configuring global webhooks for Conversations in the Twilio Console

Note: The Conversation-scoped webhooks may only be modified via the REST API.

Webhook Filtering

In addition to configuring the URLs for pre-action and post-action webhooks, you can also choose to send only certain webhooks to your servers. This helps avoid unnecessarily burdening your web application with traffic.

These can also be configured at an account level (globally) or at the service level in the Twilio Console:

  • For the global webhook target, go to Conversations > Global webhooks and scroll down to Webhook Filtering.
  • For the service-level webhook target, select your Conversation Service, then go to Webhooks. Scroll down to Webhook Filtering.

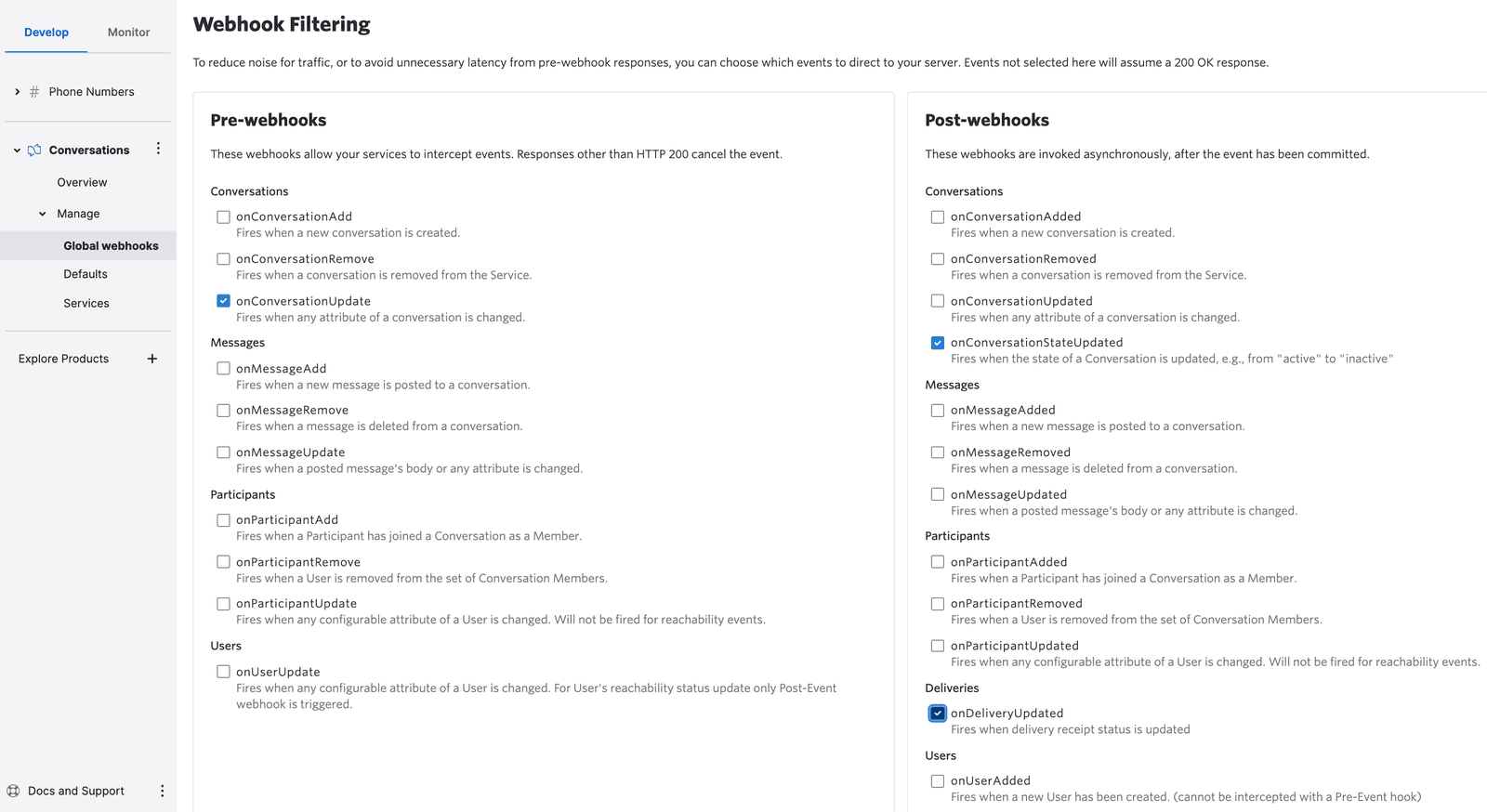

Webhook Filtering Conversations.png

Webhook Action Triggers

Most actions — but not all of them — have both a pre-action and a post-action webhook. The former is fired before the action has been published, and Twilio waits for a response before publishing it. The latter is fired after publication, assuming the action was not rejected by your pre-action webhook response.

The below table enumerates all Conversations webhook actions in corresponding pairs.

Pre-Action Post-Action Description (incl. Post-Action)
onMessageAdd onMessageAdded Fires when a new message is posted to a conversation.
onMessageRemove onMessageRemoved Fires when a message is deleted from a conversation.
onMessageUpdate onMessageUpdated Fires when a posted message's body or any attribute is changed.
onConversationAdd onConversationAdded Fires when a new conversation is created.
onConversationRemove onConversationRemoved Fires when a conversation is removed from the Service.
onConversationUpdate onConversationUpdated Fires when any attribute of a conversation is changed.
onParticipantAdd onParticipantAdded Fires when a Participant has joined a Conversation as a Member.
onParticipantRemove onParticipantRemoved Fires when a User is removed from the set of Conversation Members.
onParticipantUpdate onParticipantUpdated Fires when any configurable attribute of a User is changed. Will not be fired for reachability events.
--- onConversationStateUpdated Fires when the state of a Conversation is updated, e.g., from "active" to "inactive"
--- onDeliveryUpdated Fires when delivery receipt status is updated
--- onUserAdded Fires when a new user is added
onUserUpdate onUserUpdated Fires when a user is changed

Triggering Webhooks for REST API Events

Upon configuration, only actions from SDK-driven clients (like mobile phones or browsers) or SMS-based Participants will cause webhooks without further action on your part. This includes both Service-level webhooks and Conversation-Scoped Webhooks. This is a default behavior to help avoid infinite feedback loops.

Your Post-Event Webhook target, however, may be an important tool for archiving. In this case, you may also want to enable webhook "echoes" from actions you take on the REST API. To do so, you can add a header X-Twilio-Webhook-Enabled=true to any such request. Requests bearing this header will yield webhooks to the configured Post-Event webhook target.

Using Pre-Action Webhooks to Modify or Reject Changes

In the case of Pre-Action webhooks, Twilio will wait for a response from your service before publishing a result. The arrival, HTTP status code, and content of your response determines how Conversations will proceed.

Response Status Code Body Result
HTTP 200 OK {} (or no content) Conversations will publish the change unmodified.
HTTP 200 OK

{ "body": "modified message" }

(See the list of modifiable fields.)

Conversations will publish the change with modifications as given in the response.

All values are optional, and missing fields will be left unmodified from the original event. See below for which fields can be modified for each data type (Conversations or Messages).

If modified values fail validation, the error will be returned to the SDK (or REST client) that triggered the event.

HTTP 40x (any error condition) N/A Conversations will reject the change and no publication will be made.
HTTP 50x (any error condition) N/A Conversations will reject the change and no publication will be made.
(no response or timeout) Conversations will publish the change unmodified after a timeout of 5 seconds; your messages will be delayed accordingly.

Modifiable Fields

Conversation Actions

In response to the onConversationAdd and onConversationUpdate actions, your Pre-Action Webhook response may modify the following property of the conversation:

  • friendly_name

An example response modifying a conversation

HTTP 200 OK
Content-Type: application/json
{
"friendly_name": "friendly name of conversation"
}

Message Actions

In response to onMessageAdd and onMessageUpdate actions, your Pre-Action Webhook response may modify the following properties of the message:

  • body
  • author
  • attributes

An example response modifying a message.

HTTP 200 OK
Content-Type: application/json
{
"body": "modified message text",
"author": "modified author name",
"attributes": "{\"key\" : \"value\"}"
}

Configuring Webhooks with the REST API

Your Conversations service can have global webhooks that apply to every conversation within the service, or you can specify webhooks per conversation.

Post-action webhooks are available for all three types of webhooks (global, service-level and conversation-scoped). Pre-action webhooks are only available for two types of webhooks (global and service-level).

Loading Code Sample...


        This API retrieves the configuration of a global webhook capturing events for entire service instance.

        Retrieve Existing Global Webhook Configuration for a Conversation Service

        This API retrieves the configuration of a global webhook capturing events for entire service instance.
        Loading Code Sample...


              This API updates the configuration of global webhook capturing events for entire service instance.

              Update Global Webhook Configuration for a Conversation Service

              This API updates the configuration of global webhook capturing events for entire service instance.
              Loading Code Sample...


                    This API retrieves the list of scoped webhooks configured for a specific Conversation.

                    List the Scoped Webhooks for a Conversation

                    This API retrieves the list of scoped webhooks configured for a specific Conversation.
                    Loading Code Sample...


                          This API fetches the configuration of a specific scoped webhook configured for the given Conversation.

                          Retrieve the Configuration for a Specific Webhook

                          This API fetches the configuration of a specific scoped webhook configured for the given Conversation.
                          Loading Code Sample...


                                This API creates a new scoped webhook for the given Conversation.

                                Create New Scoped Webhook Configuration

                                This API creates a new scoped webhook for the given Conversation.

                                Webhook Bodies by Event Type

                                When Twilio makes an HTTP request to your server, it includes information about the action that triggered the webhook call to your web application. Each action has its own event type.

                                In addition to the event-specific parameters, each request also contains the following parameters and information:

                                parameter name type description
                                AccountSid string, SID The Twilio Account SID that the Conversation belongs to
                                EventType string The type of action that triggered this webhook event (see details for each event type below)
                                Source string The source of the action that created this event - possible values are SDK or API
                                ClientIdentity string The identity of the user that performed the action (SDK-originating events only)

                                Note: Each HTTP request is issued with the Content-Type header application/x-www-urlencoded.

                                Pre-action Webhooks Request Parameters

                                onConversationAdd

                                You may modify the FriendlyName of this conversation by replying to this webhook with a JSON object that contains the new friendly name.

                                parameter name type description
                                EventType string Always onConversationAdd
                                FriendlyName string, optional The friendly name of the conversation, if set
                                UniqueName string The unique name of the conversation
                                Attributes string Conversation metadata as set by the customer, represented as stringified JSON
                                ChatServiceSid string, SID Conversation Service SID
                                MessagingServiceSid string, SID Messaging Service instance SID
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by channel creator
                                MessagingBinding.Address string, optional (see note) Originating phone number of the channel creator
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS. Communication mask for the Conversation participant with Identity
                                MessagingBinding.AuthorAddress string, optional* Number of the message author when auto-creating Group MMS
                                MessageBody string, optional Initial conversation message string
                                Media string, JSON, optional Stringified JSON array of attached media objects
                                State string Enumerated type representing state of the conversation
                                ChannelMetadata string Stringified and escaped JSON pass-through metadata from OTT channels. Only available in GBM Private Beta. See sample payload.

                                Note: MessagingBinding.ProxyAddress and MessagingBinding.Address attributes are null if the Conversation is created from the REST API and there are no participants yet. Note: When auto-creating Group MMS Conversation, MessagingBinding.Address is shown as a list of Addresses.

                                onConversationRemove

                                parameter name type description
                                EventType string Always onConversationRemove
                                ConversationSid string, SID Conversation String Identifier
                                DateCreated string, ISO8601 time The date of creation of the conversation
                                DateUpdated string, ISO8601 time The last modification date of the conversation
                                FriendlyName string, optional The friendly name of the conversation, if set
                                UniqueName string The unique name of the conversation
                                Attributes string Conversation metadata as set by the customer, represented as stringified JSON
                                ChatServiceSid string, SID Conversation Service SID
                                MessagingServiceSid string, SID Messaging Service instance SID
                                State string Enumerated type representing state of the conversation

                                onConversationUpdate

                                You may modify the FriendlyName of this conversation by replying to this webhook with a JSON object that contains the new friendly name.

                                parameter name type description
                                EventType string Always onConversationUpdate
                                ConversationSid string, SID Conversation String Identifier
                                DateCreated string, ISO8601 time The date of creation of the conversation
                                DateUpdated string, ISO8601 time The last modification date of the conversation
                                FriendlyName string, optional The friendly name of the conversation, if set
                                UniqueName string The unique name of the conversation
                                Attributes string Conversation metadata as set by the customer, represented as stringified JSON
                                ChatServiceSid string, SID Conversation Service SID
                                MessagingServiceSid string, SID Messaging Service instance SID
                                State string Enumerated type representing state of the conversation

                                onMessageAdd

                                Your application may modify the Body and Author parameters in the pre-event webhook. To update these parameters, reply to the webhook with a JSON object that contains the relevant keys and values.

                                parameter name type description
                                EventType string Always onMessageAdd
                                ConversationSid string Conversation SID identifier for the conversation the message is being added to.
                                Body string The body of the message
                                Author string The author of the message
                                ParticipantSid string, optional Participant SID of the message author
                                Attributes string Message metadata as set by customer, represented as stringified JSON
                                Media string, JSON, optional Stringified JSON array of attached media objects
                                ChannelMetadata string Stringified and escaped JSON pass-through metadata from OTT channels. Only available in GBM Private Beta. See sample payload.

                                onMessageRemove

                                parameter name type description
                                EventType string Always onMessageRemove
                                ConversationSid string Conversation SID identifier for the conversation the message is being removed from.
                                MessageSid string Message sid identifier
                                Index int Message index in the messages stream
                                DateCreated string, ISO8601 time Creation date of the message
                                DateUpdated string, ISO8601 time Last modification date of the message
                                Body string The body of the message
                                Author string The author of the message
                                ParticipantSid String, optional Participant SID of the message author
                                Attributes string Message metadata as set by customer, represented as stringified JSON
                                Media string, JSON, optional Stringified JSON array of attached media objects

                                onMessageUpdate

                                Your application may modify the Body and Authorparameters in the pre-event webhook. To update these parameters, reply to the webhook with a JSON object that contains the relevant keys and values.

                                parameter name type description
                                EventType string Always onMessageUpdate
                                ConversationSid string Conversation SID identifier for the conversation the message is in.
                                MessageSid string Message sid identifier
                                Index int Message index in the messages stream
                                DateCreated string, ISO8601 time Creation date of the message
                                DateUpdated string, ISO8601 time Last modification date of the message
                                Body string The body of the message
                                Author string The author of the message
                                ParticipantSid string, optional Participant SID of the message author
                                Attributes string Message metadata as set by customer, represented as stringified JSON
                                Media string, JSON, optional Stringified JSON array of attached media objects

                                onParticipantAdd

                                parameter name type description
                                EventType string Always onParticipantAdd
                                ConversationSid string, SID Conversation String Identifier
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of Chat User that is being added to the conversation
                                Attributes string Participant metadata as set by the customer, represented as stringified JSON
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by participant
                                MessagingBinding.Address string, optional (see note) Originating phone number of the participant
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS. Communication mask for the Conversation participant with Identity
                                MessagingBinding.Type string Type of the participant, one of: SMS, CHAT, WHATSAPP

                                Note: A Conversation Participant has either the Identity (and MessagingBinding ProjectedAddress for GroupMMS Participant) or MessagingBinding ProxyAddress and Address attributes filled in. In case the added participant is SMS or WhatsApp, Identity is null and both addresses are supplied. If the added participant is Chat-only, the Identity value is provided, and both MessagingBinding addresses (MessagingBinding ProxyAddress and Address) are null.

                                onParticipantRemove

                                parameter name type description
                                EventType string Always onParticipantRemove
                                ConversationSid string, SID Conversation String Identifier
                                ParticipantSid string, SID Participant String Identifier
                                DateCreated string, ISO8601 time Creation date of the participant
                                DateUpdated string, ISO8601 time The last modification date of the participant
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of Chat User that is being added to the conversation
                                Attributes string Participant metadata as set by the customer, represented as stringified JSON
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by participant
                                MessagingBinding.Address string, optional (see note) Originating phone number of the participant
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS. Communication mask for the Conversation participant with Identity
                                MessagingBinding.Type string Type of the participant, one of: SMS, CHAT, WHATSAPP

                                Note: A Conversation Participant has either the Identity (and MessagingBinding ProjectedAddress for GroupMMS Participant) or MessagingBinding ProxyAddress and Address attributes filled in. In case the added participant is SMS or WhatsApp, Identity is null and both addresses are supplied. If the added participant is Chat-only, the Identity value is provided, and both MessagingBinding addresses (MessagingBinding ProxyAddress and Address) are null.

                                onParticipantUpdate

                                parameter name type description
                                EventType string Always onParticipantUpdate
                                ConversationSid string, SID Conversation String Identifier
                                ParticipantSid string, SID Participant String Identifier
                                DateCreated string, ISO8601 time Creation date of the participant
                                DateUpdated string, ISO8601 time The last modification date of the participant
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of Chat User that is being added to the conversation
                                Attributes string Participant metadata as set by the customer, represented as stringified JSON
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by participant
                                MessagingBinding.Address string, optional (see note) Originating phone number of the participant
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS. Communication mask for the Conversation participant with Identity
                                MessagingBinding.Type string Type of the participant, one of: SMS, CHAT, WHATSAPP

                                Note: A Conversation Participant has either the Identity (and MessagingBinding ProjectedAddress for GroupMMS Participant) or MessagingBinding ProxyAddress and Address attributes filled in. In case the added participant is SMS or WhatsApp, Identity is null and both addresses are supplied. If the added participant is Chat-only, the Identity value is provided, and both MessagingBinding addresses (MessagingBinding ProxyAddress and Address) are null.

                                onUserUpdate

                                parameter name type description
                                EventType string Always onUserUpdate
                                ChatServiceSid string, SID Conversation Service String Identifier
                                UserSid String, SID User String Identifier
                                DateUpdated string, ISO8601 time User modification date
                                Identity string, optional (see note) The Identity of the Chat User being updated
                                RoleSid string Role of the Chat User being updated
                                Attributes string User metadata, as set by the customer, represented as stringified JSON
                                FriendlyName string Friendly name of the User

                                Post Action Webhooks request parameters

                                onConversationAdded

                                parameter name type description
                                EventType string Always onConversationAdded
                                ConversationSid string, SID Conversation Sid identifier
                                DateCreated string, ISO8601 time The date of creation of the conversation
                                DateUpdated string, ISO8601 time The last modification date of the conversation
                                FriendlyName string, optional The friendly name of the conversation, if set
                                UniqueName string, optional The unique name of the conversation
                                Attributes string Conversation metadata as set by the customer, represented as stringified JSON
                                ChatServiceSid string, SID Conversation Service SID
                                MessagingServiceSid string, SID Messaging Service instance SID
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by channel creator
                                MessagingBinding.Address string, optional (see note) Originating phone number of the channel creator
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS. Communication mask for the Conversation participant with Identity
                                MessagingBinding.AuthorAddress string, optional* Number of the message author when auto-creating Group MMS
                                State string Enumerated type representing state of the conversation
                                ChannelMetadata string Stringified and escaped JSON pass-through metadata from OTT channels. Only available in GBM Private Beta. See sample payload.

                                onConversationRemoved

                                parameter name type description
                                EventType string Always onConversationRemoved
                                ConversationSid string, SID Conversation String Identifier
                                DateCreated string, ISO8601 time The date of creation of the conversation
                                DateUpdated string, ISO8601 time The last modification date of the conversation
                                DateRemoved string, ISO8601 time The date the conversation was removed
                                FriendlyName string, optional The friendly name of the conversation, if set
                                UniqueName string, optional The unique name of the conversation
                                Attributes string Conversation metadata as set by the customer, represented as stringified JSON
                                ChatServiceSid string, SID Conversation Service SID
                                MessagingServiceSid string, SID Messaging Service instance SID
                                State string Enumerated type representing state of the conversation

                                onConversationUpdated

                                You may modify the FriendlyName of this conversation by replying to this webhook with a JSON object that contains the new friendly name.

                                parameter name type description
                                EventType string Always onConversationUpdated
                                ConversationSid string, SID Conversation String Identifier
                                DateCreated string, ISO8601 time The date of creation of the conversation
                                DateUpdated string, ISO8601 time The last modification date of the conversation
                                FriendlyName string, optional The friendly name of the conversation, if set
                                UniqueName string, optional The unique name of the conversation
                                Attributes string Conversation metadata as set by the customer, represented as stringified JSON
                                ChatServiceSid string, SID Conversation Service SID
                                MessagingServiceSid string, SID Messaging Service instance SID
                                State string Enumerated type representing state of the conversation

                                onConversationStateUpdated

                                parameter name type description
                                EventType string onConversationStateUpdated
                                ChatServiceSid string, SID Conversation Service SID
                                StateUpdated string, ISO8601 time Modification date of the state
                                StateFrom String State that conversation was transitioned from, e.g. "active", "inactive" or "closed".
                                StateTo String State that conversation was transitioned to, e.g. "active", "inactive" or "closed".
                                ConversationSid String, SID Conversation String Identifier
                                Reason String Source of the state change, e.g., "API", "TIMER", "EVENT"
                                MessagingServiceSid String, SID Messaging Service SID

                                onMessageAdded

                                parameter name type description
                                EventType string Always onMessageAdded
                                ConversationSid string Conversation SID identifier for the conversation the message is being added to.
                                MessageSid string Message sid identifier
                                MessagingServiceSid string, SID The Messaging Service SID attached to the conversation this message is being added to.
                                Index int Message index in the messages stream
                                DateCreated string, ISO8601 time Creation date of the message
                                Body string The body of the message
                                Author string The author of the message
                                ParticipantSid string, optional Participant SID of the message author
                                Attributes string Message metadata as set by customer, represented as stringified JSON
                                Media string, JSON, optional Stringified JSON array of attached media objects
                                ChannelMetadata string Stringified and escaped JSON pass-through metadata from OTT channels. Only available in GBM Private Beta. See sample payload.

                                onMessageUpdated

                                parameter name type description
                                EventType string Always onMessageUpdated
                                ConversationSid string Conversation SID identifier for the conversation the message is in.
                                MessageSid string Message sid identifier
                                Index int Message index in the messages stream
                                DateCreated string, ISO8601 time Creation date of the message
                                DateUpdated string, ISO8601 time Last modification date of the message
                                Body string The body of the message
                                Author string The author of the message
                                ParticipantSid string, optional Participant SID of the message author
                                Attributes string Message metadata as set by customer, represented as stringified JSON
                                Media string, JSON, optional Stringified JSON array of attached media objects

                                onMessageRemoved

                                parameter name type description
                                EventType string Always onMessageRemoved
                                ConversationSid string Conversation SID identifier for the conversation the message was removed from.
                                MessageSid string Message sid identifier
                                Index int Message index in the messages stream
                                DateCreated string, ISO8601 time Creation date of the message
                                DateUpdated string, ISO8601 time Last modification date of the message
                                DateRemoved string, ISO8601 time Date that the message was removed from the conversation
                                Body string The body of the message
                                Author string The author of the message
                                ParticipantSid string, optional Participant SID of the message author
                                Attributes string Message metadata as set by customer, represented as stringified JSON
                                Media string, JSON, optional Stringified JSON array of attached media objects

                                onParticipantAdded

                                parameter name type description
                                EventType string Always onParticipantAdded
                                ConversationSid string, SID Conversation String Identifier
                                ParticipantSid string, SID Participant String Identifier
                                DateCreated string, ISO8601 time The date of creation of the participant
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of Chat User that is being added to the conversation
                                Attributes string Participant metadata as set by the customer, represented as stringified JSON
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by participant
                                MessagingBinding.Address string, optional (see note) Originating phone number of the participant
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS
                                MessagingBinding.Type string Type of the participant, one of: SMS, CHAT, WHATSAPP

                                Note: A Conversation Participant has either the Identity (and MessagingBinding ProjectedAddress for GroupMMS Participant) or MessagingBinding ProxyAddress and Address attributes filled in. In case the added participant is SMS or WhatsApp, Identity is null and both addresses are supplied. If the added participant is Chat-only, the Identity value is provided, and both MessagingBinding addresses (MessagingBinding ProxyAddress and Address) are null.

                                onParticipantRemoved

                                parameter name type description
                                EventType string Always onParticipantRemoved
                                ConversationSid string, SID Conversation String Identifier
                                ParticipantSid string, SID Participant String Identifier
                                DateCreated string, ISO8601 time Creation date of the participant
                                DateUpdated string, ISO8601 time The last modification date of the participant
                                DateRemoved string, ISO8601 time The date the participant was removed
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of Chat User that is being added to the conversation
                                Attributes string Participant metadata as set by the customer, represented as stringified JSON
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by participant
                                MessagingBinding.Address string, optional (see note) Originating phone number of the participant
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS
                                MessagingBinding.Type string Type of the participant, one of: SMS, CHAT, WHATSAPP

                                Note: A Conversation Participant has either the Identity (and MessagingBinding ProjectedAddress for GroupMMS Participant) or MessagingBinding ProxyAddress and Address attributes filled in. In case the added participant is SMS or WhatsApp, Identity is null and both addresses are supplied. If the added participant is Chat-only, the Identity value is provided, and both MessagingBinding addresses (MessagingBinding ProxyAddress and Address) are null.

                                onParticipantUpdated

                                parameter name type description
                                EventType string Always onParticipantUpdated
                                ConversationSid string, SID Conversation String Identifier
                                ParticipantSid string, SID Participant String Identifier
                                DateCreated string, ISO8601 time Creation date of the participant
                                DateUpdated string, ISO8601 time The last modification date of the participant
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of Chat User that is being added to the conversation
                                Attributes string Participant metadata as set by the customer, represented as stringified JSON
                                MessagingBinding.ProxyAddress string, optional (see note) Twilio Brand phone number used by participant
                                MessagingBinding.Address string, optional (see note) Originating phone number of the participant
                                MessagingBinding.ProjectedAddress string, optional* The address of the Twilio phone number that is used in Group MMS
                                MessagingBinding.Type string Type of the participant, one of: SMS, CHAT, WHATSAPP
                                LastReadMessageIndex int Index of last "read" message in the Conversation for the participant

                                Note: A Conversation Participant has either the Identity (and MessagingBinding ProjectedAddress for GroupMMS Participant) or MessagingBinding ProxyAddress and Address attributes filled in. In case the added participant is SMS or WhatsApp, Identity is null and both addresses are supplied. If the added participant is Chat-only, the Identity value is provided, and both MessagingBinding addresses (MessagingBinding ProxyAddress and Address) are null.

                                onDeliveryUpdated

                                parameter name type description
                                EventType string onDeliveryUpdated
                                AccountSid string, SID SID of the account that the message belongs to, ACxx
                                ConversationSid string, SID Conversation String Identifier, CHxx
                                ChatServiceSid string, SID Conversation Service SID, ISxx
                                MessageSid string, SID Identifier of Conversation Message, IMxxx
                                DeliveryReceiptSid string, SID SID of the Delivery Receipt, DYxx
                                ChannelMessageSid string, SID SID of the ‘channel’ message e.g WAxx for WhatsApp, SMxx for SMS
                                ParticipantSid string, SID Participant String Identifier, MBxx
                                Status string, enum Status of the message, one of "read", "failed", "delivered", "undelivered", "sent"
                                ErrorCode integer Twilio documented numeric error code
                                DateCreated string, ISO8601 time Date delivery receipt was created
                                DateUpdated string, ISO8601 time Date that delivery receipt was last created

                                onUserAdded

                                parameter name type description
                                EventType string Always onUserAdded
                                ChatServiceSid string, SID Conversation Service String Identifier
                                UserSid string, SID String identifier of newly created User
                                DateCreated string, ISO8601 time The date of creation of the User
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of the Chat User that is being added to the conversation
                                Attributes string User metadata as set by the customer, represented as stringified JSON
                                FriendlyName string Friendly name of the User

                                onUserUpdated

                                parameter name type description
                                EventType string Always onUserUpdated
                                ChatServiceSid string, SID Conversation Service String Identifier
                                UserSid string, SID User String Identifier
                                DateCreated string, ISO8601 time The date of creation of the User
                                DateUpdated string, ISO8601 time User modification date
                                Identity string, optional (see note) The Identity of the Chat User being added to the conversation
                                RoleSid string Role of the Chat User that was updated
                                Attributes string User metadata as set by the customer, represented as stringified JSON
                                FriendlyName string Friendly name of the User
                                isOnline boolean Whether the User is actively connected to this Conversations Service and online
                                isNotifiable boolean Whether the User has a potentially valid Push Notification registration (APN or GCM) for this Conversations Service

                                Channel Metadata JSON Sample

                                Pass-through metadata from the OTT channel. Currently, only supported for Google Business Messages Private Beta. The channel key (gbm) is always available, but the values passed inside are set by Google and are subject to change.

                                "ChannelMetadata": "{
                                    \"gbm\": {
                                        \"context\": {
                                            \"placeId\": \"ChIJU6DUSUUVkCQRxl6dlKFV8ok\",
                                            \"entryPoint\": \"PLACESHEET\",
                                            \"userInfo\": { \"displayName\": \"Sample Name\", \"userDeviceLocale\": \"en-US\" },
                                            \"resolvedLocale\": \"en\"
                                        }
                                    }
                                }"
                                Rate this page:

                                Need some help?

                                We all do sometimes; code is hard. Get help now from our support team, or lean on the wisdom of the crowd by visiting Twilio's Stack Overflow Collective or browsing the Twilio tag on Stack Overflow.

                                Thank you for your feedback!

                                Please select the reason(s) for your feedback. The additional information you provide helps us improve our documentation:

                                Sending your feedback...
                                🎉 Thank you for your feedback!
                                Something went wrong. Please try again.

                                Thanks for your feedback!

                                thanks-feedback-gif
