Getting Started: Configure Your Twilio Elastic SIP Trunk

Before You Begin

Before you can use Twilio Elastic SIP Trunking, you must sign up for a Twilio account (if you don't already have one). To sign up for an account click here.

Requirements

In order to use Twilio Elastic SIP Trunking, you'll need to ensure that you have the following:

  • A SIP enabled network element (e.g. IP-PBX, SIP-PRI IAD, Session Border Controller, etc.) with access to the internet.
  • Sufficient Internet bandwidth to support the peak call traffic. The peak bandwidth can be determined by:

    • SIP Trunk Peak Bandwidth = Max Simultaneous Calls x 80 kbps

    The 80 kbps value reflects 64 kbps for the G711 codec plus 16 kbps of packet overhead.

Dashboard

Log into the console and go to the "Elastic SIP Trunking" section. Your Dashboard will be displayed, providing a high level overview of your Trunking usage: Minutes, Calls & Cost.

On the left navigation menu you'll have links to:

  • Configure: Ability to configure your SIP Trunks and authentication schemes.
  • Logs: Access your call logs and recordings
  • Usage: View your cost usage.

Configure

Under the "Configure" menu you will have access to all of the configuration aspects of your Trunks. Specifically, you will have links to:

  • Trunks: List of your existing SIP Trunks. Create, delete and configure your trunks.
  • IP Access Control Lists: Manage your IP Access Control Lists (a set of IPs that are allowed to reach your SIP Domain).
  • User Credentials: Manage your user credentials (a set of usernames and passwords that are allowed to reach your SIP Domain).
  • Your Network: Important information about Twilio's platform that you will need to configure your communications infrastructure.

Trunks

Twilio Elastic SIP Trunking is a cloud based solution that provides connectivity for IP-based communications infrastructure to connect to the PSTN, for making and receiving telephone calls to the 'rest of the world' via any broadband internet connection.

A trunk is composed of the following settings:

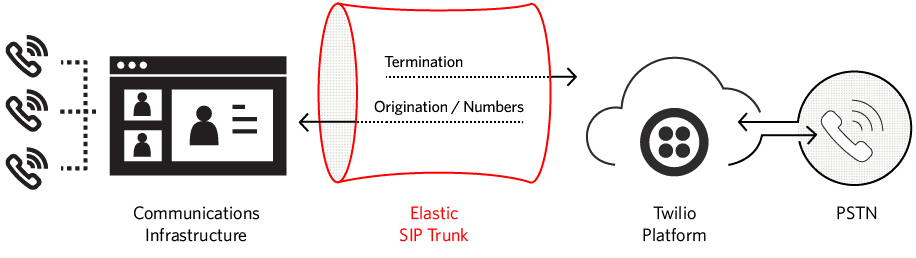

Elastic SIP Trunking Diagram

  • General: Provide a friendly name for your trunk and see its unique identifier (Trunk SID).
  • Termination: Configure the settings for placing outgoing traffic from your communications infrastructure to the PSTN.
  • Origination: Configure the settings for receiving incoming traffic on your Twilio numbers to deliver calls to your communications infrastructure from the PSTN.
  • Numbers: Allows you to associate numbers with a given trunk, and see all numbers currently associated with a trunk.

From the Trunks navigation bar item you'll be able to view a full list of your Elastic SIP Trunks and click on each one to modify its configuration. You also have the ability to delete a given trunk from this view.

Create a Trunk

From the Trunks navigation bar click on "Create New Trunk" to create a new trunk. This may also be done from the Getting Started section.

General settings

These settings apply to the entire trunk regardless of the direction of your traffic.

Friendly Name

Provide a friendly name for your trunk.

Trunk SID

This is the unique identifier of this trunk, and is assigned automatically once you create a trunk.

Call Recording

From this drop-down you can enable call recording for this trunk. When enabled, all calls are recorded (both origination and termination traffic), in a pay-as-you-go consumption model. You can select:

  • Do Not Record: Recording is disabled on this trunk.
  • Record from Answer: Recording will begin when a call is answered.
  • Record from Ringing: Recording will begin when the ringing starts.

Secure Trunking

Encryption ensures that the call media and associated signalling remains private during transmission. Transport Layer Security (TLS) provides encryption for SIP signaling and Secure Real-time Transport Protocol (SRTP) provides encryption for call content/media packets.

SRTP provides a framework for the encryption of RTP & RTCP. RFC 4568, Session Description Protocol (SDP) Security Description (SDES) for Media Streams, defines such a protocol specifically designed to exchange cryptographic material using a newly defined SDP crypto attribute.

Note: SRTP is not currently supported over Twilio Interconnect.

Specifications:

  • Trunking Origination: Only a single crypto suite will be included: AES_CM_128_HMAC_SHA1_80
  • Trunking Termination: Crypto suites supported include AES_CM_128_HMAC_SHA1_80 and AES_CM_128_HMAC_SHA1_32. Both may be included in an order of preference.
  • The optional master key identifier (MKI) parameter is not supported

When Secure Trunking is enabled, any non-encrypted calls will be rejected. Please ensure you configure the use of TLS in your Origination Settings by including the transport=tls parameter. If the transport parameter is present on any of your URIs specifying a different transport (e.g. transport=udp), it will be ignored and TLS will be used. By default port 5061 will be used for TLS, however you may specify the port you wish to use in your Origination URI.

Importing Twilio's Root CA Certificate

TLS is used to encrypt SIP signaling between SIP endpoints. In order for this to function properly it is required that certain devices in the network import an SSL certificate. Twilio uses certificates from a CA (Certificate Authority). It is important that you add the following root certificate to your communications infrastructure to establish its authenticity on the network. Download Twilio's CA certificate.

It is important to note that Twilio uses a wildcard certificate which can be used for multiple subdomains of a domain (*.pstn.twilio.com). If your network element does not support wildcarded certificates please disable certificate validation.

TLS/SRTP support with Asterisk

Asterisk ships by default with chan_sip driver and works well with Twilio. However, if you have some reason to run PJSIP driver with Asterisk, please note the following:

  • Asterisk 13.8 cert2 defaults to PJSIP 2.5 and it does not work with Twilio for TLS/SRTP purposes. Non-encrypted calls do work
  • Asterisk 13.8 cert2 can also use the latest PJSIP driver, which at this time is 2.5.5. Twilio works well with it despite the following message appearing in your log:

PJSIP 2.5.5 outputs the following error but the call is still shown to work.

Sep 27 13:03:56] ERROR[10886]: pjproject:0 :     tlsc0x7f217c03 RFC 5922 (section 7.2) does not allow TLS wildcard certificates. Advise your SIP provider, please!

The following link is a guide to installing a non-bundled version of PJSIP. Change the version to 2.5.5 in the steps.

Installing PJSIP channel driver

Termination Settings

Configuring your termination settings will allow you to place outgoing traffic from your communications infrastructure to the PSTN. In order to use a trunk for termination it must have a Termination SIP URI and at least one authentication scheme (IP Access Control Lists and/or Credentials Lists).

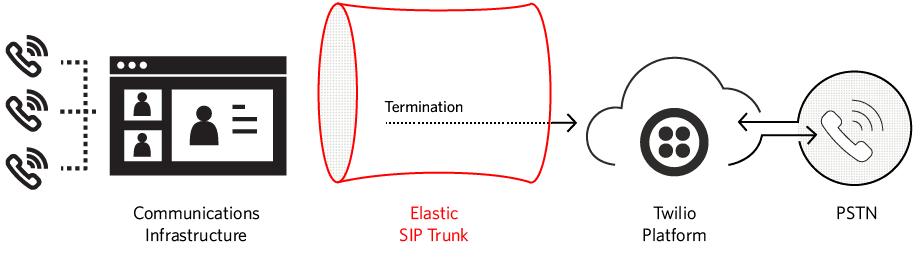

Elastic SIP Trunking Termination

Termination URI

Configure a SIP Domain Name to uniquely identify your Termination SIP URI for this trunk. This URI will be used by your communications infrastructure to direct SIP traffic towards Twilio.

  • {example}.pstn.twilio.com

Twilio recommends that you use a dash instead of a dot to improve readability of your domain. However, in some cases you may prefer a sub-domain like a.b.pstn.twilio.com of the higher-level domain b.pstn.twilio.com

A sub-domain like a.b.pstn.twilio.com can be created under the following requirements:

  • The higher-level domain (b.pstn.twilio.com) must be created first
  • The higher-level domain (b.pstn.twilio.com) must be created by the same account or the parent account

Configure a trunk on your communications infrastructure (e.g. IP-PBX or SBC)

Configure a trunk on your communications infrastructure and point it towards {example}.pstn.twilio.com for outbound traffic towards Twilio.

Localized Termination URIs

If you wish to manually connect to a specific geographic region that is closest to the location of your communications infrastructure, you may do so by pointing your communications infrastructure to any of the following localized Termination SIP URIs:

  • {example}.pstn.us1.twilio.com (North America Virginia)
  • {example}.pstn.us2.twilio.com (North America Oregon)
  • {example}.pstn.ie1.twilio.com (Europe Ireland)
  • {example}.pstn.de1.twilio.com (Europe Frankfurt)
  • {example}.pstn.sg1.twilio.com (Asia Pacific Singapore)
  • {example}.pstn.jp1.twilio.com (Asia Pacific Tokyo)
  • {example}.pstn.br1.twilio.com (South America São Paulo)
  • {example}.pstn.au1.twilio.com (Asia Pacific Sydney)

Redundancy with Termination URIs

Twilio's Elastic SIP Trunking uses an FQDN ({example}.pstn.twilio.com) as a Termination URI that is used by your communications infrastructure to direct SIP traffic towards Twilio. As explained in the previous section, localized Termination URIs are available.

For example, {example}.pstn.us1.twilio.com, this specific FQDN resolves in the following DNS A-Record:

Type IP Address TTL
A 54.172.60.3 10 min
A 54.172.60.0 10 min
A 54.172.60.2 10 min
A 54.172.60.1 10 min

For each region we have 3-4 IP addresses that are used for reliability purposes (see IP address whitelists. Each of these IP addresses represents a unique public edge for our Elastic SIP Trunking services into the Twilio cloud, distributed across multiple Availability Zones for reliability purposes.

It is highly recommended that you do not peg towards a single IP address but rather utilize all IP addresses and fail over in case one IP is not responding.

A common strategy, which we deploy internally and what we have instructed our carriers to do towards us as well, is that if there is no response to an INVITE, go to the next IP after 4 seconds. A single machine behind a single IP will always fail at some point so the overall solution must take that into consideration and guard itself towards these failures.

Furthermore if there is a complete US1 outage, it is recommended that you failover to another region (e.g. If connecting to US1, failover to US2), keeping in mind that that region will in turn resolve to 3-4 different IP addresses for reliability.

Authentication

Configure the authentication details to ensure the security/authenticity of your termination traffic. You must configure a minimum of either an ACL or credential authentication. If you configure both, then both ACLs and credentials are enforced.

Note: It is highly recommended that you configure User Credentials. IP ACL's alone does not protect against certain types of attacks.

To create a new Access Control List (ACL):

  • Click "Create IP Access Control List" from the "Authentication" section.
  • Give the Access Control List a friendly name that is descriptive of what that list of IPs. Something like "Dallas Datacenter IPs".
  • Add IPs to your new IP Access Control List (these should be the IP addresses used for outbound SIP traffic by your Communications Infrastructure border elements, e.g. SBC).
  • Give your IPs a friendly name that is descriptive of what that IP is, for example "Production SBC".
  • Click "Create ACL"

To create a new Credential List:

  • Click "Create Credential List" from the "Authentication" section.
  • Give the Credential List a friendly name that is descriptive of the user you're authenticating. Something like "Admin, Twilio".
  • Enter a username (these should be the username used for digest authentication for outbound SIP traffic by your communications infrastructure border elements, e.g. SBC).
  • Enter the corresponding password for that user.
  • Click "Create Credentials List"

If you are using User Credentials, your SIP INVITE will be challenged with a 407 Authorization required requesting the appropriate user credentials.

By the end of this step your trunk will be able to process termination calls from your communications infrastructure, via Twilio, to the PSTN.

Make your first Termination call

INVITE sip:+15108675309@{example}.pstn.us1.twilio.com SIP/2.0

Make sure that any phone numbers sent via SIP to Twilio are always E.164-formatted (e.g.+12128675309). If E.164 format is not used, then the call will be rejected with a SIP 400 Bad Request response.

Origination settings

Configuring your origination settings will allow you to receive incoming traffic from the PSTN to a Twilio number, delivered to your communications infrastructure. With phone numbers available in over 56 countries, Twilio gives you a truly global SIP Trunk. A minimum of one Twilio number should be associated with this trunk if you're configuring it for origination.

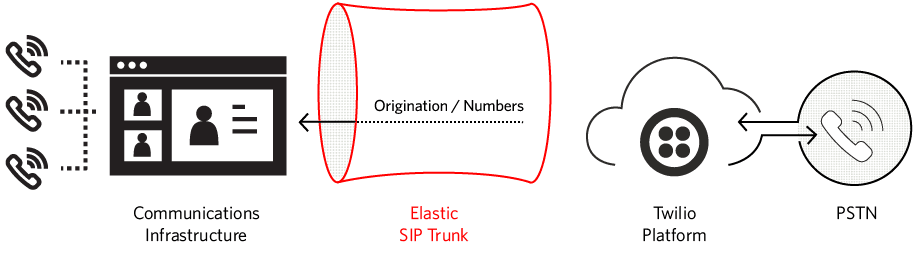

Elastic SIP Trunking Origination

The origination settings configured in this section will apply to all numbers associated with this trunk.

Origination SIP URI

Configure your origination SIP URI, which identifies the network element entry point into your communications infrastructure (e.g. IP-PBX, SBC). The host part of the SIP URI may be either an IP address or a Fully Qualified Domain Name (FQDN).

  • sip:172.56.42.132
  • sip:mysbc.com

Twilio will automatically populate the user part of the SIP URI based on the Twilio number the call from the PSTN is destined towards. For example, if the call from the PSTN is received for Twilio number +14158675309, which is associated with this trunk, the resulting URI sent to your communications infrastructure will be:

  • sip:+14158675309@172.56.42.132
  • sip:+14158675309@mysbc.com

Note: sips is NOT supported by Twilio.

Alternatively, you may also configure a specific user-part (e.g. "anniebp") within the origination SIP URI. Note that the same URI will be used for all Numbers associated with this trunk. Hence, if the call from the PSTN is received for Twilio number +14158675309, which is associated with this trunk, the resulting URI towards your communications infrastructure will still be the following for all phone numbers:

  • sip:anniebp@172.56.42.132
  • sip:anniebp@mysbc.com

Note: The Twilio number dialed (+14158675309) will always be conveyed in a SIP Diversion header for Trunking Origination calls.

X-headers

It is possible to send any SIP header beginning with the X- prefix, by appending them to the origination SIP URI. For example, you could configure: + sip:+14158675309@mysbc.com?X-myheader=foo to send X-myheader:foo on all originated calls.

The transport parameter

By default, Twilio sends originating SIP requests towards your communications infrastructure over UDP. This may be customized to be sent over TCP rather than UDP. Change this by using the transport parameter in the origination SIP URI:

  • sip:anniebp@172.56.42.132;transport=tcp

Alternatively, you may customize it to use TLS for SIP signalling. When using TLS, the default port will be 5061, however a different one may be specified. Change this by using the transport parameter in the origination SIP URI, and optionally by specifying a different port number:

  • sip:anniebp@172.56.42.132:5062;transport=tls
The region parameter

To specify the geographic region from which Twilio will send the originating SIP traffic towards your communication infrastructure, you must include the region parameter in your Origination SIP URI. For example, if the region=ie1 parameter is included in your Origination SIP URI, Twilio will send the SIP traffic from the Europe Ireland region:

  • sip:anniebp@172.56.42.132;region=ie1
Region Location
us1 North America Virginia
us2 North America Oregon
ie1 Europe Ireland
de1 Europe Frankfurt
sg1 Asia Pacific Singapore
jp1 Asia Pacific Tokyo
br1 South America São Paulo
au1 Asia Pacific Sydney

If the region parameter is not specified, Twilio will send the Originating SIP traffic from the region where the incoming PSTN call comes in.

Note: You must make sure you whitelist the IP addresses of the Twilio region for SIP signalling and RTP media traffic.

Using Multiple Origination SIP URIs

It is possible to configure up to ten (10) Origination SIP URIs with different priority & weight.

The priority field determines the precedence of use of the SIP URI. Twilio will always use the SIP URI with the lowest-numbered priority value first, and fallback to other SIP URIs of equal or higher value if the session to that SIP URI fails.

If a service has multiple origination SIP URIs with the same priority value, Twilio will use the weight field to determine which SIP URI to use. The weight value is relevant only in relation to other SIP URIs with the same priority value.

Priority ranks the importance of the URI. Values range from 0 to 65535, where the lowest number represents the highest importance. Weight is used to determine the share of load when more than one URI has the same priority. Its values range from 1 to 65535. The higher the value, the more load a URI is given.

It is possible to enable or disable an origination SIP URI. When an origination SIP URI is enabled, it's active in the route selection. If it is not enabled, then it will not be used for routing traffic towards your communications infrastructure.

In the following example, both the priority and weight fields are used to provide a combination of load balancing and failover services.

Origination SIP URI Priority Weight
sip:mysbc1.com 10 60
sip:mysbc2.com 10 20
sip:mysbc3.com 10 20
sip:mysbc-backup.com 20 10

The first three SIP URIs share a priority of 10, so the weight field's value will be used Twilio to determine which server to contact. The sum of all three values is 100, so sip:mysbc1.com will be used 60% of the time. The two SIP URIs sip:mysbc2.com and sip:mysbc3.com will be used for 20% of requests each. If sip:mysbc1.com is unavailable, these two remaining machines will share the load equally, since they will each be selected 50% of the time.

If all three servers with priority 10 are unavailable, the record with the next lowest priority value will be chosen, which is sip:mysbc-backup.com. Note: If any of the following SIP status codes are returned ("2xx", "400", "404", "405", "410", "416", "482", "484", "486", "6xx"), Twilio will not fail over to the next origination SIP URI. If there is no SIP response from a given server, Twilio will fail over after 4 seconds.

Disaster Recovery URL

In the case of a disaster preventing your calls from being delivered to your origination SIP URI above, you can configure a Disaster Recovery URL pointing to an application built on Twilio's powerful scripting tool called TwiML. You can use TwiML to build an application that will manage calls as required by your disaster recovery plan, including replicating the functionality of your PBX (e.g. IVR).

  • http://fallback.mycompany.com/index

For more information on building your TwiML application, please refer to the Twilio QuickStart and TwiML API Guide. Please note that when calls are redirected to your disaster recovery URL, normal Twilio Voice rates apply: see voice pricing.

CNAM Lookups

CNAM is an acronym which stands for Caller ID Name. CNAM is used to display the calling party's name alongside the phone number, to help users easily identify a caller.

When you enable CNAM Lookup, the Caller ID Name is inserted in the SIP INVITE via the “From”, and “Contact” and (if applicable) “P-Asserted-Identity” fields for each caller.

Note that CNAM lookups for US/CA numbers are billed per lookup, even if data may not be available. Currently, requesting Caller ID Name Lookup for international numbers will return null values, but will not be billed.

Enable this Feature Using the Twilio Console:

To enable CNAM Lookup using the console, log into the console and go to the "Elastic SIP Trunking" section.

When you have selected a Trunk, navigate to the “Origination” Settings (via the left-hand sub-menu). Here, you will see a switch where you can enable CNAM Lookup. You will know the setting has been enabled when the switch has turned ‘blue’ and the word ‘ENABLED’ appears.

  • CNAM Lookup must be enabled on a per Trunk basis
  • CNAM Lookup is only supported for US/CA phone numbers
  • CNAM Lookup is billed per successful lookup (this includes the case where the Name is not available for a Number in the CNAM National databases). It is known that many AT&T numbers are not published to the CNAM National databases.
  • CNAM Lookup is billed per successful lookup, even if the call itself fails

Numbers

From this tab you will be able to:

  • Buy a new Twilio Number for your Trunk
  • View all Twilio Numbers currently associated with this Trunk
  • Associate an existing Twilio Number with this Trunk
  • Disassociate a Twilio Number from this Trunk

View all Twilio Numbers currently associated with this Trunk

In the "Numbers" section you will be able to view all numbers currently associated with this trunk. Recall that all of these numbers share the same origination & general settings.

You may click on a given number to view/modify its configuration.

Buy a new Twilio number for your trunk

A minimum of a single Twilio Phone Number is required to be able to receive incoming calls from the PSTN to your communications infrastructure via your Twilio Trunk.

Make sure you have all your trunk configuration changes saved, and then from the "Numbers" section select "Buy a Number".

Select the country code, and search for available numbers matching any patterns (e.g. +14158675309) you might want to look for in your number.

Once you find the Twilio number you would like to buy, go ahead and purchase it and continue to set up your number.

This will take you to the number view where you can modify the configuration for that number.

Under the "Voice" section select the "SIP Trunking" radio button, and from the dropdown list below select the desired SIP Trunk you would like to associate this Number with. Don't forget to save your configuration changes.

Associate an existing Twilio number with this trunk

In the "Numbers" section select "Associate a Number with this Trunk", which will display a list of all of your existing Twilio numbers. Click on the one you would like to associate with this trunk.

This will take you to the number view where you can modify that number's configuration. Under the "Voice" section, select the "SIP Trunking" radio button, and from the dropdown list below select the desired SIP Trunk you would like to associate this number with. Don't forget to save your configuration changes.

Disassociate a Twilio Number from this Trunk

You can disassociate a number from a trunk in several ways:

  • From the "Numbers" section of a given trunk, you can directly disassociate a phone number from the numbers list displayed by clicking on the trash button.
  • By changing the "Voice" configuration of a given number to a different trunk or by configuring it with an application or URL
  • By deleting the trunk associated with that number

Note that when you do this, the number is disassociated from the trunk but it is not released from your account.

Twilio phone numbers are billed on a monthly basis. Unless you are actively using a number, or you want to keep a number reserved for future use, you can reduce your costs by releasing your unused numbers. In order to release the number, go to the "Voice and Messaging" section, click on "Numbers" and release the desired number from that page.

Receive your first origination call

Make your first test call by dialing your trunk's Twilio number, e.g. +14158675309, and ensure your corresponding communications infrastructure extension rings.

Delete a Trunk

You can delete a trunk:

  • From the "Trunks" section, using the trunks list displayed. Note that when you do this, all numbers associated with this trunk will be automatically disassociated from the trunk but not released. In order to release it please go to the "Voice and Messaging" section, click on "Numbers" and release the desired numbers from that section.
  • From any of the trunk specific configuration screens you will have the option to "Delete this Trunk".

Note that when you do this, all numbers previously associated with this trunk will be disassociated from the trunk, but they will not be released from your account. Twilio phone numbers are billed on a monthly basis. Unless you are actively using a number, or you want to keep a number reserved for future use, you can reduce your costs by releasing your unused numbers. In order to release the number, please go to the "Voice and Messaging" section, click on "Numbers" and release the desired number from that section.

Your Network

Prepare your communications infrastructure to make sure that your SIP infrastructure has connectivity to Twilio and vice versa.

  • Configure your Termination URIs for your Twilio Trunk, optionally using a Localized Termination URI if you wish to manually connect to a specific geographic region of the Twilio platform.
  • Whitelist all of Twilio's signalling and media IP addresses and ports on your firewall.
  • Configure your infrastructure not to register for this trunk.
  • Ensure your infrastructure will send a minimum value of 20 for Max-Forwards to ensure your call is processed successfully.
  • Ensure that any phone numbers sent via SIP to Twilio are always E.164-formatted.
  • Optionally set-up your Communications Infrastructure to issue SIP OPTIONS messages as a ping mechanism to your Elastic SIP Trunk (Send the Message Request To: Termination URI you created (example.pstn.twilio.com)); the Twilio platform will respond appropriately. Please maintain the Ping lower than 1 SIP OPTIONS every 10-15 seconds to avoid your requests from being banned by our Platform.

Localized Termination URIs

If you wish to manually connect to a specific geographic region that is closest to the location of your communications infrastructure, you may do so by pointing your communications infrastructure to any of the following localized Termination SIP URIs:

  • {example}.pstn.us1.twilio.com
  • {example}.pstn.ie1.twilio.com

Deploying behind a NAT

If you’re deploying behind a NAT without a Session Border Controller, it’s important to keep open the NAT translation binding.

  • For Signaling, when using UDP, this may be achieved by periodically sending SIP OPTIONS to Twilio, which will respond with a 200OK.
  • For Signaling, when using TCP or TLS, this may be achieved by periodically sending SIP OPTIONS to Twilio, or CR-LF keep-alives (periodically sending a double-CRLF (the "ping") then waits to receive a single CRLF (the "pong”) from Twilio), the latter has the smallest overhead.
  • For RTP, this is usually less of an issue as media packets are sent more frequently.

IP address whitelist

You MUST Whitelist ALL of Twilio's following IP address ranges and ports on your firewall for SIP signalling and RTP media traffic. This is important if you have Numbers in different regions and for resiliency purposes (e.g. if North America Virginia gateways are down, then North America Oregon gateways will be used). Twilio does not gaurantee which region the media will egress from since it can depend on which PSTN-SIP Gateway delivers the call to which Twilio region.

North America Virginia Gateways:

Signalling IPs:

    54.172.60.0/30 which translates to:
    54.172.60.0
    54.172.60.1
    54.172.60.2
    54.172.60.3
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    54.172.60.0/23
    34.203.250.0/23
    Port Range: 10,000 to 20,000 (UDP)

North America Oregon Gateways:

Signalling IPs:

    54.244.51.0/30 which translates to:
    54.244.51.0
    54.244.51.1
    54.244.51.2
    54.244.51.3
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    54.244.51.0/24
    Port Range: 10,000 to 20,000 (UDP)

Europe Ireland Gateways:

Signalling IPs:

    54.171.127.192/30 which translates to:
    54.171.127.192
    54.171.127.193
    54.171.127.194
    54.171.127.195
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    54.171.127.192/26
    52.215.127.0/24
    Port Range: 10,000 to 20,000 (UDP)

Europe Frankfurt Gateways:

Signalling IPs:

    35.156.191.128/30 which translates to:
    35.156.191.128
    35.156.191.129
    35.156.191.130
    35.156.191.131
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    35.156.191.128/25
    Port Range: 10,000 to 20,000 (UDP)

Asia Pacific Tokyo Gateways:

Signalling IPs:

    54.65.63.192/30 which translates to:
    54.65.63.192
    54.65.63.193
    54.65.63.194
    54.65.63.195
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    54.65.63.192/26
    Port Range: 10,000 to 20,000 (UDP)

Asia Pacific Singapore Gateways:

Signalling IPs:

    54.169.127.128/30 which translates to:
    54.169.127.128
    54.169.127.129
    54.169.127.130
    54.169.127.131
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    54.169.127.128/26
    Port Range: 10,000 to 20,000 (UDP)

Asia Pacific Sydney Gateways:

Signalling IPs:

    54.252.254.64/30 which translates to:
    54.252.254.64
    54.252.254.65
    54.252.254.66
    54.252.254.67
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    54.252.254.64/26
    Port Range: 10,000 to 20,000 (UDP)

South America São Paulo Gateways:

Signalling IPs:

    177.71.206.192/30 which translates to:
    177.71.206.192
    177.71.206.193
    177.71.206.194
    177.71.206.195
    Ports: 5060 (UDP/TCP), 5061 (TLS)
Media IPs:
    177.71.206.192/26
    Port Range: 10,000 to 20,000 (UDP)

For further information to help you configure your infrastructure with your Twilio Elastic SIP Trunk, refer to the SIP Trunking configuration guides.

Need some help?

We all do sometimes; code is hard. Get help now from our support team, or lean on the wisdom of the crowd browsing the Twilio tag on Stack Overflow.
