twilio/flows

Overview

Flows is an in-app, multi-screen experience available on WhatsApp. A business can send a Flow as part of an approved content template. End users start the Flow by selecting a Flow button, which opens the multi-screen experience. Within the Flow, you can add text, images, and several input components. End users can provide input through single-choice, multi-choice, toggles, short-text answers, long-text answers, and date pickers. You can organize these components across as many as 10 screens.

(warning)

Flows limitations

Flows isn't designed to transmit HIPAA Eligible Service or PCI data and shouldn't be used in workflows that require HIPAA or PCI compliance.

If you need to transmit sensitive information, use Message Redaction. Message Redaction isn't yet compatible with Studio, Proxy Service, or Functions. Don't send Flows that contain sensitive information through these products or services.

Supported options for end users

Send a multi-screen form that includes several questions.
Collect text input, selections, and picker answers.
Include images, links, and clarifying text on each screen.

Supported channels

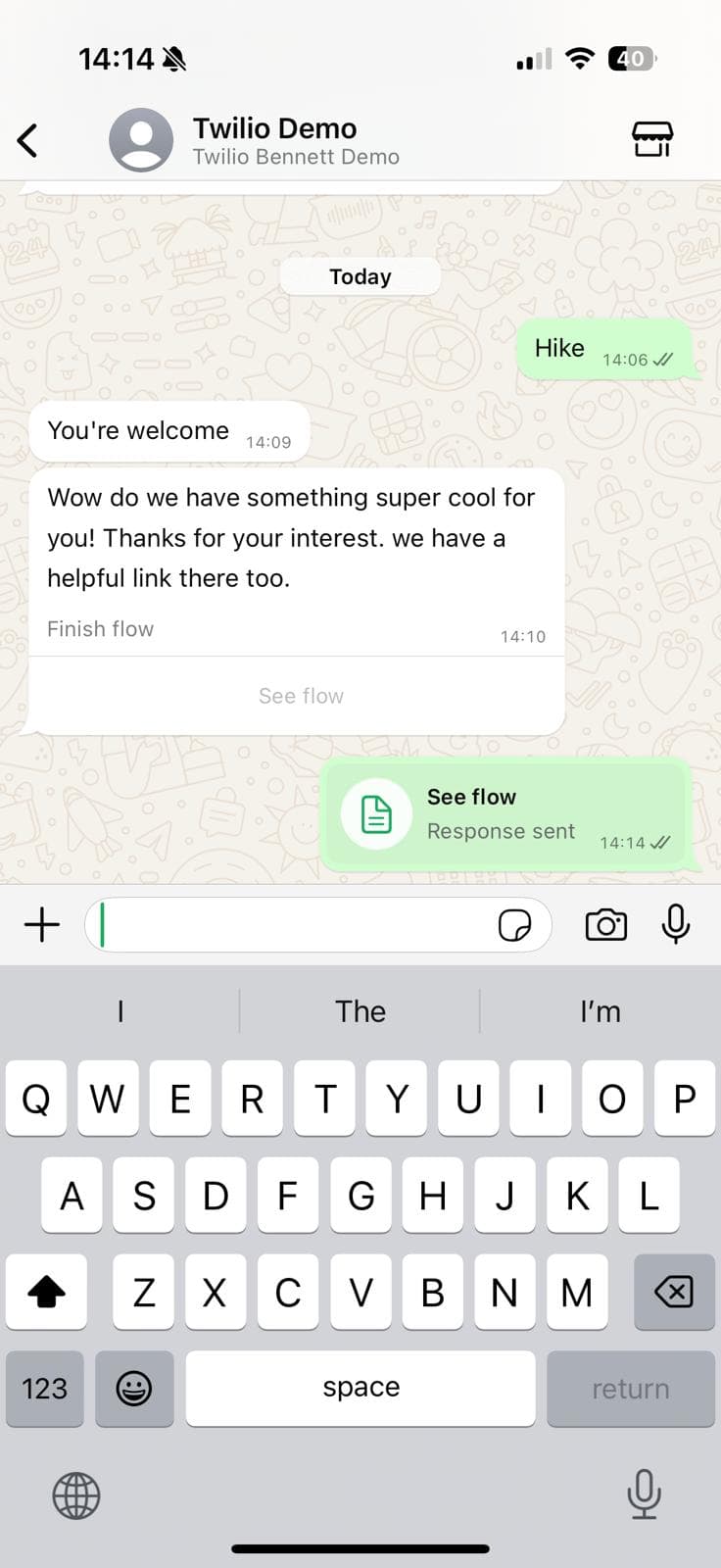

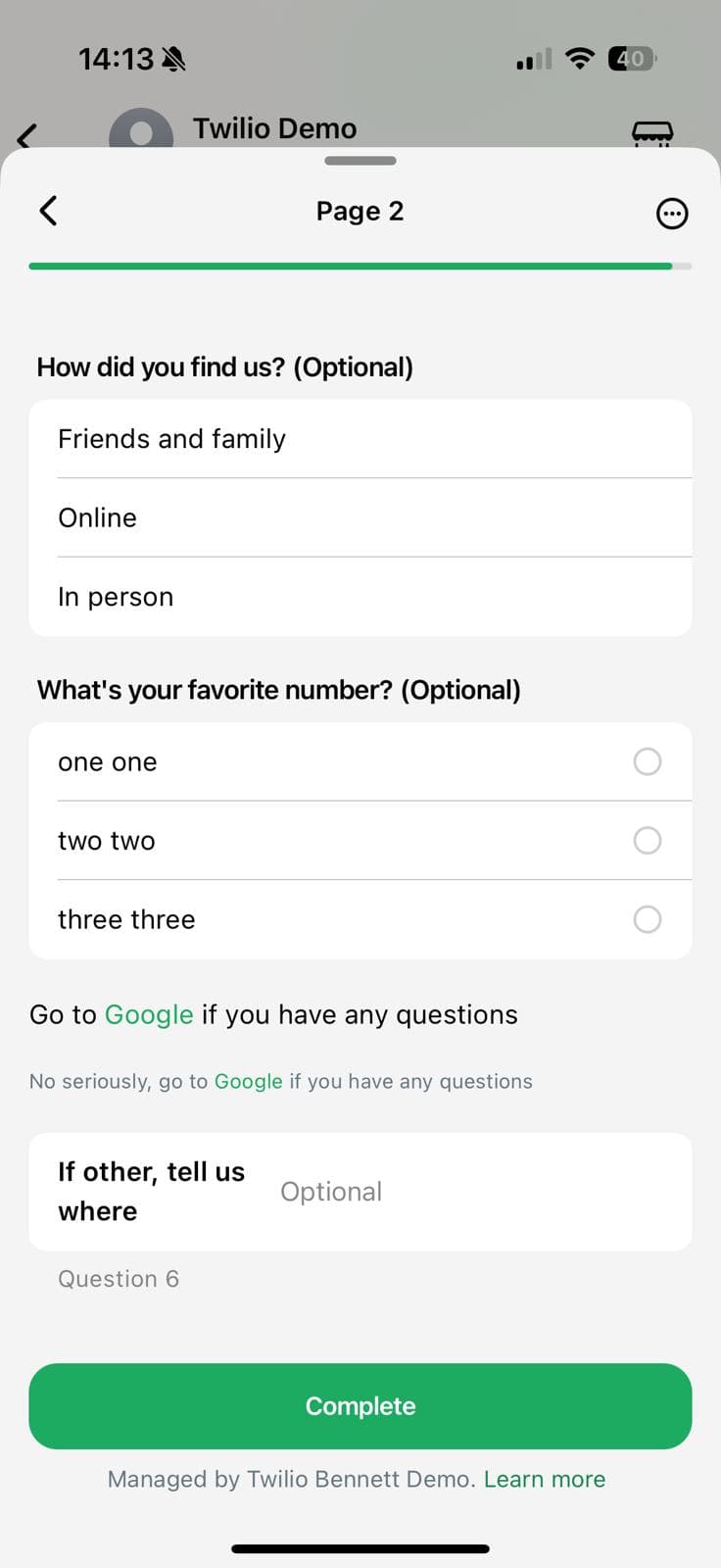

Message preview

Create a flow

To create a Flow:

Create a twilio/flows content template.
Submit the content template for approval. Choose the appropriate category (UTILITY or MARKETING).
When you submit the twilio/flows content template, WhatsApp publishes the Flow. You can view the publishing status in the content template approvals list. Currently, you can't use Flows without an approved content template.
Send the Flow. For instructions, see Send templates created with the Content Template Builder.

Receive a flow submission

Prepare the follow-up experience for the end user.
Review the incoming webhook that contains the user's answers.

Data parameters

Parameter	Type	Required	Variable support	Description
`body`	string	Yes	Yes	Text of the templated message that delivers the Flow. Maximum length: 1,024 characters
`subtitle`	string	No	No	Footer of the message. Maximum length: 1,024 characters
`media_url`	string	No	Yes	Media on the initial Flow message. Supports `.png`, `.jpeg`, `.mp4`, and `.pdf`. The domain must be static; the path can be variable.
`type`	enum	Yes	No	Flow category. Valid values: `SIGN_UP` `SIGN_IN` `APPOINTMENT_BOOKING` `LEAD_GENERATION` `CONTACT_US` `CUSTOMER_SUPPORT` `SURVEY` `OTHER`
`button_text`	string	Yes	No	Text displayed on the button that starts the Flow.
`pages`	array	Yes	No	Definitions of each page's components. Maximum: 10 pages.

`pages` properties

Property	Type	Required	Variable support	Description
`id`	string	Yes	No	Identifier returned in the webhook. Maximum length: 20 characters
`title`	string	No	No	Title text that appears above the Flow page.
`subtitle`	string	No	No	Subtitle text that appears at the top of the Flow page.
`layout`	array	Yes	No	Components shown on the page. Each component must be one of the following: `SHORT_TEXT` `LONG_TEXT` `SINGLE_SELECT` `MULTI_SELECT` `DATE_PICKER` `LIST` `TEXT_HEADING` `TEXT_SUBHEADING` `TEXT_CAPTION` `TEXT_BODY` `RICH_TEXT` `MEDIA` `FOOTER`

`layout` properties

SHORT_TEXT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `SHORT_TEXT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`required`	No	Boolean	No	Defaults to `false`. Whether the user must answer the question.
`input_type`	No	enum	No	Defaults to `TEXT`. Valid values: `TEXT`, `NUMBER`, `EMAIL`, `PASSWORD`, `PASSCODE`, `PHONE`.

LONG_TEXT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `LONG_TEXT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`required`	No	Boolean	No	Defaults to `false`. Whether the user must answer the question.

SINGLE_SELECT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `SINGLE_SELECT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`options`	Yes	string	Yes (entire string must be variable or static)	Stringified array that contains `title` and `id` pairs. If you use a variable, the variable must replace the entire string. Example: `"[{\"id\":\"ff\",\"title\":\"Friends and family\"}]"`
`options.title`	Yes	string	Yes	Display title for the option. Can be a variable.
`options.id`	Yes	string	Yes	Option identifier returned in the webhook. Can be a variable.

MULTI_SELECT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `MULTI_SELECT`.
`text`	Yes	string	Yes (entire string must be variable or static)	Helper text.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`options`	Yes	string	Yes (entire string must be variable or static)	Stringified array that contains `title` and `id` pairs. If you use a variable, the variable must replace the entire string. Example: `"[{\"id\":\"ff\",\"title\":\"Friends and family\"}]"`
`options.title`	Yes	string	Yes	Display title for the option. Can be a variable.
`options.id`	Yes	string	Yes	Option identifier returned in the webhook. Can be a variable.

DATE_PICKER object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `DATE_PICKER`.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`min_date`	Yes	string	Yes (entire string must be variable or static)	Start date in `YYYY-MM-DD` format.
`max_date`	Yes	string	Yes (entire string must be variable or static)	End date in `YYYY-MM-DD` format.
`unavailable_dates`	Yes	string	Yes (entire string must be variable or static)	Stringified array of unavailable dates in `YYYY-MM-DD` format.
`name`	No	string	Yes (entire string must be variable or static)	Name of the date picker object.

LIST object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `LIST`.
`label`	Yes	string	Yes (entire string must be variable or static)	Question displayed to the user.
`options`	Yes	string	Yes (entire string must be variable or static)	Stringified array that contains `title` and `id` pairs. If you use a variable, the variable must replace the entire string. Example: `"[{\"id\":\"ff\",\"title\":\"Friends and family\"}]"`
`options.title`	Yes	string	Yes	Display title for the option. Can be a variable.
`options.id`	Yes	string	Yes	Option identifier returned in the webhook. Can be a variable.

TEXT_HEADING object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_HEADING`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

TEXT_SUBHEADING object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_SUBHEADING`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

TEXT_BODY object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_BODY`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

TEXT_CAPTION object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `TEXT_CAPTION`.
`text`	Yes	string	Yes (entire string must be variable or static)	Markdown-formatted text. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

RICH_TEXT object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `RICH_TEXT`.
`text_list`	Yes	array	Yes (entire string must be variable or static)	Array of Markdown-formatted strings. Supports the syntax described in the WhatsApp Components syntax cheat sheet.

MEDIA object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `MEDIA`.
`url`	Yes	string	Yes	Image URL. Supports `.jpeg` and `.png` formats.

FOOTER object

Property	Required	Type	Variable support	Description
`type`	Yes	enum	No	Must be `FOOTER`.
`label`	Yes	string	Yes	Text displayed in the button used to continue the Flow.

Code examples and responses

Content Templates API - Create a Flow Template

1curl -X POST 'https://content.twilio.com/v1/Content' \
2-H 'Content-Type: application/json' \
3-u $TWILIO_ACCOUNT_SID:$TWILIO_AUTH_TOKEN \
4-d '{
5   "friendly_name": "info_flow",
6   "language": "en",
7   "types": {
8  "twilio/flows": {
9    "body": "Wow do we have something super cool for you! Thanks for your interest. we have a helpful link there too.",
10    "button_text": "See flow",
11    "subtitle": "Finish flow",
12    "pages": [
13      {
14        "id": "id_one",
15        "next_page_id": "id_two",
16        "title": "Page 1",
17        "layout": [
18          {
19            "label": "Name",
20            "type": "SHORT_TEXT",
21            "text": "Question 1",
22            "required": true
23          },
24          {
25            "label": "Email",
26            "type": "SHORT_TEXT",
27            "text": "Question 2",
28            "input_type": "EMAIL"
29          },
30          {
31            "label": "Address",
32            "type": "LONG_TEXT",
33            "text": "Question 3"
34          }
35        ]
36      },
37      {
38        "id": "id_two",
39        "next_page_id": null,
40        "title": "Page 2",
41        "subtitle": "Subtitle of Page 2",
42        "layout": [
43          {
44            "label": "How did you find us?",
45            "type": "SINGLE_SELECT",
46            "options": "[{\"id\":\"ff\",\"title\":\"Friends and family\"},{\"id\":\"oo\",\"title\":\"Online\"},{\"id\":\"ip\",\"title\":\"In person\"}]"
47          },
48          {
49            "label": "What is your favorite number?",
50            "type": "MULTIPLE_SELECT",
51            "options": "[{\"id\":\"one\",\"title\":\"one one\"},{\"id\":\"two\",\"title\":\"two two\"},{\"id\":\"three\",\"title\":\"three three\"}]"
52          },
53          {
54            "type": "TEXT_BODY",
55            "text": "Go to [Google](https://www.google.com/) if you have any questions"
56          },
57          {
58            "type": "TEXT_CAPTION",
59            "text": "No seriously, go to [Google](https://www.google.com/) if you have any questions"
60          },
61          {
62            "label": "If other, tell us where",
63            "type": "SHORT_TEXT",
64            "text": "Question 6"
65          }
66        ]
67      }
68    ],
69    "type": "OTHER"
70  }
71}
72}'

Output

1{
2    "account_sid": "ACXXXXXXXXXXXXX",
3    "date_created": "2025-01-22T22:35:25Z",
4    "date_updated": "2025-01-22T22:35:25Z",
5    "friendly_name": "info_flow",
6    "language": "en",
7    "links": {
8        "approval_create": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXX/ApprovalRequests/whatsapp",
9        "approval_fetch": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXX/ApprovalRequests"
10    },
11    "sid": "HXXXXXXXXXXXX",
12    "types": {
13        "twilio/flows": {
14            "body": "Wow do we have something super cool for you! Thanks for your interest. we have a helpful link there too.",
15            "button_text": "See flow",
16            "media_url": null,
17            "pages": [
18                {
19                    "id": "id_one",
20                    "layout": [
21                        {
22                            "input_type": "TEXT",
23                            "label": "Name",
24                            "name": null,
25                            "required": true,
26                            "text": "Question 1",
27                            "type": "SHORT_TEXT"
28                        },
29                        {
30                            "input_type": "EMAIL",
31                            "label": "Email",
32                            "name": null,
33                            "required": null,
34                            "text": "Question 2",
35                            "type": "SHORT_TEXT"
36                        },
37                        {
38                            "input_type": null,
39                            "label": "Address",
40                            "name": null,
41                            "required": null,
42                            "text": "Question 3",
43                            "type": "LONG_TEXT"
44                        }
45                    ],
46                    "next_page_id": "id_two",
47                    "subtitle": null,
48                    "title": "Page 1"
49                },
50                {
51                    "id": "id_two",
52                    "layout": [
53                        {
54                            "label": "How did you find us?",
55                            "name": null,
56                            "options": "[{\"id\":\"ff\",\"title\":\"Friends and family\"},{\"id\":\"oo\",\"title\":\"Online\"},{\"id\":\"ip\",\"title\":\"In person\"}]",
57                            "required": null,
58                            "type": "SINGLE_SELECT"
59                        },
60                        {
61                            "label": "What's your favorite number?",
62                            "name": null,
63                            "options": "[{\"id\":\"one\",\"title\":\"one one\"},{\"id\":\"two\",\"title\":\"two two\"},{\"id\":\"three\",\"title\":\"three three\"}]",
64                            "required": null,
65                            "type": "MULTIPLE_SELECT"
66                        },
67                        {
68                            "text": "Go to [Google](https://www.google.com/) if you have any questions",
69                            "type": "TEXT_BODY"
70                        },
71                        {
72                            "text": "No seriously, go to [Google](https://www.google.com/) if you have any questions",
73                            "type": "TEXT_CAPTION"
74                        },
75                        {
76                            "input_type": "TEXT",
77                            "label": "If other, tell us where",
78                            "name": null,
79                            "required": null,
80                            "text": "Question 6",
81                            "type": "SHORT_TEXT"
82                        }
83                    ],
84                    "next_page_id": null,
85                    "subtitle": "Subtitle of Page 2",
86                    "title": "Page 2"
87                }
88            ],
89            "subtitle": "Finish flow",
90            "type": "OTHER"
91        }
92    },
93    "url": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXX",
94    "variables": {}
95}

Send your message template

Sending a Flow template works the same way as sending any other content template. For step-by-step instructions, see Send templates created with the Content Template Builder.

Receiving webhooks

Flow-specific webhook fields

Field	Description
`FlowData`	Raw data string from the channel provider.
`InteractiveData`	User-provided information in JSON format.
