whatsapp/authentication

WhatsApp/authentication templates let companies deliver WA approved one-time-password button. Unlike other templates the body is preset by WhatsApp. Some modifications can be made by specifying certain parameters however custom authentication templates are not allowed.

(information)

Info

When sending whatsapp/authentication templates a single variable must be defined at send time and set to the one time passcode.
whatsapp/authentication templates must be approved by WhatsApp to send to customers.

Supported Channels

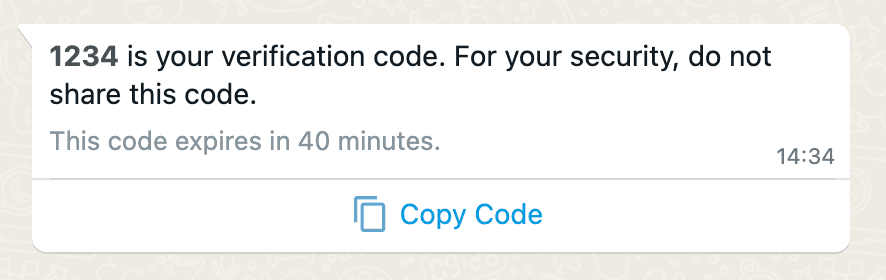

Message Preview

Data Parameters

add_security_recommendation:

Type: Boolean
Required: no
Variable Support: no
Description: Optional field to add the message "For your security, do not share this code" or the translated language's equivalent. This field defaults to TRUE.

code_expiration_minutes:

Type: integer
Required: no
Variable Support: no
Description: The amount of time you want to inform the customer that the one time passcode is available for. Adds a footer message stating "This code expires in x minutes" where x is the number specified.
- One whole numbers from 1-90 is allowed

actions:

Type: array[actions]
Required: yes
Variable Support: See Common Components: Actions definition
Description: Buttons that recipients can tap on to act on the message:
- Type must be specified as COPY_CODE.
- copy_code_text must be specified as a string less than 25 characters long.

Create a WhatsApp OTP Button Template

1// Install the C# / .NET helper library from twilio.com/docs/csharp/install
2
3using System;
4using Twilio;
5using Twilio.Rest.Content.V1;
6
7     TwilioClient.Init(accountSid, authToken);
8
9    // define the whatsapp/authentication type
10    var whatsappAuthentication = new WhatsappAuthentication.Builder();
11    var auth1 = new WhatsappAuthAction.Builder()
12        .WithType(WhatsappAuthActionType.CopyCode)
13        .WithCopyCodeText("Check Flight Status")
14        .Build();
15    whatsappAuthentication.WithActions(new List<WhatsappAuthAction>() { auth1 });
16
17    // define all the content types to be part of the template
18    var types = new Types.Builder();
19    types.WithWhatsappAuthentication(whatsappAuthentication.Build());
20
21    // build the create request object
22    var contentCreateRequest = new ContentCreateRequest.Builder();
23    contentCreateRequest.WithTypes(types.Build());
24    contentCreateRequest.WithLanguage("en");
25    contentCreateRequest.WithFriendlyName("whatsapp_otp");
26
27    // create the twilio template
28    var contentTemplate = await CreateAsync(contentCreateRequest.Build());
29
30    Console.WriteLine($"Created Twilio Content Template SID: {contentTemplate.Sid}");

Output

1{
2    "account_sid": "$TWILIO_ACCOUNT_SID",
3    "date_created": "2023-06-02T14:34:25Z",
4    "date_updated": "2023-06-02T14:34:25Z",
5    "friendly_name": "whatsapp_otp",
6    "language": "en",
7    "links": {
8        "approval_create": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests/whatsapp",
9        "approval_fetch": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests"
10    },
11    "sid": "HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
12    "types": {
13        "whatsapp/authentication": {
14            "actions": [
15                {
16                    "copy_code_text": "Copy verification code",
17                    "type": "COPY_CODE"
18                }
19            ],
20            "add_security_recommendation": true,
21            "body": "{{1}}",
22            "code_expiration_minutes": 30
23        }
24    },
25    "url": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
26    "variables": {}
27}

Send WA Authentication Templates Created with Content Templates

Authentication templates are slightly different from other content types in that the body field is preset and there is a pre-existing content variable.

To send these templates you will need to send them as usual but include a content variable containing the OTP code you would like to send.

The OTP code that you send must be less than 15 characters long.

1--data-urlencode "ContentVariables={"1": "12345"}" \
2

Sending WA Authentication Templates

1// Download the helper library from https://www.twilio.com/docs/node/install
2const twilio = require("twilio"); // Or, for ESM: import twilio from "twilio";
3
4// Find your Account SID and Auth Token at twilio.com/console
5// and set the environment variables. See http://twil.io/secure
6const accountSid = process.env.TWILIO_ACCOUNT_SID;
7const authToken = process.env.TWILIO_AUTH_TOKEN;
8const client = twilio(accountSid, authToken);
9
10async function createMessage() {
11  const message = await client.messages.create({
12    contentSid: "HXXXXXXXXXX",
13    contentVariables: JSON.stringify({ 1: "123456" }),
14    from: "whatsapp:+18551234568",
15    messagingServiceSid: "MGXXXXXXXXXXX",
16    to: "whatsapp: +18551234567",
17  });
18
19  console.log(message.body);
20}
21
22createMessage();

Response

1{
2  "account_sid": "ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
3  "api_version": "2010-04-01",
4  "body": "Hello! 👍",
5  "date_created": "Thu, 24 Aug 2023 05:01:45 +0000",
6  "date_sent": "Thu, 24 Aug 2023 05:01:45 +0000",
7  "date_updated": "Thu, 24 Aug 2023 05:01:45 +0000",
8  "direction": "outbound-api",
9  "error_code": null,
10  "error_message": null,
11  "from": "whatsapp:+18551234568",
12  "num_media": "0",
13  "num_segments": "1",
14  "price": null,
15  "price_unit": null,
16  "messaging_service_sid": "MGXXXXXXXXXXX",
17  "sid": "SMaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
18  "status": "queued",
19  "subresource_uris": {
20    "media": "/2010-04-01/Accounts/ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa/Messages/SMaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa/Media.json"
21  },
22  "tags": {
23    "campaign_name": "Spring Sale 2022",
24    "message_type": "cart_abandoned"
25  },
26  "to": "whatsapp: +18551234567",
27  "uri": "/2010-04-01/Accounts/ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa/Messages/SMaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa.json"
28}
