twilio/list-picker

The twilio/list-picker content type includes a menu of up to 10 options for users to make a selection.

(information)

Info

List-picker templates are only available once the end user is in a 24 hour session. They can't initiate a business initiated session.

List-picker templates aren't supported for approval on WhatsApp and can't be submitted for approval.

Supported channels

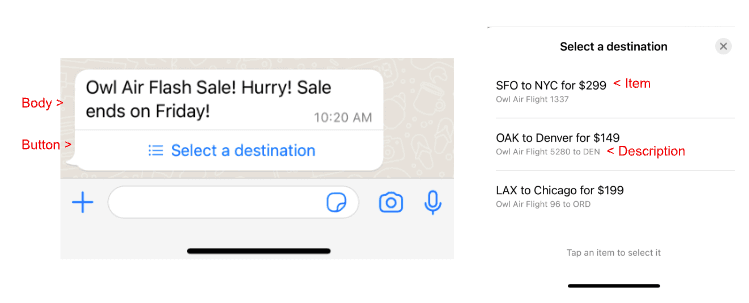

Message preview

Data parameters

Parameter	Type	Required	Variable support	Description
`body`	string	Yes	Yes	The text of the message you want to send. This is included as a regular text message. Maximum length: 1,024 characters
`button`	string	Yes	Yes	Display value for the primary button.
`items`	array	Yes	See `items` properties.	Array of list item objects. Minimum: 1 item Maximum: 10 items

`items` properties

Property	Type	Required	Variable support	Description
`item`	string	Yes	Yes	Display value for the item. Maximum length: 24 characters
`id`	string	Yes	Yes	Unique item identifier. Not visible to the recipient. Maximum length: 200 characters
`description`	string	Yes	Yes	Description of the item. Maximum length: 72 characters

Code examples and responses

Create a list picker template

1// Install the C# / .NET helper library from twilio.com/docs/csharp/install
2
3using System;
4using Twilio;
5using Twilio.Rest.Content.V1;
6
7     TwilioClient.Init(accountSid, authToken);
8
9    // define the twilio/list-picker
10    var twilioListPicker = new TwilioListPicker.Builder();
11    twilioListPicker.WithBody("Owl Air Flash Sale! Hurry! Sale ends on {{1}}!");
12    var item1 = new ListPickerItems.Builder()
13        .WithItem("SFO to NYC for $299")
14        .WithDescription("Owl Air Flight 1337 to LGA")
15        .WithId("SFO1337")
16        .Build();
17     var item2 = new ListPickerItems.Builder()
18        .WithItem("OAK to Denver for $149")
19        .WithDescription("Owl Air Flight 5280 to DEN")
20        .WithId("OAK5280")
21        .Build();
22    var item3 = new ListPickerItems.Builder()
23        .WithItem("LAX to Chicago for $199")
24        .WithDescription("Owl Air Flight 96 to ORD")
25        .WithId("LAX96")
26        .Build();
27    twilioListPicker.WithItems(new List<ListPickerItems>() { item1, item2, item3 });
28
29    // define all the content types to be part of the template
30    var types = new Types.Builder();
31    types.WithTwilioListPicker(twilioListPicker.Build());
32
33    // build the create request object
34    var contentCreateRequest = new ContentCreateRequest.Builder();
35    contentCreateRequest.WithTypes(types.Build());
36    contentCreateRequest.WithLanguage("en");
37    contentCreateRequest.WithFriendlyName("owl_sale_list");
38    contentCreateRequest.WithVariables(new Dictionary<string, string>() { {"1", "end_date"} });
39
40    // create the twilio template
41    var contentTemplate = await CreateAsync(contentCreateRequest.Build());
42
43    Console.WriteLine($"Created Twilio Content Template SID: {contentTemplate.Sid}");

Output

1{
2  "account_sid": "ACXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
3  "date_created": "2022-08-29T15:46:11Z",
4  "date_updated": "2022-08-29T15:46:11Z",
5  "friendly_name": "owl_air_list",
6  "language": "en",
7  "links": {
8    "approval_create": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests/whatsapp",
9    "approval_fetch": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests"
10  },
11  "sid": "HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
12  "types": {
13    "twilio/list-picker": {
14      "body": "Owl Air Flash Sale! Hurry! Sale ends on {{1}}!",
15      "button": "Select a destination",
16      "items": [
17        {
18          "description": "Owl Air Flight 1337 to LGA",
19          "id": "SFO1337",
20          "item": "SFO to NYC for $299"
21        },
22        {
23          "description": "Owl Air Flight 5280 to DEN",
24          "id": "OAK5280",
25          "item": "OAK to Denver for $149"
26        },
27        {
28          "description": "Owl Air Flight 96 to ORD",
29          "id": "LAX96",
30          "item": "LAX to Chicago for $199"
31        }
32      ]
33    },
34    "twilio/text": {
35      "body": "We have flights to the following destinations: (1) SFO, (2) OAK, (3) LAX. Hurry! Sale ends on {{1}}!"
36    }
37  },
38  "url": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
39  "variables": {
40    "1": "end_date"
41  }
42}
