twilio/card

The twilio/card content type is a structured template that lets you send a set of related items in a single message. Each card must include either a title or a body, and at least one additional field.

In the media field of the template, provide the URL of a publicly hosted file.

If you use media with a variable, include a sample path to a publicly hosted image URL in the variables object. The final URL must include the file type and must resolve to a publicly accessible file.

For example:

1"media": ["https://www.example.com/{{1}}"],
2"variables": { "1": "images/library-logo-resource2x.width-1000.png" }

If you use a call-to-action URL button, the URL must resolve to a publicly accessible website. When the URL contains a variable, provide a valid sample path in the variables object so the combined URL resolves correctly.

For example:

1"url": ["https://www.twilio.com/{{1}}"],
2"variables": { "1": "docs" }

Supported channels

RCS
WhatsApp
Facebook Messenger

Channel-specific information

RCS

Parameter mapping

To determine how RCS elements correspond to Twilio data parameters, consult the following table.

Parameter	RCS element
`title`	Title
`body`	Description (Rich Card) or Text (Chip List)
`subtitle`	Not available in RCS (appended to Body)
`media`	Media
`actions.QUICK_REPLY`	SuggestedReply
`actions.URL`	SuggestedAction.OpenUrlAction
`actions.PHONE_NUMBER`	SuggestedAction.DialAction

Webviews

Webviews can work with the Google Wallet API to deliver boarding passes. See the Google Wallet documentation for boarding passes.

Chip list versus rich card

Pricing depends on the presence of media and buttons. In the United States, pricing also depends on button type and the total length of text in the message. Rendering behavior depends on whether media is present and the number of buttons.

Default behavior when media is present

More than four buttons: The first four buttons appear in the rich card. Remaining buttons appear in a chip list.
Four or fewer buttons: RCS uses a rich card.

Default behavior when media is not present

RCS uses a chip list.

Differences in RCS resolution

Type of message	Pricing (USA)	Allowed Twilio data parameters	Pricing length limits
Chip list	Rich	`body`; URL and Dial CTA buttons except Webviews	Billed per 160-character UTF-8 segment
Rich card	Rich Media	`title`, `media`, and `body`; all button types	See limits in Data parameters
Chip list	Single Message (global)	`body`; all button types	See limits in Data parameters
Rich card	Single Message (global)	`title`, `media`, `body`; all button types	See limits in Data parameters

When you send a card in-session without prior approval, WhatsApp allows a maximum of three buttons.
A card must be approved as a template before it can be sent outside the 24-hour conversation window. If the card uses variables or media, submit a valid sample with the template. Static media URLs must resolve to publicly hosted files. Variable media URLs must include a valid media URL suffix in the variable declaration.
A template approved with one media type (Image, Video, or Document) can send only that media type. For example, a template approved with an image header cannot later send a video.
If the body starts or ends with a variable, or contains adjacent variables, WhatsApp requires a sample variable. See Using variables with Content API.
Update the phone number in the sample actions array to a valid E.164-formatted number before sending the template.

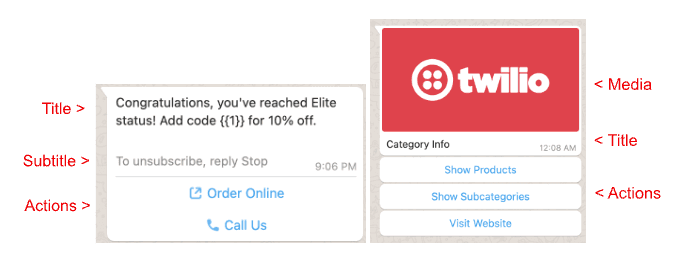

WhatsApp footers map to subtitles in twilio/card.
Template approval is required when a card contains multiple buttons.
Button titles are limited to 20 characters.

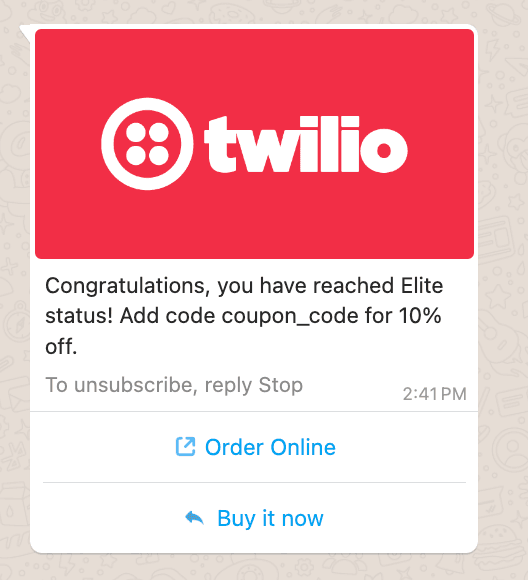

Message preview

Data parameters

Parameter	Type	Required	Variable support	Description
`title`	string	No	Yes	Title of the card. Maximum length: 200 characters for RCS; 1,024 characters for WhatsApp. Required if `body` is not specified.
`body`	string	No	Yes	Body text of the card. Maximum length: 1,600 characters. Required if `title` is not specified.
`subtitle`	string	No	No	Subtitle of the card. Maximum length: 60 characters. If specified for WhatsApp and the template is used in RCS, the subtitle is appended to the body.
`media`	string[]	No	Yes	Public URL of the media to send. See accepted content types for media (MMS) and WhatsApp media types.
`orientation`	string	No	No	RCS only. Will be ignored for other channels. Determines card layout. ENUM Options: `VERTICAL`, `HORIZONTAL`
`actions`	array	No	Yes	Defines buttons that appear on the card.

`actions` properties

For an overview of shared button properties, see Common components.

(information)

Info

WhatsApp limitations

Only one of the two call options can appear on a template: PHONE_NUMBER or VOICE_CALL.
Up to 2 URL buttons are allowed.
Up to 10 quick-reply buttons are allowed.
A maximum of 10 buttons is allowed per card.

RCS limitations

Up to 11 buttons can appear in a chip list.
Up to 4 buttons can appear in the rich card itself.

Property	Supported channels	Parameters
`QUICK_REPLY`	RCS, WhatsApp, Facebook Messenger	• `type`: `QUICK_REPLY` • `title`: Text shown on the button. Appears in the `ButtonText` field in inbound messages. Variables are supported in-session. Maximum length: 20 characters. • `id`: Identifier returned in the `ButtonPayload` field of inbound messages. Not visible to the user. Variables are supported.
`URL`	RCS, WhatsApp, Facebook Messenger	• `type`: `URL` • `title`: Text shown on the button. Variables are supported in RCS and for WhatsApp in-session. Maximum length: 25 characters. • `id`: (RCS only) Identifier returned in the `ButtonPayload` field of inbound messages. Variables are supported. • `url`: URL opened when the user taps the button. Variables are supported at the end of the URL string for WhatsApp outside a 24-hour window and for RCS in-session. • `webview_size` (RCS only): Controls whether the URL opens in a webview or the device browser. Valid values: `NONE`, `HALF`, `TALL`, `FULL`. Default is `NONE`.
`PHONE_NUMBER`	RCS, WhatsApp, Facebook Messenger	• `type`: `PHONE_NUMBER` • `title`: Text shown on the button. Variables are not supported. Maximum length: 25 characters. • `phone`: E.164-formatted number to call when the user taps the button.
`VOICE_CALL`	WhatsApp	• `type`: `VOICE_CALL` • `title`: Text shown on the VoIP call button. Variables are not supported. Maximum length: 25 characters. • `ttl_minutes`: Optional. Lifespan of the button in minutes (default: 10,080 minutes = 7 days). Accepts an integer from 1 to 43,200 (30 days). Variables are supported.
`COPY_CODE`	WhatsApp	• `type`: `COPY_CODE` • `title`: The button text is translated automatically to the user's language. Variables are not supported. Maximum length: 25 characters. • `code`: Coupon code copied to the user's clipboard when the button is tapped. Variables are supported.

Code example

Create a card template

1// Install the C# / .NET helper library from twilio.com/docs/csharp/install
2
3using System;
4using Twilio;
5using Twilio.Rest.Content.V1;
6
7     TwilioClient.Init(accountSid, authToken);
8
9    // define the twilio/text type for less rich channels (e.g. SMS)
10    var twilioText = new TwilioText.Builder();
11    twilioText.WithBody("Hi {{1}}.  Thanks for contacting Owl Air Support. How can we help?");
12
13    // define the twilio/card type for more rich channels
14    var twilioCard = new TwilioCard.Builder();
15    twilioCard.WithTitle("Owl Air Support");
16    var cardAction1 = new CardAction.Builder()
17        .WithType(CardActionType.Url)
18        .WithUrl("https://www.twilio.com")
19        .WithTitle("Contact Us")
20        .Build();
21    twilioCard.WithActions(new List<CardAction>() { cardAction1 });
22
23    // define all the content types to be part of the template
24    var types = new Types.Builder();
25    types.WithTwilioText(twilioText.Build());
26    types.WithTwilioCard(twilioCard.Build());
27
28    // build the create request object
29    var contentCreateRequest = new ContentCreateRequest.Builder();
30    contentCreateRequest.WithTypes(types.Build());
31    contentCreateRequest.WithLanguage("en");
32    contentCreateRequest.WithFriendlyName("owl_air_card");
33    contentCreateRequest.WithVariables(new Dictionary<string, string>() { {"1", "John"} });
34
35    // create the twilio template
36    var contentTemplate = await CreateAsync(contentCreateRequest.Build());
37
38    Console.WriteLine($"Created Twilio Content Template SID: {contentTemplate.Sid}");

Output

1{
2  "account_sid": "ACXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
3  "date_created": "2022-08-30T09:19:17Z",
4  "date_updated": "2022-08-30T09:19:17Z",
5  "friendly_name": "owl_air_card",
6  "language": "en",
7  "links": {
8    "approval_create": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests/whatsapp",
9    "approval_fetch": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests"
10  },
11  "sid": "HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
12  "types": {
13    "twilio/card": {
14      "actions": [
15        {
16          "title": "Order Online",
17          "type": "URL",
18          "url": "https://www.owlair.com/"
19        },
20        {
21          "phone_number": "+15551234567",
22          "title": "Call Us",
23          "type": "PHONE_NUMBER"
24        }
25      ],
26      "body": null,
27      "media": null,
28      "subtitle": "To unsubscribe, reply Stop",
29      "title": "Congratulations, you have reached Elite status! Add code {{1}} for 10% off."
30    },
31    "twilio/text": {
32      "body": "Congratulations, your account reached Elite status, you are now eligible for 10% off any flight! Just add coupon code {{1}} to check out."
33    }
34  },
35  "url": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
36  "variables": {
37    "1": "coupon_code"
38  }
39}

Receiving webhooks

Inbound events

Component	Description
`ButtonPayload`	ID specified in the button to identify the button click. If no ID is specified, the button text appears in this field.
`ButtonType`	Indicates whether the pressed button was a quick-reply or call-to-action button.
`ButtonText`	Text of the button that the user clicked.
