Shopify

This Shopify Source lets you send Shopify Web Pixel API Standard Events from your Shopify Store to Segment. Events sent to Segment are formatted to match the Segment Ecommerce Spec.

This Source is a free Shopify App Extension which can be installed using your Shopify Store's Admin interface.

Overview

Once installed and enabled, Segment collects events from the user's browser and sends them to your Segment 'Shopify' Source in real time.

You can control which Segment track() events get collected as well as how user profile details are passed to Segment.
A custom JavaScript snippet is loaded in the Shopify store. This script transforms Shopify Standard Events to Segment Ecommerce Spec events. Note that Segment's Analytics.js 2.0 library will not load on any Shopify store page.
This is a Device Mode (client side) Integration. No data is sent server-side from Shopify to Segment.
This source does not collect post-purchase events.
The Segment anonymousId is set to the value of the Shopify client ID. The Segment userId value is never populated.
Email address and phone number details are sent to Segment if they are collected by Shopify.

If you require more advanced functionality or want to collect post-purchase events, consider using the Shopify by Littledata Source. Shopify by Littledata requires a paid subscription.

Getting Started

To set up the Shopify Source, follow these steps:

Log in to your Segment Workspace.
Click on 'Catalog'.
Use the 'Search an Integration' search field to search for the term 'Shopify'.
Select the 'Shopify' tile and complete the steps to set it up.
Make a note of the Source write key for your Shopify Source.
Log in to your Shopify Store account.
Go to the Shopify app store listing for Twilio Segment.
Click Add app to begin the installation process.
Add the Segment write key for your Segment Source, and select the Region for your Segment Workspace.
Use the checkboxes under 'Manage Events' to select which track() events to send to Segment.
Use the checkboxes under 'Manage user profile details' to select how user profile details should be sent to Segment.
Click the 'Turn On' button to enable start sending analytics events from your Shopify Store to Segment.

Identifiers

anonymousId - The Segment anonymousId field are populated with the Shopify client ID. The Shopify client ID is a 'client-side ID of the customer, provided by Shopify'. You cannot configure the Segment anonymousId to be populated with any other value.
userId - The Segment userId field does not populate. You cannot configure the userId to be populated with any value from Shopify.
email and phone - traits.email and traits.phone are collected using Identify events (unless explicitly disabled in the 'Manage user profile details' section of the Shopify App User Interface).

Track and Page events sent to Segment

See the Shopify Standard Events documentation for more information about when events are triggered.

Segment Event Name	Shopify Standard Event Name	Event trigger
`Page Viewed`	`page_viewed`	A user has visited a page. Sent as a Segment Page event
`Products Searched`	`search_submitted`	A user has performed a search on the Shopify storefront
`Product List Viewed`	`collection_viewed`	A user has visited a product collection index page
`Product Viewed`	`product_viewed`	A user has visited a product details page
`Product Added`	`product_added_to_cart`	A user has added a product to their cart
`Product Removed`	`product_removed_from_cart`	A user has removed a product from their cart
`Cart Viewed`	`cart_viewed`	A user has visited the cart page
`Checkout Started`	`checkout_started`	A user has started the checkout process
`Shipping Info Entered`	`checkout_shipping_info_submitted`	A user has chosen a shipping rate
`Address Info Entered`	`checkout_address_info_submitted`	A user has submitted their mailing address
`Contact Info Entered`	`checkout_contact_info_submitted`	A user has submitted a checkout form
`Payment Info Entered`	`payment_info_submitted`	A user has submitted their payment information
`Order Completed`	`checkout_completed`	A user has completed a purchase

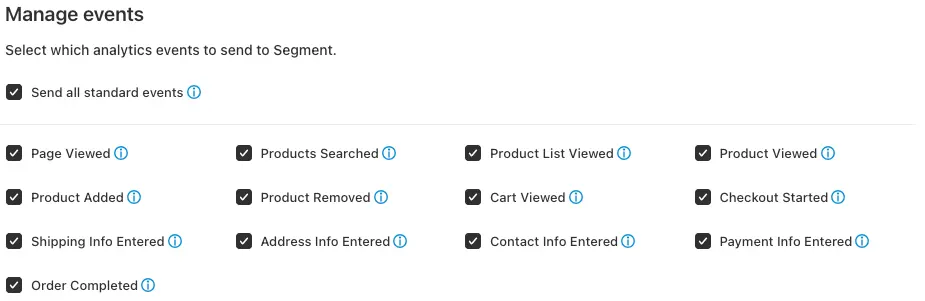

You can control which Track and Page events to send to Segment in the 'Manage events' section of the Shopify App User Interface.

Manage events settings with options for standard analytics events like Page Viewed and Checkout Started.

Page context data

The fields below are automatically sent to Segment with every Track, Page and Identify event. For Page events, these fields are also included in the properties object.

Field	Description	Type
`context.page.url`	The entire URL of the page	String
`context.page.search`	a string containing a '?' followed by the parameters or "querystring" of the URL	String
`context.page.path`	a string containing an initial '/' followed by the path of the URL, excludes the query string	String
`context.page.title`	The title of the current page	String
`context.page.referrer`	URI of the page that linked to the current page	String

UTM data

The fields below are automatically sent to Segment with every Track, Page and Identify call, if present in the QueryString of the page url.

Field	Description	Type
`context.campaign.source`	`utm_source` QueryString value	String
`context.campaign.medium`	`utm_medium` QueryString value	String
`context.campaign.name`	`utm_campaign` QueryString value	String
`context.campaign.term`	`utm_term` QueryString value	String
`context.campaign.content`	`utm_content` QueryString value	String

Page Viewed / Page event properties

The properties below are included with Page events.

(information)

Missing properties?

Your Segment events may be missing one of the following properties if Shopify provides null or an empty value for a property.

Field	Description	Type
`url`	The entire URL of the page	String
`search`	a string containing a '?' followed by the parameters or "querystring" of the URL	String
`path`	a string containing an initial '/' followed by the path of the URL, excludes the query string	String
`title`	The title of the current page	String
`referrer`	URI of the page that linked to the current page	String

Product Viewed Track event properties

The properties below are included with Product Viewed Track events.

(information)

Missing properties?

Your Segment events may be missing one of the following properties if Shopify provides null or an empty value for a property.

Property	Description	Type
`product_id`	Unique ID for the product	String
`name`	The product name	String
`untranslated_name`	Untranslated name of the product	String
`variant`	The product variant	String
`untranslated_variant`	Untranslated product variant	String
`category`	Product type specified by the merchant	String
`brand`	The product's vendor name	String
`url`	URL to the product page	String
`image_url`	URL to the product image	String
`currency`	The three-letter code that represents the currency, for example 'USD'	String
`price`	The decimal money amount (price) for the product	Number
`sku`	The SKU (stock keeping unit) associated with the variant	String

Product Added and Product Removed Track event properties

The properties below are included with Product Added and Product Removed Track events.

(information)

Missing properties?

Your Segment events may be missing one of the following properties if Shopify provides null or an empty value for a property.

Property	Description	Type
`product_id`	Unique ID for the product	String
`name`	The product name	String
`untranslated_name`	Untranslated name of the product	String
`variant`	The product variant	String
`untranslated_variant`	Untranslated product variant	String
`category`	Product type specified by the merchant	String
`brand`	The product's vendor name	String
`url`	URL to the product page	String
`image_url`	URL to the product image	String
`currency`	The three-letter code that represents the currency, for example 'USD'	String
`price`	The decimal money amount (price) for the product	Number
`quantity`	The quantity of the merchandise that the customer intends to purchase	Integer
`total_price`	The total decimal money amount (price) for the product	Number
`sku`	The SKU (stock keeping unit) associated with the variant	String

Product List Viewed Track event properties

The properties below are included with Product List Viewed Track events. products.$. indicates an array named 'products'.

(information)

Missing properties?

Your Segment events may be missing one of the following properties if Shopify provides null or an empty value for a property.

Property	Description	Type
`products.$.product_id`	Unique ID for the product	String
`products.$.name`	The product name	String
`products.$.untranslated_name`	Untranslated name of the product	String
`products.$.variant`	The product variant	String
`products.$.untranslated_variant`	Untranslated product variant	String
`products.$.category`	Product type specified by the merchant	String
`products.$.brand`	The product's vendor name	String
`products.$.url`	URL to the product page	String
`products.$.image_url`	URL to the product image	String
`products.$.currency`	The three-letter code that represents the currency, for example 'USD'	String
`products.$.price`	The decimal money amount (price) for the product	Number
`products.$.sku`	The SKU (stock keeping unit) associated with the variant	String

Products Searched Track event properties

The properties below are included with Products Searched Track events. products.$. indicates an array named 'products'.

(information)

Missing properties?

Your Segment events may be missing one of the following properties if Shopify provides null or an empty value for a property.

Property	Description	Type
`products.$.product_id`	Unique ID for the product	String
`products.$.name`	The product name	String
`products.$.untranslated_name`	Untranslated name of the product	String
`products.$.variant`	The product variant	String
`products.$.untranslated_variant`	Untranslated product variant	String
`products.$.category`	Product type specified by the merchant	String
`products.$.brand`	The product's vendor name	String
`products.$.url`	URL to the product page	String
`products.$.image_url`	URL to the product image	String
`products.$.currency`	The three-letter code that represents the currency, for example 'USD'	String
`products.$.price`	The decimal money amount (price) for the product	Number
`products.$.sku`	The SKU (stock keeping unit) associated with the variant	String
`query`	The search query that was executed	String

Cart Viewed Track event properties

The properties below are included with Cart Viewed Track events. products.$. indicates an array named 'products'.

(information)

Missing properties?

Your Segment events may be missing one of the following properties if Shopify provides null or an empty value for a property.

Property	Description	Type
`products.$.product_id`	Unique ID for the product	String
`products.$.name`	The product name	String
`products.$.untranslated_name`	Untranslated name of the product	String
`products.$.variant`	The product variant	String
`products.$.untranslated_variant`	Untranslated product variant	String
`products.$.category`	Product type specified by the merchant	String
`products.$.brand`	The product's vendor name	String
`products.$.url`	URL to the product page	String
`products.$.image_url`	URL to the product image	String
`products.$.currency`	The three-letter code that represents the currency, for example 'USD'	String
`products.$.price`	The decimal money amount (price) for the product	Number
`products.$.sku`	The SKU (stock keeping unit) associated with the variant	String
`cart_id`	A globally unique identifier for the cart	String
`subtotal`	The price at checkout before duties, shipping, and taxes	Number
`currency`	The three-letter code that represents the currency, for example 'USD'	String

Checkout and purchase Track event properties

The properties below are included with Checkout Started, Address Info Entered, Shipping Info Entered, Contact Info Entered, Payment Info Entered and Order Completed Track events. products.$. indicates an array named 'products'.

(information)

Missing properties?

Your Segment events may be missing one of the following properties if Shopify provides null or an empty value for a property.

Property	Description	Type
`products.$.product_id`	Unique ID for the product	String
`products.$.name`	The product name	String
`products.$.untranslated_name`	Untranslated name of the product	String
`products.$.variant`	The product variant	String
`products.$.untranslated_variant`	Untranslated product variant	String
`products.$.category`	Product type specified by the merchant	String
`products.$.brand`	The product's vendor name	String
`products.$.url`	URL to the product page	String
`products.$.image_url`	URL to the product image	String
`products.$.currency`	The three-letter code that represents the currency, for example 'USD'	String
`products.$.price`	The decimal money amount (price) for the product	Number
`products.$.sku`	The SKU (stock keeping unit) associated with the variant	String
`subtotal`	The price at checkout before duties, shipping, and taxes	Number
`currency`	The three-letter code that represents the currency, for example 'USD'	String
`order_id`	The ID for the order	String
`checkout_id`	A unique identifier for a particular checkout	String
`shipping`	Total shipping price	Number
`discount`	Total monetary value allocated as a discount	Number
`coupon`	Comma delimited list of customer-facing discount names / codes	String
`payment_method`	Comma delimited list of payment providers used for the transaction	String

Sending user profile details to Segment

User profile details can be sent to Segment in 3 ways:

As traits in Identify events.
As properties in Track events.
As traits in Track events, included in the context.traits object.

User profile details are only sent to Segment when the following track events are triggered by Shopify: Checkout Started, Address Info Entered, Shipping Info Entered, Contact Info Entered, Payment Info Entered and Order Completed.

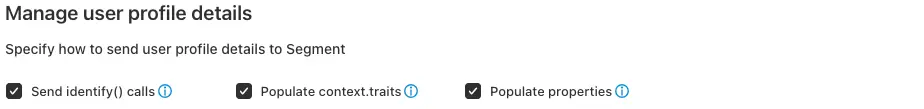

You can control how user profile details are sent to Segment on the 'Manage user profile details' section of the Shopify App User Interface.

The following user profile details are sent to Segment as they become available in the user checkout journey.

User profile trait / property name	Description
`email`	The user's email address
`phone`	The user's phone number address
`first_name`	The user's first name
`last_name`	The user's last name
`billing_address.address1`	Billing address first line
`billing_address.address2`	Billing address second line
`billing_address.city`	Billing address city
`billing_address.country`	Billing address country
`billing_address.postal_code`	Billing address post code / zip code
`billing_address.province_code`	Billing address province or state code
`billing_address.country`	Billing address country
`shipping_address.address1`	Shipping address first line
`shipping_address.address2`	Shipping address second line
`shipping_address.city`	Shipping address city
`shipping_address.country`	Shipping address country
`shipping_address.postal_code`	Shipping address post code / zip code
`shipping_address.province_code`	Shipping address province or state code
`shipping_address.country`	Shipping address country

FAQs

Why don't I see all of my events?

This Source uses client-side Javascript to send data to Segment. As with any client-side analytics tracking, some ad-blockers prevent data from being sent to Segment. This can lead to an under reporting of events to Segment. For more information about data loss associated with ad blockers, see the Ad Blocking documentation.

When do Identify events trigger?

To send Identify events, you must select the 'Send identify() calls' checkbox. If this setting is selected, Identify events are triggered when Checkout Started, Address Info Entered, Shipping Info Entered, Contact Info Entered, Payment Info Entered or Order Completed Track calls are triggered.

Why aren't my Identify events triggering when expected?

To save on API call volume, Segment only triggers an Identify event when user profile details have changed. If no change is detected, then the Identify call is not triggered.

Why are some events duplicated and triggered multiple times?

Shopify sometimes erroneously triggers duplicate Address Info Entered, Shipping Info Entered, Contact Info Entered, Payment Info Entered events in short succession. This is a known bug with Shopify. Segment deduplicates the majority of these duplicate events but is unable to filter all of them out.

Why do some Address/Shipping/Contact/Payment Info Entered events contain product arrays?

Shopify sometimes includes product array details in Standard Events which Segment uses to populate the Address Info Entered, Shipping Info Entered, Contact Info Entered, Payment Info Entered events. Segment includes these product details in Segment events.

Why are some event properties missing even though the documentation indicates that they should be present?

Mapping code is in place to map the majority of valuable fields from Shopify's Standard Events to Segment events. If properties are missing, it is due to the values not being provided by the Shopify event.
