Using KeyCDN as your Content Delivery Network (CDN)


This section is maintained by KeyCDN, if you have any questions about KeyCDN please contact their support(link takes you to an external page) team.

Sign up for KeyCDN(link takes you to an external page) or login to your existing account.

Create a pull zone and point the origin URL to https://sendgrid.net(link takes you to an external page).

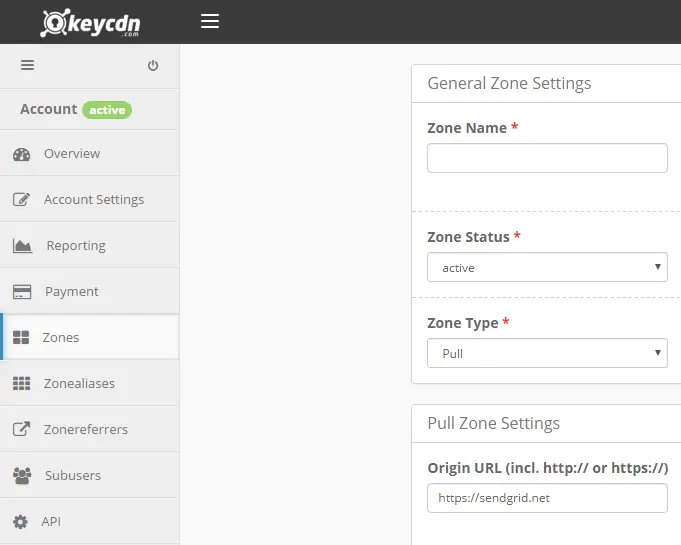

KeyCDN interface showing general and pull zone settings with active status and sendgrid.net URL.

Enable SSL and HTTP/2 (custom SSL or Let's Encrypt).

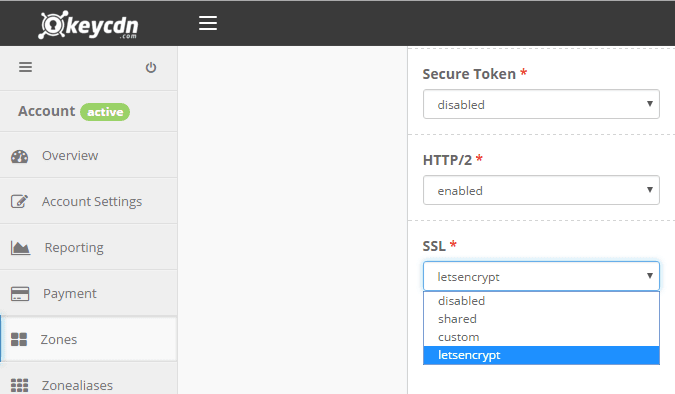

KeyCDN settings with SSL set to Let's Encrypt, HTTP/2 enabled, and Secure Token disabled.

Enable the option "Forward Host Header."

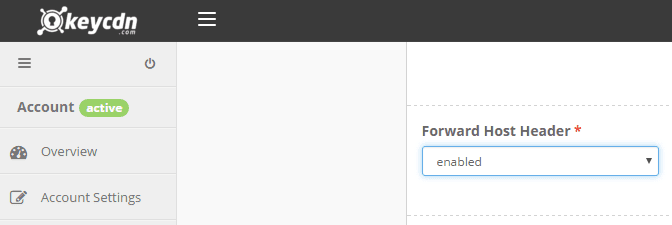

KeyCDN interface showing Forward Host Header set to enabled.

Create a CNAME record in your DNS settings pointing the alias you want to use for your email branded link domain (e.g. email.domain.com) to the Zone URL provided within your KeyCDN dashboard (e.g. sendgrid-1c6b.kxcdn.com). Then, add that alias as a Zonealias.

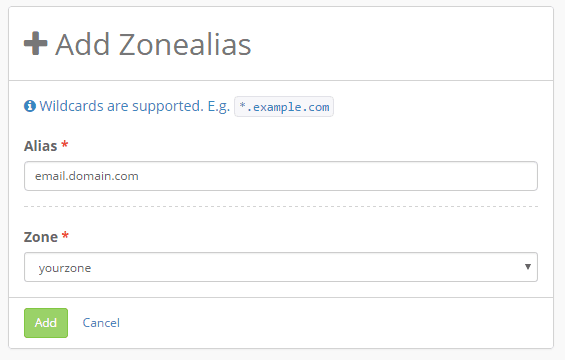

Add Zonealias form with fields for alias and zone, wildcards supported.

Finally, contact SendGrid support(link takes you to an external page), and they'll validate the CDN settings and enable SSL click and open tracking.
