Universal Links
Warning
The majority of this setup and management occurs outside of the SendGrid console. SendGrid support can only help with the steps that happen within your SendGrid account - like sender authentication setup. The setup options below are examples, and there are several more CDNs you could use to set up universal links.
Mobile devices are increasingly becoming the preferred method of receiving, reading, and engaging with email. If you send an email containing a link to your website, but you also have a corresponding mobile application, it is possible to ensure that any recipients who click the link on their mobile device are taken directly to your app instead of their web browsers.
This is accomplished by using universal links. A universal link is a unique URL that can be configured to open a window in either the recipient's web browser, mobile browser, or mobile application depending on the device the recipient is using. SendGrid enables you to simply tag individual links that you would like to be converted to universal links, without sacrificing the ability to track clicks on those links.
Info
These links are sometimes referred to as "deep links" in the context of Google's Android OS. Apple uses the term "universal links".
Regardless of the OS you are configuring your links for, we will use the term "universal links".
When setting up universal links for your app, it is important to ensure that you maintain the ability to track when users click those links. After configuring your universal links, we will explain how to ensure that your universal links are tracked.
Danger
Marketing Campaigns does not support universal links by default! If you would like to include universal links in your campaign, you must ensure that you edit the HTML of your template to appropriately flag your links as universal.
There are several requirements that you must complete before you can begin using universal links in your email:
- Universal links for iOS require an "apple-app-site-association" JSON file.
- Universal links for Android require that you set up a "digital asset links" JSON file, along with configuring intent filters in your Android app's manifest file.
- Your apple-app-site-association and digital asset links files must be hosted on an HTTPS web server or content delivery network (CDN).
- To ensure that your universal links register click tracking events, and to ensure that your recipient is taken to the correct page within your app, you must properly resolve your links .
- You must complete the link branding process for your account. When branding your links, you must use the same domain that will be used for your universal links. (e.g. links.example.com)

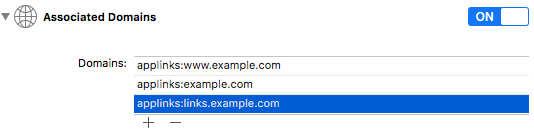

- On iOS, you must include your branded link subdomain in the "Associated Domains" for your app. You can customize your subdomain using the custom return path in advanced settings while setting it up. Using the example above, you'd need to add an entry for "applinks .example.com" like this:
To keep your app secure, Google and Apple want to restrict which resources or websites are allowed to link directly to different pages within your app. This prevents bad actors from using universal links to gain access to sensitive information within your app.
Your "apple-app-site-association" and "digital asset links" files serve as secure means of authenticating your universal links; they verify that your website is allowed to open up a page within your app.
Info
You must create your own digital asset links and apple-app-site-association files, and you must upload these files to a secure server.
Both "apple-app-site-association" and "digital asset links" files are comprised of a series of JSON key/value pairs that associate external URLs with pages within your application.
For detailed instructions on how to configure an iOS "apple-app-site-association" file, please see Apple's Developer Documentation.
For detailed instructions on how to configure an Android "digital asset links" file, please visit Google's Developer Documentation.
_13{_13 "applinks": {_13 "apps": [],_13 "details": [_13 {_13 "appID": "[YOUR APP ID HERE]",_13 "paths": [_13 "/uni/*"_13 ]_13 }_13 ]_13 }_13}
Info
When configuring your universal links in iOS, you specify which paths you want to be handled by the app by using the paths argument in the apple-app-site-association file. You must flag your universal links with the attribute universal=true as documented here. In your apple-app-site-association, by adding ["/uni/*"] into paths, it ensures your flagged universal links clicks are properly tracked by SendGrid and are handled by the app appropriately.
Danger
Do not append the JSON file extension to your apple-app-site-association file!
_14[_14 {_14 "target": {_14 "namespace": "android_app",_14 "package_name": "[YOUR APP'S PACKAGE NAME]",_14 "sha256_cert_fingerprints": [_14 "[YOUR APP FINGERPRINT HERE]"_14 ]_14 },_14 "relation": [_14 "delegate_permission/common.handle_all_urls"_14 ]_14 }_14]
Info
When configuring your universal links in iOS, you specify which paths you want to be handled by the app by using the paths argument in the apple-app-site-association file. By specifying only the path ["/uni/*"], and using the universal=true attribute on your links as documented below, only appropriate links will be handled by the app, and others will be opened in the phone's browser.
Android requires that you specify these paths inside your app, rather than the assetlinks.json file. This is accomplished by adding intent filters for specific hosts and paths. Please visit Google's Android Developer Documentation to learn how to add an intent filter to your app manifest that can handle your universal links.
Once you have created and configured your Android and iOS configuration files, you will have to host them on a secure HTTPS server. Keep reading below to learn how you can host these files on either Amazon CloudFront or NGINX.
After creating your iOS "apple-app-site-association" file and/or your Android "digital asset links" file, you need to host them on a secure content delivery network. The following instructions will guide you through setting up Amazon's CloudFront to host these files.
- Navigate to Amazon CloudFront . Once you have created an account or are logged into your existing account, create a new S3 bucket and give it a unique name (e.g. links-example-com)
- Upload your "apple-app-site-association" file into the root of the new S3 bucket
- Under Permissions on the uploaded file, add a permission for Everyone to Open/Download (or Read in the new S3 UI), then hit Save

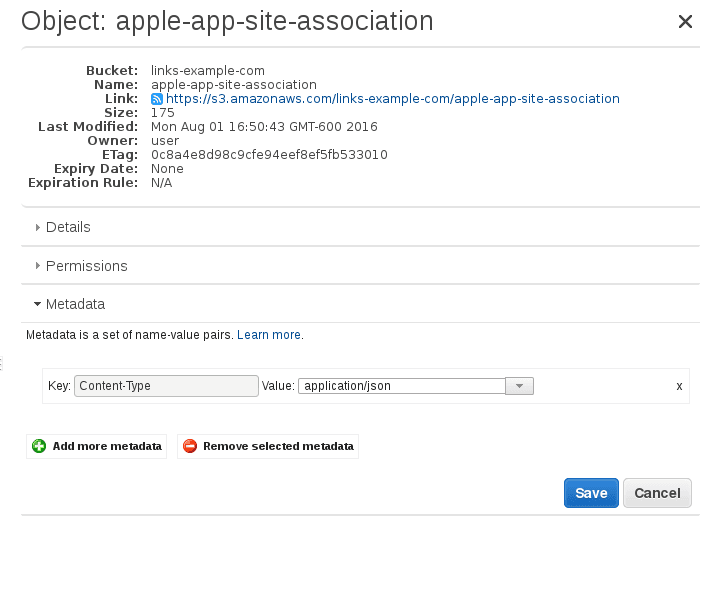

- Under Metadata on the uploaded file, change the Content-Type value to application/json , then hit Save
- Create a new folder in the bucket called ".well-known"
- Inside of the ".well-known" folder, upload the same "apple-app-site-association" file as in step 2
-
As above, add a permission for
Everyone
to
Open/Download
(or
Read
in the new S3 UI) and change the
Content-Typeto "application/json" - Inside of the ".well-known" folder, upload your "assetlinks.json"
-
Repeat step 7 for your "assetlinks.json" file: add a permission for
Everyone
to
Open/Download
(or
Read
in the new S3 UI) and change the
Content-Typeto "application/json" - Navigate to the AWS Certificate Manager

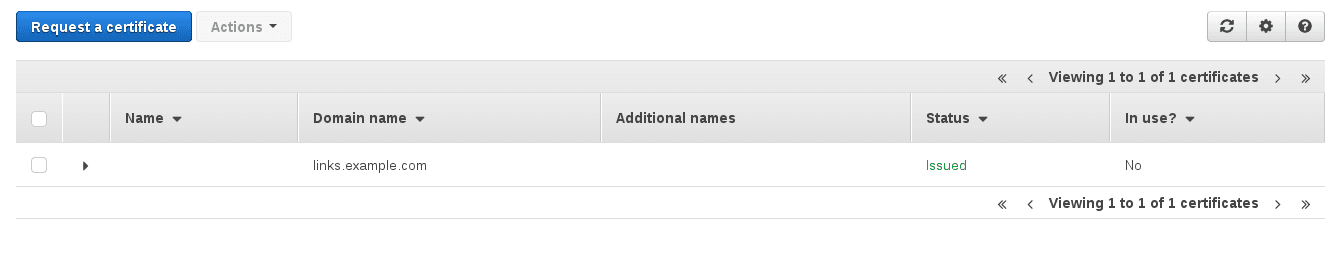

- Request a new certificate for the domain your link branding is configured for (e.g. links.example.com)
- AWS will send an email to the appropriate domain owners, requesting them to approve the certificate
- Ensure that the certificate is approved and issued
- Navigate to AWS CloudFront
- Create a new Distribution that is a Web delivery method

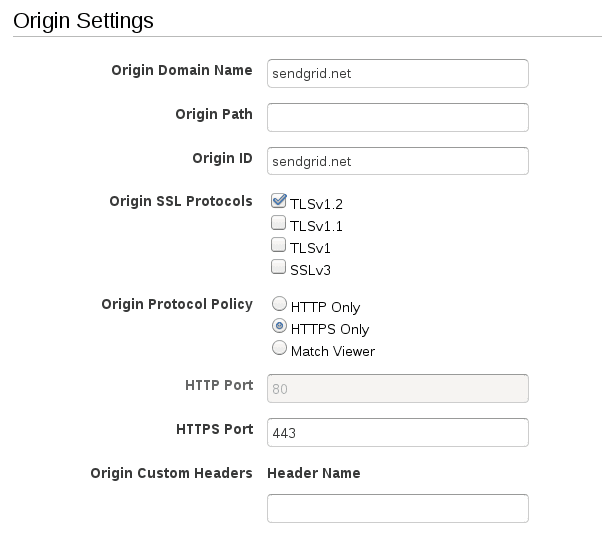

- Under the Origin Settings section, set the fields as follows:
_10* **Origin Domain Name:** sendgrid.net_10* **Origin ID:** sendgrid.net_10* **Origin SSL Protocols:** only TLSv1.2_10* **Origin Protocol Policy:** HTTPS Only

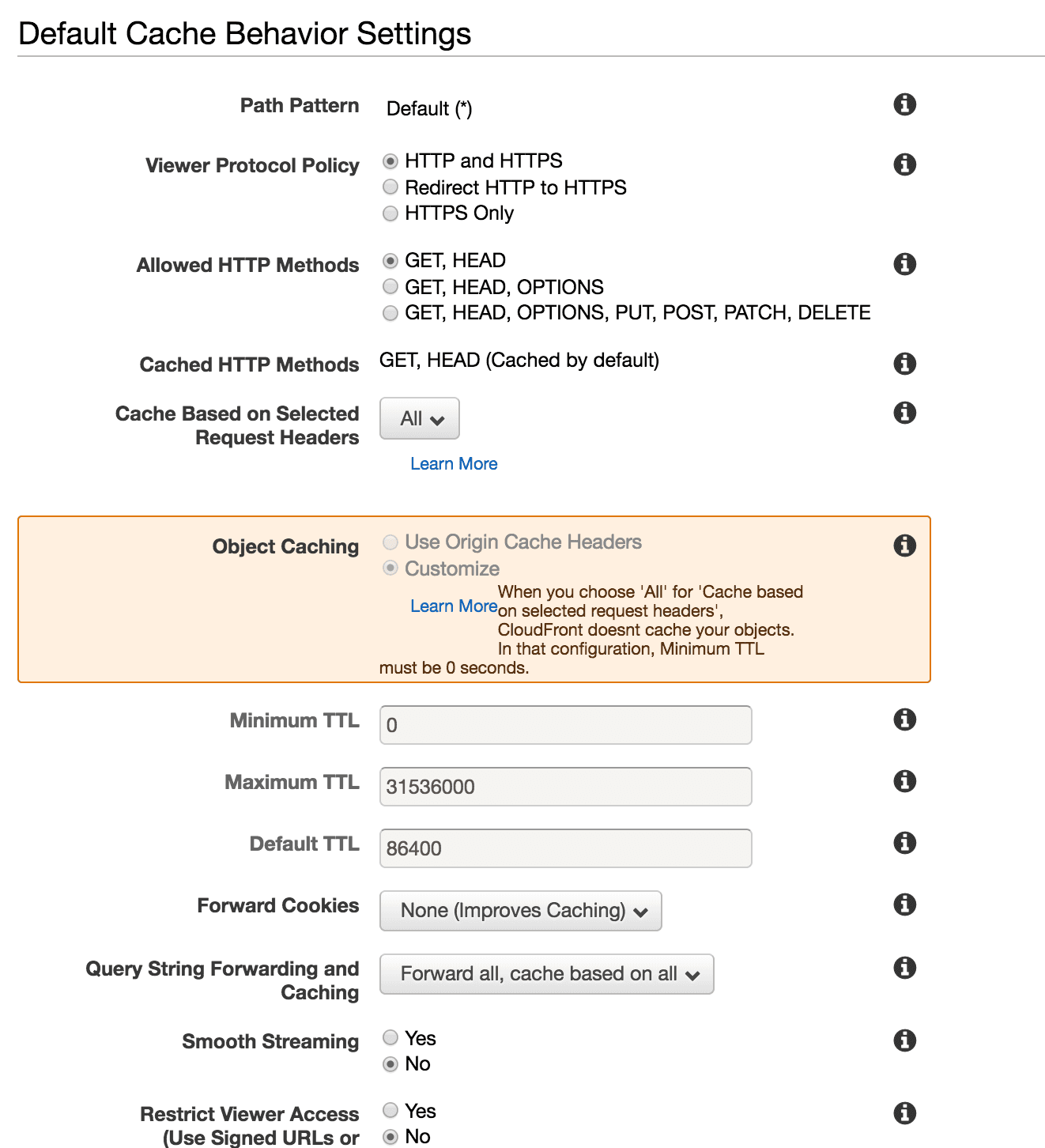

17. Under the Default Cache Behavior Settings section, set the fields as follows:
_10* **Cache Based on Selected Request Headers:** All_10* **Query String Forwarding and Caching:** Forward all, cache based on all

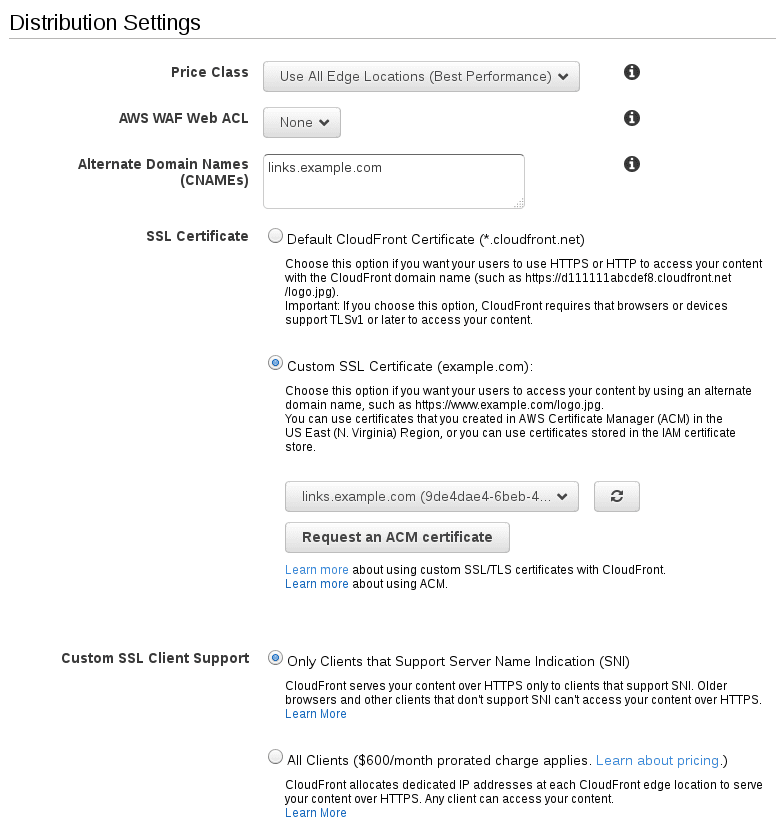

18. Under the Distribution Settings section, set the fields as follows:
_10* **Alternate Domain Names:** links.example.com_10* **SSL Certificate:** Custom SSL Certificate, pointing to the appropriate ACM certificate
19. Hit Create Distribution
- Once the distribution is created, click into Distribution Settings

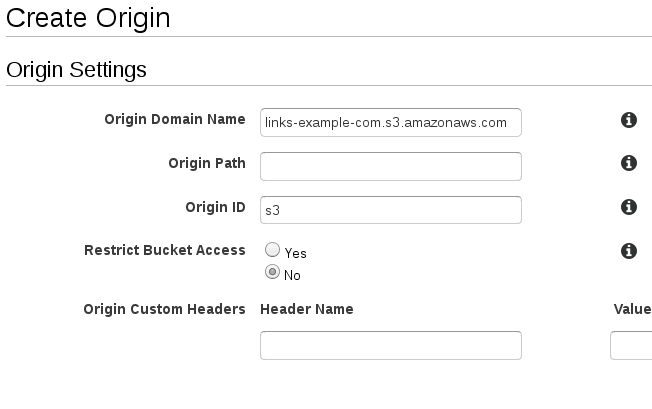

- Under the Origins tab, create a new origin with the following details
_10* **Origin Domain Name:** links-example-com.s3.amazonaws.com_10* **Origin ID:** s3
22. Click Create

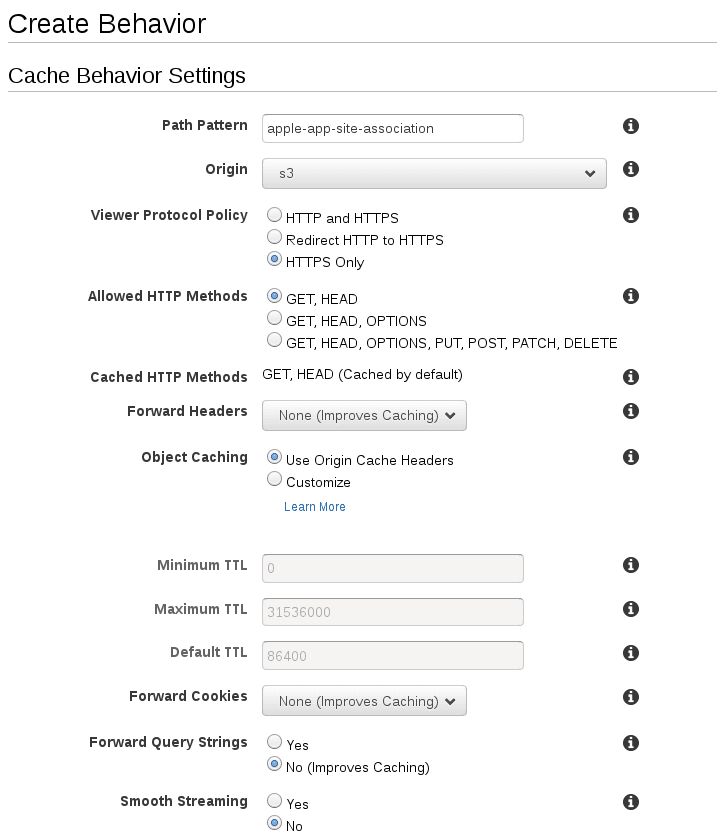

- Under the Behaviors tab, create a new behavior with the following details
_10* **Path Pattern:** apple-app-site-association_10* **Origin:** s3_10* **Viewer Protocol Policy:** HTTPS Only
24. Click Create
-
Create another behavior with the following details
- Path Pattern: .well-known/apple-app-site-association
- Origin: s3
- Viewer Protocol Policy: HTTPS Only
- Click Create
-
Create a third behavior with the following details
- Path Pattern: .well-known/assetlinks.json
- Origin: s3
- Viewer Protocol Policy: HTTPS Only
- Hit Create

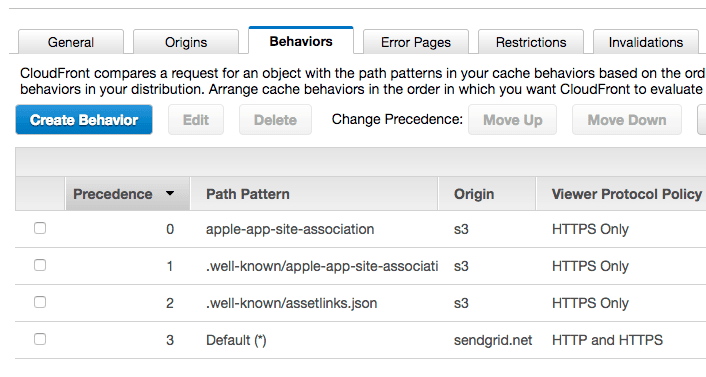

- Ensure that the Behaviors are sorted so that the Default is the last onNewIntent
30. Wait for the distribution to deploy
-
Verify that the distribution serves up the expected files (do this without changing the real DNS to avoid causing any issues with existing links)
- Verify behavior using https://www.branch.io/glossary/universal-links/
After creating your iOS "apple-app-site-association" file and/or your Android "digital asset links" file, you need to host them on a secure content delivery network. The following instructions will guide you through setting up NGINX to host these files.
- Request a new certificate for the domain your link branding is configured for (e.g. links.example.com)
- Place the certificate chain into the file named /etc/pki/tls/certs/links.example.com.crt
- Place the private key into the file named /etc/pki/tls/private/links.example.com.key
- Create the following directory /var/www/links.example.com
- Create the file /var/www/links.example.com/apple-app-site-association , with the appropriate content for your apple-app-site-association file, as explained in Apple's Developer Documentation .
- Create the directory /var/www/links.example.com/.well-known
- Create the file /var/www/links.example.com/.well-known/apple-app-site-association , with the appropriate content for your apple-app-site-association file
- Create the file /var/www/links.example.com/.well-known/assetlinks.json , with the appropriate content for your digital asset links file, as explained in Google's Developer Documentation .
- Create the file /etc/nginx/conf.d/links.example.com.conf , with the following content:
_23server {_23 listen 80;_23 listen 443 ssl;_23 server_name 'links.example.com';_23 ssl_certificate '/etc/pki/tls/certs/links.example.com.crt';_23 ssl_certificate_key '/etc/pki/tls/private/links.example.com.key';_23 location = /apple-app-site-association {_23 root '/var/www/links.example.com';_23 default_type 'application/json';_23 }_23 location = /.well-known/apple-app-site-association {_23 root '/var/www/links.example.com';_23 default_type 'application/json';_23 }_23 location = /.well-known/assetlinks.json {_23 root '/var/www/links.example.com';_23 default_type 'application/json';_23 }_23 location / {_23 proxy_pass 'https://sendgrid.net';_23 proxy_set_header 'Host' 'links.example.com';_23 }_23}
Info
It is important to make sure that only the links within your email that point to your app are flagged as universal links.
It is not unusual to include links to pages outside of your app alongside links to your app in the same email. Not all of these links should be treated as universal links. For example, if you have Facebook or Twitter links tagged as universal links, users will be taken to your app when they click those links instead of being taken to your Facebook and Twitter pages.
To flag links to your app as universal links, simply include the attribute universal="true" within the HTML link of your email.
SendGrid adds the /uni/ parameter to flagged universal links
For example:
<a href="links.example.com" universal="true">Link to your app!</a>
This way, as long as your association file has the paths restricted to /uni/* as we recommend above, only the links that you want to be handled by your app will be.
If you exclude the universal="true" attribute, your links will still function, but they will take your recipient to their mobile browser.
If you exclude the /uni/* path in your apple-app-site-association, the all links for your authenticated domain will be forwarded for your app to handle, which may cause issues.
Now that you've successfully set up your app to open SendGrid click tracking links, you'll want to ensure that your app handles them properly. The link your app receives will be the SendGrid encoded link, so you'll want to resolve the link in order to:
- Trigger the "click" event in your SendGrid account for statistics.
- Find the original URL to determine which part of your app the user should be taken to.
The following code examples help to illustrate what logic should be included within your own app to guarantee that your links are resolved, and tracked by SendGrid.
If you have written your app for iOS, you can use NSURLSession resolve the link.
For example:
_19func application(_ application: UIApplication, continue userActivity: NSUserActivity, restorationHandler: @escaping ([Any]?) -> Void) -> Bool {_19 if userActivity.activityType == NSUserActivityTypeBrowsingWeb {_19 guard let encodedURL = userActivity.webpageURL else {_19 print("Unable to handle user activity: No URL provided")_19 return false_19 }_19 let task = URLSession.shared.dataTask(with: encodedURL, completionHandler: { (data, response, error) in_19 guard let resolvedURL = response?.url else {_19 print("Unable to handle URL: \(encodedURL.absoluteString)")_19 return_19 }_19 // Now you have the resolved URL that you can_19 // use to navigate somewhere in the app._19 print(resolvedURL)_19 })_19 task.resume()_19 }_19 return true_19}
_22- (BOOL)application:(UIApplication *)application continueUserActivity:(NSUserActivity *)userActivity restorationHandler:(void (^)(NSArray * _Nullable))restorationHandler {_22 if (userActivity.activityType == NSUserActivityTypeBrowsingWeb) {_22 NSURL *encodedURL = userActivity.webpageURL;_22 if (encodedURL == nil) {_22 NSLog(@"Unable to handle user activity: No URL provided");_22 return false;_22 }_22 NSURLSession *session = [NSURLSession sharedSession];_22 NSURLSessionDataTask *task = [session dataTaskWithURL:encodedURL completionHandler:^(NSData * _Nullable data, NSURLResponse * _Nullable response, NSError * _Nullable error) {_22 if (response == nil || [response URL] == nil) {_22 NSLog(@"Unable to handle URL: %@", encodedURL.absoluteString);_22 return;_22 }_22 // Now you have the resolved URL that you can_22 // use to navigate somewhere in the app._22 NSURL *resolvedURL = [response URL];_22 NSLog(@"Original URL: %@", resolvedURL.absoluteString);_22 }];_22 [task resume];_22 }_22 return YES;_22}
If you have written your app for Android, you can use HttpURLConnection to resolve the URL by setting setInstanceFollowRedirects to false.
For example:
_31@Override_31protected void onCreate(Bundle savedInstanceState) {_31 super.onCreate(savedInstanceState);_31 setContentView(R.layout.activity_main);_31 onNewIntent(getIntent());_31}_31_31protected void onNewIntent(Intent intent) {_31 String action = intent.getAction();_31 final String encodedURL = intent.getDataString();_31 if (Intent.ACTION_VIEW.equals(action) && encodedURL != null) {_31 Log.d("App Link", encodedURL);_31 new Thread(new Runnable() {_31 public void run() {_31 try {_31 URL originalURL = new URL(encodedURL);_31 HttpURLConnection ucon = (HttpURLConnection) originalURL.openConnection();_31 ucon.setInstanceFollowRedirects(false);_31 URL resolvedURL = new URL(ucon.getHeaderField("Location"));_31 Log.d("App Link", resolvedURL.toString());_31 }_31 catch (MalformedURLException ex) {_31 Log.e("App Link",Log.getStackTraceString(ex));_31 }_31 catch (IOException ex) {_31 Log.e("App Link",Log.getStackTraceString(ex));_31 }_31 }_31 }).start();_31 }_31}
