Flex UI Components

Auto-Generated Documentation for the Flex UI is now available as a beta distribution. The auto-generated documentation is accurate and comprehensive, and so may differ from what you see in the official Flex UI documentation.

Flex UI is a library of programmable or dynamic components that expose a Content property and allows you to add, replace and remove any component and its children.

Content property and add / replace / remove methods

Below you can find a list of UI components and their details, that can be overridden programmatically. This can be done by using add, replace and remove methods with options.

All components must have a key declared.

Syntax for add/replace methods

Flex.Component.Content.add(<MyComponent key="demo-component"/>, {options});
Flex.Component.Content.replace(<MyComponent key="demo-component"/>, {options});

Example

Below is an example of adding a component called AnotherMuteButton to the MainHeader component, aligned to the end (here left) and placed as the first component in front of native components MuteButton and UserControls:

Flex.MainHeader.Content.add(<AnotherMuteButton key="mute"/>, {
  sortOrder: -1,
  align: “end”
});

Syntax for remove method

Remove method allows you to remove immediate children of a programmable component by their key.

Flex.Component.Content.remove(key, {options});

Example

Below is an example of removing the AnotherMuteButton component from the MainHeader component. This component is removed by the key we set above, "mute".

Flex.MainHeader.Content.remove("mute");

Options for add/replace/remove methods

if (Expression)

Used in both add and replace methods to add conditions on which component is added or replaced.

Example

Flex.MainHeader.Content.add(<AnotherMuteButton key="mute"/>, {
  if : props => props.task.source.taskChannelUniqueName === "custom1"
});

sortOrder (number)

Used in add method to specify the order in which the new component is placed in relation to other children of the parent component. Native children components take priority. Sort order counter starts with 0. To always place a new component at the very start or end of the order, use large numbers like -100 or 100, depending on the direction.

Example

Flex.MainHeader.Content.add(<AnotherMuteButton key="mute"/>, {
  sortOrder: -1
});

align ('start' | 'end')

Used in the add method to align new components either to the top/bottom or right/left, depending on the direction of the parent component. Possible values are:

  • start - Aligns new component on the left or top
  • end - aligns new component on the right or bottom

Example

Flex.MainHeader.Content.add(<AnotherMuteButton key="mute"/>, {
  align: “end”
});

Programmable components

Each immediate child of a component has a key (required for the add and replace methods) and a set of properties that will be inherited by its children. To explore a component's key and props, we recommend using the React developer tools extension for Chrome or Firefox.

To find a component's key or explore component props, go to Flex UI API Reference.

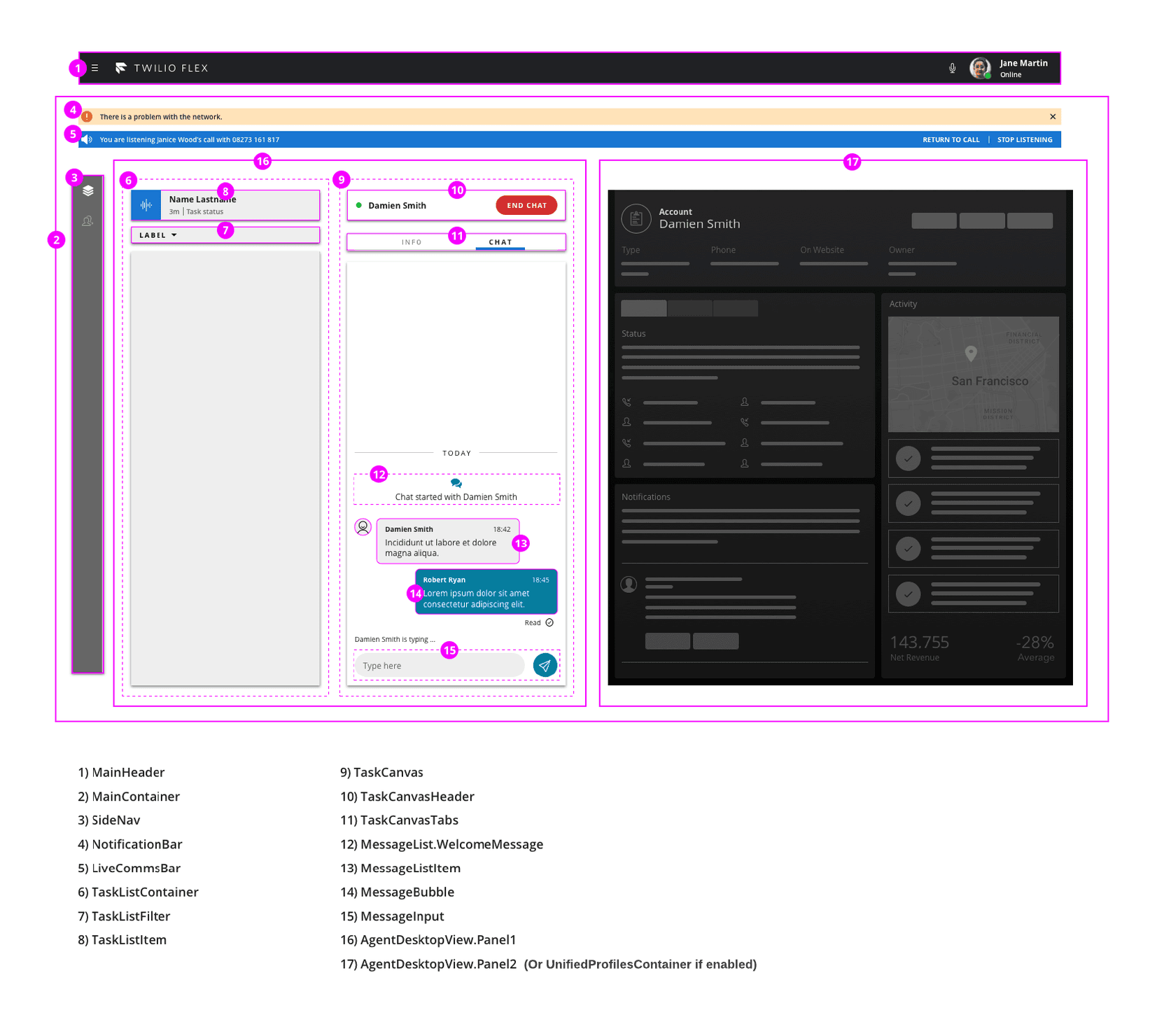

Agents Desktop View components overview


Teams View components overview


RootContainer

View Full Component Reference >

Direction: Horizontal

MainHeader

View Full Component Reference >

Direction: Horizontal


MainContainer

View Full Component Reference >

Direction: Horizontal


LiveCommsBar

View Full Component Reference >

Direction: Horizontal


NotificationsBar

Direction: Horizontal

Customizing the NotificationsBar is described in Notifications Framework

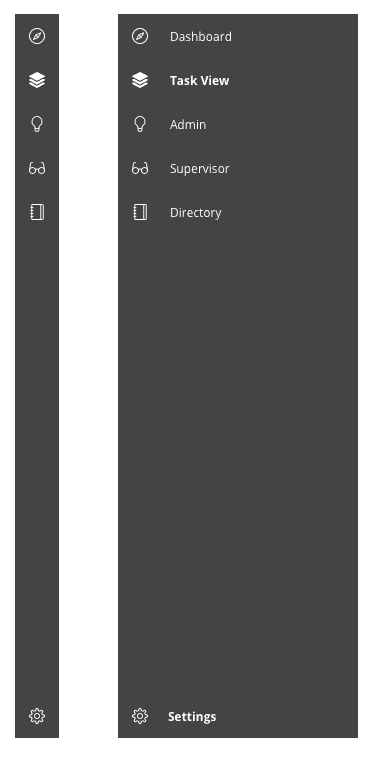

SideNav

View Full Component Reference >

Direction: Vertical


Agent Desktop View Components

AgentDesktopView

View Full Component Reference >

Direction: Horizontal


AgentDesktopView.Panel1

View Full Component Reference >

Direction: Vertical


AgentDesktopView.Panel2

View Full Component Reference >

Direction: Vertical

Flex.AgentDesktopView.Panel2

CRMContainer

View Full Component Reference >

Direction: Vertical


NoTasksCanvas

View Full Component Reference >

Direction: Vertical


TaskListContainer

View Full Component Reference >

Direction: Vertical


TaskList

View Full Component Reference >

Direction: Vertical

For details on how to configure filters for the task list, see the UI configuration page.


TaskListItem

View Full Component Reference >

Direction: Vertical

Add / Replace / Remove and properties of the TaskListItem are described in the Task Channel Definition API.

Screen Shot 2018-11-28 at 15.18.02.png

TaskListItemButtons

Direction: Horizontal

Add / Replace / Remove and properties of the TaskListItem are described in the Task Channel Definition API.

TaskListItemButtons

Examples

Adding a button to Chat type task

Flex.DefaultTaskChannels.Chat.addedComponents = [{
  target: "TaskListButtons",
  component: <Flex.IconButton key="eye_button" icon="Eye" />
}];

Adding a button to Chat type task when it is in accepted state

Flex.DefaultTaskChannels.Chat.addedComponents = [{
  target: "TaskListButtons",
  component: <Flex.IconButton key="eye_button" icon="Eye" />,
  options: { if: props.task.status === "accepted" }
}];

Removing a reject button from Chat type task

Flex.DefaultTaskChannels.Chat.removedComponents = [{
  target: "TaskListButtons",
  key: "reject"
}];

TaskCanvas

View Full Component Reference >

Direction: Vertical


TaskCanvasHeader

View Full Component Reference >

Direction: Horizontal

Flex.TaskCanvasHeader

TaskCanvasTabs

View Full Component Reference >

Direction: Horizontal

Flex.TaskCanvasTabs

Example

Add tabs and content

import { Tab } from "@twilio/flex-ui"

init(flex, manager) {
  const Img = <img src="http://someimage.jpg" />;

  flex.TaskCanvasTabs.Content.add(
    <Tab icon={Img} iconActive={Img} key="my-new-tab">
      <MyNewTabComponent/>
    </Tab>
  );
}

TaskInfoPanel

View Full Component Reference >

Direction: Vertical

Flex.TaskInfoPanel

IncomingTaskCanvas

View Full Component Reference >

Direction: Vertical

Flex.IncomingTaskCanvas

IncomingTaskCanvasActions

View Full Component Reference >

Direction: Horizontal

IncomingTaskCanvasActions

CallCanvas

View Full Component Reference >

Direction: Vertical


CallCanvasActions

View Full Component Reference >

Direction: Horizontal

CallCanvasActions

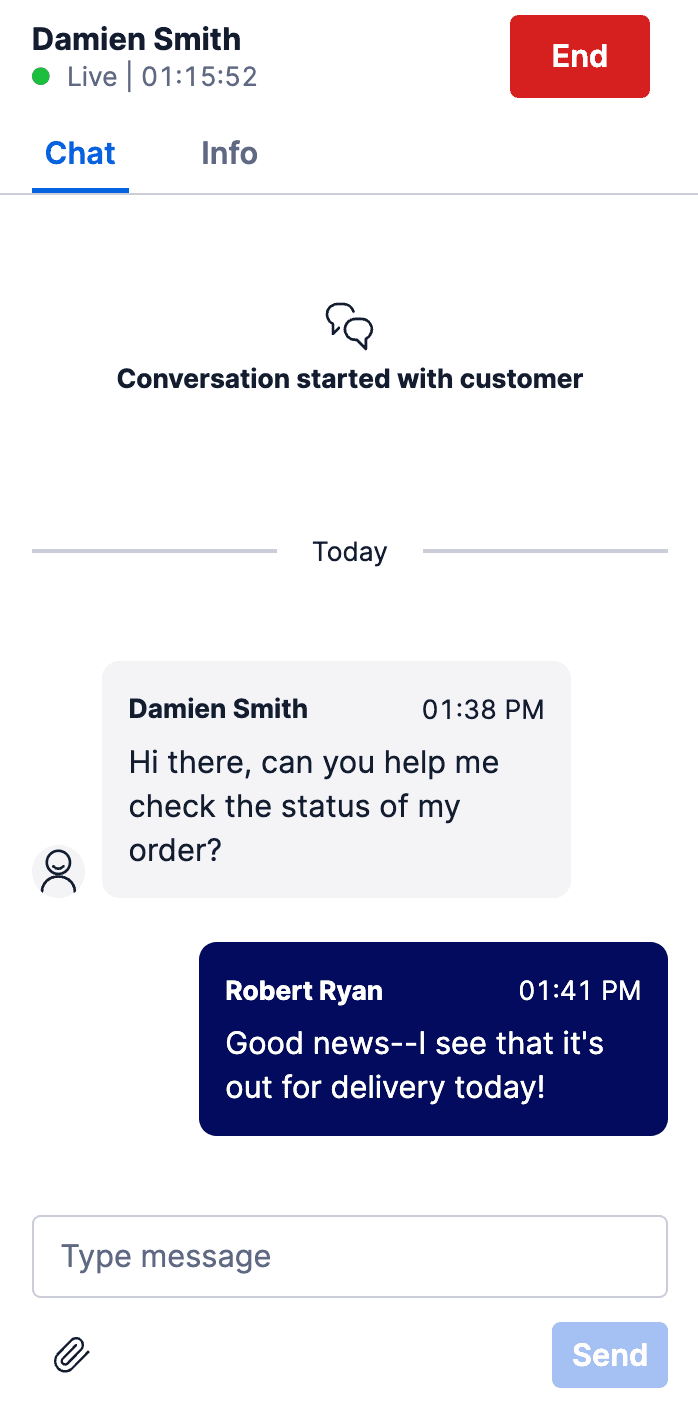

MessagingCanvas

View Full Component Reference >

Direction: Vertical


MessageList

View Full Component Reference >

Direction: Horizontal

Flex.MessageList

MessageList.WelcomeMessage

View Full Component Reference >

Direction: Vertical


MessageListItem

View Full Component Reference >

Direction: Vertical

Flex.MessageListItem

MessageBubble

View Full Component Reference >

Direction: Vertical

Flex.MessageBubble

MessageInput

View Full Component Reference >

Direction: Vertical

Flex.MessageInput

WorkerDirectory

View Full Component Reference >

Direction: Horizontal

WorkerDirectory

WorkerDirectoryTabs

View Full Component Reference >

Direction: Vertical

WorkerDirectoryTabs

The Worker directory contains 2 tabs by default:

  • Agents - key workers
  • Queues- key queues

Example: Add new custom tab

Flex.WorkerDirectory.Tabs.Content.add(
  <Flex.Tab key="my-tab" label="My Tab">
        <div> "Hello World"
        </div>
  </Flex.Tab>
);

Worker Directory Tabs Hidden Filters

WorkerDirectoryTabs accepts 2 default props:

  • hiddenWorkerFilter
  • hiddenQueueFilter

These filters are applied to the list in combination with the filter applied by the user typing in the search string. You can programmatically apply a filter that is hidden from the user, i.e. the user cannot disable it. You could use this feature to pre-filter the list of available transferees an agent can search and choose from, to their team members or available agents only. In the following example, we use live query to:

  • filter the agents list to only show agents with a specific team_name attribute (you can set user attributes via your SSO provider)
  • filter the agents list to only show agents that are in the Available activity
  • filter the queues list to only show queues with a specific queue_name attribute
// Filter Agents by Worker Attributes or activity_name
Flex.WorkerDirectoryTabs.defaultProps.hiddenWorkerFilter = 'data.attributes.team_name CONTAINS "sales"'
Flex.WorkerDirectoryTabs.defaultProps.hiddenWorkerFilter = 'data.activity_name CONTAINS "Available"'

// Filter Queues by queue_name or queue_sid
Flex.WorkerDirectoryTabs.defaultProps.hiddenQueueFilter = 'data.queue_name CONTAINS "sales"'

The hidden filter feature is only available in @twilio/flex-ui@1.26.0 and later.

ParticipantsCanvas

View Full Component Reference >

Direction: Horizontal

ParticipantsCanvas is a responsive component and will switch between regular mode and list mode depending on the size of the container its placed in. Regular mode and list mode contain different children - ParticipantCanvas and ParticipantCanvasListItem repsectively. When customizing ParticipantsCanvas children, like adding an additional button, remember to do customization to both children components

Regular mode

ParticipantsCanvas

List mode

ParticipantsCanvas in ListMode

ParticipantCanvas

View Full Component Reference >

Direction: Horizontal

ParticipantCanvas

ParticipantCanvasListItem

Direction: Vertical

ParticipantCanvas.ListItem

Teams View Components

WorkersDataTable

WorkersDataTable is a programmable component. It is a Material UI table styled to the Flex theme with data from the Insights SDK.

View Full Component Reference >

As of flex-ui v1.12.0 new exports were added to refer to workers instead of agents:

  • WorkersDataTable
  • WorkerListFilterSelect
  • WorkersDataTable
  • WorkersDataTableProps
  • WorkerListFilter

For example, AgentsDataTable is now referred to as WorkersDataTable. However, previous exports (like AgentsDataTable) are kept for backwards compatibility

By default, WorkersDataTable contains the following rows:

  • Agent - UserCard component
    • SupervisorUserCardFirstLine - default value retrieves the full name of the worker if it exists, and the identity if not. Variables provided to the template: worker
    • SupervisorUserCardSecondLine - default value shows the availability of the worker. Variables provided to the template: worker
    • The first and second row are template strings with names.
  • Calls -TaskCardList component, showing tasks of the voice channel in assigned and wrapping state
  • Other tasks - TaskCardList component, showing tasks of all channels (apart from voice) in assigned and wrapping state

Add columns to WorkersDataTable

Columns can be added to the table programmatically. Columns cannot be removed yet (the ability to do that is coming soon). You can add columns with different types of content:

  • TaskCardList component
  • Any custom component
  • String

TaskCardList

import { TaskCardList, ColumnDefinition } from "@twilio/flex-ui";

Flex.WorkersDataTable.Content.add(
       <ColumnDefinition key="calls" header={"My Custom Header"} content={(items, context) => <TaskCardList tasks={items.tasks} />} />);


TaskCardList also has a filter prop which can be used here, and which is optional. If the filter prop is not set, all tasks in the list will be rendered:

export interface TaskCardListProps {
   compareFunction?: (a: TaskData, b: TaskData) => number;
   filter?: (task: TaskData) => boolean;
   tasks: TaskData[];
}


Any custom component

import { ColumnDefinition } from "@twilio/flex-ui";

Flex.WorkersDataTable.Content.add(<ColumnDefinition key="hello" header={"Helloxxx"} content={<div>hello</div>}/>);


String

You can use Worker attributes as follows:

import { ColumnDefinition } from "@twilio/flex-ui";

Flex.WorkersDataTable.Content.add(<ColumnDefinition key="team" header={"Team"} content={item => item.worker.attributes.team_name}/>);

Customizing filters

By default, WorkersDataTable has 2 filters:

  • All agents
  • Active agents - worker with current activity state set of type available

Filters for the Workers Table can be programmatically changed, by defining filters property of WorkersDataTable component

Example of creating a filter to show workers with activity "Break"

With configuration object

   componentProps: {
        WorkersDataTable: {
            filters: [
                {
                    query: 'data.activity_name == "Break"',
                    text: "Workers on break"
                }
            ]
        }
    },...

With defaultProps API

Flex.WorkersDataTable.defaultProps.filters = [
                {
                    query: 'data.activity_name == "Break"',
                    text: "Workers on break"
                },...
            ]

Query syntax

Query data schema

data object in the query refers to TaskRouter worker resource. The following attributes on a worker can be used for filters query:

object name

description

format

data.activity_name

worker's current activity friendly name

String

data.attributes

worker's attributes

Key value pair

data.date_activity_changed

date of the last activity change of the current worker

Datetime ISO8601

data.friendly_name

worker's friendly name

String

data.worker_activity_sid

worker's current activity sid

String

data.worker_sid

worker's sid

String

data.workspace_sid

worker's workspace sid

String

Query operators

WorkersDataTable is powered by Twilio Sync and we use Twilio Sync Live Query for filtering of the workers. See Live Query docs for supported query operators.

TaskCardList

View Full Component Reference >

Direction: Vertical


TaskCard

View Full Component Reference >

Direction: Horizontal


UserCard

Direction: Horizontal


Supervisor.TaskCanvas

View Full Component Reference >

Direction: Vertical

Supervisor.TaskCanvas

Supervisor.TaskCanvasHeader

View Full Component Reference >

Direction: Vertical

Supervisor.TaskCanvasHeader

Supervisor.TaskCanvasTabs

View Full Component Reference >

Direction: Horizontal

Supervisor.TaskCanvasTabs

Worker directory contains 2 tabs by default:

Examples

Adding tabs and content

Flex.Supervisor.TaskCanvasTabs.Content.add(
  <Flex.Tab key="my-tab" label="My Tab">
        <div> "Hello World"
        </div>
  </Flex.Tab>
);

SupervisorTaskInfoPanel

View Full Component Reference >

Direction: Horizontal

Flex.TaskInfoPanel

WorkerCanvas

View Full Component Reference >

Direction: Vertical


WorkerCanvasHeader

View Full Component Reference >

Direction: Vertical


WorkerProfile

View Full Component Reference >

Direction: Vertical


WorkerSkills

View Full Component Reference >

Direction: Vertical


Rate this page:

Need some help?

We all do sometimes; code is hard. Get help now from our support team, or lean on the wisdom of the crowd by visiting Twilio's Community Forums or browsing the Twilio tag on Stack Overflow.

Thank you for your feedback!

We are always striving to improve our documentation quality, and your feedback is valuable to us. How could this documentation serve you better?

Sending your feedback...
🎉 Thank you for your feedback!
Something went wrong. Please try again.

Thanks for your feedback!

Refer us and get $10 in 3 simple steps!

Step 1

Get link

Get a free personal referral link here

Step 2

Give $10

Your user signs up and upgrade using link

Step 3

Get $10

1,250 free SMSes
OR 1,000 free voice mins
OR 12,000 chats
OR more
