Voice SDKs Network Connectivity Requirements

Starting 26 September 2023 Twilio will begin migrating the media IPs and port ranges for Voice SDK calls in all regions to 168.86.128.0/18 and expanding the UDP port range to 10000-60000. You will need to update your network infrastructure to ensure that you have whitelisted the full IP and port ranges before the migration completes on 10 October 2023. Failure to do so will result in one-way audio and dropped calls. Old IP and port ranges will no longer accept or send traffic after 10 October 2023 but will need to be kept open in your infrastructure until that time. Signaling addresses are not changing.

The Twilio Client JavaScript SDK has been renamed to Twilio Voice JavaScript SDK.

The following article outlines Twilio’s Voice SDKs’ requirements for network connectivity. It lists the Twilio servers’ ports and IP addresses that the SDKs must be able to reach, and the bandwidth required for quality audio.

Twilio's Voice SDKs assume a well-performing and accessible network; problems with firewall configurations, quality of service implementations, bandwidth allocations, and ISP performance are outside the scope of things Twilio can assist with and we will need to defer to your local IT, ISP, and hardware vendors for assistance.

Connectivity checklist

  1. Choose the edge you will connect to and allow Media servers and Signalling servers.
  2. If you are using Global Low Latency edge, check the requirements.
  3. If you have access to Private Interconnect edges, you will need to allow these destinations.
  4. Ensure you meet the bandwidth requirements.
  5. Check the recommendations and best practices.
  6. Test your connectivity using this Network Test Tool.

Connectivity overview

Applications using Twilio’s Voice SDKs require connectivity to Twilio’s infrastructure to be able to place and receive calls. As shown in the diagram below, two types of connections are required: Signalling and Media.

The signalling connection is a secure TLS connection that is used for sending and receiving control information to set up calls.

The media connection is a secure SRTP (Secure Real-time Transport Protocol) connection that is used to send and receive audio.

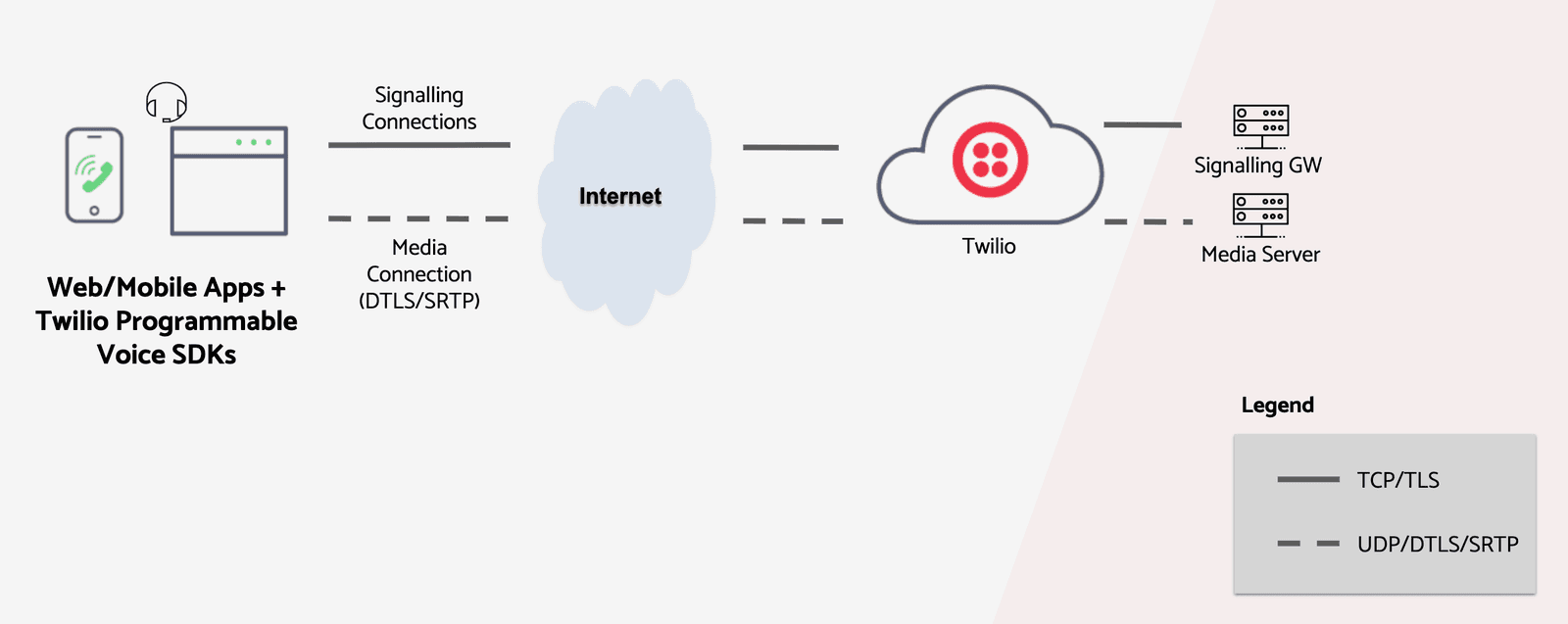

Twilio Client Connectivity

Twilio’s Programmable Voice infrastructure is deployed in edges all over the world. By default, the SDKs use Global Low Latency (GLL) to determine the optimal Twilio edge to connect to.

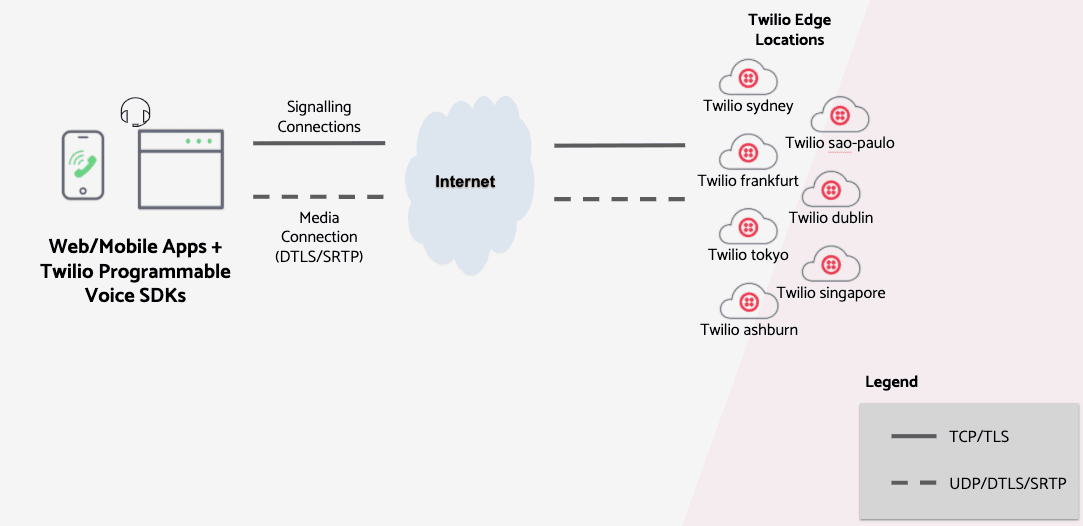

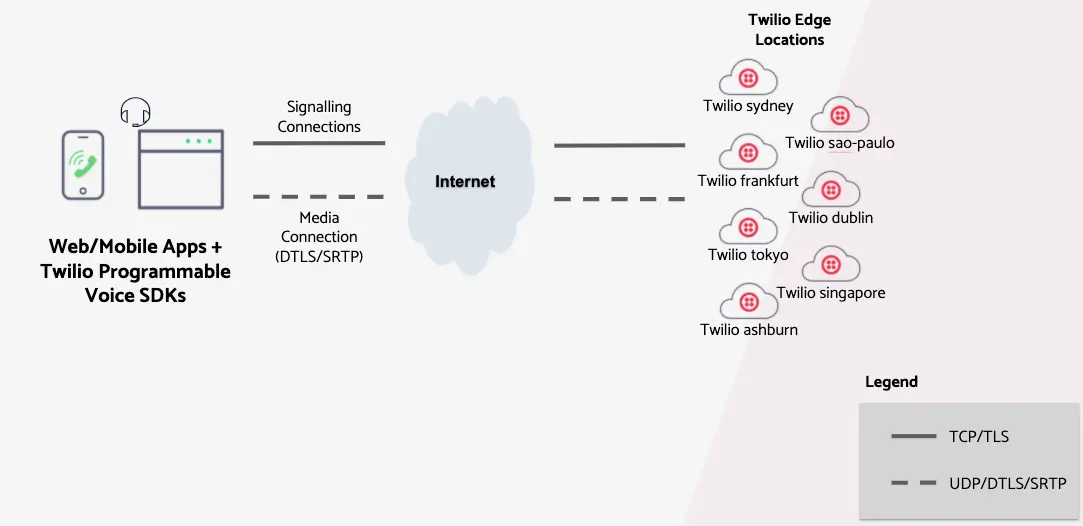

Twilio Client Voice SDK Edge Locations

Firewall configuration

In a typical organization network setup, a firewall is used to protect the private network hosts from the Internet. Firewalls are configured with rules to block or allow traffic to and from Internet destinations based on direction, protocol, and IP address.

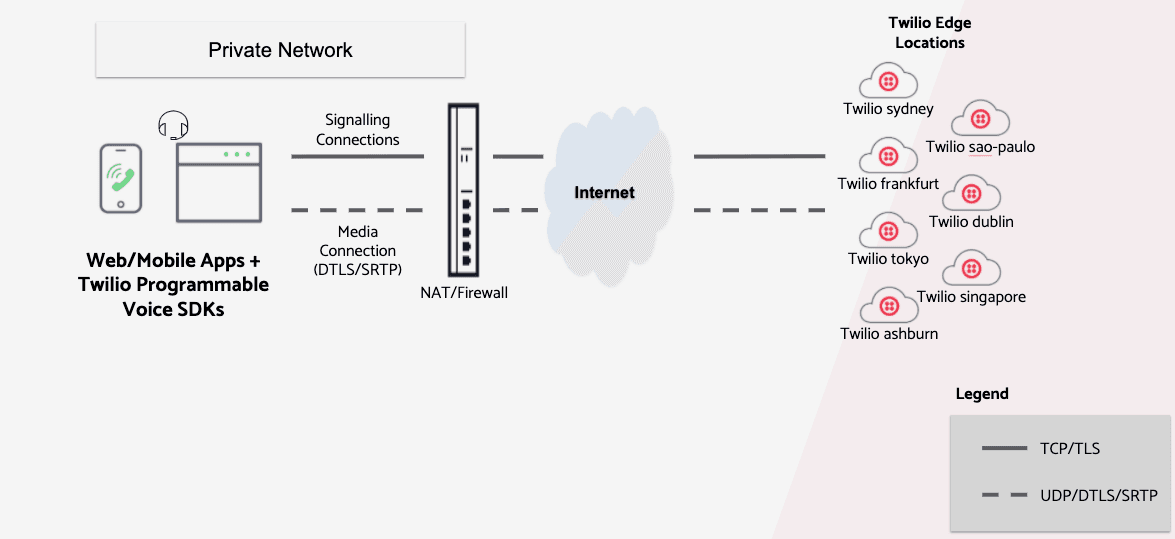

Twilio Voice SDK Private Edge Locations

To access Twilio, your firewall should allow outgoing TCP and UDP traffic from your applications to Twilio’s infrastructure and allow return traffic in response. Twilio will never initiate a connection to the SDK applications. Therefore, the firewall should not allow externally initiated connections back into the network.

In the Connectivity Requirements sections that follow, the required destination IP addresses and ports are listed. Your firewall should be configured to allow connectivity to the Media Servers and the Signalling Gateways corresponding to the SDK you are using.

Voice Media Server connectivity requirements

Global Media IP Range (Migration begins 26 September 2023, migration completes 10 October 2023)

Secure Media (ICE/STUN/SRTP) Edge Locations

Protocol

Source

IP

Source Port †

Destination

IP Ranges

Destination Port Range

sydney (au1)

sao-paulo (br1)

dublin (ie1)

frankfurt (de1)

tokyo (jp1)

singapore (sg1)

ashburn (us1)

umatilla (us2)

roaming (gll)

UDP

ANY

ANY

168.86.128.0/18

10,000 - 60,000

† The SDK will select any available port from the ephemeral range. On most machines, this means the port range 1,024 to 65,535.

Legacy Global Media IP Range (To be decommissioned 10 October 2023)

Your Intranet

Allowed destinations

Secure Media (ICE/STUN/SRTP) Edge Locations

Protocol

Source

IP

Source Port †

Destination

IP Ranges

Destination Port Range

sydney (au1)

UDP

ANY

ANY

54.252.254.64 - 54.252.254.127

and

3.104.90.0 - 3.104.90.255

10,000 - 20,000

sao-paulo (br1)

UDP

ANY

ANY

177.71.206.192 - 177.71.206.255

and

18.228.249.0 - 18.228.249.255

10,000 - 20,000

dublin (ie1)

UDP

ANY

ANY

54.171.127.192 - 54.171.127.255

and

52.215.127.0 - 52.215.127.255

10,000 - 20,000

frankfurt (de1)

UDP

ANY

ANY

35.156.191.128 - 35.156.191.255

and

3.122.181.0 - 3.122.181.255

10,000 - 20,000

tokyo (jp1)

UDP

ANY

ANY

54.65.63.192 - 54.65.63.255

and

3.112.80.0 - 3.112.80.255

10,000 - 20,000

singapore (sg1)

UDP

ANY

ANY

54.169.127.128 - 54.169.127.191

and

3.1.77.0 - 3.1.77.255

10,000 - 20,000

ashburn (us1)

UDP

ANY

ANY

54.172.60.0 - 54.172.61.255

and

34.203.250.0 - 34.203.251.255

10,000 - 20,000

umatilla (us2)

UDP

ANY

ANY

54.244.51.0 - 54.244.51.255

(54.244.51.0/24)

1,024 - 65,535

roaming (gll)

UDP

ANY

ANY

All IP addresses listed above

1,024 - 65,535

† The SDK will select any available port from the ephemeral range. On most machines, this means the port range 1,024 to 65,535.

Signalling connectivity requirements

Signalling requirements differ between the Voice JavaScript SDK and the Mobile SDKs. This section provides the connectivity requirements for each of these SDKs.

Your Intranet

Allowed destinations

Protocol

Source IP

Source Port †

Destination*

Destination Port

Voice JavaScript SDK

Secure TLS connection to Twilio signalling Gateway

TCP

ANY

ANY

chunderw-gll.twilio.com*

chunderw-vpc-gll.twilio.com*

voice-js.roaming.twilio.com

443

Secure TLS Connection to Twilio Regional Signalling gateways

TCP

ANY

ANY

chunderw-vpc-gll-{region}.twilio.com*

{Where region is one of: au1, br1, de1, ie1, jp1, sg1, us1, us2}

voice-js.{edge-location}.twilio.com

{Where edge-location is one of:
ashburn, umatilla, sao-paulo, frankfurt, dublin, sydney, singapore, tokyo}

443

Secure TLS Insights logging gateway

TCP

ANY

ANY

eventgw.twilio.com

443

Mobile Voice SDKs

Secure TLS connection to Twilio GLL Signalling Gateway

TCP

ANY

ANY

chunderm.gll.twilio.com

443

(10194 §)

Secure TLS Connection to Twilio Regional Signalling Gateways

TCP

ANY

ANY

chunderm.{region}.gll.twilio.com

{Where region is one of: au1, br1, de1, ie1, jp1, sg1, us1, us2}

443

(10194 §)

Secure TLS to Insights Gateway

TCP

ANY

ANY

eventgw.twilio.com

443

Secure TLS to Registration Server

TCP

ANY

ANY

ers.twilio.com

443

† The client will select any available port from the ephemeral range. On most machines, this means the port range 1,024 to 65,535.

§ Mobile SDKs versions prior to 3.x require port 10194 instead of 443. If still using pre 3.x version, we recommend you upgrade to the latest version

* Destination names starting with "chunderw" is only used by Voice JavaScript SDK versions older than 2.3.0.

Private Interconnect edge locations

If you have access to private Interconnect connections, you will also be able to use one of the following values:

Your Intranet

Allowed destinations

Edge Location

Protocol

Source IP

Source Port †

Destination

Destination Port

ashburn-ix
(us1-ix)


TCP ANY ANY 208.78.112.64 - 208.78.112.127 443
UDP ANY ANY

208.78.112.64 - 208.78.112.127

10000-20000

san-jose-ix
(us2-ix)

TCP

ANY

ANY

67.213.136.64 - 67.213.136.127

443

UDP

ANY

ANY

67.213.136.64 - 67.213.136.127

10000-20000

london-ix
(ie1-ix)

TCP

ANY

ANY

185.187.132.64 - 185.187.132.127

443

UDP ANY

ANY

185.187.132.64 - 185.187.132.127

10000-20000

frankfurt-ix
(de1-ix)

TCP

ANY

ANY

185.194.136.64 - 185.194.136.127

443

UDP ANY

ANY

185.194.136.64 - 185.194.136.127

10000-20000

singapore-ix
(sg1-ix)**

TCP

ANY

ANY

103.75.151.64 - 103.75.151.127

443

UDP ANY

ANY

103.75.151.64 - 103.75.151.127

10000-20000

tokyo-ix
(jp1-ix)**

TCP ANY ANY 103.144.142.64 - 103.144.142.127 443
UDP ANY

ANY

103.144.142.64 - 103.144.142.127

10000-20000

sydney-ix
(au1-ix)**

TCP

ANY

ANY

103.146.214.64 - 103.146.214.127

443

UDP ANY

ANY

103.146.214.64 - 103.146.214.127

10000-20000

† The client will select any available port from the ephemeral range. On most machines, this means the port range 1,024 to 65,535.

** Requires Voice JavaScript SDK 1.9.5+.

Network bandwidth requirements

The following table lists the network requirements to deliver reasonable audio quality.

Bandwidth (Uplink/Downlink)

Opus*: 40kbps / 40kbps

PCMU: 100kbps / 100kbps

Latency (RTT)

< 200ms

Jitter

< 30ms

Packet Loss

< 3%

* Opus codec is available from Voice JavaScript SDK version 1.7 and Mobile Voice SDKs 3.x

The Opus bandwidth requirements listed above are the default settings for Opus. Opus codec supports bandwidth control by allowing you to specify how much bandwidth it should use. See section recommendations and best practices below for how to configure Opus bandwidth requirements.

Global Low Latency requirements

GLL is an AWS Route53 feature that resolves a hostname to the edge location with the least latency. This removes the need for the application developer to determine where the end user is connecting from or manually choosing which edge to connect to.

However, in order for GLL to give accurate results, the intermediate DNS must:

  • Support RFC 7871 - Client Subnet in DNS Queries.
  • Reside in the same edge as the SDK endpoint. For example, a host in the US configured with a VPN to Europe or configured with a DNS server that resides in Europe will result in connecting that host to Twilio edge in Europe

If the intermediate DNS does not support RFC 7871 and the upstream DNS IP address is an Anycast address, e.g., 8.8.8.8, then there is no guarantee Route53 will accurately determine the best edge to connect to.

How to determine if GLL will work

To determine if your DNS supports GLL, use the dig or nslookup utilities as follows:

dig edns-client-sub.net TXT
nslookup -type=txt edns-client-sub.net

A DNS server that supports this RFC will have ecs set to True and contains an ecs_payload object:

;; ANSWER SECTION:

edns-client-sub.net. 30 IN TXT "{'ecs_payload':{'family':'1','optcode':'0x08','cc':'US','ip':'34.225.44.0','mask':'24','scope':'0'},'ecs':'True','ts':'1588973397.05','recursive':{'cc':'US','srcip':'208.69.32.67','sport':'11807'}}"

A server that does not support this RFC will have ecs set to False:

;; ANSWER SECTION:

edns-client-sub.net. 0 IN TXT "{'ecs':'False','ts':'1588973475.23','recursive':{'cc':'US','srcip':'76.96.15.65','sport':'54989'}}"

Recommendations and best practices

Use a specific edge location

If you have a restrictive network and you specify GLL when connecting to Twilio, all media server IP addresses in all edge locations must be allowed. If you are not operating in all edges, we recommend you specify the edge that is closest to your deployment. With this approach, you will only need to allow the Media server addresses for the edge that you specify.

To select the edge, use the following snippet:

const device = new Twilio.Device(token, { edge: 'ashburn'});

//or

const device = new Twilio.Device(token);
device.updateOptions({ edge: 'ashburn' });

// Prior to v2.0, device.setup(token, { edge: 'ashburn' })
// was used. As of v2.0, device.setup() is deprecated.

// Prior to v1.11 the region parameter was used.
// region is now deprecated, use edge
Twilio.Device.setup(token, { region: 'us1'});
// Set the edge
Voice.setEdge("ashburn");

// Then, you can connect or handle the incoming call notification

// Prior to Android SDK 5.3, region was used
// region is deprecated use edge instead
Voice.setRegion("us1");
// Set the edge
TwilioVoice.edge = "ashburn"

// Then, you can connect or handle the incoming call notification

// Prior to iOS 5.4, `region` was used
TwilioVoice.region = "us1"

See the iOS API documentation for more information.

Use Twilio’s Network Traversal Service (NTS) when UDP ports are disallowed

For best audio quality, your firewall should allow your local hosts to initiate the connection to twilio and send UDP (DTLS/SRTP) traffic to the Twilio Media servers.

However, If your network policy prohibits UDP connectivity, you can utilise Twilio’s Global Network Traversal Service (NTS) to establish media connectivity over TCP or TLS. Please refer to the NTS documentation for a list of TURN servers and ports that will also need to be allowed.

Note, using TURN incurs extra charges as per NTS pricing. Refer to Global Network Traversal Service for more information.

Use the Opus codec to control bandwidth requirements

The Opus codec has many advantages over PCMU and should be used by your applications. Opus is the default codec for Mobile SDKs.

To use Opus in your web application, use the following snippet when either instantiating the Twilio.Device or updating the Twilio.Device’s options with .updateOptions(options):

const device = new Twilio.Device(token, { codecPreferences: ['opus', 'pcmu']});
// or
const device = new Twilio.Device(token);
device.updateOptions({ codecPreferences: ['opus', 'pcmu']});

To set a custom bandwidth (16kbps), use the following snippet:

const device = new Twilio.Device(token, { codecPreferences: ['opus', 'pcmu'], maxAverageBitrate: 16000} );
// or
const device = new Twilio.Device(token);
device.updateOptions({ codecPreferences: ['opus', 'pcmu'], maxAverageBitrate: 16000});

Use Twilio’s Private Interconnect for enhanced security and bandwidth control

Twilio offers several solutions for private and secure connectivity to Twilio. See The Twilio Interconnect page for more details.
