Twilio is all about powering communication – and doing it conveniently and fast. Our Programmable Messaging service has been available for a long time, but until now, scheduling a message to be sent at a future time required a developer to use their own scheduling solution.

Fortunately, this is now a thing of the past! With Message Scheduling, you can send your scheduled SMS and MMS messages with a single API call, without using custom schedulers.

In this tutorial, you’ll learn how to send scheduled SMS notifications in Java.

Tutorial requirements

Configuration

Start off by creating a directory to store the files of the project. Using your favorite terminal, enter:

$ mkdir scheduledtext
$ cd scheduledtext

Next, you need to download the standalone Twilio Java helper library. The latest version of the jar files at the time of writing is twilio-9.0.0-rc.5-jar-with-dependencies.jar. Scroll down to find the directory named after the latest release version. Click on the directory to find and download the file and save it to your java_voice project folder.

Buy a Twilio phone number

If you haven't done so already, your first task is to purchase a Twilio phone number to send SMS.

Log in to the Twilio Console, select Phone Numbers, and then click on the “Buy a number” button to buy a Twilio number. Note that if you have a free account, you will be using your trial credit for this purchase.

On the “Buy a Number” page, select your country and check SMS in the “Capabilities” field. If you’d like to request a number that is local to your region, you can enter your area code in the “Number” field.

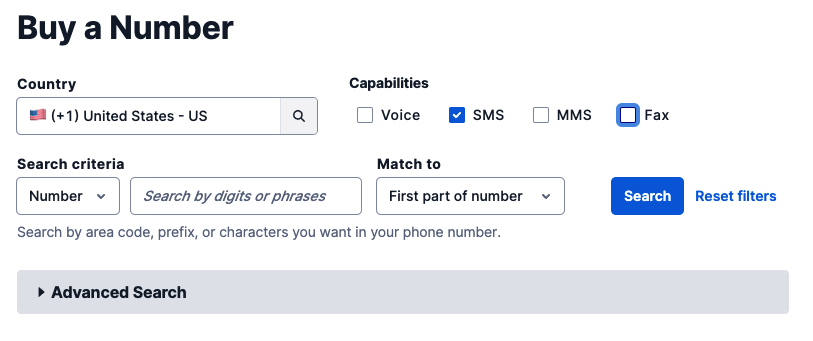

Buy a Twilio phone number

Click the “Search” button to see what numbers are available, and then click “Buy” for the number you like from the results. After you confirm your purchase, click the “Close” button.

Configure a Messaging Service

Scheduled messages can only be sent from a Messaging Service at this time, so the next step is to configure one and add your Twilio phone number to it.

Still in the Console, find the “Messaging” product and click on its Services option. Then click the “Create Messaging Service” button.

On the first page of the creation process, enter a friendly name for the service, such as “Appointments”, and select “Notify my users” in the “Select what you want to use Messaging for” dropdown.

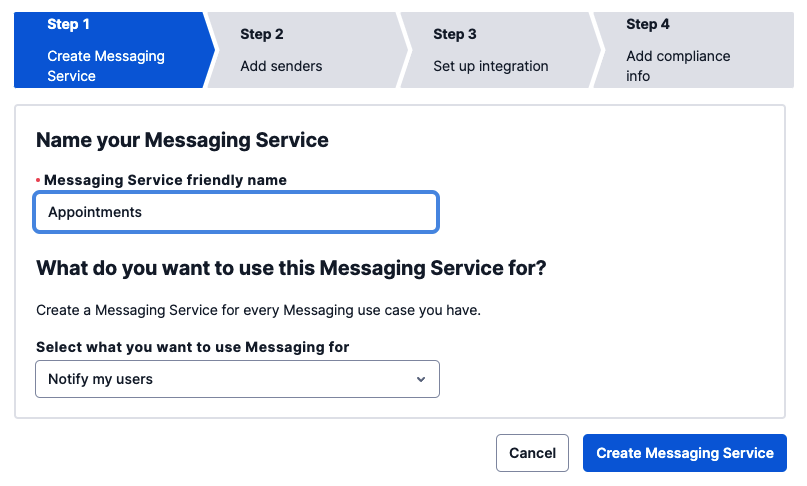

Create messaging service page 1

Click the “Create Messaging Service” button to move to the second step.

In this part of the configuration, you have to add the sender phone number(s) to the sender pool used by the service. Click the “Add Senders” button to add the Twilio phone number you acquired in the previous section.

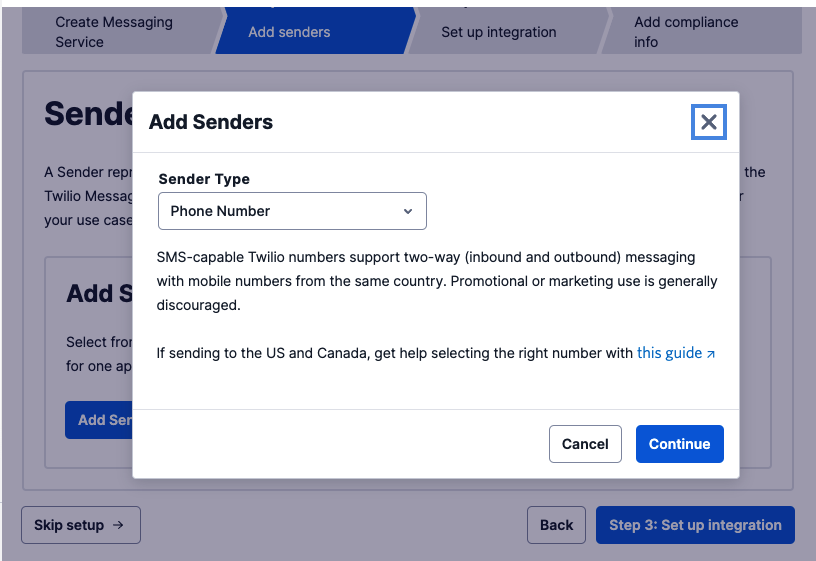

Create messaging service part 2

Select Phone Number in the “Sender Type” dropdown, and click “Continue”.

Add a checkmark next to the phone number you want to use as a sender, and click “Add phone numbers”.

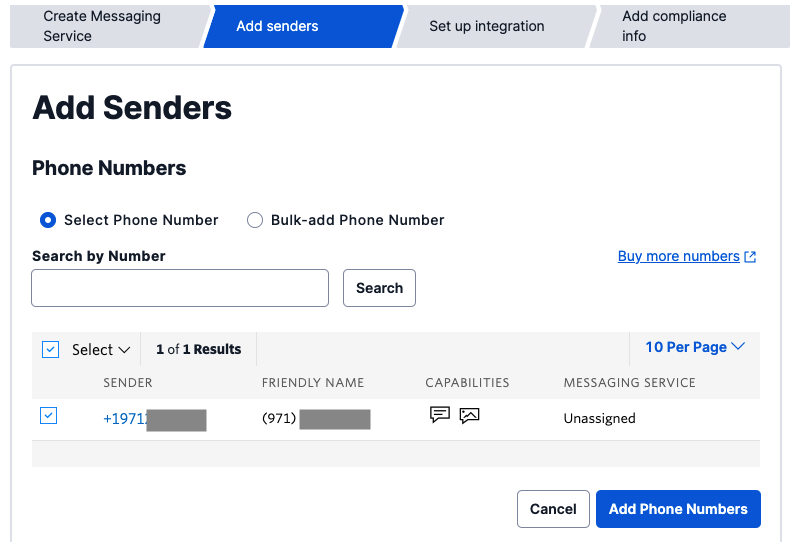

Add senders to messaging service

Click the “Step 3: Set up integration” button to move on to the next step. You don’t have to change any of the settings on this page, just click on “Step 4: Add compliance info”.

To complete the configuration of your Messaging Service, click on “Complete Messaging Service Setup”. You will now be offered the option to send a test message.

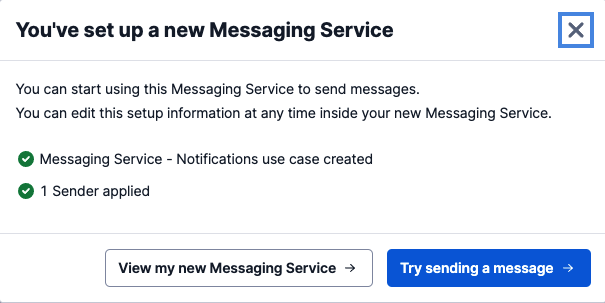

Messaging service setup complete

It is a good idea to test that your messaging service is able to send messages, so go ahead and click on “Try sending a message”.

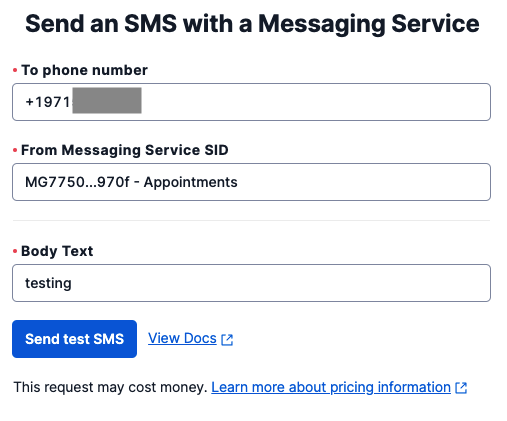

In the “To phone number” pulldown, select your personal number, which should be registered and verified with your Twilio account if you have a trial account. In the “From Messaging Service SID”, select the Messaging Service you just created. In the “Body Text” enter some text to send yourself.

Send test SMS

Click the “Send test SMS” button, and make sure you receive the SMS on your phone.

Add the Twilio dependencies

Navigate to the pom.xml file to add the following text to include dependencies in your project:

    <dependencies>
        <dependency>
            <groupId>com.twilio.sdk</groupId>
            <artifactId>twilio</artifactId>
            <version>9.0.0-rc.5</version>
        </dependency>
    </dependencies>

This dependency allows the Twilio Java Helper Library to be used and executed in this Maven project. This is essential for the controller class that will be created later on to handle the TwiML messages of this SMS project.

We always recommend using the latest version of the Twilio Helper Library. At the time of writing the latest version is 9.0.0-rc.5 but new versions are released frequently. You can always check the latest version at mvnreporistory.com.

Save the file.

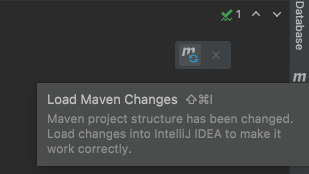

Look at the top-right corner of the IntelliJ IDEA and find the little icon with an "M" shape. Click it to load Maven changes.

An icon with an "M" shape with a tooltip "Load Maven Changes"

Configure the environment variables

Locate the Run tab at the top of the IntelliJ IDEA console and select Edit Configurations… in the dropdown as seen below:

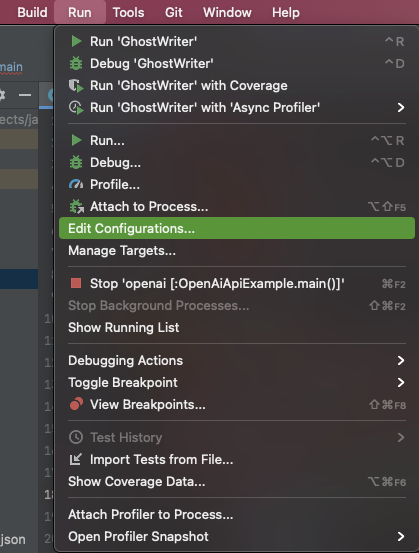

edit configurations option in intellij idea

This image is reused and the project directory name does not reflect the one used in this project.

Another window displaying the "Run/Debug Configurations" will pop up with the details regarding the project. If there are no existing configurations for you to edit, click on Add New… on the left-hand side and create a new application named "ScheduledText".

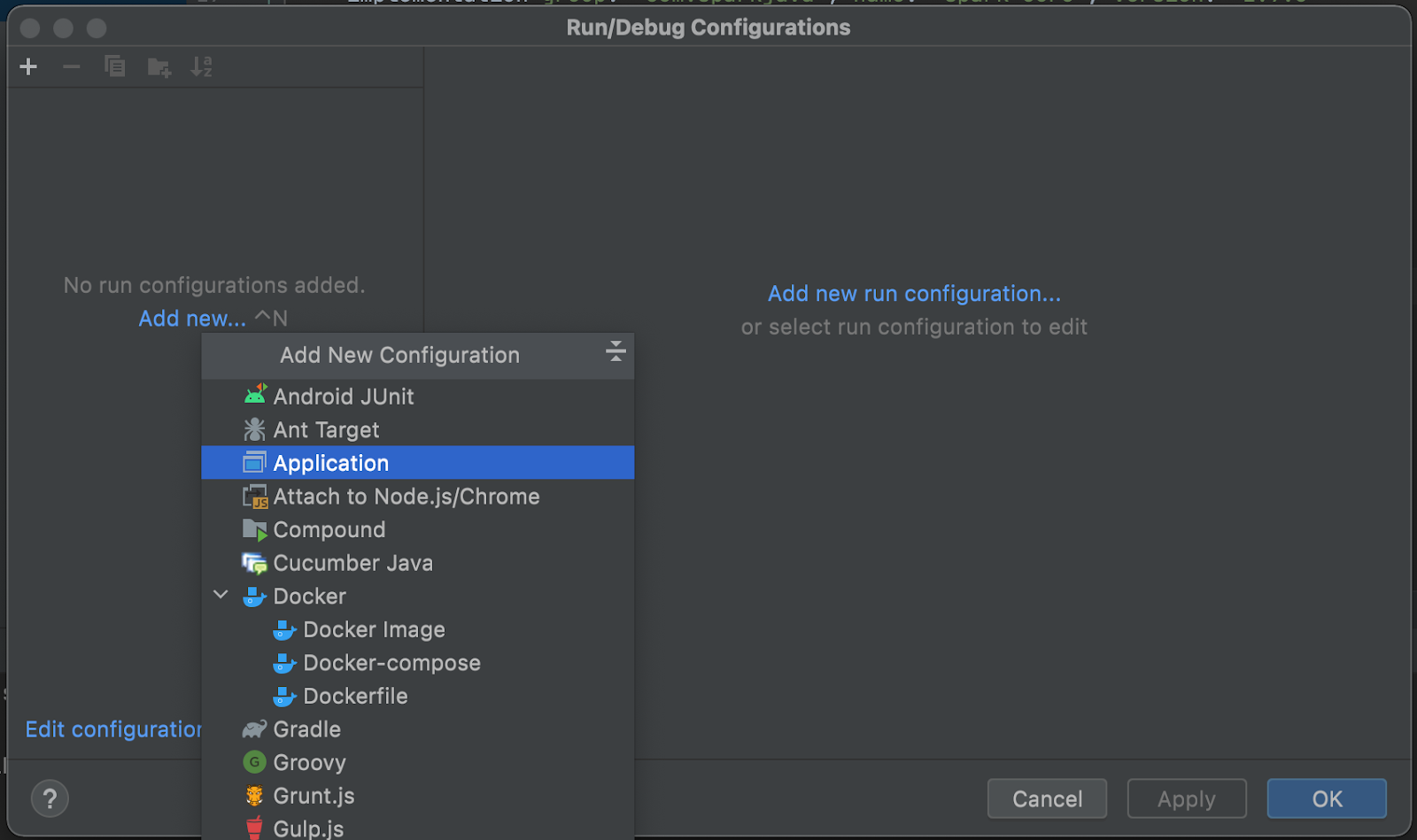

option to add a new application to edit configurations in intellij idea

It is best practice to protect your Twilio account credentials by setting environment variables.

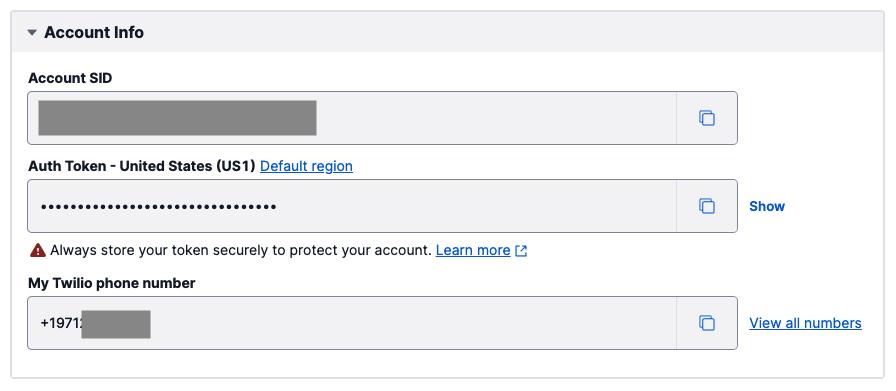

You can find your account credentials on the Twilio Console.

Twilio credentials in the Console

Refer to this article to set up and hide variables in the IntelliJ IDEA environment.

Not only is it mandatory to set the Twilio credentials as environment variables, it is also suggested that you store both your Twilio phone number and personal phone number as environmental variables. This would be helpful in the case that the code is shared on a public repository so that the phone numbers are not exposed.

Go ahead and follow the same instructions to store your phone number as the PHONE_NUMBER key in the IntelliJ IDEA environment. This must be stored in E.164 format such as "+19140201400".

Since a Messaging Service is used to schedule the SMS, another variable named TWILIO_MESSAGING_SERVICE_SID must also be created. You can find it in the Messaging Services page of the Twilio Console. This identifier starts with the letters MG.

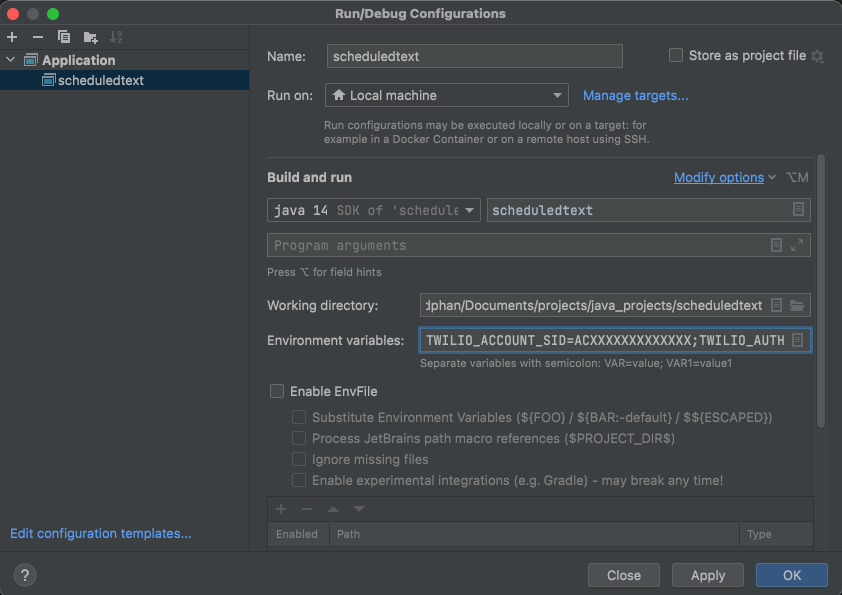

edit the configurations to build and run the java application

Click on the Apply button, and then OK once finished.

Schedule an SMS with Twilio

Create a file named ScheduledText.java within the src/main/java subfolder in your project directory and paste the following code into it:

import com.twilio.Twilio;
import com.twilio.rest.api.v2010.account.Message;

import java.time.ZoneId;
import java.time.ZonedDateTime;
import java.net.URISyntaxException;

public class ScheduledText {
    private static String ACCOUNT_SID = System.getenv("TWILIO_ACCOUNT_SID");
    private static String AUTH_TOKEN = System.getenv("TWILIO_AUTH_TOKEN");
    private static String TWILIO_MESSAGING_SERVICE_SID = System.getenv("TWILIO_MESSAGING_SERVICE_SID");
    private static String PHONE_NUMBER = System.getenv("PHONE_NUMBER");

    public static void main(String[] args) throws URISyntaxException {
        Twilio.init(ACCOUNT_SID, AUTH_TOKEN);
        Message message = Message.creator(
                        new com.twilio.type.PhoneNumber(PHONE_NUMBER),
                        TWILIO_MESSAGING_SERVICE_SID,
                        "Ahoy! This is a surprise message from Twilio.")
            // The following time will not work for you. Please change accordingly
                .setSendAt(ZonedDateTime.of(2022, 9, 27, 23, 59, 30, 0, ZoneId.of("UTC")))
                .setScheduleType(Message.ScheduleType.FIXED)
                .create();
        System.out.println(message.getSid());
    }
}

Let's break down the code real quick.

The ScheduledText class defines a void main function where the Twilio client is initialized using the ACCOUNT_SID and AUTH_TOKEN variables set above.

The Message.creator() function is used to create and schedule the SMS as seen in the "Configure a Messaging Service" section earlier. The function takes in three arguments to define the recipient, sender, and body of the SMS, respectively. These arguments are the same for both immediate and scheduled sends.

The first line represents the "to" argument, so replace it with the PHONE_NUMBER variable defined earlier. For the "from" argument, the TWILIO_MESSAGING_SERVICE_SID of the Messaging Service is used. The last line represents the "body" argument and can be anything you’d like to send yourself.

The setSendAt() method is set to a ZonedDateTime object that represents the time at which the SMS should be sent. The Message Scheduling feature currently requires that this time is more than 15 minutes and fewer than 35 days ahead. Since this is just an exercise, the delivery time is hardcoded to a timestamp that is 15 minutes into the future.

The format of the ZonedDateTime object takes in the following arguments: year, month, dayOfMonth, hour, minute, second, nanoOfSecond, and timezone. Please change accordingly to fit your test case.

The remaining two arguments are used to tell Twilio that this SMS should be sent at a later time. The setScheduleType argument configures the type of scheduling that you want to use. As I’m writing this, the only allowed value for this argument is the string "FIXED".

The application prints the sid value assigned to the scheduled message. This is an identifier that you can use to cancel the message if you need to.

Ready to try this out?

Save your file and compile the ScheduledText class by clicking on the hammer button to build, then the play button to run on IntelliJ .Otherwise, you can execute the following commands in your terminal:

javac -cp twilio-9.0.0-rc.5-jar-with-dependencies.jar ScheduledText.java

If you are using macOS or Linux, run the successfully built Java class with the following command:

java -cp .:twilio-9.0.0-rc.5-jar-with-dependencies.jar ScheduledText

For Windows developers, use the following command to send the SMS from your terminal. Notice that the only difference is that the Windows command uses a semicolon instead:

java -cp ".;twilio-9.0.0-rc.5-jar-with-dependencies.jar" ScheduledText

You should see a code printed to the terminal that starts with the letters SM. This is the identifier of your successfully scheduled message.

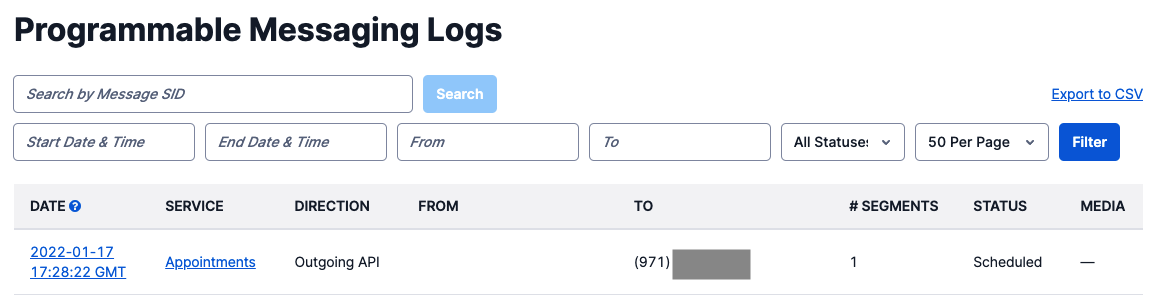

Now you have to wait until the timestamps you hardcoded to receive this SMS on your phone. In the meantime, you can view the message in the Programmable Messaging Logs section of the Twilio Console, under which the message will show with its status set to “Scheduled” until the time of delivery.

Programmable Messaging Logs before delivery

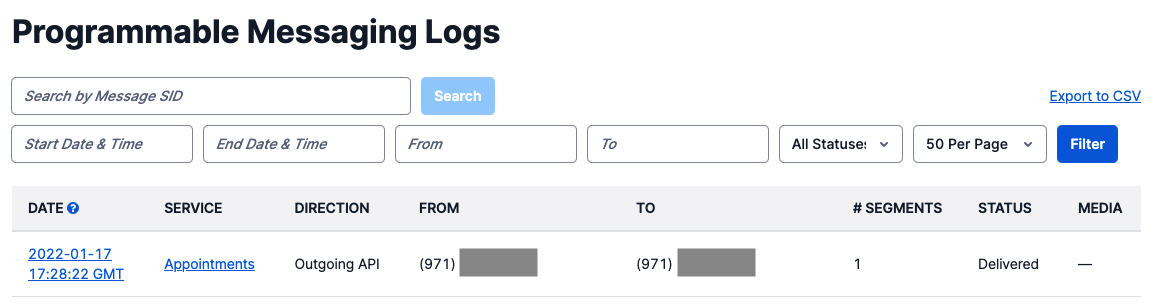

When the hour passes and your SMS is delivered, the status of the message will change to “Delivered”. You will also be able to see your Twilio phone number as the sender.

Programmable Messaging Logs after delivery

Next steps

Congratulations on learning how to send scheduled SMS with Java! There are a number of resources on scheduling SMS that you may want to review to learn more:

Let me know what you're building with Twilio and Java by reaching out to me over email.
