How to Handle File Uploads from Node.js to Express

November 03, 2021
Written by
Reviewed by

Recently I was developing a CLI in Node.js that would help make the process of writing articles in Markdown easier for my team. The flow required that a local .md file be parsed, formatted, converted to .docx, and then uploaded to Google Drive as a Google Doc file, all by running one command from the terminal.

I approached this project in a few different ways, hoping initially that I could use serverless functions to handle the backend. I hit a lot of dead ends on this route, and eventually decided to build an Express server that I would ultimately host on Heroku.

To upload the .docx file contents from my CLI to a secure backend endpoint, where it would then be uploaded to the user’s authenticated Google Drive, I needed a way to POST multipart/form-data directly from Node.js (without a browser). This requires several third party libraries, and it was pretty difficult to make them all play nice together. There weren’t great resources on the internet to help, and a lot of trial and error were involved. This article is going to explain how I did it.

Prerequisites

In order to follow along with this tutorial, you’ll need the following:

  • Node.js installed on your machine, along with a package manager like npm
  • A text editor

Set up your Node.js and express files app structure

In your terminal or command prompt, navigate to your general projects or development directory, and run the following commands:

mkdir multipart_demo
cd multipart_demo
mkdir node_app
npx express-generator express_app
cd express_app
npm install

These commands will create a directory that holds both projects: your Node.js app and your Express API. They will also scaffold the Express backend (with express-generator) and install the required dependencies to your new Express app.

Scaffold your Node.js app with NPM form data

In your terminal, navigate back to your parent directory, multipart-demo, and then into your Node.js app, with the following commands:

cd ..
cd node_app

Initialize a new Node.js application:

npm init -y

Install the third-party dependencies you’ll need for this project:

npm install form-data axios

You’ll use the form-data library to create a “form” with key/value pairs in your Node.js app. axios will be used to POST the form data up to your Express app.

Write the code to upload your files in ExpressJS

Using your favorite text editor, open the file called index.js that was created in your node_app folder. If this file wasn’t created for you, create it now.

Inside this file, add the following code to the top:

const fs = require('fs');
const axios = require('axios');
const FormData = require('form-data');

This code will import the two third-party dependencies you installed and the native fs module that allows you to interact with the file system.

Below these lines, add the following function and function call:

const upload = async () => {
  try {
    const file = fs.createReadStream('./myfile.txt');
    const title = 'My file';

    const form = new FormData();
    form.append('title', title);
    form.append('file', file);

    const resp = await axios.post('http://localhost:3000/upload', form, {
      headers: {
        ...form.getHeaders(),
      }
    });

    if (resp.status === 200) {
      return 'Upload complete';
    }
  } catch(err) {
    return new Error(err.message);
  }
}

upload().then(resp => console.log(resp));

The upload() function is an asynchronous function. Inside the function is a try/catch block. This means that the function will “try” to do anything inside the try block. If at any point the code encounters an error, it will immediately execute the catch block, where you can access the offending error.

The first thing it tries to do in the try block is create two variables: file and title.

The reason line 3, where the file variable is created, is highlighted is because you need to replace the file path shown with the path to the file you want to upload. This variable now represents a readable stream of your file.

If you just want to follow along and don't have a particular file in mind, create a new file called myfile.txt with some random text in it and save it in the node_app folder next to index.js.

The title variable is where you’ll store the title of the file you’re uploading - you can change this to whatever string value you like.

Beneath these variables is where the form itself is created. Two key/value pairs are appended to the form: one for the file, and one for its title. You can add any number of key/value pairs representing your form data to the form object in this manner.

Next, the entire form is posted to your Express backend (at an endpoint you’ll create later in this tutorial) using axios. Note that you’re passing an option object to the axios.post() method with header information. The form-data library makes it easy to ensure your headers are set correctly by giving you a .getHeaders() method that will return headers appropriate to your form data.

If there are no errors, then an “Upload complete” message will be logged to the console. Otherwise, the error message will be logged.

Process the form data

Now that you’ve successfully sent your file, you need to be able to process it on your backend.

In your terminal, navigate to your Express app:

cd ..
cd express_app

Multer is a Node.js middleware that handles multipart/form-data. Run the following command to install the multer package:

npm install multer

From your text editor, open the index.js file found in the multipart_demo/express_app/routes folder. Delete the contents of the file and replace it with the following:

var express = require('express');
var router = express.Router();

const multer  = require('multer');
const upload = multer({ dest: os.tmpdir() });

router.post('/upload', upload.single('file'), function(req, res) {
  const title = req.body.title;
  const file = req.file;

  console.log(title);
  console.log(file);

  res.sendStatus(200);
});

module.exports = router;

There are a few things to take note of in this code - the important lines have been highlighted.

On line 5, after the multer package is imported, you’re preparing to use Multer by calling the multer() function, passing to it an options object with a dest key, and saving the returned object to a variable called upload. See the documentation for other ways to configure Multer, including saving the file to memory and not to disk.

In this case, you’re specifying a dest value, because Multer needs to save your uploaded file somewhere. For my app, I only needed the file temporarily, so I set the destination to my server’s /tmp folder. If you need the uploaded files to persist, you could store them in another directory on your server, so long as you specify the path in this object.

On line 7, before executing the API endpoint’s callback function, you’re calling the single() method on the upload object. There are many methods you can call on the upload object that are appropriate for different data configurations. In this example, because you’re uploading only one file, you’ll use the single() method.

At this point, the req object available in the endpoint’s callback function will be slightly different than what you’re used to. Despite not attaching any body value to the form when you made the POST request, the value of your non-file form fields will be available on req.body. The file you uploaded will be available at req.file. In the code above, both of these objects are logged to the console. To see what they look like, test out the project.

Test the Node.js and Express File upload app

In your terminal, make sure you’re still inside the express_app directory, and then run the following command:

npm start

This will start your local server on PORT 3000.

Open a new terminal window, and navigate back to your Node.js project:

cd <YOUR PARENT DIRECTORY PATH>/multipart_demo/node_app

To execute your script, run the following command:

node index.js

If the POST request was successful, you’ll see the “Upload complete” message in your terminal, otherwise you’ll see an error message.

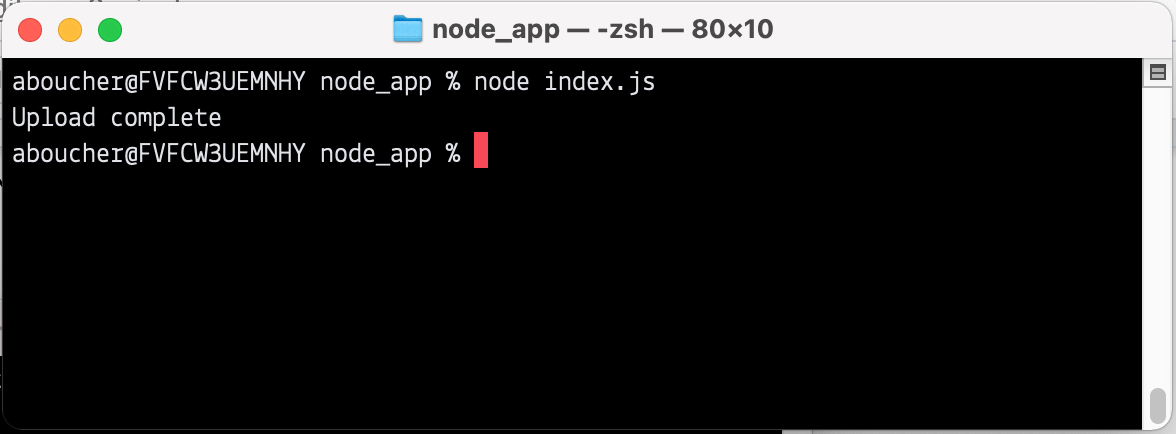

Screenshot showing upload complete message in console from node app

Check back in the terminal running your Express app. You will see the title of your file, along with the object representing it. You’ll see that if you stored the file to disk, there will be a path key - you can use this path to create another readable stream, like I needed to in order to upload the file to Google Drive.

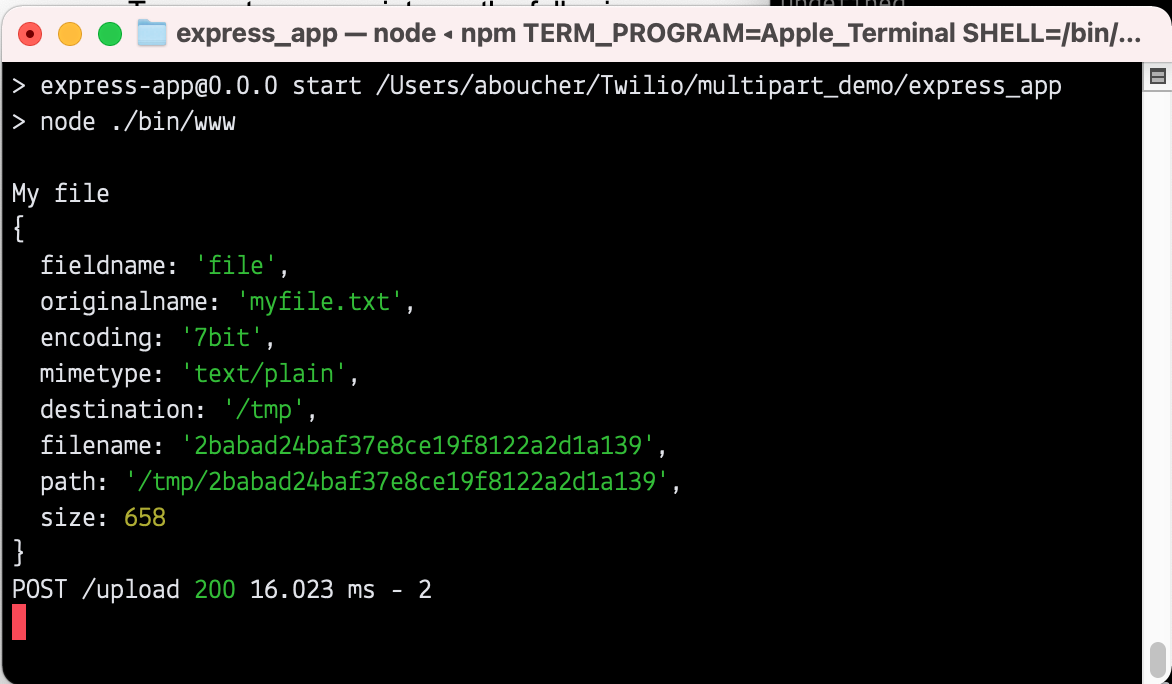

Screenshot showing file object and file title in terminal after posting to express app



I hope you enjoyed this article and learned how to upload files directly from a Node.js app to Express. If you have any questions, reach out to me on Twitter.
