Verify Phone Numbers with Java and the Twilio Lookup API

April 05, 2017
Written by
Chris Hranj
Contributor
Opinions expressed by Twilio contributors are their own

X3dtr5jROhLHbA4-8RkYT_Va8KTkxaxf8UJNV9yIYFUQHouQxUgAIVJ7ekrdO7g2FEOfQ4cndUwstaMQJnrUqYRkTlZp-aoKqBNCp-ln9DenF228N_K6h54ogCq6cKWb99r8FmvZ

Twilio Lookup is a simple REST API  for obtaining information about a phone number. Lookup can determine if a number exists, its type (landline, mobile, VoIP), and its carrier (Verizon, Sprint, etc) association. Lookup can also check if a number is able to receive text messages as well as format numbers into a standard format.

Let’s validate phone numbers using the Twilio Java library and the Lookup API and make the code easy to port into your existing Java applications. This post will be directed towards macOS and Linux users, as some of the commands will not work for Windows users.

If you just want to see the finished code, see this Github repository.


Configuring Our Environment

Our code will use the latest version of Java 8 (1.8.0_121). You can download the latest version of the Java JDK from here. You can test your Java install and see what version is configured by running java -version from your terminal.

Screenshot from 2017-03-05 19-56-18.png

We will also be using Gradle as our build tool and for dependency management. Follow the Gradle Installation guide and run gradle -v in your terminal to check that Gradle is installed and using the same version of the JVM as above. If not, you may need to re-configure your JAVA_HOME environment variable. Note: Your version of Java does not need to be the same as mine, but it is important that gradle is using the same JVM version as your system.

Screenshot from 2017-03-05 19-56-45.png

Additionally, make sure you have a Twilio account. A trial account will be sufficient for this post.

Getting Started

Create a new directory for our app and navigate to it using the following command:

$ mkdir number-lookup-java && cd number-lookup-java

Create a new file in this directory called build.gradle. This file will contain all of the project’s build settings. Gradle is an extremely powerful tool, but like most build tools it can be overwhelming to a beginner. We’ll try to keep our interactions with it as simple as possible.

Next we need to create our Java file which will contain our source code. Gradle expects to find your source code under the src/main/java directory. In the same terminal run the following:

$ mkdir -p src/main/java/lookup

Navigate down to the lookup directory and create a new file called Lookup.java.

build.gradle and Lookup.java are the only two files we need, the rest will be handled by Gradle.

Before moving on, you should store your Twilio credentials as environment variables by running the following commands:

$ export TWILIO_ACCOUNT_SID='*Replace this with your Twilio Account SID*'
$ export TWILIO_AUTH_TOKEN='*Replace this with your Twilio Auth Token*'

This will allow us to use Twilio later without having to save our credentials to source code. Your ACCOUNT SID and AUTH TOKEN can be found on your Console Dashboard.


Configuring Gradle

Open the build.gradle file at the top of your directory in your preferred editor and add the following, then we will go over what it does:

apply plugin: 'application'

mainClassName = 'lookup.Lookup'

repositories {
    mavenCentral()
}

dependencies {
    // https://mvnrepository.com/artifact/com.twilio.sdk/twilio
    compile group: 'com.twilio.sdk', name: 'twilio', version: '7.5.0'
}

The first line of the file is applying the application plugin to our Gradle project. Plugins, when applied, extend the project’s capabilities. This plugin adds Java compilation, testing and bundling capabilities, and adds tasks for running and bundling a Java project as a command-line application.

The next line tells the application plugin which class in src/main/java/ contains the app’s main() method.

The repositories and dependencies blocks declare and configure the project’s dependencies. Rather than copying a bunch of Twilio code into our own files, we are using the Twilio Java SDK. Gradle will handle fetching and storing this code for us later.

Looking Up Valid Phone Numbers

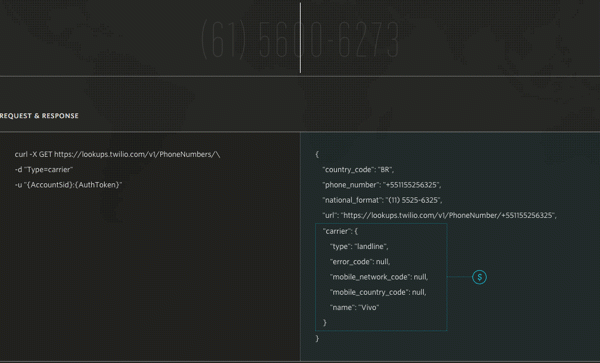

Our environment is set up and we can finally write some Java. You can play around with the Lookup page to see what type of data a request to the Lookup API will return. Enter a phone number and take a look at the JSON response object.

bSki52NVUzHJs3rjtvShdOiqNkuAlhBl578Qev9R9kFsJ0nE1IyZ5oFyjJjMxcembNO7qiYS5QDueaLYkUmBOJPU-JYzNaRCG87Yi1HuZZvwf2-ZhUh6fIi0xxCly8IzaRmtAGLk.png

Open up src/main/java/lookup/Lookup.java and start by adding the following at the top of the file:

package lookup;

import com.twilio.Twilio;
import com.twilio.rest.lookups.v1.PhoneNumber;

These lines will add our file to the lookup package and import the Twilio classes we’re going to use. Below those lines add the following:

public class Lookup {

    public static final String ACCOUNT_SID = System.getenv("TWILIO_ACCOUNT_SID");
    public static final String AUTH_TOKEN = System.getenv("TWILIO_AUTH_TOKEN");

    public static void main(String[] args) {

        Twilio.init(ACCOUNT_SID, AUTH_TOKEN);

        PhoneNumber number = PhoneNumber
            .fetcher(new com.twilio.type.PhoneNumber("13123131434"))
            .fetch();

        System.out.println(number.getNationalFormat());
    }
}

At the top of the class we define our Twilio ACCOUNT_SID and AUTH_TOKEN using the environment variables set earlier. Inside of the class’s main method we initialize Twilio, create a PhoneNumber object, call it’s fetch method, and print the results in the national format.

Note: It’s okay to hard-code a phone number in this case because we are only looking it up and it is not associated with our Twilio account.

Save this file and return to your terminal. We need to use Gradle to compile and run the app. Gradle allows you to execute multiple tasks in a single command by simply listing each task in the order you want them to run. Run the following:

$ gradle build run

This command might take a while the first time you run it because it will need to start the Gradle daemon and download the dependencies we need.

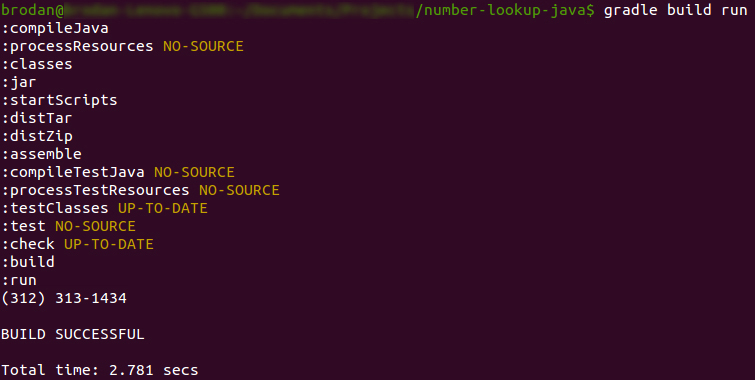

You’ll notice a mess of things printed to the terminal because a lot just happened. Gradle first built your project by compiling all of the project’s classes, and then started the application using the application plugin’s run task. Notice that the desired output is also printed above the BUILD SUCCESSFUL message. If you only want to print the application’s output and nothing from Gradle, add the —quiet flag the above command (e.g. $ gradle build run —quiet).

More Informative Lookups

Basic functionality like number formating is free, but for a small cost you can use Lookup to get useful information about any phone number. Let’s change our app so that it can retrieve a number’s type and carrier. Modify Lookup.java as follows:

public static void main(String[] args) {

    Twilio.init(ACCOUNT_SID, AUTH_TOKEN);

    PhoneNumber number = PhoneNumber
        .fetcher(new com.twilio.type.PhoneNumber("13123131434"))
        .setType("carrier")
        .fetch();

    System.out.println("Carrier name: "   number.getCarrier().get("name"));
    System.out.println("Number type: "   number.getCarrier().get("type"));
}

Run your app again with $ gradle build run —quiet and you’ll see some more useful output than before.


Looking Up Invalid Phone Numbers

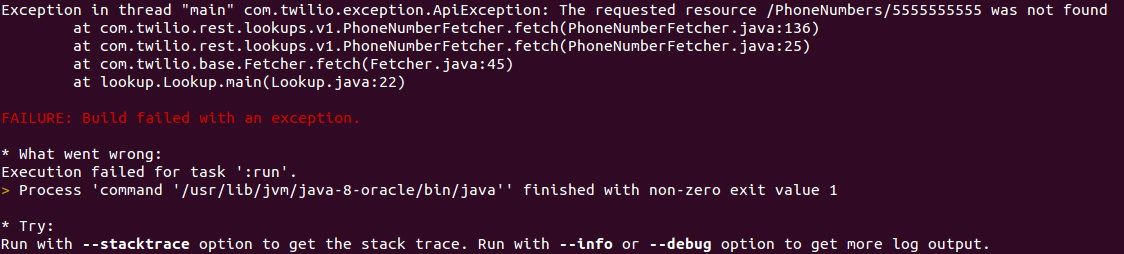

By now you’ve probably played around with the code to Lookup numbers other than 13123131434. It’s possible that you looked up a phone number that isn’t valid (such as (555)555-5555). If so, you would have seen that an exception was raised because the number could not be found:


We need to add some error handling to our app so that it doesn’t crash when an invalid number is looked up. Modify Lookup.java again to include the following:

public static void main(String[] args) {

    Twilio.init(ACCOUNT_SID, AUTH_TOKEN);

    try {
        PhoneNumber number = PhoneNumber
            .fetcher(new com.twilio.type.PhoneNumber("15108675309"))
            .setType("carrier")
            .fetch();

        System.out.println("Carrier name: "   number.getCarrier().get("name"));
        System.out.println("Number type: "   number.getCarrier().get("type"));

    } catch(com.twilio.exception.ApiException e) {
        if(e.getStatusCode() == 404) {
            System.out.println("Phone number not found.");
        } else {
            throw e;
        }
    }
}

Now if you look up an invalid phone number you’ll see Phone number not found. printed to the terminal instead of the exception being raised.

Using Command Line Arguments

We have a finished, working application. You can stop here, but it’s a pain to look up a new number because you need to open Lookup.java, change the hard-coded phone number, and then clean, build, and run the Gradle project. Let’s make the application more dynamic by modifying it to accept a command line argument.

Open up build.gradle again and add the following to the bottom of the file:

apply plugin: 'application'

mainClassName = 'lookup.Lookup'

repositories {
    mavenCentral()
}

dependencies {
    // https://mvnrepository.com/artifact/com.twilio.sdk/twilio
    compile group: 'com.twilio.sdk', name: 'twilio', version: '7.5.0'
}

run {
    if (project.hasProperty("appArgs")) {
        args Eval.me(appArgs)
    }
}

Then in Lookup.java modify the main method as such:

public static void main(String[] args) {
    if(args.length == 0) {
        throw new IllegalArgumentException("Missing command line argument.");
    }

    Twilio.init(ACCOUNT_SID, AUTH_TOKEN);
    String lookup_number = args[0];

    PhoneNumber number = PhoneNumber
        .fetcher(new com.twilio.type.PhoneNumber(lookup_number))
        .setType("carrier")
        .fetch();

    System.out.println("Carrier name: "   number.getCarrier().get("name"));
    System.out.println("Number type: "   number.getCarrier().get("type"));
}

We can now look up new numbers without modifying our code. The -P flag is used to set properties for the build script (see $ gradle -h | grep "-P"). Try the following:

$ gradle run -P appArgs=13123131434 —quiet


Wrapping Up

This completes the introduction to Twilio’s Lookup API. For more information on Lookup, see the API Docs and the auto-generated JavaDoc for Twilio’s Java SDK.

If you want to see guides on the Lookup API in other languages, they are available in Python, Ruby, PHP, and NodeJS.


If you run into any issues with your app or you have questions, please reach out to me on Twitter @brodan_ or on Github.

The screenshots/gifs used in this post were provided by the amazing Frinkiac and Giphy.
