The objective of this blog post is to show how you can leverage Segment to capture and track progress through Studio Flows. In this case we will adapt our standard Appointment Reminder Studio Flow Template to track feedback in Segment using Functions. This will allow us then to leverage

What’s Required

To complete this you’ll need a Twilio Account with a phone number and a Segment account that has Functions enabled.

How it works

Here we’re using Studio HTTP Request Widget to call a Segment Source Function. We will trigger the Studio Flow using the REST API, but this could be tied into any backend system that you have. At each stage of the flow, initiation, cancellation or confirmation, we will update Segment via the HTTP Request Widget.


In order to set up and test this integration we will first configure a test webhook from the Studio flow to confirm the webhook is sending the right information across to Segment Functions. Then we will complete the rest of the flow with the Production function link.

Our first step is to create the initial Studio Flow. The easiest way to do this is to select “Create a Flow” from the Studio dashboard and select the Appointment Reminders Template as shown below. Alternatively, you could build out the Flow from scratch following the tutorial.

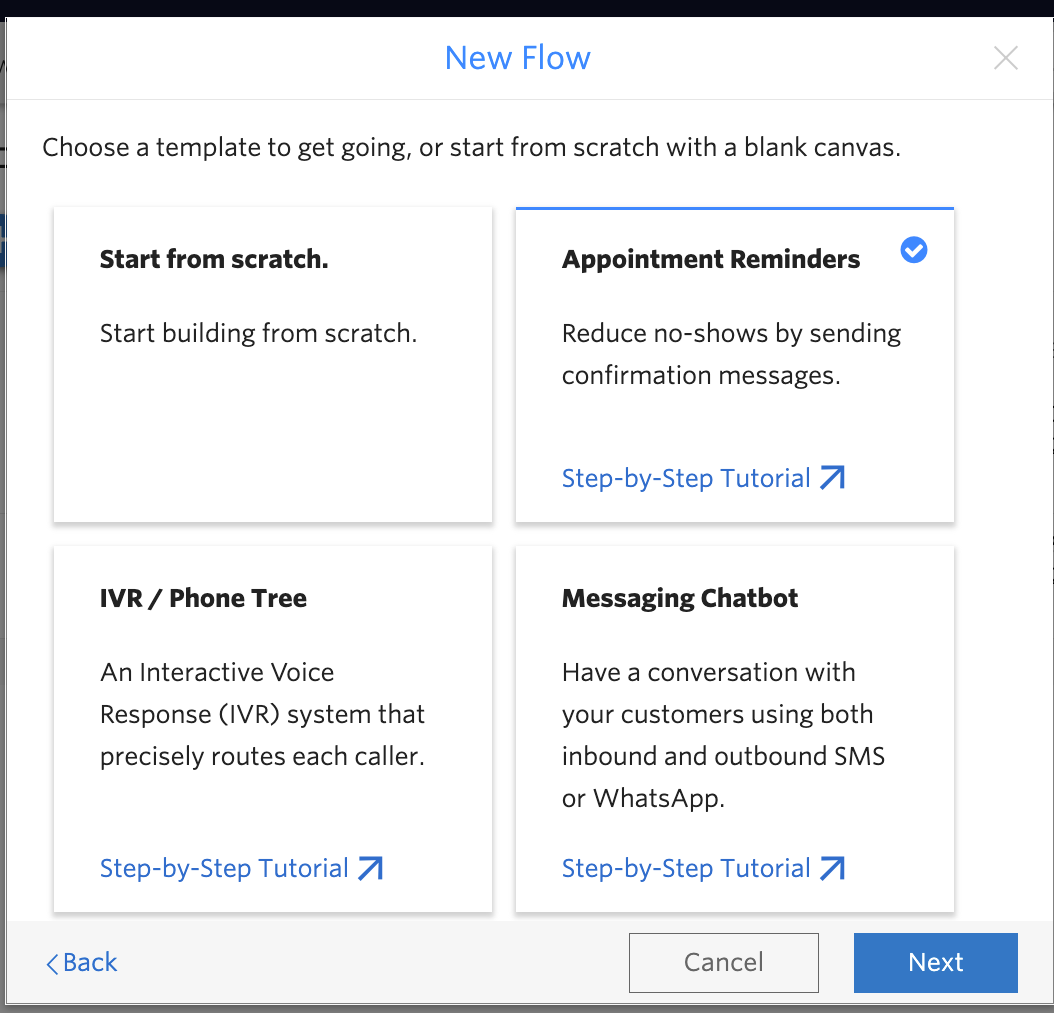

Studio New Flow Popup

Next we’re going to disconnect the ‘confirm_appt’ widget from the Trigger and add a new ‘Make HTTP Request’ widget to the flow. We’ll connect the HTTP Request to the REST API Trigger as shown below. We will use this to go through the Segment Function setup without needing to trigger SMS or other parts of the Studio flow.

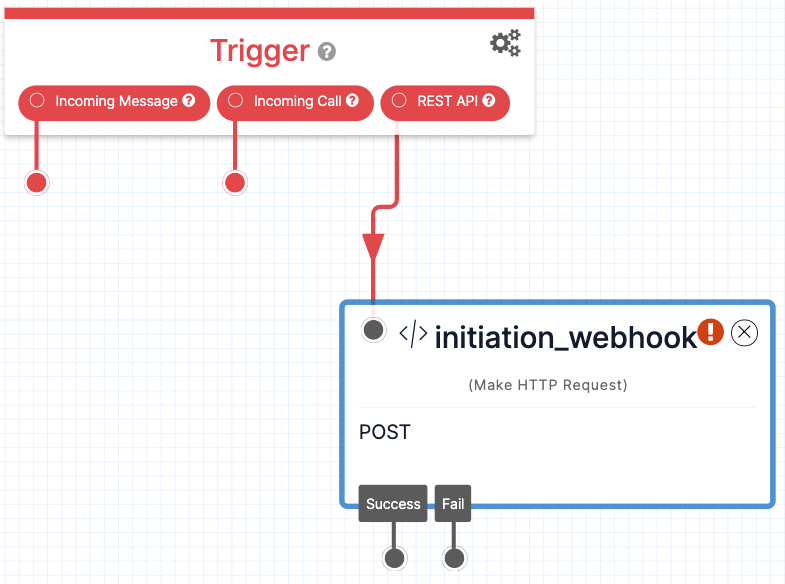

Studio Trigger widget connected to Make HTTP Request widget.

We will name this widget “initiation_webhook”. Set the Content Type to “Application/JSON” and the request body to the content shown below:

 "userID": "{{trigger.request.parameters.userID}}",
 "phoneNumber": "{{}}",
 "flow": "appointment_confirmation",
 "stage": "initiation"

We will leave the “REQUEST URL” blank for now as we will obtain that from Segment.

At this point we need to head over to Segment, and we need to set up our Segment Source Function to receive the incoming Webhook from Studio. So head over to Segment and navigate to “Connections” in your workspace.

Select “Add Source”. Then in the Catalog view switch to the Functions Tab (as shown in the image below), and select “New Function”, pick “Source” as the function type, and click “Build”.

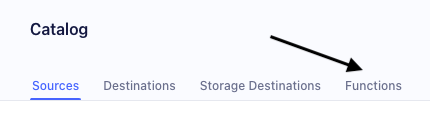

Arrow pointing to the Functions tab (far right) of Segment Catalog

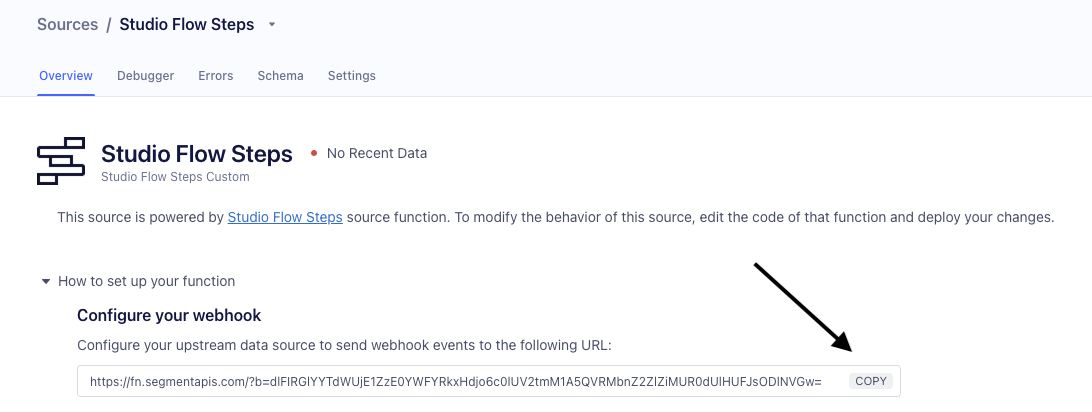

Next you’ll be presented with the function view. Here you’ll want to head over to the top-right corner and hit the “Copy To Clipboard” button. This will give you a URL of the form starting with

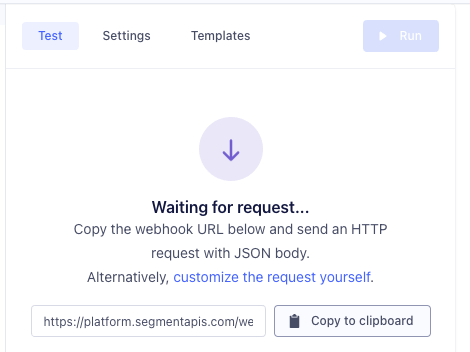

Segment Function Test panel showing where to get the test URL

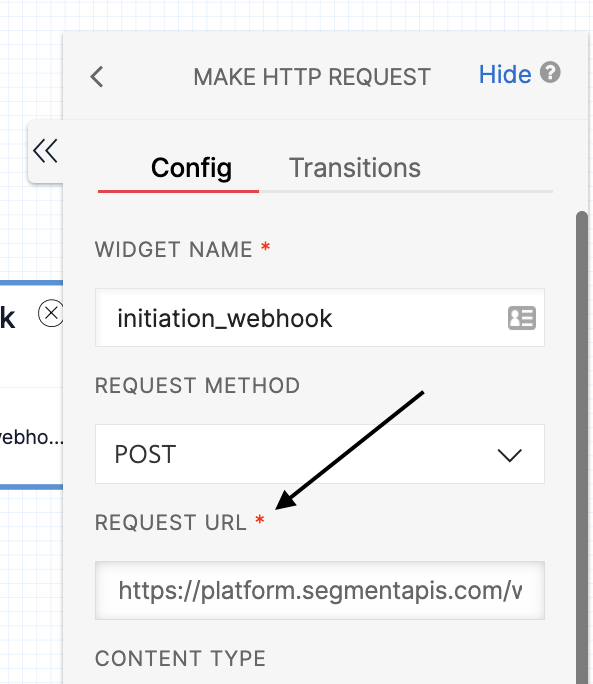

Now switch back to the Studio Flow and paste this URL into the REQUEST URL field of the Make HTTP Request Widget you started earlier. Hit “Save” and then publish the Studio flow.

Make HTTP Request widget with arrow point to Request URL field.

Now we can test that we are sending the correct information over by triggering the Studio Flow. There are several ways to trigger a Flow using the Executions API, including directly calling via curl or Postman. In this case I am going to use the Twilio CLI and specify a test userID as shown below. You can grab the Flow SID from the list of Flows page and pick one of your Twilio phone numbers to send the message from.

twilio api:studio:v2:flows:executions:create --flow-sid=<flow sid> \
--to=<destination number in e.164 format> --from=<Twilio sending number> \
--parameters "{\"userID\" : \"testUserID\"}"

Within a few seconds of executing the flow you should see the data in the Segment console on the right hand side as shown below.

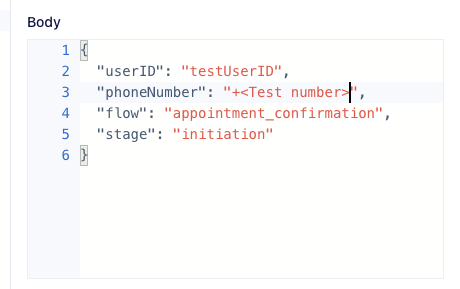

JSON of initial inbound body in Segment Function UI.

Now that we’ve confirmed the data is flowing to our Segment test endpoint we can replace the default function with our code. We’re going to track these as ‘Studio Flow Steps’ and include the phone number, flow name and stage as properties.

async function onRequest(request, settings) {
  const body = request.json()
  // See
    event: 'Studio Flow Step',
    userId: body.userID,
    properties: {
      phoneNumber: body.phoneNumber,
      flow: body.flow,
      stage: body.stage,

Once you’ve updated the function you can click “Run” in the top right hand corner to check if your function works and creates a valid event. You should get an output similar to the below.

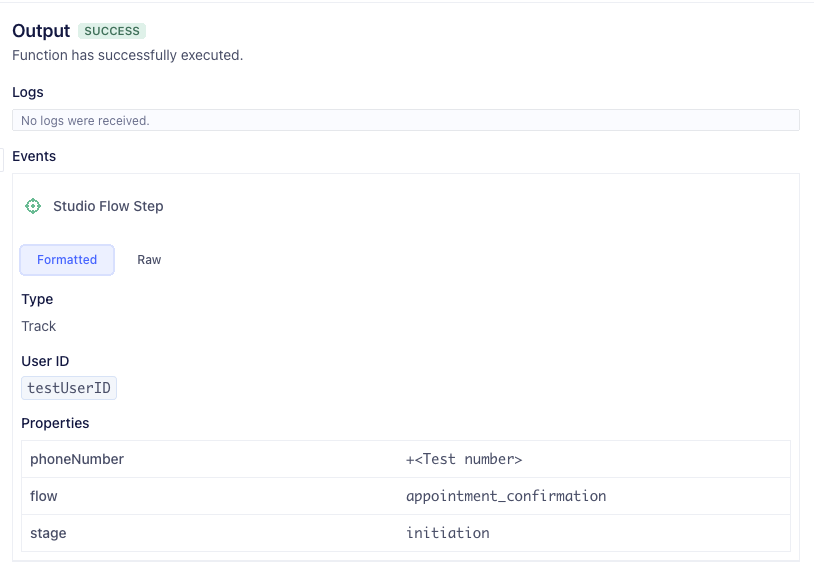

Segment Functions Output Success dialog showing properties and test user ID.

Once you’ve confirmed that the function is behaving correctly you can go ahead and click “Configure”.

Once this is completed you’ll need to go through the steps of connecting this by selecting “Connect Source” and following the prompts. Once completed you’ll need to copy the webhook URL displayed and save it somewhere. This time the URL will begin with

Segment Source Overview Showing how to get the production URL

Now it is time to head back into Studio and finish setting up our end-to-end flow.

First step is to replace the REQUEST URL in the Make HTTP Request widget we tested with above with the new webhook URL you just copied.

Connect the “Success” Output of the “initiation_webhook” widget to the input of the “confirm_appt” widget.

Next update the configurations on the “confirmation_webhook” and “cancellation_webhook” widgets. To do this, copy and paste the request body from the “initiation_webhook” and update the stage to either “confirmed” or “cancelled” depending on the widget. Also, update the Request URL to point to the Segment Webhook and be sure to select the correct Content Type of “Application/JSON” as shown below.

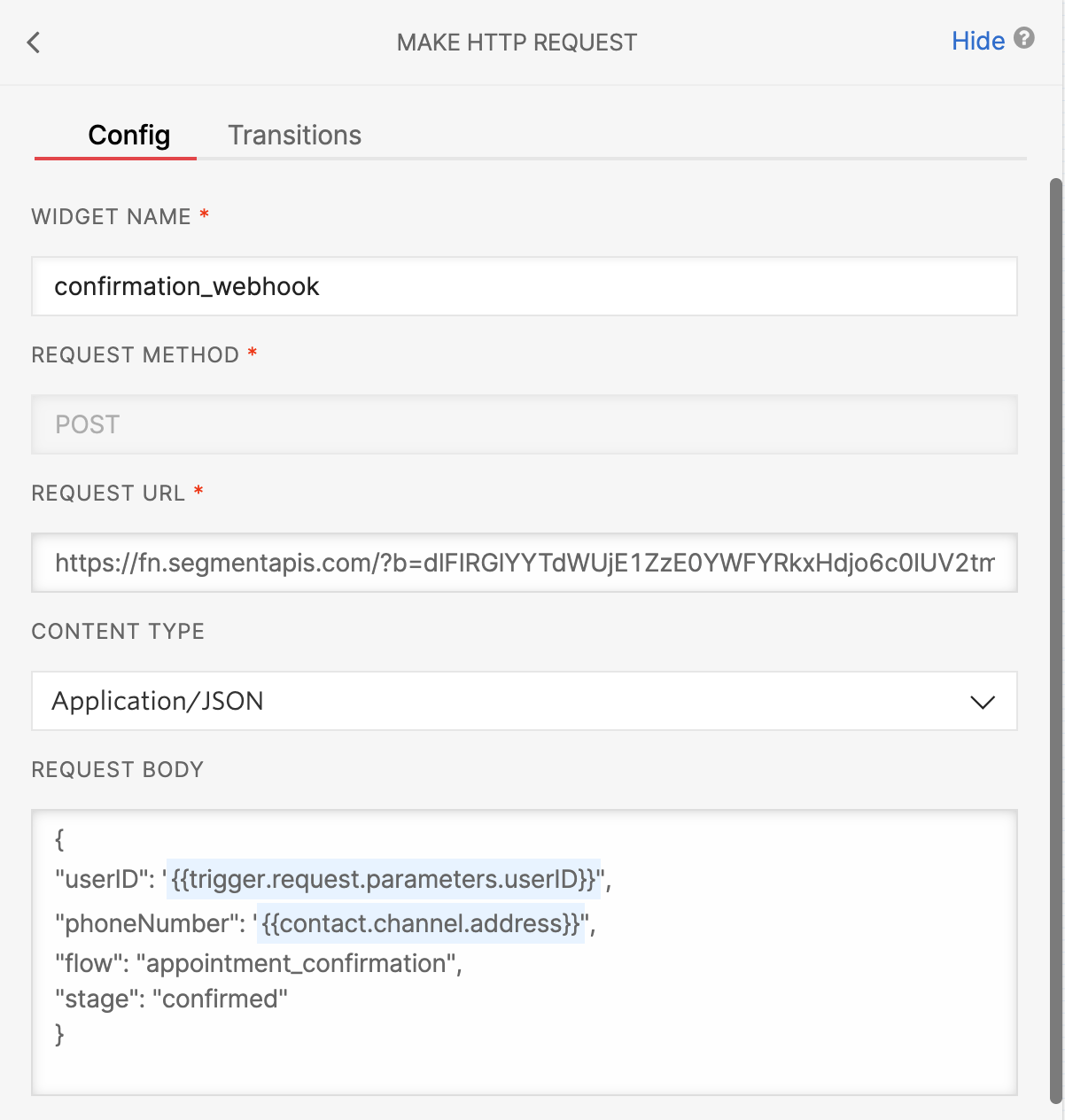

Updating the Make HTTP Request widget with production URL.

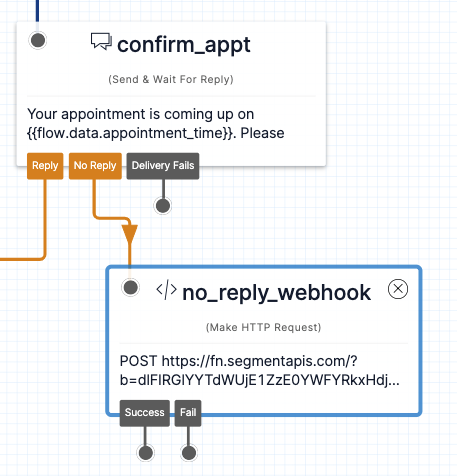

In order to fully capture all of the execution paths I also recommend adding another HTTP Request Widget connected to the “No Reply” outbound of confirm_appt widget, and set the request body to include the stage “no_reply” as shown below.

Adding a No Reply Webhook
"userID": "{{trigger.request.parameters.userID}}",
"phoneNumber": "{{}}",
"flow": "appointment_confirmation",
"stage": "no_reply"

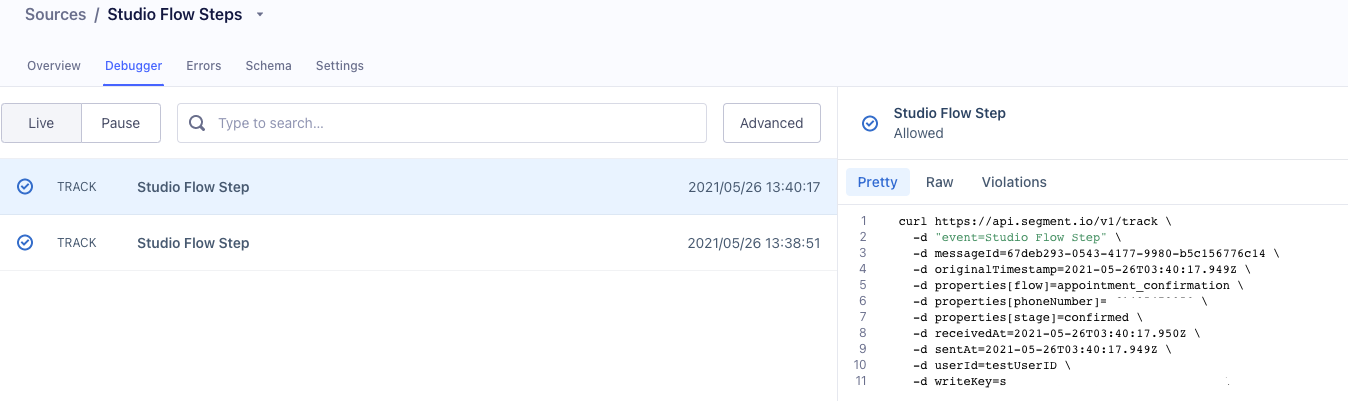

Once you’ve updated everything in the Flow and published it you can run a test execution and view it in the Segment Source Debugger. You should see two Track events for each execution and you should see the properties passed through successfully as shown in the image below.

Segment Source Debugger showing receiving events successfully.

Leveling Up - Automated Escalation

Now that we have our events successfully arriving inside Segment we have a number of options, including building out custom audiences based on the responses, or triggering escalations if responses haven't been received. These options include:

  • Leverage the Make Outgoing Call Studio widget to escalate to a call when the No Reply time out is hit.
  • Create  Segment Destination Function that triggers an escalation action such as an email, phone call or task for an agent to confirm the appointment. An example of how to create such a destination function can be seen in the following blog post: How to Send Personalized SMS Using Segment & Twilio.
  • Using Segment Personas to create audiences and track people for follow up.
