Add users & messages to new Twilio Conversation with Google Cloud Functions and C#

December 07, 2022
Written by
Zach Snoek
Contributor
Opinions expressed by Twilio contributors are their own
Reviewed by

Add users & messages to new Twilio Conversation with  Google Cloud Functions and C#

With Twilio Conversations, you can autocreate new Conversations when your Twilio Phone Number receives an incoming message. When the Conversation is autocreated, a webhook can respond to the onConversationAdded event that the creation triggers.

In this post, you’ll learn how to enable Conversation autocreation and write a Google Cloud Function in C# that adds a chat participant and sends a message automatically to newly-created Conversations with the Twilio .NET SDK.

Prerequisites

Before you begin this tutorial, you will need the following:

You can view the finished project’s source code on GitHub.

Twilio Conversations API core concepts

While this tutorial assumes some prior knowledge of the Conversations API, here is a brief refresher of the core concepts you should understand. Feel free to skip to the next section if you’re already familiar with them.

Twilio Conversations API

The Twilio Conversations API allows you to build scalable, multichannel conversations. Users can participate in a Conversation using any supported channel, such as SMS, chat, Facebook Messenger, Google's Business Messages, and WhatsApp.

Conversation

A Conversation is a virtual space that Participants use to communicate across channels. Participants send text and/or media Messages that get delivered to all other Participants. Each Conversation has a unique ID, known as its Conversation SID.

Participant

A Participant is an entity that reads and sends messages within a Conversation. Participants may join through any supported channel type. Chat participants are backed by a User entity and identified by a unique identity string.

To avoid confusion in this blog post, I will capitalize Conversations and Participants when referring to Conversation and Participant entities within the Twilio Conversations API, respectively.

Conversation and Messaging Services

A Conversation Service is a container for all Conversations-related resources, such as Conversations and Participants. To support non-chat channels such as SMS and WhatsApp, a Messaging Service needs to be attached to the Conversation Service.

Conversation autocreation overview

When Conversation autocreation is enabled, incoming Programmable Messaging webhooks are ignored, and if the sender is not a part of any Conversation, a new Conversation will be created.

Autocreation triggers an onConversationAdd pre-event hook; this webhook allows you to accept or reject the auto-creation. However, you will use the onConversationAdded post-event hook, which fires after the Conversation has been created and sends Conversation data such as the Conversation SID.

Conversation autocreation fires other post-event hooks that you can learn about in the documentation.

Now that you understand the necessary Conversations API concepts and how autocreation works, it’s time to begin!

Enable Conversations autocreation in the Twilio Console

To enable Conversation autocreation when your Twilio number receives a message, you need to do two things in the Console.

First, you must unlock the Handle Inbound Messages with Conversations Messaging feature from within the Conversations settings. This gives the Messaging Service a new Autocreate a Conversation option for handling incoming messages.

Second, you have to select the new option from the Messaging Service’s settings. Selecting the option will autocreate Conversations that create onConversationAdded events.

Unlock the Handle Inbound Messages with Conversations feature

First, navigate to the Conversations Overview page. In the left-hand sidebar, expand the Manage section and click Defaults to navigate to the configuration defaults page.

Under the Messaging Features section, unlock the feature by clicking the toggle next to Handle Inbound Messages with Conversations:

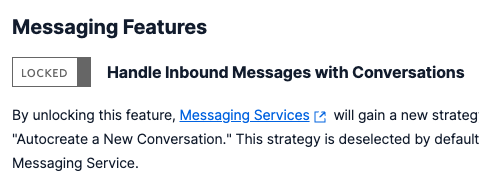

Toggle for the "Handle Inbound Messages with Conversations" setting is set to "Locked".

Click Save at the bottom of the page to save the updated settings.

Note that there is a default Conversation Service named Default Conversations Service and a default Messaging Service named Default Messaging Service for Conversations. These are initially selected and are shown in the Default Messaging Integration Settings section:

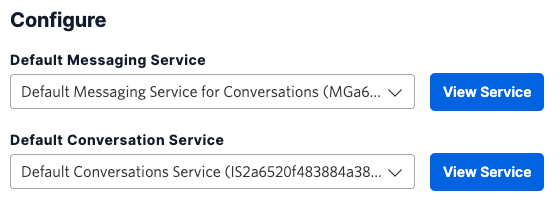

The "Default Messaging Service" and "Default Conversation Service" have their own select inputs with the default services selected.

Allow Messaging Services to autocreate Conversations

Navigate to the Messaging Services page and click Default Messaging Service for Conversations.

To use the Messaging Service, you first need to add a Sender to it. Under Add Senders to Service, click Add Senders and follow the prompts to add your Twilio number to the sender pool.

Next, click Integration in the left-handle sidebar to navigate to the Integration page. Under Incoming Messages, select Autocreate a Conversation.

Finally, click Save at the bottom of the page.

Create the Google Cloud Function locally

Now that you’ve enabled Conversation autocreation in the Console, you can begin writing the Google Cloud Function that handles the onConversationAdded webhook. Recall that this function will be responsible for adding a new Participant and sending a message to the newly-created Conversation.

First, create a new directory for the Function and cd into it:

mkdir ConversationsAutocreate
cd ConversationsAutocreate

You’ll generate the Function boilerplate using the HTTP function template provided by Google Cloud. Run the following command to install the template package:

dotnet new -i Google.Cloud.Functions.Templates

Next, create a Function from the template with dotnet new:

dotnet new gcf-http

Once the command exits, you should see a ConversationsAutocreate.csproj file and a Function.cs file.

At the time this post is written, templates created with the latest stable version of Google.Cloud.Functions.Templates target netcoreapp3.1. You may need to upgrade the TargetFramework in the .csproj file to your newer version.

You can ensure that everything is working properly by starting the server:

dotnet run

Then, make a request to the Function:

curl -i http://localhost:8080

You should get a 200 status code and a response like “Hello, Functions Framework” back.

Implement the Function

First, you’ll need to install the Twilio .NET SDK to interact with the Twilio API. If your Function is still running, terminate the process, then run the following command:

dotnet add package Twilio

Open your text editor of choice, and at the beginning of Function.cs, bring in the required libraries:

using Google.Cloud.Functions.Framework;
using Microsoft.AspNetCore.Http;
using System;
using System.Threading.Tasks;
using Twilio;
using Twilio.Rest.Conversations.V1.Conversation;

Next, remove all the boilerplate code within the Function’s HandleAsync method and replace it with the following:

public async Task HandleAsync(HttpContext context)
{
    var request = context.Request;
    var response = context.Response;

    if (!HttpMethods.IsPost(request.Method))
    {
        response.StatusCode = StatusCodes.Status405MethodNotAllowed;
        return;
    }

    var form = await request.ReadFormAsync();

    var eventType = form["EventType"];
    if (eventType != "onConversationAdded")
        return;

    var accountSid = Environment.GetEnvironmentVariable("TWILIO_ACCOUNT_SID");
    var authToken = Environment.GetEnvironmentVariable("TWILIO_AUTH_TOKEN");
    var conversationSid = form["ConversationSid"];

    TwilioClient.Init(accountSid, authToken);

    await ParticipantResource.CreateAsync(
        pathConversationSid: conversationSid,
        identity: "<Your identity>"
    );

    await MessageResource.CreateAsync(
        pathConversationSid: conversationSid,
        body: "You are being connected. Please give us a moment to review your message."
    );
}

First, the Function ensures that it has received a POST request and returns a 405 status code if it hasn’t. For inbound messages, Twilio sends a POST request with a Content-Type of application/x-www-form-urlencoded.

Next, it retrieves the EventType key from the request form, which is the webhook type that Twilio is triggering. The Function returns early if it isn’t an onConversationAdded webhook.

Then, the Function gets the environment variable values for your Twilio account SID and auth token and retrieves the ConversationSid key from the request form. The value of the ConversationSid key is the conversation SID of the newly-created Conversation (i.e., the Conversation created in response to an incoming message).

The Twilio account SID and auth token environment variables will be set from the command line when you run the server later.

Lastly, the Twilio client is initialized with your account credentials, and a chat participant is added by creating a new ParticipantResource followed by sending a chat message by creating a new MessageResource. Be sure to specify the identity of the chat participant you want to add.

Hook up the webhook in the Console

With the Function implemented, you can now run it locally and specify the webhook URL in the Console.

First, specify your Twilio account SID and auth token as environment variables:

export TWILIO_ACCOUNT_SID=<Your account SID>
export TWILIO_AUTH_TOKEN=<Your auth token>

Your account SID and auth token are found in the Account Info section of the Console.

Next, start the Function with dotnet run:

dotnet run

In a separate terminal window, start ngrok and copy the public Forwarding URL that it logs:

ngrok http 8080

Next, navigate to the Conversations Services page and click Default Conversations Service. In the left-hand sidebar, click Webhooks.

Under Webhook URLs, enter the ngrok URL in the Post-Event URL field and ensure that HTTP POST is selected for Method.

Under Post-webhooks, select onConversationAdded and click Save at the bottom of the page.

Test the finished project

To test the project, you can send a message to your Twilio number and check for the created Conversation with the Twilio CLI and ensure that you receive the automatically-added Message.

First, send a message to your Twilio number from your verified personal phone number. Then, run the following command to list your Conversations:

twilio api:conversations:v1:conversations:list

You should see one Conversation listed. Copy the Conversation SID and run the following command with the SID:

twilio api:conversations:v1:conversations:participants:list --conversation-sid <Your Conversation SID>

You should see two Participants listed: one whose Message Binding’s address is the number you sent the test message from, and another representing the chat participant whose Message Binding is null. Additionally, you should ensure that you received the Message created in the Function.

Viewing Conversations in the Console

You can also view all Conversations in the Twilio Console. First, navigate to the Conversations Overview page. In the left-hand sidebar, expand the Manage section and click Services. Select the Default Conversations Service and click Conversations in the left-hand sidebar.

You should see a list of Conversation SIDs. To view a Conversation’s properties, Messages, and Participants, click a Conversation SID.

Next steps

Now that your Function works locally, consider deploying it and checking out the resources below:

Conclusion

Congrats! You’ve finished the project. I hope you found this post helpful and were able to learn more about the Conversations API.

Zach is a software engineer based in Washington State. He works with JavaScript and React and enjoys writing about code on his blog. You can get in touch with him on LinkedIn, Twitter, or at me[at]zachsnoek.com.
