If your PBX solution does not natively allow for remote working and you need to act fast, this solution is for you. This tutorial shows you how to create a solution with Twilio Programmable Voice and a SIP softphone software or an SIP IP Phone that enables employees to work from their homes.

Configure the Programmable Voice SIP Endpoint

You can forward incoming calls to Twilio numbers registered to SIP endpoints, and use a free softphone as an endpoint while working from home, as shown below:

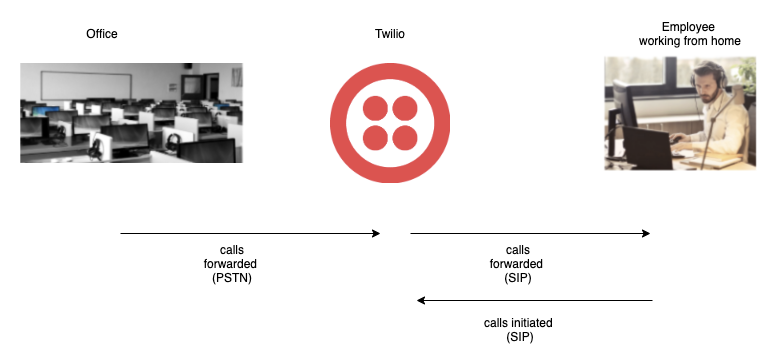

Flow for how employees can work from home using Twilio

To get started with the project you will need the following:

  • A Twilio account. Sign up for a free trial account and get a $10 credit.
  • A call-enabled Twilio Phone Number.
  • SIP endpoint (IP Phones (e.g. Obihai) or Softphones (e.g. Zoiper or X-Lite)).


Create the application

Go to twilio.com and sign up for a free account or log in to your existing account.

If you don't currently own a Twilio phone number with Voice functionality, you'll need to purchase one. Navigate to the Buy a Number page, choose the prefix you want to use under the “Search criteria” - “Search by digits or phrases” and click "Search."

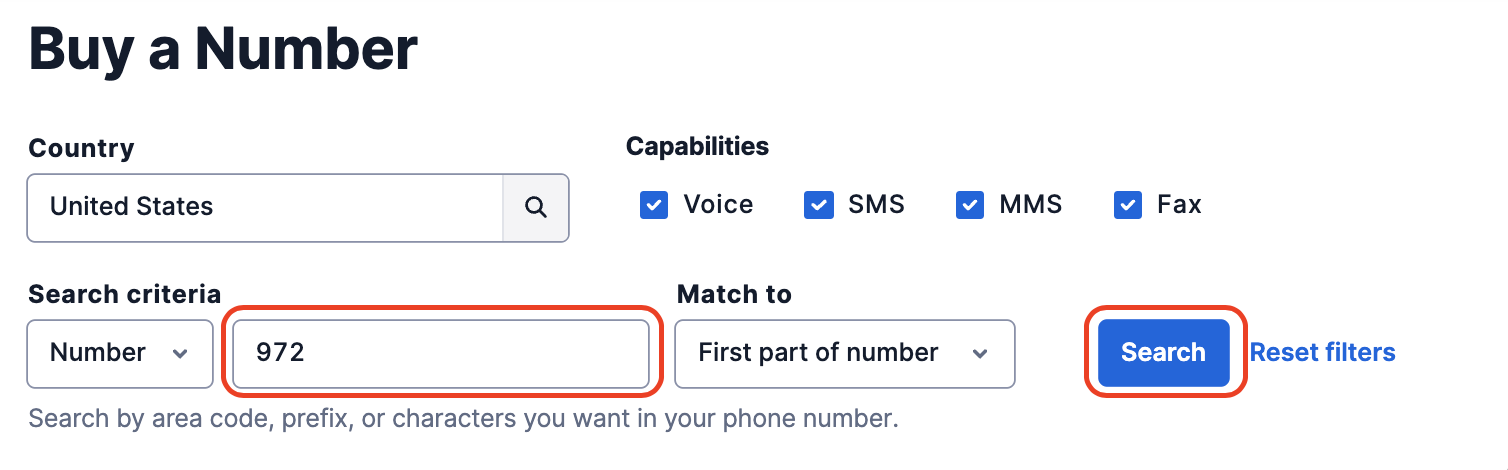

Choose Voice-enabled when buying a phone number

You’ll then see a list of available phone numbers and their capabilities. Find a number that you like and click "Buy" to add it to your account.

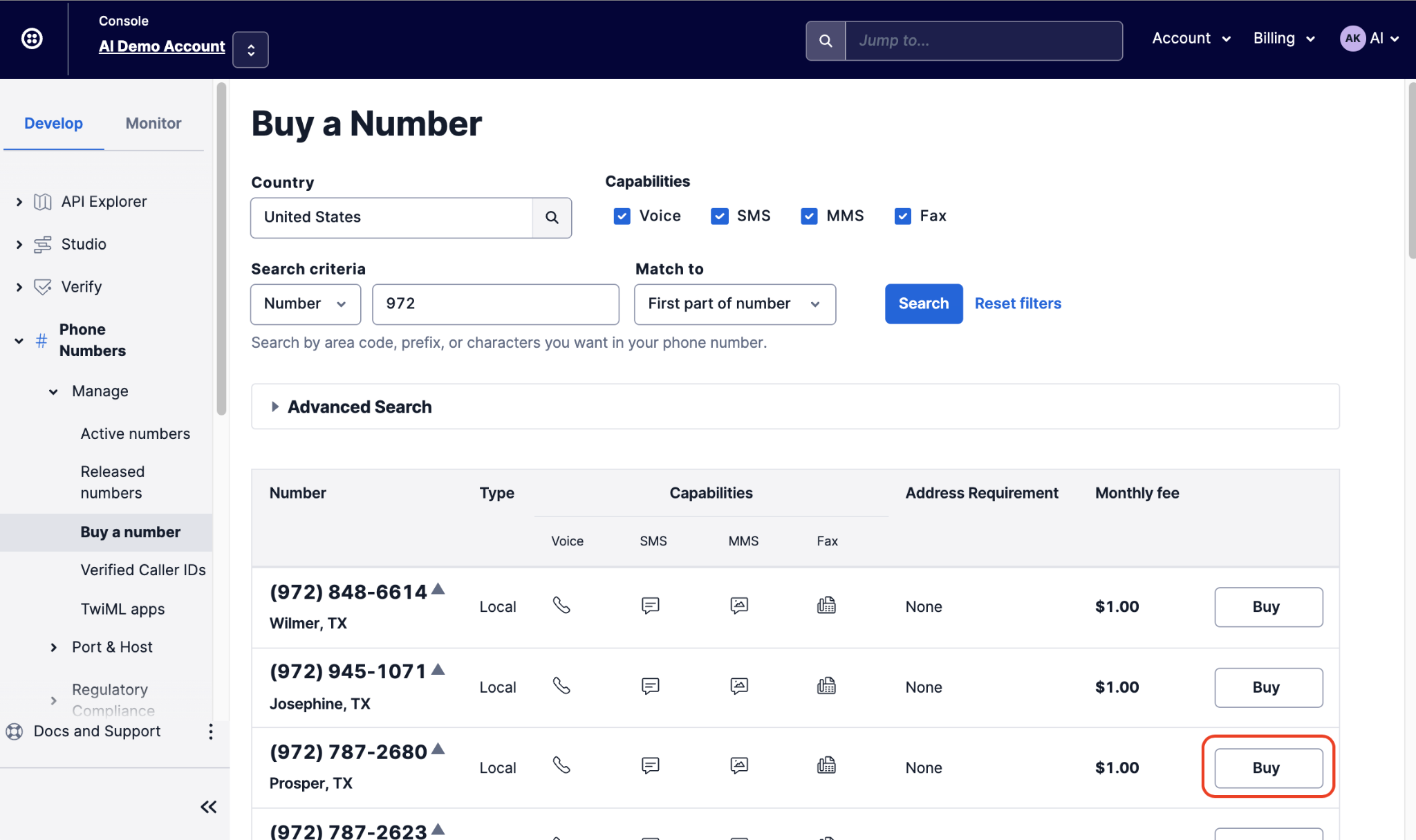

Select a number with voice capabilities.

In this solution, we will need to buy a unique number for each employee you want to forward calls to. The employee can place and receive calls on this new Twilio number and also configure his/her office number to be forwarded to this new Twilio number.

TwiML Bins are a simple serverless solution that help you provide Twilio-hosted instructions to your Twilio applications. You can use Twilio Functions for this as it is outlined on this nice blog post, but in this case we want to keep things very simple to be implemented. In order to use TwiML bins for inbound and outbound calls, we must choose the same number we bought as a SIP domain user name (e.g. 19727872680@twiliosipblog.sip.twilio.com).

The next step is to create a TwiML bin to allow the remote worker to place outbound calls.

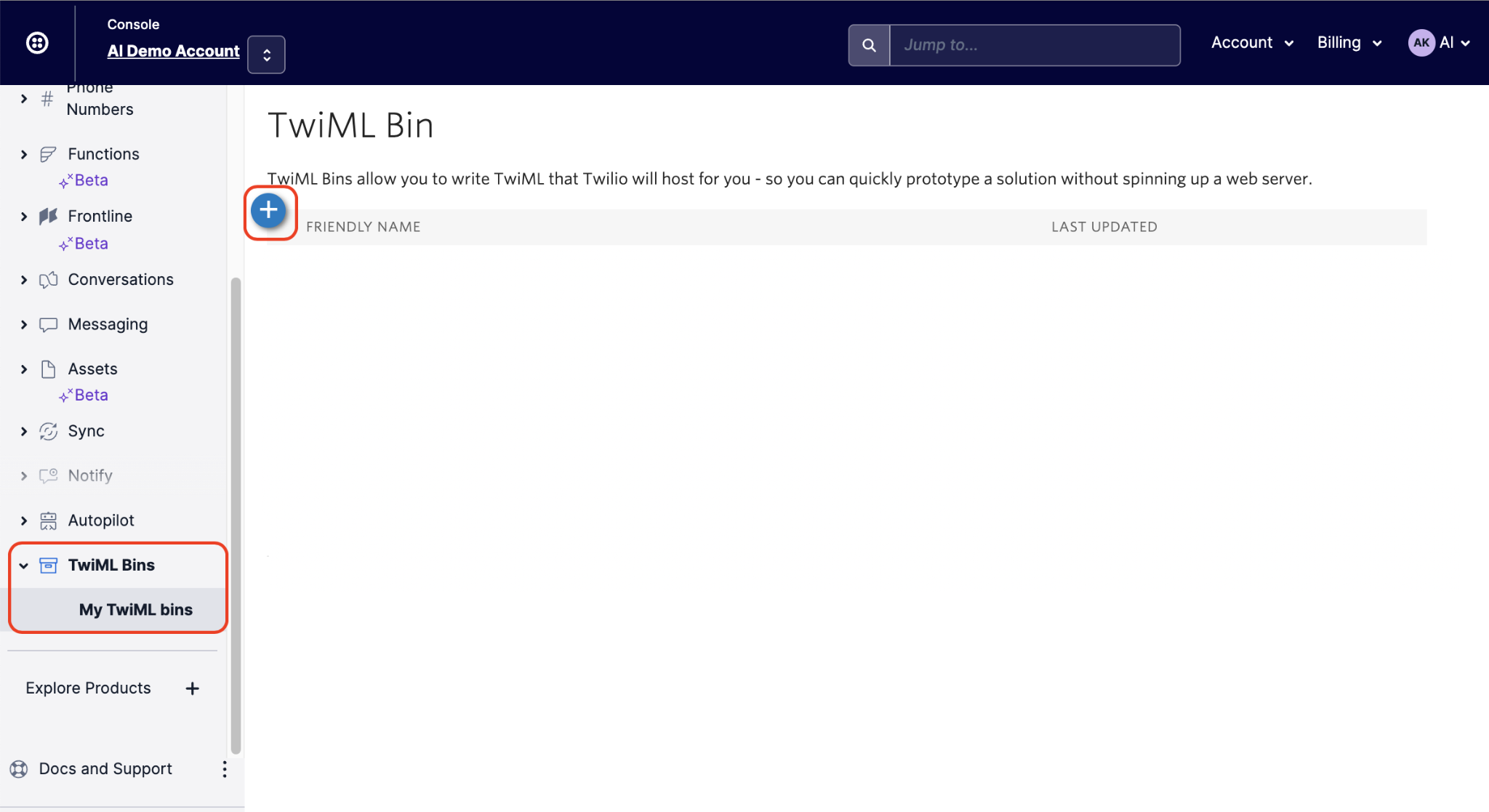

Go to TwiML Bins on Console:

Create a TwiML Bin.

Select the “+” and create a TwiML bin for our outbound calls.

Populate the TwiML Bin with the code.

TwiML Bins have some built in mustache templates, such as {{To}}, {{From}}, {{#e164}} and others. You can find out more in our post, How to use templates with TwiML Bins.

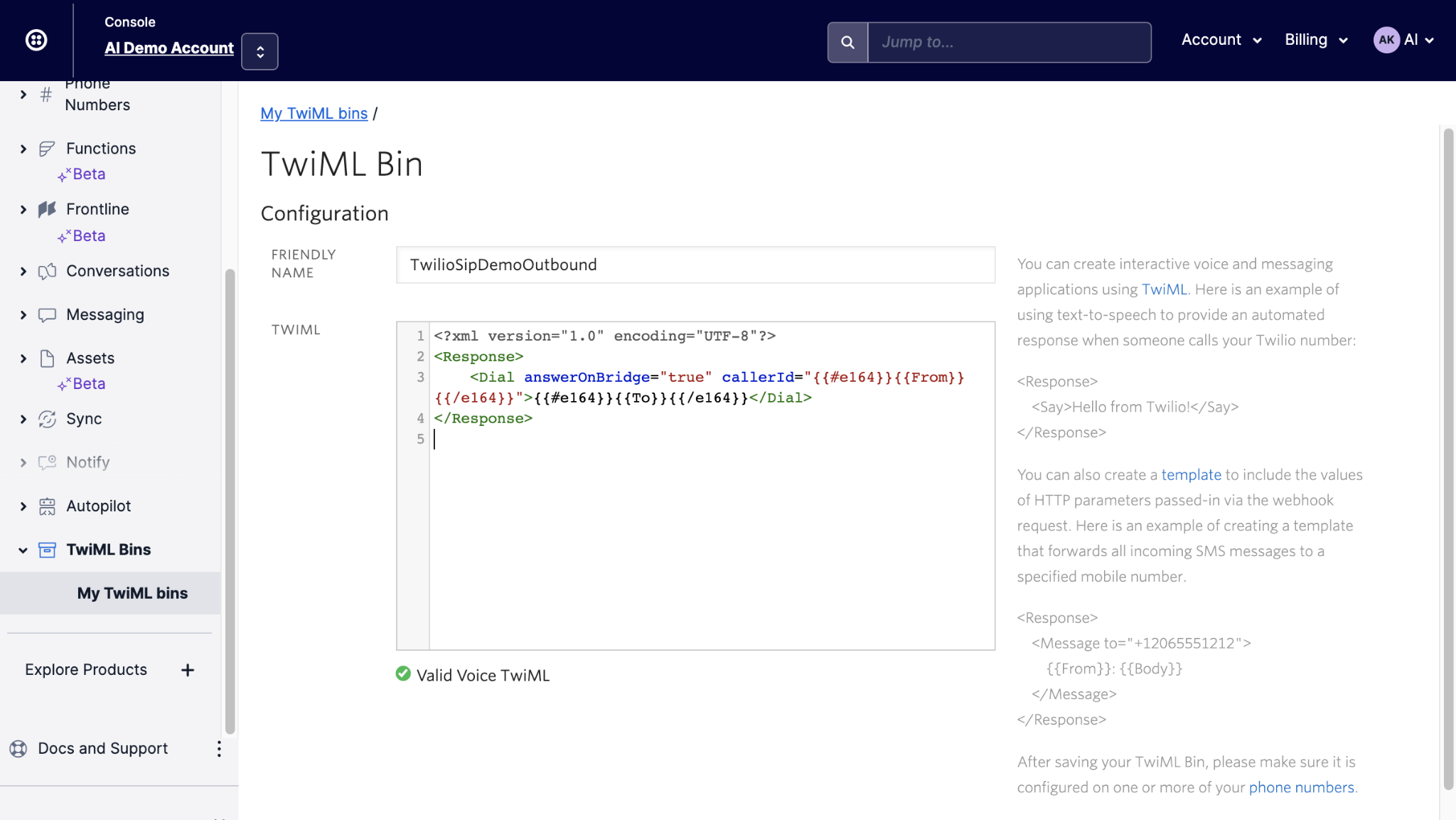

Give the TwiML Bin a friendly name like ‘TwilioSipDemoOutbound’. Paste in the TwiML below (replacing the existing content):

<?xml version="1.0" encoding="UTF-8"?>
    <Dial answerOnBridge="true" callerId="{{#e164}}{{From}}{{/e164}}">{{#e164}}{{To}}{{/e164}}</Dial>

At the bottom of the edit box, it should say: ‘Valid Voice TwiML’ if everything went well. Click the ‘Create’ Button.

Go back to the TwiML Bin page and click on the “+” again. Give the TwiML Bin a friendly name like ‘TwilioSIPDemo_your number’, in this example we used ‘TwilioSIPDemo_19727872680’.

Paste in the TwiML below (replacing the existing content):

<?xml version="1.0" encoding="UTF-8"?>
    <Dial timeout="20">
        <Sip> username@yourdomain.sip.twilio.com</Sip>

In our example we used:

<?xml version="1.0" encoding="UTF-8"?>
    <Dial timeout="20">
        <Sip> 19727872680@twiliosipblog.sip.twilio.com</Sip>

At the bottom of the edit box, it should say: ‘Valid Voice TwiML’ if everything went well. Click the ‘Create’ Button.

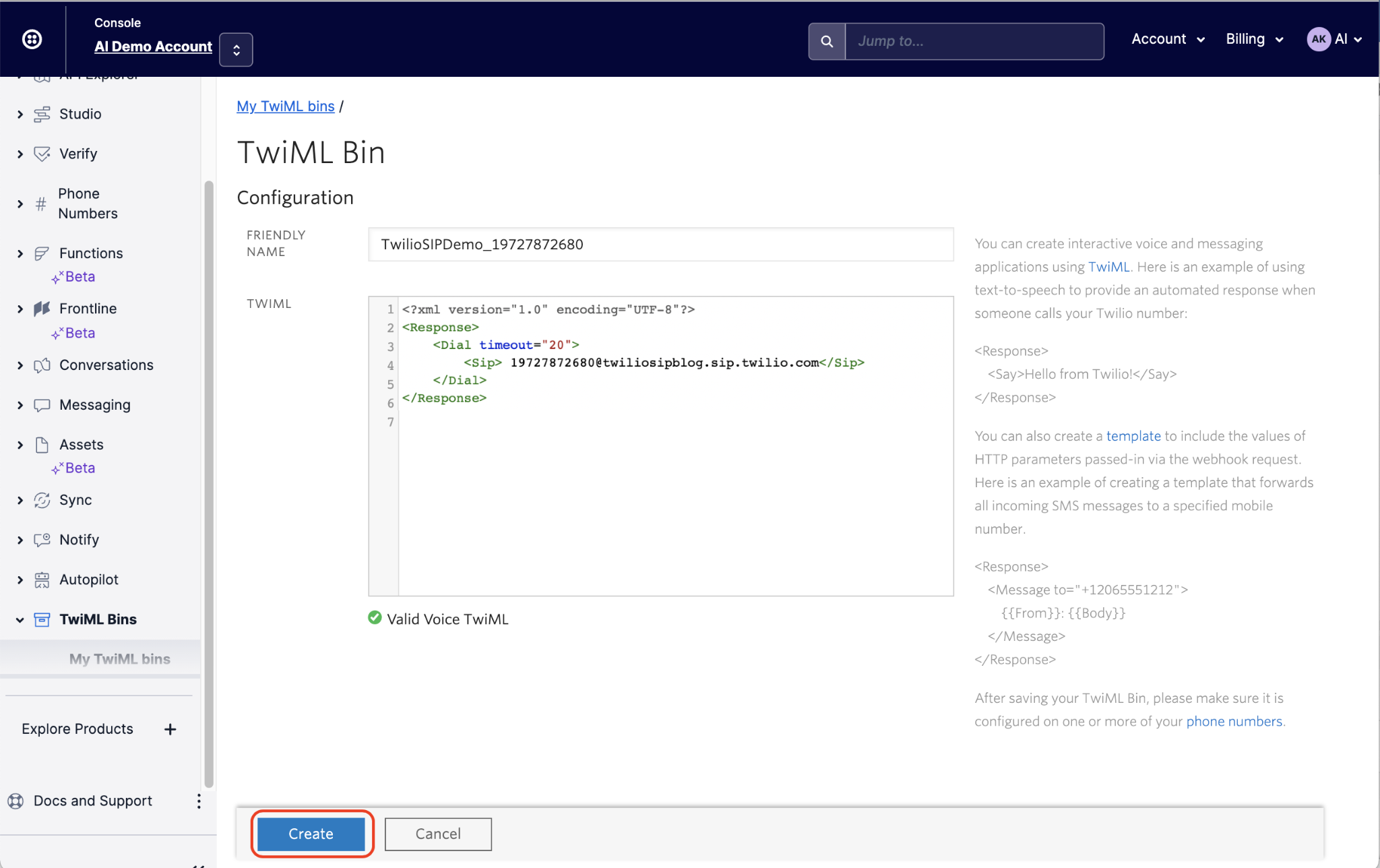

Create button after valid TwiML

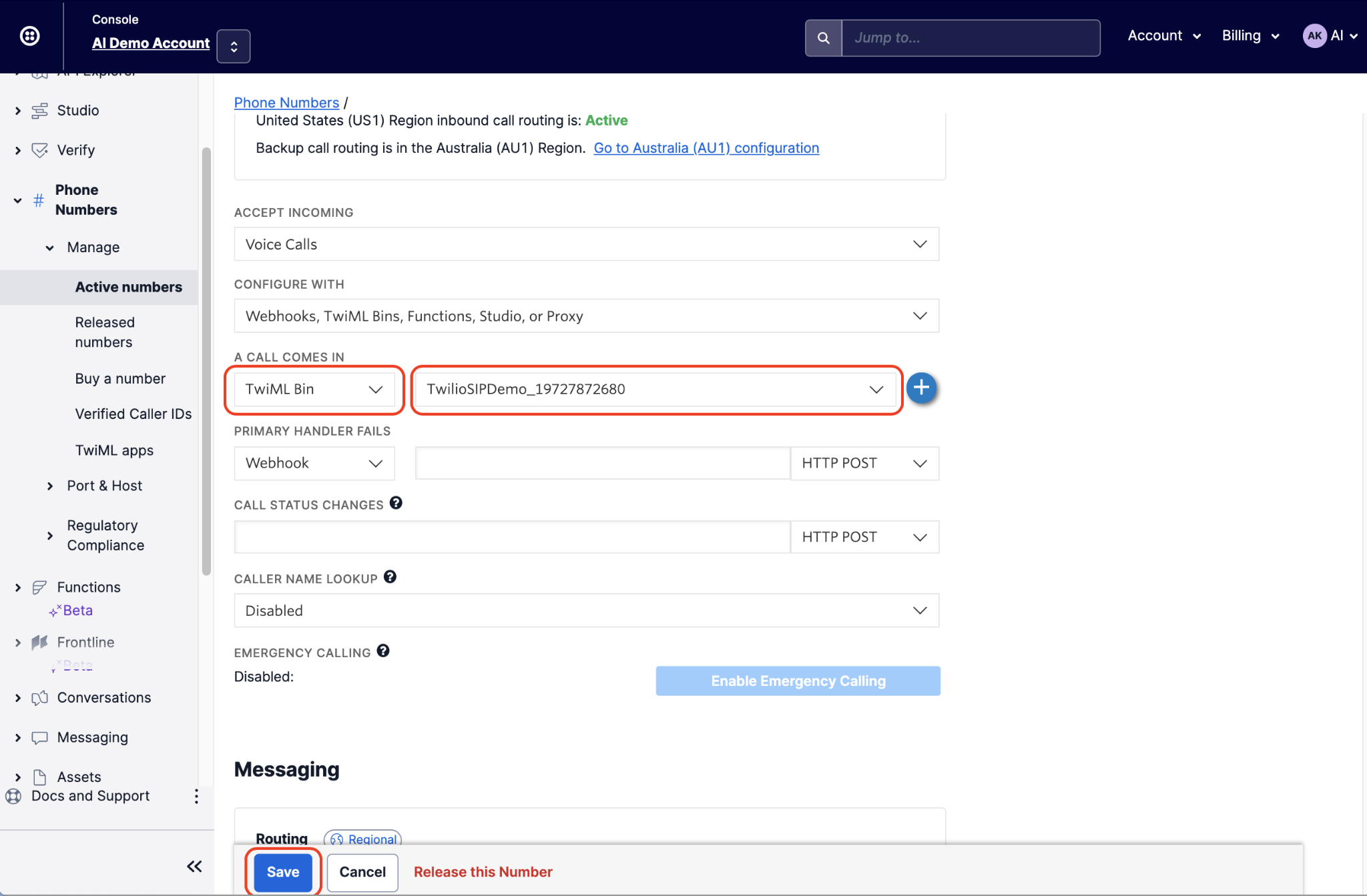

Associate the TwiML bin to the number you purchased. Go to your Active Numbers and under the Voice & Fax, “A CALL COMES IN”, select the TwiML bin we just created:

Associate the TwiML Bin with the number you purchased

Click the blue "Save" button.

For each employee, you will need to create separate TwiML bins for inbound calls (PSTN to SIP) and associate them with their Twilio numbers.

The next step is to create a SIP domain for your account.  A SIP Domain resource describes a custom DNS hostname that can accept SIP traffic for your account.

Think about this as your address for calls to reach you on the public telephone network. In VoIP (voice over IP), a SIP URI serves as your global unique address, similar to a phone number in the PSTN (public switched telephone network). We will need this to configure the softphones to register to your Twilio account.

Go to the Voice SIP Domains.  In this example, we will create the domain twiliosipblog.sip.twilio.com – you will need to specify the “twiliosipblog” this way. You should see a screen like this one:

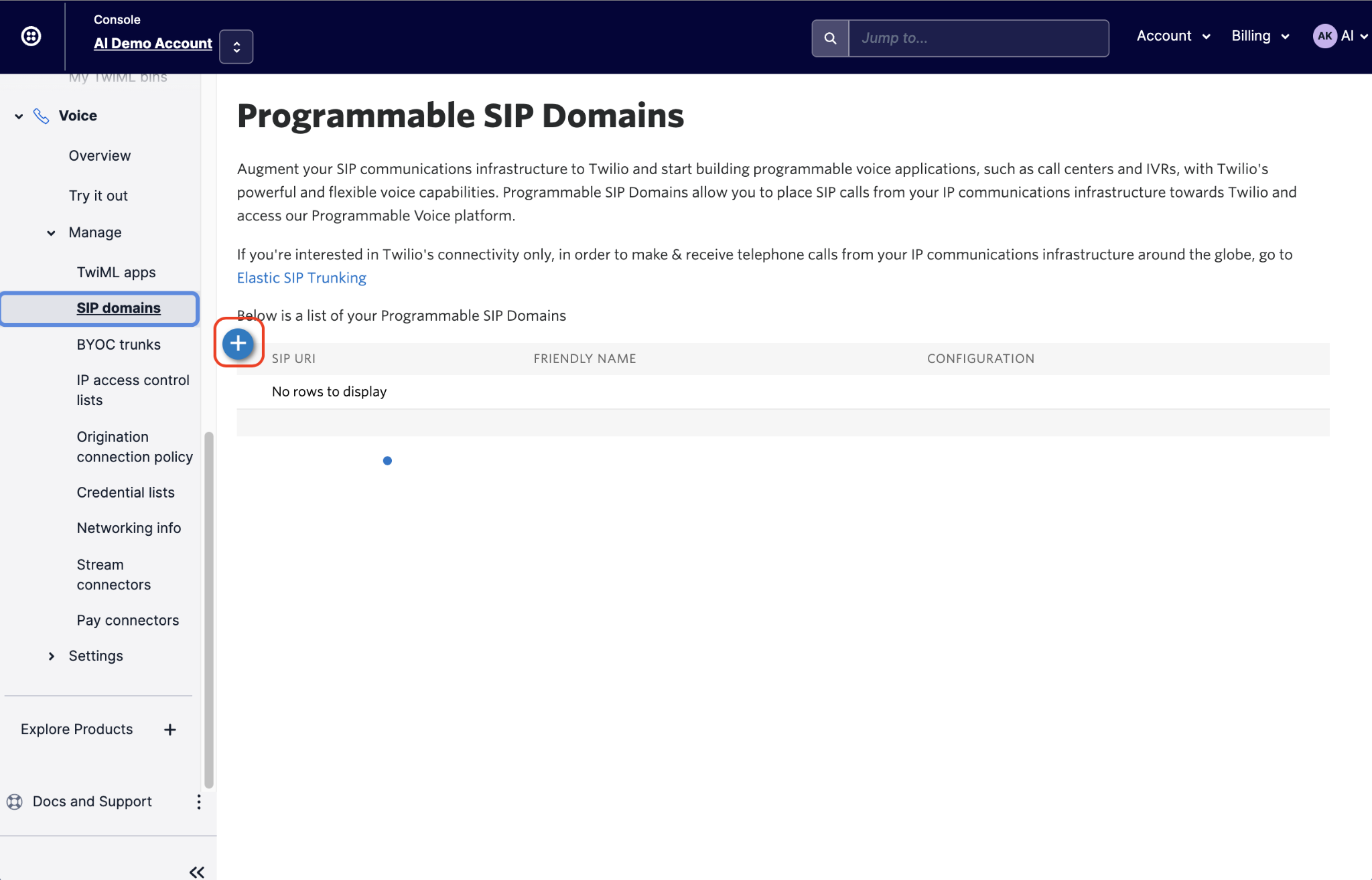

Adding a Programmable SIP Domain

Select the “+”.

Under Properties - type a FRIENDLY NAME - in our case we used “Twilio SIP Blog”

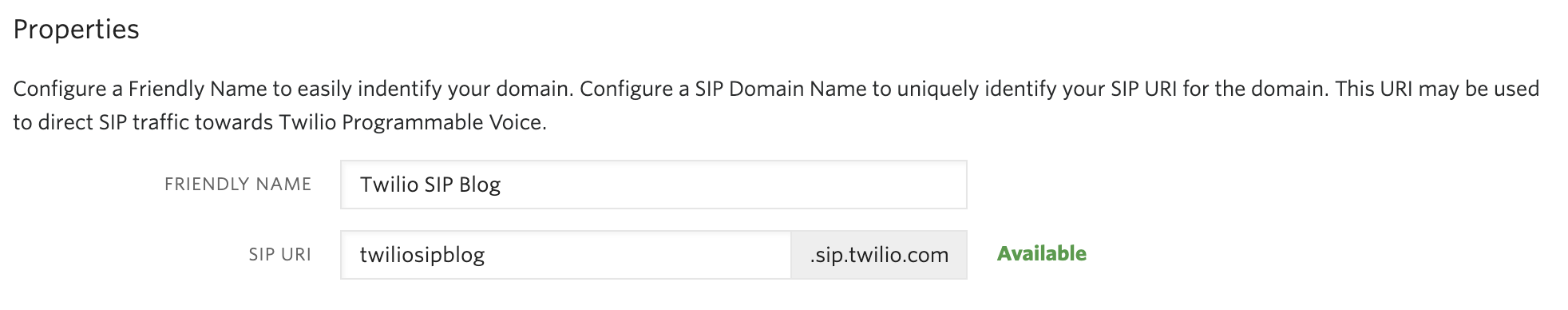

For the SIP URI field - type a unique name for your domain. Check if the domain is available:

Check if a SIP domain is available

For example, "twiliosipblog” was available. This will create the SIP Domain twiliosipblog.sip.twilio.com.

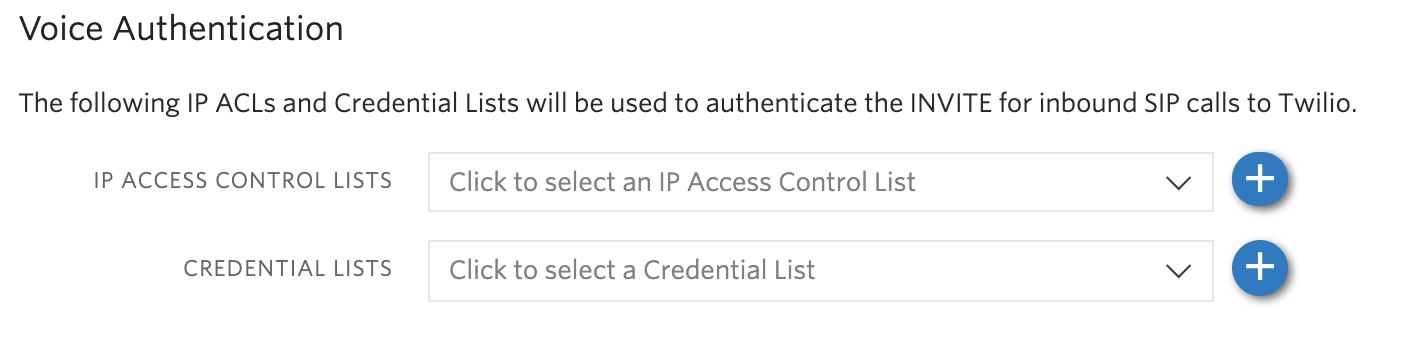

Under Voice Authentication, click on the “+” sign and add an IP ACCESS CONTROL LIST. This is optional, but it is recommended for extra security.

Add an IP Access Control list

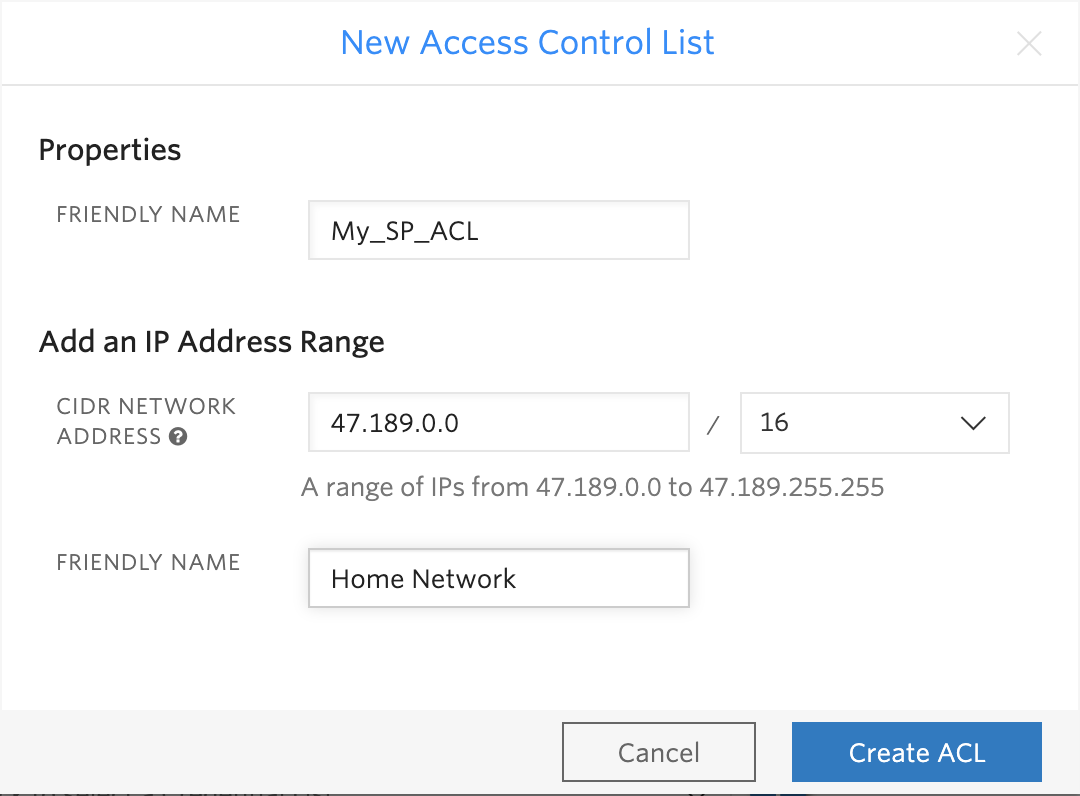

Create a new Access Control List which contains a list of IP Addresses resources that can access your SIP Domain. Requests to your SIP Domain from an IP address that is not in the ACL will be blocked.

Create a new access control list.

The “CIDR NETWORK ADDRESS” is the IP address range of your SIP clients.

Check with your employees which IP addresses their Service Provider assigned to them (e.g.,  For each employee, you will need to add their IP addresses to this Access List. In this example, we chose to open access to a large block of IP addresses (for testing purposes - you can narrow down to unique /32 IP addresses later using the call logs and the IP addresses of the clients).

Click on the “+” for CREDENTIAL LIST. Create a new SIP Credential List resource, which contains the credentials of the employees who are allowed to reach your SIP Domain. Twilio will only allow traffic from employees who have their credentials in the credential list.

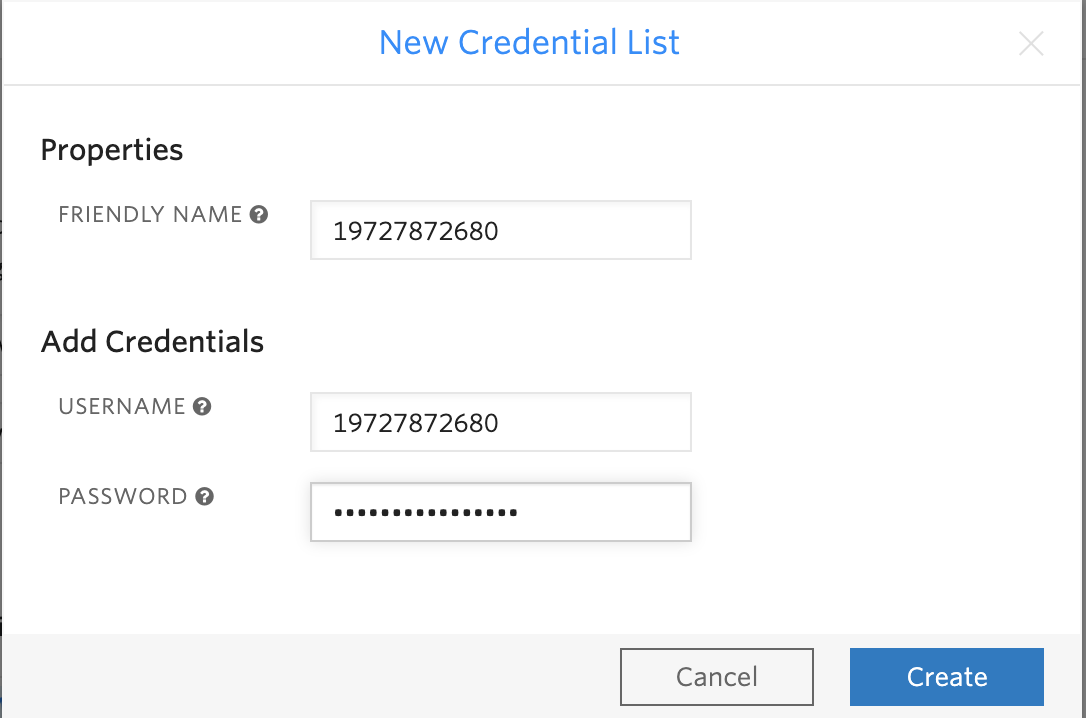

Create a new credential list

In this example, we used the username "19727872680" and password "Twiliosipdemo123".

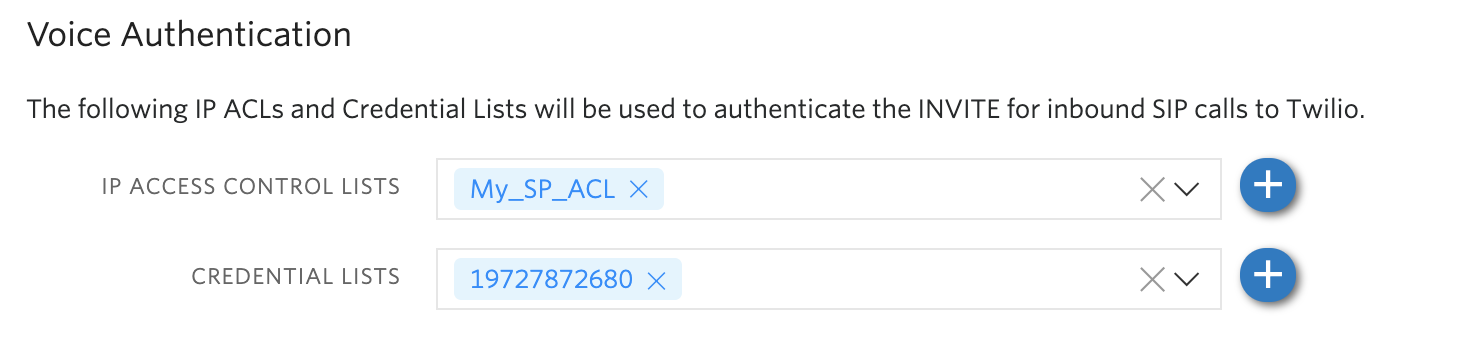

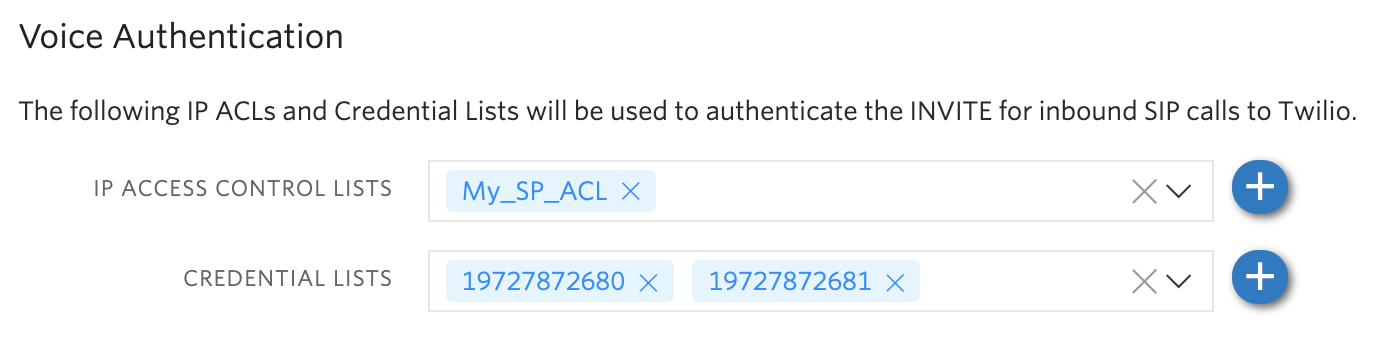

Update Voice Authentication ACLs.

Under Call Control Configuration, select for “A CALL COMES IN” => “TwiML BIN” and then the TwiML Bin we configured for outbound calls “TwilioSIPDemoOutbound”.

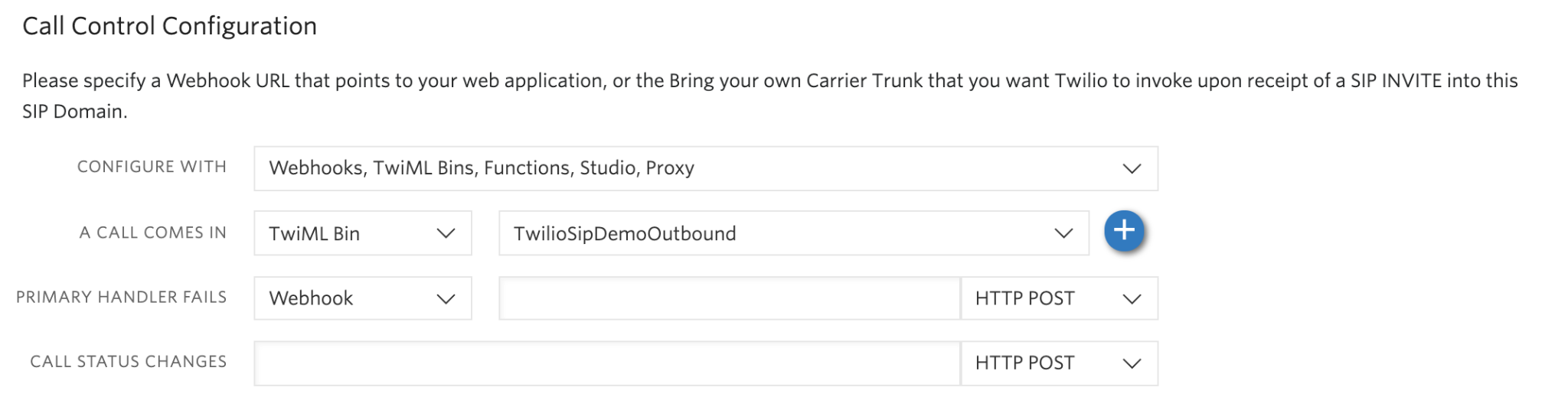

Call control configuration setting a TwiML Bin

For each employee, you will need to create separate usernames and passwords. And add to the CREDENTIAL LISTS. For example:

Adding credential lists

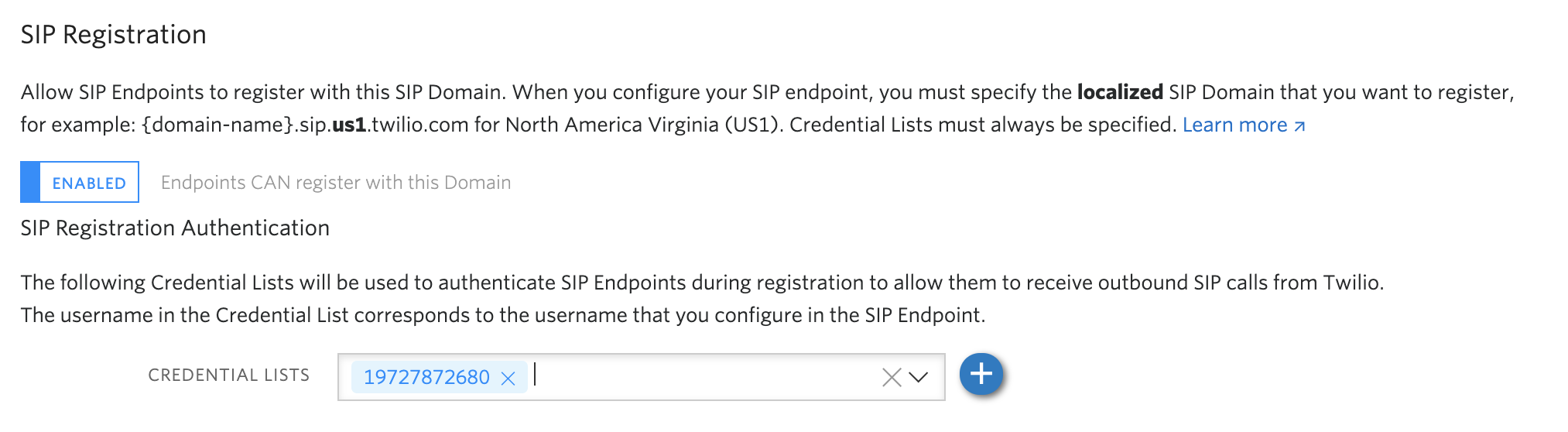

Under SIP REGISTRATION, make sure you turn SIP Registration to ENABLED and add your Credential Lists as well.

Enable SIP registration

Hit the “Save” button.

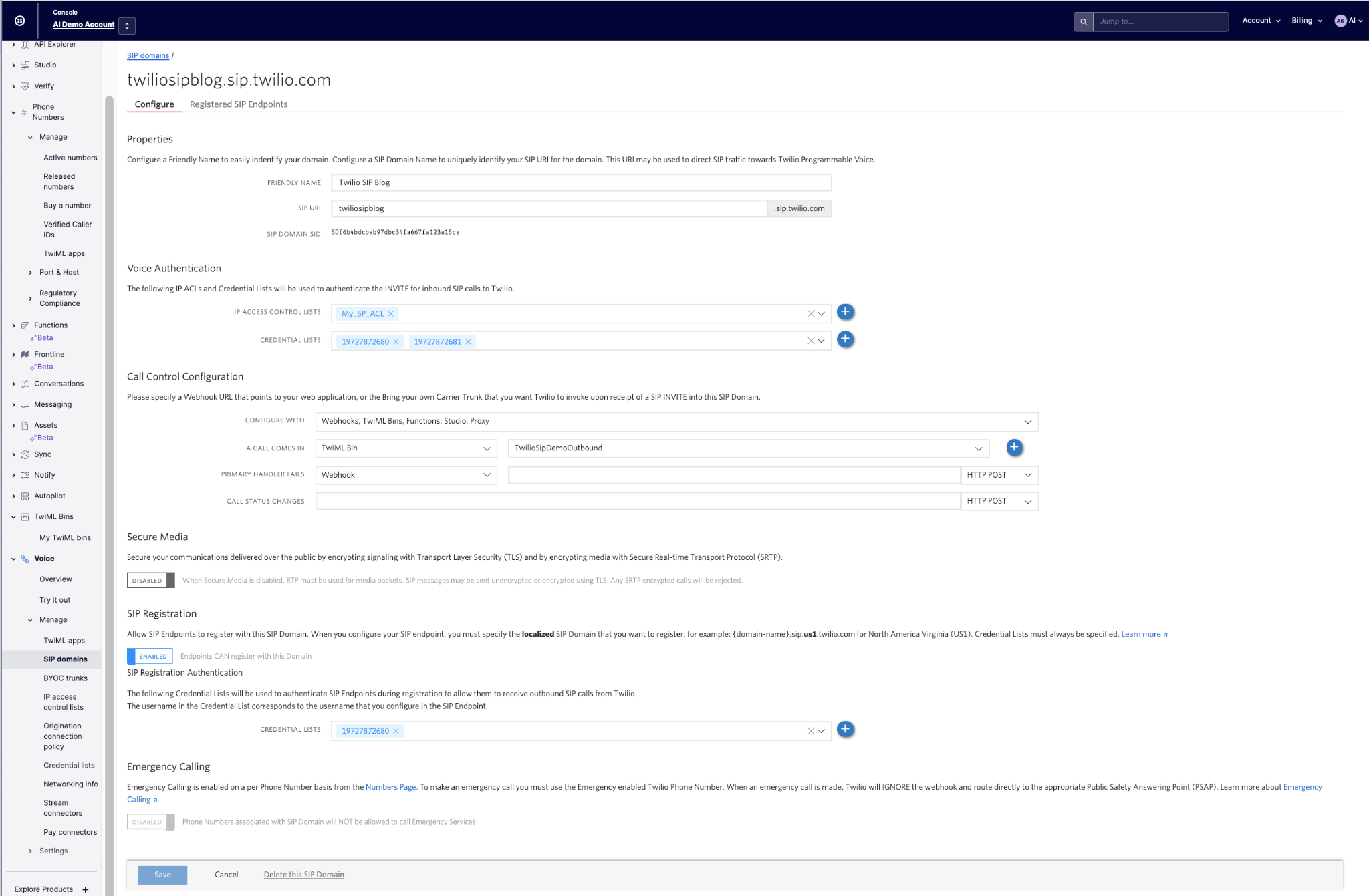

Your new SIP DOMAIN should look like this:

SIP blog post work from home overview settings

Connect a softphone to our Twilio SIP endpoint

Next, we need to configure your SIP endpoint. This can vary depending on which end point you chose. There are many options available, softphones or IP phones. We’ll cover an example of a softphone in this section, and then an IP phone in the next section.

A softphone is an application that runs installed on a computer or and uses the internet to make calls. In this tutorial, we are using Zoiper’s softphone, which you can download here, but this configuration should work with any softphone of your choice.

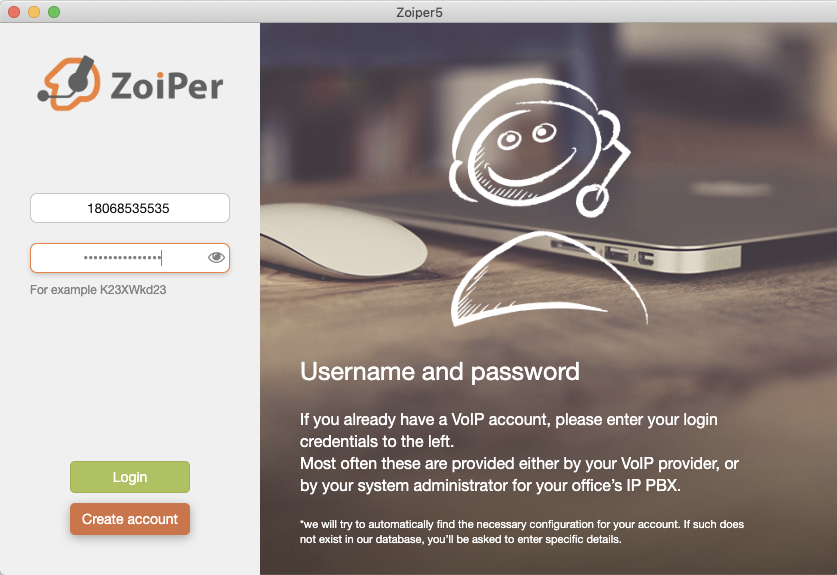

Download the Zoiper’s softphone, install and you will be prompted to add a username and password. This is the same username and password we used in your Twilio Credential Lists (username: 19727872680 / password: Twiliosipdemo123).

Install Zoiper

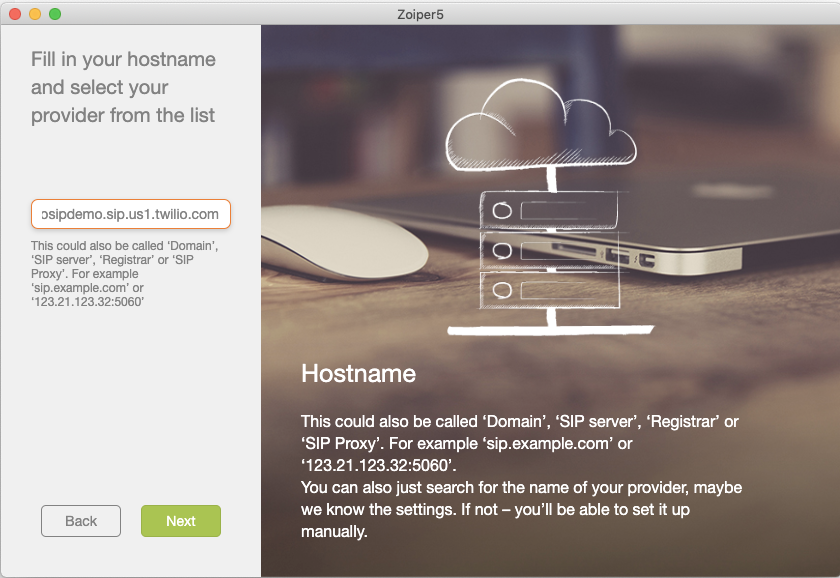

Hit “Login” instead of “Create account”. On the hostname, copy and paste the SIP Domain we just created: twiliosipblog.sip.twilio.com

Fill in the SIP hostname.

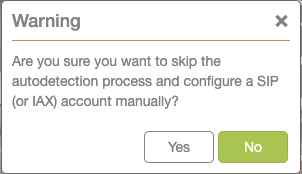

Hit “Next” and “Skip” on the next screen, then “Yes” on the warning.

Click "Yes" button on warning screen.

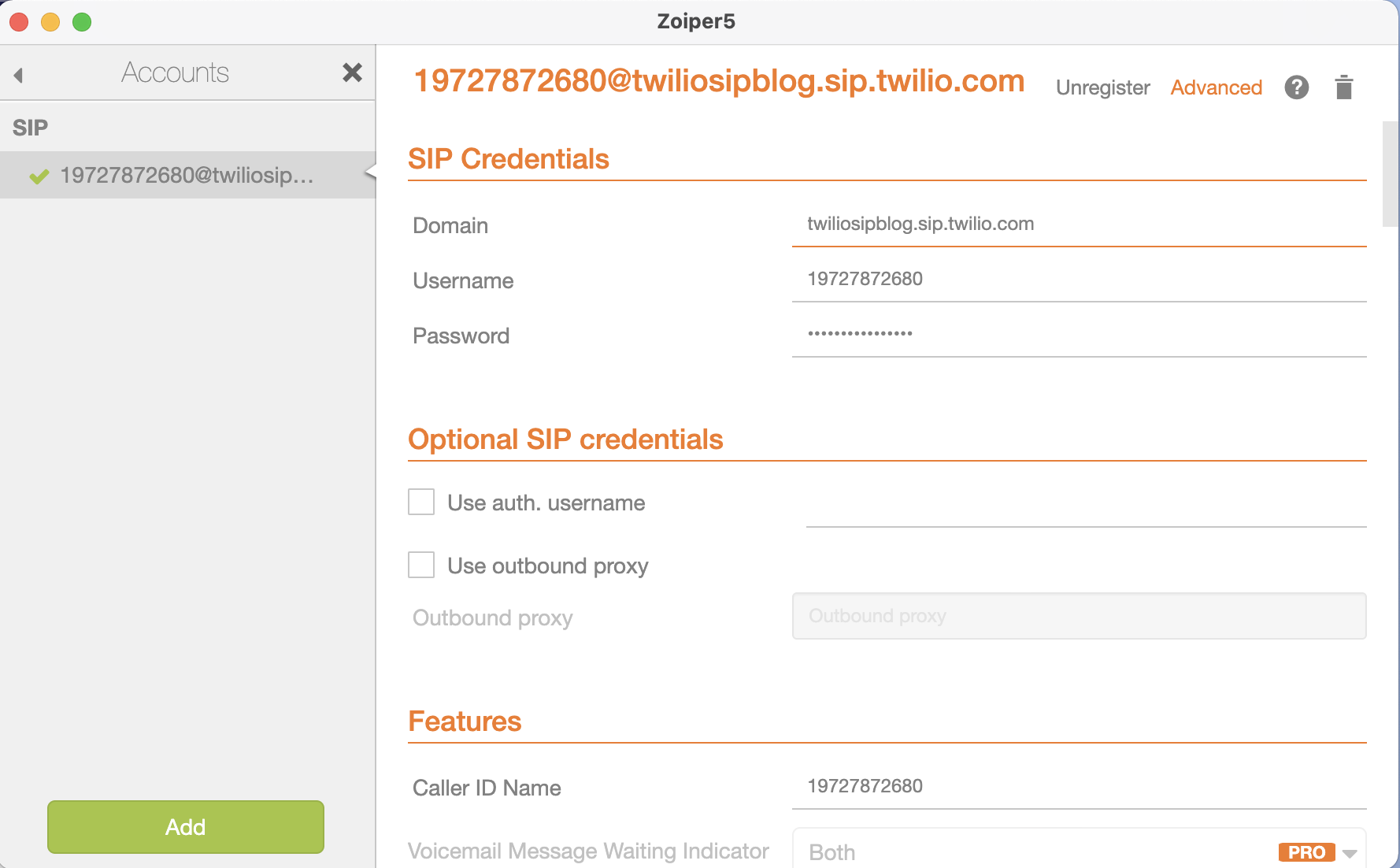

Select “configure” and test your audio and microphone. On the configuration for the SIP account, select “Advanced” to see the “Caller ID Name” field. Enter the Twilio number for that user. In our example it is “19727872680”.

 You should see your client registered correctly like this:

Update SIP credentials in Zoiper.

In case you do not see the green checkmark by your account, follow these troubleshooting steps:

First, check connectivity to the internet, for example:

youruser$ ping  twiliosipblog.sip.twilio.com
PING twiliosipblog.sip.twilio.com ( 56 data bytes
64 bytes from icmp_seq=0 ttl=253 time=36.575 ms
64 bytes from icmp_seq=1 ttl=253 time=43.808 ms
64 bytes from icmp_seq=2 ttl=253 time=37.087 ms
64 bytes from icmp_seq=3 ttl=253 time=38.060 ms
64 bytes from icmp_seq=4 ttl=253 time=43.529 ms
64 bytes from icmp_seq=5 ttl=253 time=37.499 ms
--- twiliosipblog.sip.twilio.com ping statistics ---
6 packets transmitted, 6 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 36.575/39.426/43.808/3.034 ms

Make sure to double check the SIP domain, username and password. You should also reset the application or try a different softphone application such as X-Lite.

For each employee, they will need to install the client and configure their unique username/passwords (e.g. employee 1 is 19727872680, employee 2 is 19727872681, …).

We are ready to try and see if it all works. Try calling your Twilio phone number from the PSTN (your cellular or home number). You should hear your SIP enabled softphone ring. Answer, and verify you have two way audio.

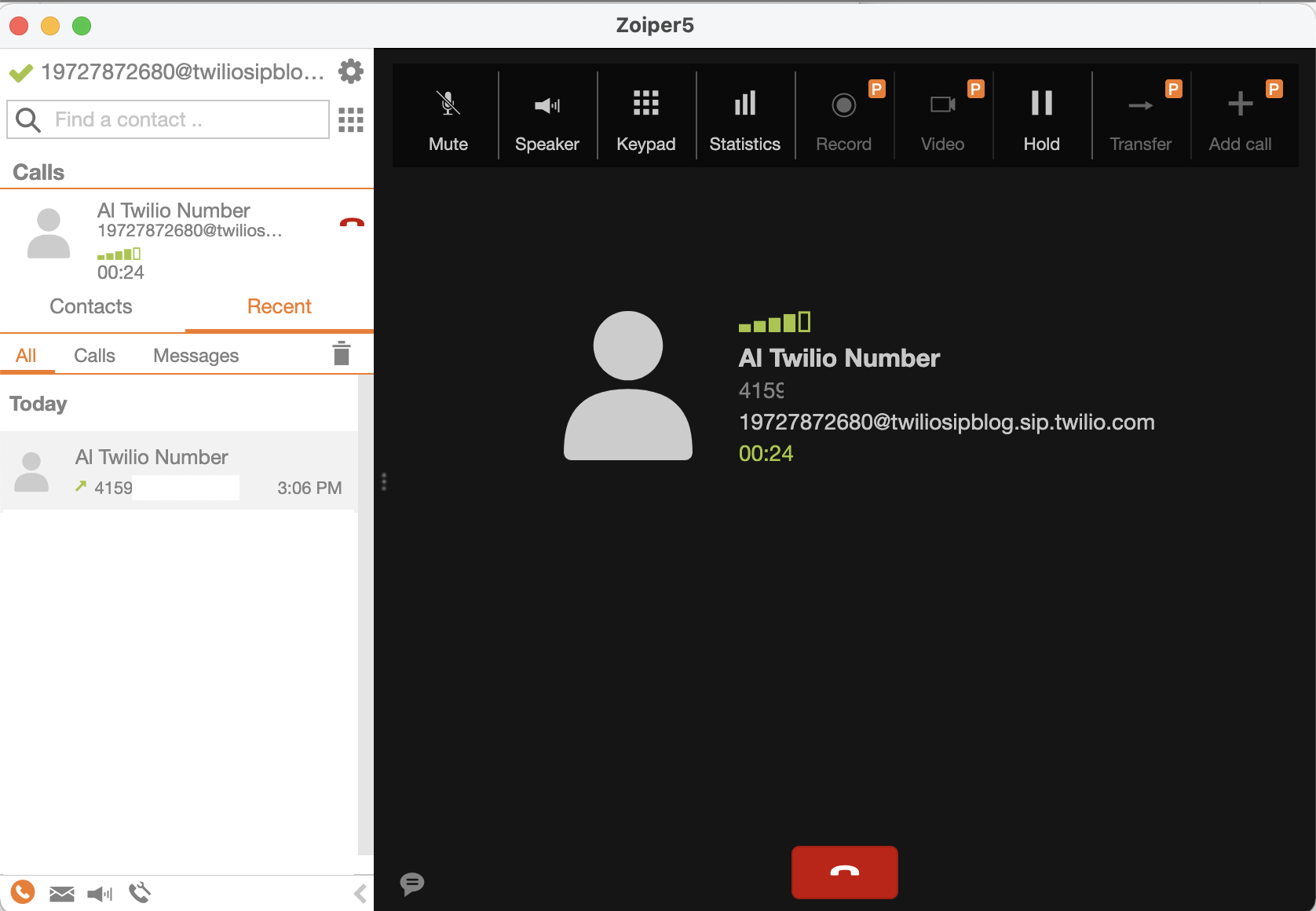

Test that your call in Zoiper works.

In case you do not hear audio on both directions, follow the troubleshooting steps:

  • Check if there is a firewall or NAT (Network Address Translation) device - see if it is configured to permit packets to and from your SIP client:
    • Signaling IP Ports: 5060 (UDP/TCP), 5061 (TLS)
    • Media IP Port Range: 10,000 to 20,000 (UDP)
  • Check if your client is using a codec supported by Twilio - G. 711 μ-law (PCMU) and A-law (PCMA)
  • Try a different softphone

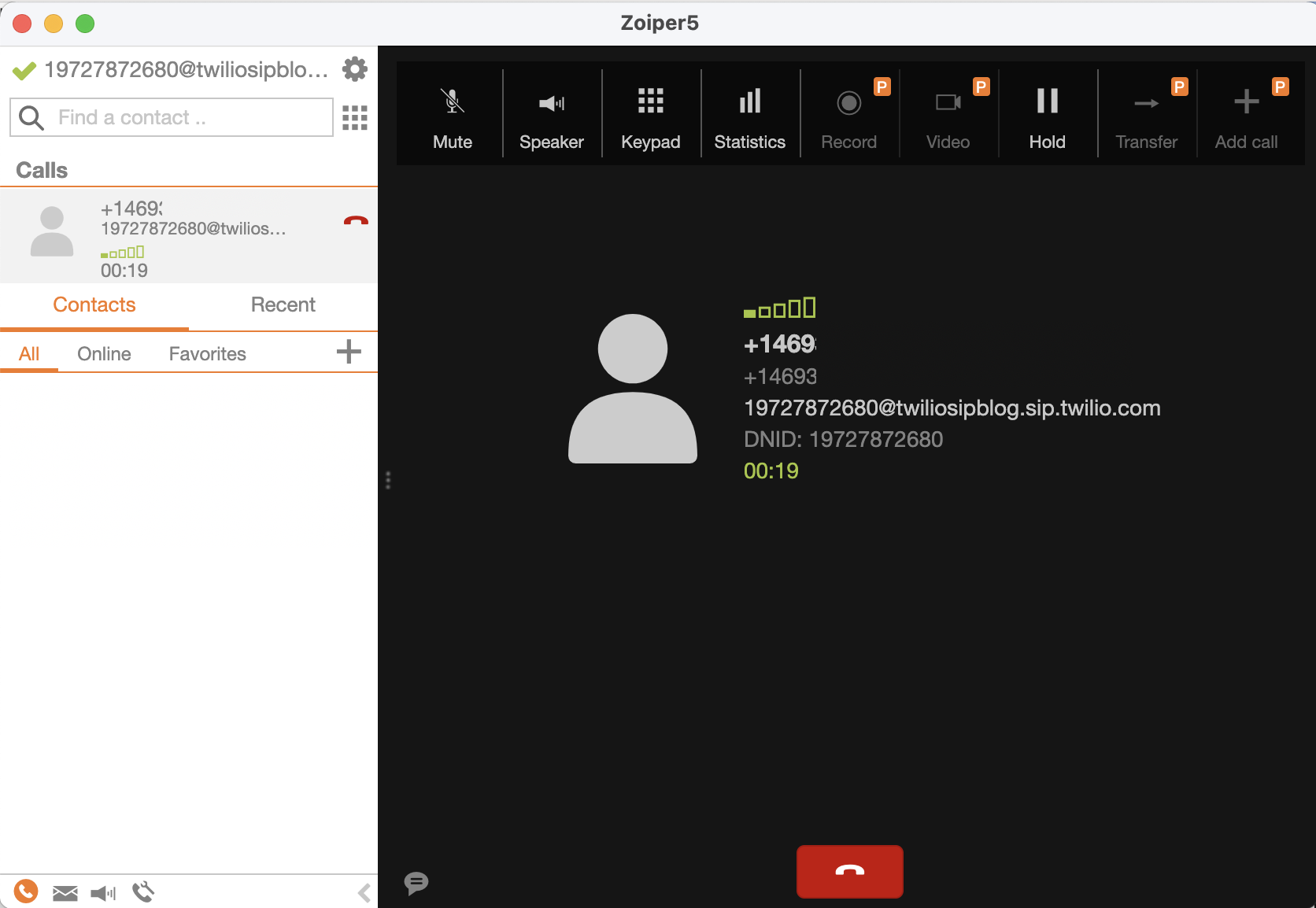

Try calling from your SIP enabled Softphone to the PSTN (your cellular or home number). You should hear the other end ring. Answer, and verify you have two way audio.

Testing a call in Zoiper.

In case the call does not complete, follow the troubleshooting steps:

  • Go to the debugger - check for the error message.
  • If it is a “13214 - Dial: Invalid callerid value” - make sure you have configured the caller id properly on your softphone client. This is a good guide.

Finally, configure your PBX solution to forward the calls to your Twilio phone numbers. Test if a call to the extension defined gets forwarded to the correct Twilio number, and if the right SIP softphone rings, and when answered, audio is good.

We are now all set to work from home!

Connect an IP Phone to our Twilio SIP endpoint

Now that you’ve seen how to connect a softphone to Twilio for both inbound and outbound calls between the softphone and PSTN, let’s dive into how this works with an IP Phone instead of a softphone.

For our example IP Phone, we’re going to use an OBi2162 from OBiTALK, but the setup will be similar with other Obihai IP Phones. As for other IP Phones from different manufacturers  (eg. Cisco, Grandstream, etc), each may provide different Bring-Your-Own-Device (ie. BYOD) web-based capabilities for configuring 3rd party VOIP settings, so please follow the manufacturer instructions for the initial setup of the IP Phone itself.

Now, to get started with our OBi2162 IP Phone, the first step is to connect it to the internet. This particular phone is wireless with a touchscreen, so setting up wifi is as simple as any other wireless device these days.

Next, hop onto a web browser and set up an OBiTALK account (unless you already have one). Once you’ve created an account, navigate to the Configuration Dashboard and select your OBi2162 (or specific IP Phone). This will take you to the Device Configuration, where you can read your OBi No., MAC Address and Serial No., and edit the additional settings (eg. Device Display Name).

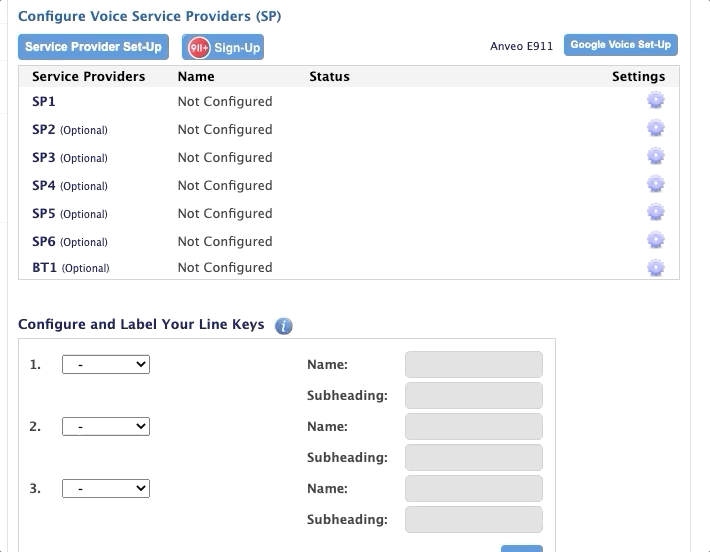

OBiTALK overview

From here, you can begin to configure the IP Phone with Twilio by selecting  “Service Provider Set-up” -> OBiTALK Compatible Service Providers -> Twilio. Notice the settings provided to you include a Domain, Username, and Password (there are other settings for more advanced users, but we’ll stick to the basics here)

The Domain will be the same as your Twilio SIP Domain prefix (ie. your SIP URI prefix as configured in the Twilio console), and the Username and Password will be the same as your Credential List for your Twilio SIP Domain.

The Twilio setup from earlier in this post shows you how to configure a SIP Domain and setup TwiML Bins for both inbound and outbound calling, so you can simply pause here, repeat those steps with an available domain name of your choosing, and then finish this Twilio setup from within ObiTALK.

Adding Twilio as a service provider in ObiTALK

Once you’ve finished the setup within OBiTALK, hit the Submit button (make sure your Obihai IP Phone is connected to the internet during this step). The setup will then asynchronously update your IP Phone over the internet with the Twilio settings, and Register the Twilio SIP Domain with OBiTALK. While this is occurring, you should notice your IP Phone restarting and applying the settings, and when finished, your IP Phone should now be set up!

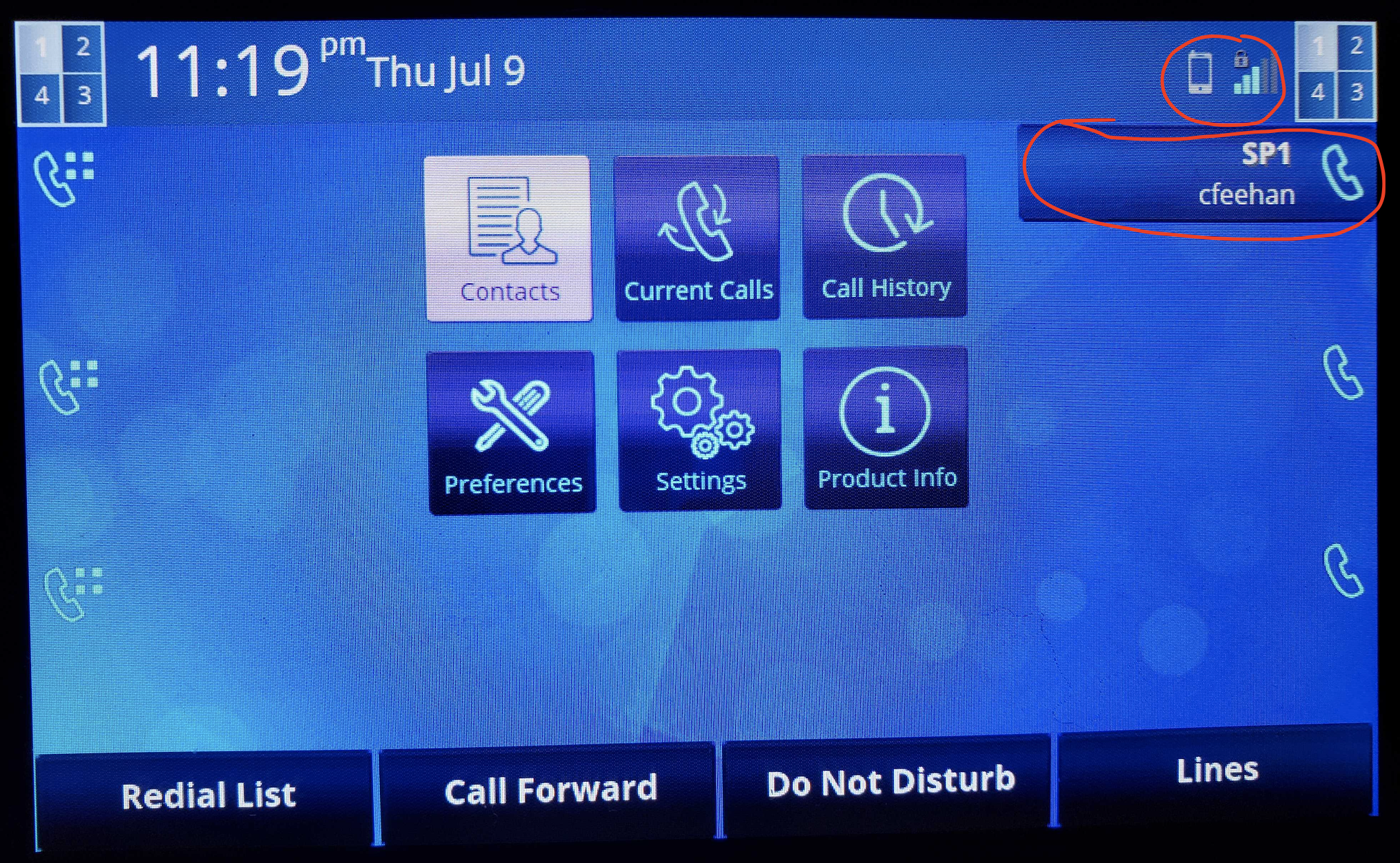

For the OBi2162 specifically, you should see something like the below, where the phone shows it's connected to the internet, and the phone line (eg. SP1) has your username displayed.

OBi2162 connected and authenticated with Twilio

In OBiTALK, your Twilio Status should show as “Registered”.

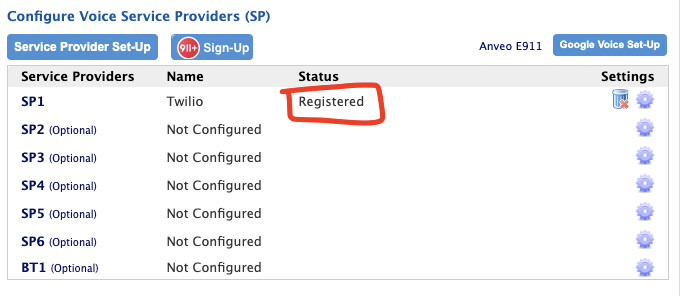

Registered status with Twilio and ObiTALK

That's it! Now you should be able to place calls from your Obihai IP Phone to the PSTN and also from the PSTN to your IP Phone.

Note: If you run into problems with Registration, you may need to restart your device, reconfigure the internet connection, or double check your Twilio settings from within the Twilio Console or within OBiTALK. If you’re having trouble with inbound/outbound calls, make sure your TwiML Bins for both inbound and outbound are setup properly per the instructions in this blog.

Example of Obihai’s phones:





Follow this guide to configure the Obihai with Twilio:


Guides for other IP Phones are here:


Use Twilio Programmable Voice to enable working from home

In this blog post, you have learned how to use Twilio Programmable Voice to create a simple solution to allow employees to work from home.

Possible alternatives

  • Consider using Twilio Functions instead of TwiML bins if you have a large number of extensions or if you desire to use a custom SIP user name to detect the "From" parameter and do logic off of it.
  • Use X-Lite/Bria as a softphone instead of Zoiper.

Additional resources

The following reference resources will provide you with in-depth information on some of the topics mentioned in this post:
