How to Build An AI Phone Agent With Twilio Conversation Relay in PHP

Time to read:

July 15, 2026
Written by
Matthew Setter
Twilion

How To Build An AI Phone Agent With Twilio Conversation Relay - PHP

Building a voice AI agent from scratch means wiring together speech recognition, text-to-speech, turn detection, and real-time audio streaming, all at low enough latency to feel natural. Twilio Conversation Relay handles the entire voice pipeline for you, so you can focus on the AI logic.

In this tutorial, you will build a fully functional AI phone agent in PHP using Mezzio and Mezzio-Swoole, the OpenAI API as the language model, and Deepgram Flux for state-of-the-art speech recognition.

Prerequisites

To follow this tutorial, you will need:

Build the app

Step 1: How Conversation Relay works

Before writing any code, it helps to understand how Conversation Relay fits into the call flow. When someone dials your Twilio number, Twilio requests TwiML from a webhook you configure. Your server returns a <ConversationRelay> verb inside a <Connect> block, which tells Twilio to open a WebSocket connection to your server and hand the call off to Conversation Relay.

From that point on, Conversation Relay acts as the voice pipeline. It transcribes everything the caller says using speech-to-text (STT) and sends the transcript to your WebSocket server as a JSON message. Your server calls an AI model with the transcript, streams the response back over the WebSocket, and Conversation Relay synthesises each token into speech using text-to-speech (TTS), playing it to the caller in real time.

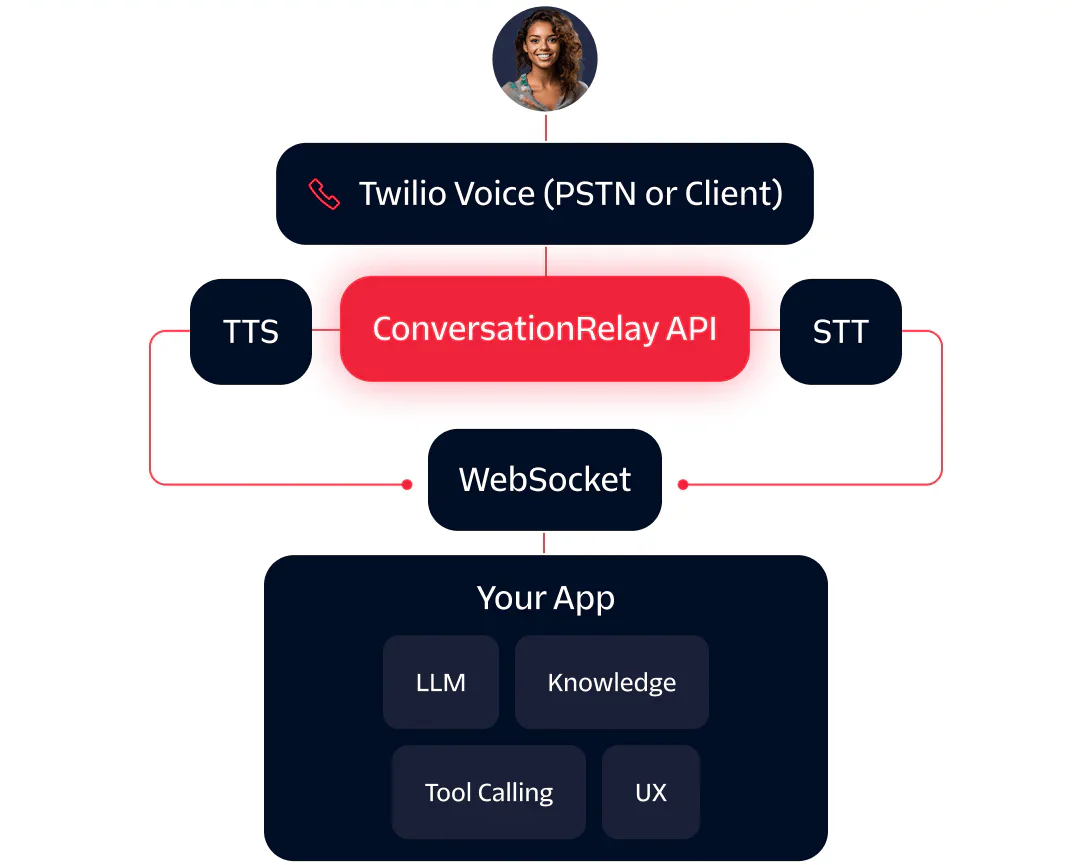

The flow looks like this:

Diagram showing integration of Twilio Voice with ConversationRelay API, TTS, STT, WebSocket, and various app components.

Conversation Relay's median response latency is under 0.5 seconds, so conversations feel natural rather than robotic.

For this tutorial, you will build Hoot, an AI phone support agent for Owl Air, a fictional airline. Hoot can answer questions about flight status, baggage policy, loyalty points, and booking changes.

Step 2: Setting up your project

Start by creating a new Mezzio project and changing into it.

composer create-project mezzio/mezzio-skeleton owl-air-phone-agent

You'll be prompted with a series of questions. Answer them as follows:

What type of installation would you like?
  [1] Minimal (no default middleware, templates, or assets; configuration only)
  [2] Flat (flat source code structure; default selection)
  [3] Modular (modular source code structure; recommended)
  Make your selection (2): 3
  Which container do you want to use for dependency injection?
  [1] laminas-servicemanager (supported by laminas)
  [2] Symfony DI Container
  [3] PHP-DI
  [4] chubbyphp-container
  Make your selection or type a composer package name and version (laminas-servicemanager (supported by laminas)): 1
  Which router do you want to use?
  [1] FastRoute (supported by laminas)
  [2] laminas-router (supported by laminas)
  Make your selection or type a composer package name and version (FastRoute (supported by laminas)): 1
  Which template engine do you want to use?
  [1] Plates (supported by laminas)
  [2] Twig (supported by laminas)
  [3] laminas-view installs laminas-servicemanager (supported by laminas)
  [n] None of the above
  Make your selection or type a composer package name and version (n): n
  Which error handler do you want to use during development?
  [1] Whoops (supported by laminas)
  [n] None of the above
  Make your selection or type a composer package name and version (Whoops (supported by laminas)): 1

Then, change into the new project directory.

cd owl-air-phone-agent

Then, in composer.json, change the minimum version of laminas-servicemanager to "^4.5". With that done, you next need to install the required dependencies; there are only a few:

To install them, run the following command:

composer require settermjd/mezzio-swoole-websocket monolog/monolog openai-php/client twilio/sdk vlucas/phpdotenv

When prompted with the following question, answer "y".

Do you trust "php-http/discovery" to execute code and wish to enable it now? (writes "allow-plugins" to composer.json) [y,n,d,?]

When the dependencies are installed, open config/config.php add, before the reference to App\ConfigProvider::class, add in a reference to \Settermjd\MezzioSwoole\WebSocket\ConfigProvider::class, as you can see below:

class_exists(\Mezzio\Swoole\ConfigProvider::class)
    ? \Mezzio\Swoole\ConfigProvider::class
    : function (): array {
        return [];
    },
\Settermjd\MezzioSwoole\WebSocket\ConfigProvider::class,
App\ConfigProvider::class,

Step 3: Writing a voice-optimized system prompt

The system prompt is one of the most important parts of a phone agent. Text-to-speech synthesizers read your agent's responses verbatim, so responses that look fine on screen can sound unnatural when spoken aloud. Markdown formatting, bullet points, emoji, and symbols like $ or % all produce awkward output.

Create a new file named prompt.global.php in config/autoload and add the following to it:

<?php
declare(strict_types=1);
return [
    'prompt' => <<<'PROMPT'
You are Hoot, the friendly AI phone support agent for Owl Air.
You help callers with:
- Flight status (use the lookup_flight_status tool to check real-time status by flight number)
- Baggage policy (one carry-on and one personal item included; checked bags are thirty dollars each)
- Owl Air loyalty points (earn ten points per dollar spent; redeem at one cent per point)
- Booking changes (changes are free up to twenty-four hours before departure; same-day changes cost fifty dollars)
- Check-in (opens twenty-four hours before departure online or at the airport kiosk)
Speak naturally, as if talking on the phone. Follow these rules:
- Use plain sentences only. No bullet points, no markdown, no emojis
- Spell out all numbers ("thirty dollars", not "$30")
- Keep each response to two or three sentences maximum
- If you cannot help with something, say so briefly and offer to connect them with an agent
- Never make up information not listed above
PROMPT,
];

Spelling out numbers in the prompt itself (thirty dollars instead of $30) can encourage the model to use the same format in its responses. Capping replies at two or three sentences keeps the conversation from sounding like a wall of text being read aloud. And, explicitly forbidding Markdown prevents the model from adding asterisks, headers, or lists that would be spoken as literal characters.

Step 4: Building the TwiML endpoint

Now, it's time to build the endpoint that returns the <ConversationRelay> verb inside a <Connect> block. The official Twilio PHP Helper Library includes TwiML helpers that let you build the response programmatically instead of writing raw XML strings. You'll use that to save time generating the required TwiML in a new endpoint of the application: "/twiml".

To create it, in the terminal, run the following command:

composer mezzio mezzio:handler:create -- \
    --no-register \
    "App\Handler\TwimlHandler"
If you're using Microsoft Windows, replace the backslashes with carets (^) or remove them and have the command be all on one line.

This generates two files: src/App/src/Handler/TwimlHandler.php and src/App/src/Handler/TwimlHandlerFactory.php. Open src/App/src/Handler/TwimlHandler.php and update it to match the following

<?php

declare(strict_types=1);

namespace App\Handler;

use Laminas\Diactoros\Response;
use Psr\Http\Message\ResponseInterface;
use Psr\Http\Message\ServerRequestInterface;
use Psr\Http\Server\RequestHandlerInterface;
use Twilio\TwiML\VoiceResponse;

final class TwimlHandler implements RequestHandlerInterface
{
    public function __construct(private readonly string $domain) { }

    public function handle(ServerRequestInterface $request): ResponseInterface
    {
        $voiceResponse = new VoiceResponse();
        $connect       = $voiceResponse->connect();
        $connect->conversationRelay(
            [
                'url'                         => "wss://{$this->domain}",
                'welcomeGreeting'             => <<<EOF
Thanks for calling Owl Air! I'm Hoot.
I can help with flight status, baggage policy, loyalty points, or booking changes.
Which of those can I help you with?
EOF,
                'ttsProvider'                 => 'ElevenLabs',
                'transcriptionProvider'       => 'Deepgram',
                'speechModel'                 => 'nova-3-general',
                'eotThreshold'                => '0.8',
                'ignoreBackchannel'           => 'true',
                'hints'                       => 'Owl Air, loyalty points, baggage, carry-on, check-in, boarding pass',
                'interruptible'               => 'any',
                'interruptSensitivity'        => 'medium',
                'elevenlabsTextNormalization' => 'auto',
            ]
        );

        $response = new Response();
        $response->getBody()->write((string) $voiceResponse);

        return $response->withHeader('Content-Type', 'text/xml');
    }
}

When the "/twiml" endpoint is requested, the handle() function, above, will be called.

Now, open src/App/src/Handler/TwimlHandlerFactory.php and update it to match the following:

<?php

declare(strict_types=1);

namespace App\Handler;

use Psr\Container\ContainerInterface;
use RuntimeException;
use function getenv;

final class TwimlHandlerFactory
{
    public function __invoke(ContainerInterface $container): TwimlHandler
    {
        $domain = $_ENV['DOMAIN'] ?? getenv('DOMAIN');
        if ($domain === '') {
            throw new RuntimeException('DOMAIN environment variable is not set.');
        }

        return new TwimlHandler($domain);
    }
}

This class instantiates TwimlHandler.php when it's requested, which happens when "/twiml" is requested. As you can see, it retrieves the DOMAIN environment variable and instantiates and returns a TwimlHandler object with it.

Finally, register the "/twiml" route in the application's routing table, by updating the static function in config/routes.php to match the following:

return static function (Application $app, MiddlewareFactory $factory, ContainerInterface $container): void {
    $app->post('/twiml', App\Handler\TwimlHandler::class, 'twiml');
    $app->get('/api/ping', PingHandler::class, 'api.ping');
};

Step 5: Configuring Conversation Relay attributes

The <ConversationRelay> verb accepts a rich set of attributes for tuning STT (Speech To Text) and TTS (Text To Speech) behaviour. The configuration above uses several that are worth understanding in detail.

ttsProvider="ElevenLabs" and transcriptionProvider="Deepgram" select the voice and speech recognition providers. ElevenLabs is the default TTS provider as of the Conversation Relay GA release, and it produces the most natural-sounding voices. Deepgram is the default STT provider and supports Deepgram Flux, the latest speech model.

speechModel="nova-3-general" enables Deepgram Flux, which combines transcription and end-of-turn detection in a single model. Compared to earlier models, Flux delivers 200 to 600 milliseconds less latency per response turn and approximately thirty percent fewer false interruptions. This means Hoot is less likely to cut a caller off mid-sentence or wait awkwardly after they have finished speaking.

eotThreshold="0.8" controls how confident Deepgram Flux must be that a speaker has finished before finalising the transcript. The value ranges from 0.5 (more aggressive, fires sooner) to 0.9 (more conservative, waits longer). A value of 0.8 is a good starting point for most use cases.

ignoreBackchannel="true" filters out conversational filler words like "yeah", "uh huh", and "okay" that callers say while listening. Without this setting, those sounds would trigger your WebSocket handler and send unnecessary requests to the model mid-response.

hints is a comma-separated list of words and phrases that Deepgram should give extra weight to during transcription. Business-specific terms like product names, place names, and technical vocabulary often trip up general speech recognition models. Adding them as hints improves accuracy for your specific use case.

interruptible="any" and interruptSensitivity="medium" control how the agent responds when a caller speaks while it is talking. Setting interruptible to any means both speech and DTMF keypresses can interrupt the agent. The medium sensitivity setting reduces false interruptions in noisier environments while still responding quickly to intentional interruptions.

elevenlabsTextNormalization="auto" tells ElevenLabs to automatically normalise numbers and abbreviations in the text before synthesising speech. This is useful as a safety net if your LLM occasionally outputs a digit or symbol despite your instructions.

The url attribute points to the WebSocket endpoint on your server. It must use wss:// (the secure WebSocket protocol), not ws://. The welcomeGreeting is played to the caller immediately after Conversation Relay connects, before your WebSocket handler sends any response. Listing Hoot's four topic areas in the greeting orients callers right away and reduces the chance they ask for something outside the agent's scope.

Step 6: Build the WebSocket handler

Create a new directory named src/App/src/WebSocket/Table. Then, in that directory, create two files, named ConnectionTable.php and MessageTable.php.

In ConnectionTable.php, paste the following code:

<?php

declare(strict_types=1);

namespace App\WebSocket\Table;

use Swoole\Table;

final class ConnectionTable extends Table
{
    public function __construct()
    {
        parent::__construct(1024);
        $this->column('callSid', self::TYPE_STRING, 34);
        $this->create();
    }
}

Then, in MessageTable.php, paste the following code:

<?php

declare(strict_types=1);

namespace App\WebSocket\Table;

use Swoole\Table;

final class MessageTable extends Table
{
    public function __construct()
    {
        parent::__construct(1024);
        $this->column('role', self::TYPE_STRING, 10);
        $this->column('content', self::TYPE_STRING, 10000);
        $this->create();
    }
}

These two classes are implementations of Swoole\Table, required for sharing structured data between the message workers and having data outlive the websocket request cycle. What's more, they are automatically synchronized across all workers. ConnectionTable stores the callSid, so that all input from a given user can be collected together. MessageTable stores the input from a given user.

Next, in src/App/src/WebSocket/Listener/, create a new file named ConversationRelayMessageListener.php. In that new file, paste the code below.

<?php

declare(strict_types=1);

namespace App\WebSocket\Listener;

use App\Service\OpenAiService;
use App\WebSocket\Table\ConnectionTable;
use App\WebSocket\Table\MessageTable;
use Psr\Log\LoggerInterface;
use Settermjd\MezzioSwoole\WebSocket\Event\WebSocketMessageEvent;
use Swoole\WebSocket\Server as SwooleWebSocketServer;

use function json_encode;
use function sprintf;

final class ConversationRelayMessageListener
{
    public function __construct(
        private readonly OpenAiService $openAi,
        private ConnectionTable $connectionTable,
        private MessageTable $messageTable,
        private readonly LoggerInterface $logger,
    ) {
    }

    private function writeLogMessage(string $callSid, string $message): void
    {
        $this->logger->info($callSid, ['message' => $message]);
    }

    public function __invoke(WebSocketMessageEvent $event): void
    {
        $frame = $event->getFrame();
        $fd    = $frame->fd;
        $data  = json_decode($frame->data, true);
        if (! is_array($data) || $data === []) {
            return;
        }

        $msgType = $data['type'] ?? '';
        switch ($msgType) {
            case 'setup':
                $callSid = $data['callSid'] ?? null;
                $this->connectionTable->set((string) $fd, ['callSid' => $callSid]);
                $this->writeLogMessage(
                    $callSid,
                    sprintf("[%s] Call connected\n", $callSid)
                );
                break;
            case 'prompt':
                $last = $data['last'] ?? '';
                if ($last === '') {
                    break;
                }
                $userText = $data['voicePrompt'] ?? '';
                $this->writeLogMessage(
                    $this->connectionTable->get((string) $fd, 'callSid'),
                    sprintf(
                        "[%s] Caller: {$userText}\n",
                        $this->connectionTable->get((string) $fd, 'callSid'),
                    ),
                );
                $this->messageTable->set((string) $fd, [
                    'role' => 'user',
                    'content' => $userText
                ]);
                $responseText = $this->streamResponse(
                    $event->getServer(),
                    $fd,
                    $this->connectionTable->get((string) $fd, 'callSid'),
                    iterator_to_array($this->messageTable),
                );
                $this->writeLogMessage(
                    $this->connectionTable->get((string) $fd, 'callSid'),
                    sprintf(
                        "[%s] Hoot: {$responseText}\n",
                        $this->connectionTable->get((string) $fd, 'callSid'),
                    )
                );
                $this->messageTable->set((string) $fd, [
                    'role' => 'assistant',
                    'content' => $responseText
                ]);
                break;
            case 'interrupt':
                $this->writeLogMessage(
                    $this->connectionTable->get((string) $fd, 'callSid'),
                    sprintf(
                        "[%s] Interrupted after: '%s'\n",
                        $this->connectionTable->get((string) $fd, 'callSid'),
                        $data['utteranceUntilInterrupt'] ?? ''
                    )
                );
                if ($this->messageTable->count() !== 0) {
                    $prev = $this->messageTable->offsetGet($this->messageTable->count() - 1);
                    if ($prev !== null && $prev['role'] === 'assistant') {
                        $this->messageTable->offsetUnset($this->messageTable->count());
                    }
                }
                break;
            case 'error':
                $this->writeLogMessage(
                    $this->connectionTable->get((string) $fd, 'callSid'),
                    sprintf(
                        "[%s] Conversation Relay error: %s\n",
                        $this->connectionTable->get((string) $fd, 'callSid'),
                        $data['description'] ?? ''
                    )
                );
                break;
        }
    }

    private function streamResponse(
        SwooleWebSocketServer $server,
        int $fd,
        ?string $callSid,
        array $messages = []
    ): string {
        $fullResponse = '';
        try {
            $fullResponse = $this->openAi->streamResponse(
                $messages,
                static function (string $token) use ($server, $fd): void {
                    $server->push(
                        $fd,
                        json_encode(
                            [
                                'type'  => 'text',
                                'token' => $token,
                                'last'  => false,
                            ]
                        )
                    );
                },
            );
        } finally {
            $server->push(
                $fd,
                json_encode(
                    [
                        'type'  => 'text',
                        'token' => '',
                        'last'  => true,
                    ]
                )
            );
        }
        return $fullResponse;
    }
}

Swoole, the WebSocket technology that the application is built on, listens for a series of events which callbacks can be registered for. The code above responds to the onMessage event. This event is called when the application receives a data frame from Twilio.

The setup message arrives first, immediately after Conversation Relay opens the WebSocket connection. It contains the callSid for the call and any custom parameters you passed via <Parameter> elements in your TwiML. This is stored in $connectionTable, which will be discussed shortly, so that the caller's transcribed speech can be fully collected, as it is received by the websocket workers. The call connection is logged helping with debug later, should it be required.

The prompt message carries the caller's transcribed speech in $data["voicePrompt"]. As it's received, it's stored in $messageTable, which will be discussed shortly. The last field indicates whether this is the final transcript for a turn. When partialPrompts is disabled (the default), you will only receive prompt messages with last: true, so the $data['last'] check ensures you only send requests to the model using the OpenAiService object $openAi (which will be created later) once the caller has finished speaking.

Theinterrupt message fires when the caller speaks while Hoot is talking. The utteranceUntilInterrupt field tells you how much of Hoot's response was played before the interruption. Because that response was cut short, it would be misleading to keep it in the conversation history as a complete assistant turn. The handler removes the last assistant message from the messages list, so the next request starts from a clean state.

The error message carries a numeric error code and a description. Common errors include invalid provider configurations and WebSocket timeout events. Logging them makes debugging significantly easier.

Now, in src/App/src/WebSocket/Listener, you need to create a new file name ConversationRelayMessageListenerFactory.php. In the new file, paste the code below:

<?php

declare(strict_types=1);

namespace App\WebSocket\Listener;

use App\Service\OpenAiService;
use App\WebSocket\Listener\ConversationRelayMessageListener;
use App\WebSocket\Table\ConnectionTable;
use App\WebSocket\Table\MessageTable;
use Psr\Container\ContainerInterface;
use Psr\Log\LoggerInterface;

use function assert;

final class ConversationRelayMessageListenerFactory
{
    public function __invoke(ContainerInterface $container): ConversationRelayMessageListener
    {
        $openAiService = $container->get(OpenAiService::class);
        assert($openAiService instanceof OpenAiService);

        $messageTable = $container->get(MessageTable::class);
        assert($messageTable instanceof MessageTable);

        $connectionTable = $container->get(ConnectionTable::class);
        assert($connectionTable instanceof ConnectionTable);

        $logger = $container->get(LoggerInterface::class);
        assert($logger instanceof LoggerInterface);

        return new ConversationRelayMessageListener(
            openAi: $openAiService,
            connectionTable: $connectionTable,
            messageTable: $messageTable,
            logger: $logger,
        );
    }
}

In the code above, it retrieves all of the required services from the application's DI container, which you'll create shortly, and uses them to initialise and return a new ConversationRelayMessageListener object.

Next up, in src/App/src/WebSocket/Listener, create a new file named ConnectionClosedListener.php, and in that file paste the code below.

<?php

declare(strict_types=1);

namespace App\WebSocket\Listener;

use App\WebSocket\Table\ConnectionTable;
use App\WebSocket\Table\MessageTable;
use Settermjd\MezzioSwoole\WebSocket\Event\WebSocketCloseEvent;

final class ConnectionClosedListener
{
    public function __construct(
        private MessageTable $messageTable,
        private ConnectionTable $connectionTable,
    ) {
    }

    public function __invoke(WebSocketCloseEvent $event): void
    {
        $this->messageTable->del($event->getFd());
        $this->connectionTable->del($event->getFd());
    }
}

This class responds to Swoole's onClose event, after a TCP client connection is closed. It's important to respond to this to delete both of the Swoole Table objects ($messageTable and $connectionTable).

Now, in the same directory, create a new file named ConnectionClosedListenerFactory.php, and paste the code below into the file.

<?php

declare(strict_types=1);

namespace App\WebSocket\Listener;

use App\WebSocket\Table\ConnectionTable;
use App\WebSocket\Table\MessageTable;
use Psr\Container\ContainerInterface;

final class ConnectionClosedListenerFactory
{
    public function __invoke(ContainerInterface $container): ConnectionClosedListener
    {
        $messageTable = $container->get(MessageTable::class);
        assert($messageTable instanceof MessageTable);

        $connectionTable = $container->get(ConnectionTable::class);
        assert($connectionTable instanceof ConnectionTable);

        return new ConnectionClosedListener($messageTable, $connectionTable);
    }
}

This class instantiates the ConnectionClosedListener object, when requested from the application's DI container, providing it with the Swoole Table objects.

Now create a new directory named Factory in src/App/src, and in that directory create a file named LoggerFactory.php. In that new file, paste the code below.

<?php

declare(strict_types=1);

namespace App\Factory;

use Monolog\Handler\ErrorLogHandler;
use Monolog\Level;
use Monolog\Logger;
use Monolog\Processor\PsrLogMessageProcessor;
use Psr\Container\ContainerInterface;
use Psr\Log\LoggerInterface;

class LoggerFactory
{
    public function __invoke(ContainerInterface $container): LoggerInterface
    {
        $logger = new Logger('swoole-http-server');
        $logger->pushHandler(new ErrorLogHandler(
            ErrorLogHandler::OPERATING_SYSTEM,
            Level::Debug,
            true,
            true,
        ));
        $logger->pushProcessor(new PsrLogMessageProcessor());

        return $logger;
    }
}

This class will instantiate a Monolog Logger instance used in ConnectionOpenedListener and ConversationRelayMessageListener for logging what happens over the course of incoming requests.

Step 7: Stream responses and calling tools

Right now, Hoot can only answer questions about facts baked into the system prompt. To look up real flight status information, you need to give the model a tool it can call. That's where the OpenAIService, which you'll create in a moment, comes in. It lets you define tools as JSON schemas, and the model decides whether to call one based on the caller's request.

First, create a new directory named src/App/src/Service, and in that directory create a new file named OpenAiService.php. In the file, paste the code below:

<?php

declare(strict_types=1);

namespace App\Service;

use OpenAI\Client;

use function array_map;
use function array_merge;
use function array_values;
use function json_decode;
use function strtoupper;

final class OpenAiService
{
    private const MODEL = 'gpt-4o-mini';

    private const TOOLS = [
        [
            'type'     => 'function',
            'function' => [
                'name'        => 'lookup_flight_status',
                'description' => 'Look up the current status of an Owl Air flight by flight number.',
                'parameters'  => [
                    'type'       => 'object',
                    'properties' => [
                        'flight_number' => [
                            'type'        => 'string',
                            'description' => 'The Owl Air flight number, e.g. OA101',
                        ],
                    ],
                    'required'   => ['flight_number'],
                ],
            ],
        ],
    ];

    private const MOCK_FLIGHT_DATA = [
        'OA101' => ['status' => 'on time',                 'gate' => 'B12', 'departure' => 'two thirty PM'],
        'OA205' => ['status' => 'delayed by forty minutes', 'gate' => 'C4',  'departure' => 'five fifteen PM'],
        'OA318' => ['status' => 'cancelled'],
    ];

    public function __construct(private readonly Client $client, private readonly string $systemPrompt)
    {
    }

    public function streamResponse(array $messages, callable $onToken): string
    {
        $openAiMessages = array_merge(
            [
                [
                    'content' => $this->systemPrompt,
                    'role'    => 'system',
                ],
            ],
            $messages,
        );
        $stream = $this->client->chat()->createStreamed([
            'model'      => self::MODEL,
            'max_tokens' => 300,
            'messages'   => $openAiMessages,
            'tools'      => self::TOOLS,
        ]);
        $fullResponse = '';
        $finishReason = null;
        $toolCallsAcc = [];  // index => ['id' => '', 'name' => '', 'arguments' => '']
        foreach ($stream as $response) {
            $choice       = $response->choices[0];
            $delta        = $choice->delta;
            $finishReason = $choice->finishReason ?? $finishReason;
            if ($delta->content !== null) {
                $fullResponse .= $delta->content;
                ($onToken)($delta->content);
            }
            foreach ($delta->toolCalls ?? [] as $tc) {
                if (! isset($toolCallsAcc[$tc->index])) {
                    $toolCallsAcc[$tc->index] = ['id' => '', 'name' => '', 'arguments' => ''];
                }
                if ($tc->id !== null) {
                    $toolCallsAcc[$tc->index]['id'] = $tc->id;
                }
                if ($tc->function?->name !== null) {
                    $toolCallsAcc[$tc->index]['name'] = $tc->function->name;
                }
                if ($tc->function?->arguments !== null) {
                    $toolCallsAcc[$tc->index]['arguments'] .= $tc->function->arguments;
                }
            }
        }

        if ($finishReason === 'tool_calls' && ! empty($toolCallsAcc)) {
            $toolCalls = array_values($toolCallsAcc);
            $openAiMessages[] = [
                'role'       => 'assistant',
                'tool_calls' => array_map(
                    static fn (array $tc): array => [
                        'id'       => $tc['id'],
                        'type'     => 'function',
                        'function' => ['name' => $tc['name'], 'arguments' => $tc['arguments']],
                    ],
                    $toolCalls,
                ),
            ];

            foreach ($toolCalls as $tc) {
                $args   = json_decode($tc['arguments'], true);
                $result = $this->executeTool($tc['name'], $args);
                $openAiMessages[] = [
                    'role'         => 'tool',
                    'tool_call_id' => $tc['id'],
                    'content'      => $result,
                ];
            }
            $fullResponse = '';
            $stream2      = $this->client->chat()->createStreamed([
                'model'      => self::MODEL,
                'max_tokens' => 400,
                'messages'   => $openAiMessages,
            ]);

            foreach ($stream2 as $response) {
                $delta = $response->choices[0]->delta;
                if ($delta->content !== null) {
                    $fullResponse .= $delta->content;
                    ($onToken)($delta->content);
                }
            }
        }

        return $fullResponse;
    }

    private function executeTool(string $name, array $args): string
    {
        if ($name !== 'lookup_flight_status') {
            return 'Unknown tool.';
        }

        $flightNumber = strtoupper($args['flight_number'] ?? '');
        $flight       = self::MOCK_FLIGHT_DATA[$flightNumber] ?? null;
        if ($flight === null) {
            return 'No flight found with that number.';
        }

        if ($flight['status'] === 'cancelled') {
            return 'That flight has been cancelled.';
        }

        return "Flight {$flightNumber} is {$flight['status']}, "
            . "departing at {$flight['departure']} from gate {$flight['gate']}.";
    }
}

Stepping through the code, MODEL sets the OpenAI model to use. Next up, TOOLS, is the schema you pass to the OpenAI API. MOCK_FLIGHT_DATA is a stand in for a real database or API call. In a production agent, you would replace executeTool() with a live lookup. When a caller gives a flight number that is not in the data, executeTool() returns "No flight found with that number.", so Hoot always has a graceful response rather than hallucinating status information. The flight data uses spelled-out times ("two thirty PM") following the same voice-optimized convention as the system prompt, so ElevenLabs reads them naturally, when they appear in Hoot's response.

If you add more Owl Air–specific flight numbers to your real data, add them to the hints attribute in your TwiML as well. Deepgram gives extra weight to hinted terms during transcription, which reduces misheard flight numbers like "OA one oh one" being transcribed as "0-8101".

The streamResponse() function runs in two phases. In phase one, the OpenAI stream includes tools=TOOLS. If the model decides to answer directly (a baggage or loyalty question, for example), it returns tokens and $finishReason is "stop", so the function is done after sending the last: True sentinel. If it wants to call a tool, $finishReason is "tool_calls" and the streamed deltas contain a tool call rather than content.

Phase two only runs when there are tool calls to execute. The function appends the model's tool-call message to the conversation, calls executeTool() for each one, appends the results as "tool" role messages, and makes a second streaming call. This second stream produces the spoken response, because the model now has the tool result and can answer the question in natural language.

Each text message you send to Conversation Relay contains a token (a text fragment) and a last flag. Sending tokens one by one as they arrive with last: False lets Conversation Relay begin synthesising and playing speech before the full response is ready. The final message with last: True and an empty token signals the end of the turn. The function returns the full accumulated text so the WebSocket handler can append it to the conversation history.

Now, in OpenAiServiceFactory.php, paste the code below:

<?php

declare(strict_types=1);

namespace App\Service;

use OpenAI;
use Psr\Container\ContainerInterface;
use RuntimeException;

use function getenv;

final class OpenAiServiceFactory
{
    public function __invoke(ContainerInterface $container): OpenAiService
    {
        $apiKey = $_ENV['OPENAI_API_KEY'] ?? getenv('OPENAI_API_KEY');
        if (empty($apiKey)) {
            throw new RuntimeException('OPENAI_API_KEY environment variable is not set.');
        }
        $systemPrompt = $container->get('config')['prompt'];

        return new OpenAiService(OpenAI::client($apiKey), $systemPrompt);
    }
}

This class instantiates the OpenAiService service, when it's requested from the application's DI container. It retrieves the OPENAI_API_KEY environment variable and the system prompt, and uses them to instantiate and return an OpenAiService object.

With all of the OpenAI-related classes created, you now need to update the application's configuration by wiring the new classes into the application's DI container, so that they can be retrieved when required.

To do that, update the getDependencies() function in src/App/src/ConfigProvider.php to match the following:

public function getDependencies(): array
{
    return [
        'factories'  => [
            Handler\TwimlHandler::class => Handler\TwimlHandlerFactory::class,
            LoggerInterface::class => LoggerFactory::class,
            Service\OpenAiService::class   => Service\OpenAiServiceFactory::class,
            WebSocket\Listener\ConnectionClosedListener::class => WebSocket\Listener\ConnectionClosedListenerFactory::class,
            WebSocket\Listener\ConversationRelayMessageListener::class => WebSocket\Listener\ConversationRelayMessageListenerFactory::class,
        ],
        'invokables' => [
            Handler\PingHandler::class => Handler\PingHandler::class,
        ],
        'services' => [
            ConnectionTable::class => new ConnectionTable(),
            MessageTable::class => new MessageTable(),
        ],
    ];
}

Next, add the following namespaces to the top of the file:

use App\Factory\LoggerFactory;
use App\WebSocket\Table\ConnectionTable;
use App\WebSocket\Table\MessageTable;
use Psr\Log\LoggerInterface;

Then, register the two listeners so that they respond to message events, by adding the following function to src/App/src/ConfigProvider.php.

public function getSwooleConfig(): array
{
    return [
        'swoole-http-server' => [
            'listeners' => [
                \Settermjd\MezzioSwoole\WebSocket\Event\WebSocketCloseEvent::class => [
                    WebSocket\Listener\ConnectionClosedListener::class,
                ],
                \Settermjd\MezzioSwoole\WebSocket\Event\WebSocketMessageEvent::class => [
                    WebSocket\Listener\ConversationRelayMessageListener::class,
                ],
            ],
        ],
    ];
}

Then, update the class' __invoke() function to call getSwooleConfig() and load the Swoole configuration, as below.

public function __invoke(): array
{
    return [
        'dependencies'  => $this->getDependencies(),
        'mezzio-swoole' => $this->getSwooleConfig(),
        'templates'     => $this->getTemplates(),
    ];
}

Finally, add the following configuration in a new file named swoole.global.php in the config/autoload directory.

<?php

declare(strict_types=1);

return [
    'mezzio-swoole' => [
        'enable_coroutine' => true,
        'swoole-http-server' => [
            'host' => '0.0.0.0',
            'mode' => SWOOLE_PROCESS,
            'port' => 8080,
            'options' => [
                'worker_num'      => 2,
                'task_worker_num' => 2,
                'task_enable_coroutine' => true,
            ],
        ],
    ],
];

This tells Swoole to listen for requests on all available IP addresses on port 8080 and sets the number of workers to start.

Step 8: Running your server

You are ready to run the server. Open a second terminal and start ngrok:

ngrok http 8080

ngrok will display a Forwarding line that looks something like this:

Forwarding  https://1234abcd.ngrok.app -> http://localhost:8000

Copy the hostname (1234abcd.ngrok.app — without the protocol, i.e., https://). Then, in a new terminal session or tab, paste it into the following command, along with your OpenAI API key, and run it to start the application:

DOMAIN=<ngrok domain> OPENAI_API_KEY=<your OpenAI api key> vendor/bin/laminas mezzio:swoole:start

In your terminal, you'll see the following output:

WebSocketServerFactory built: Swoole\WebSocket\Server
Worker started in /opt/owl-air-phone-agent with ID 0
Worker started in /opt/owl-air-phone-agent with ID 2
Worker started in /opt/owl-air-phone-agent with ID 3
Worker started in /opt/owl-air-phone-agent with ID 1

Step 9: Configuring your Twilio phone number

Log in to the Twilio Console and navigate to Phone Numbers in the left sidebar, then Manage, then Active Numbers. Click your voice-capable phone number to open its configuration page.

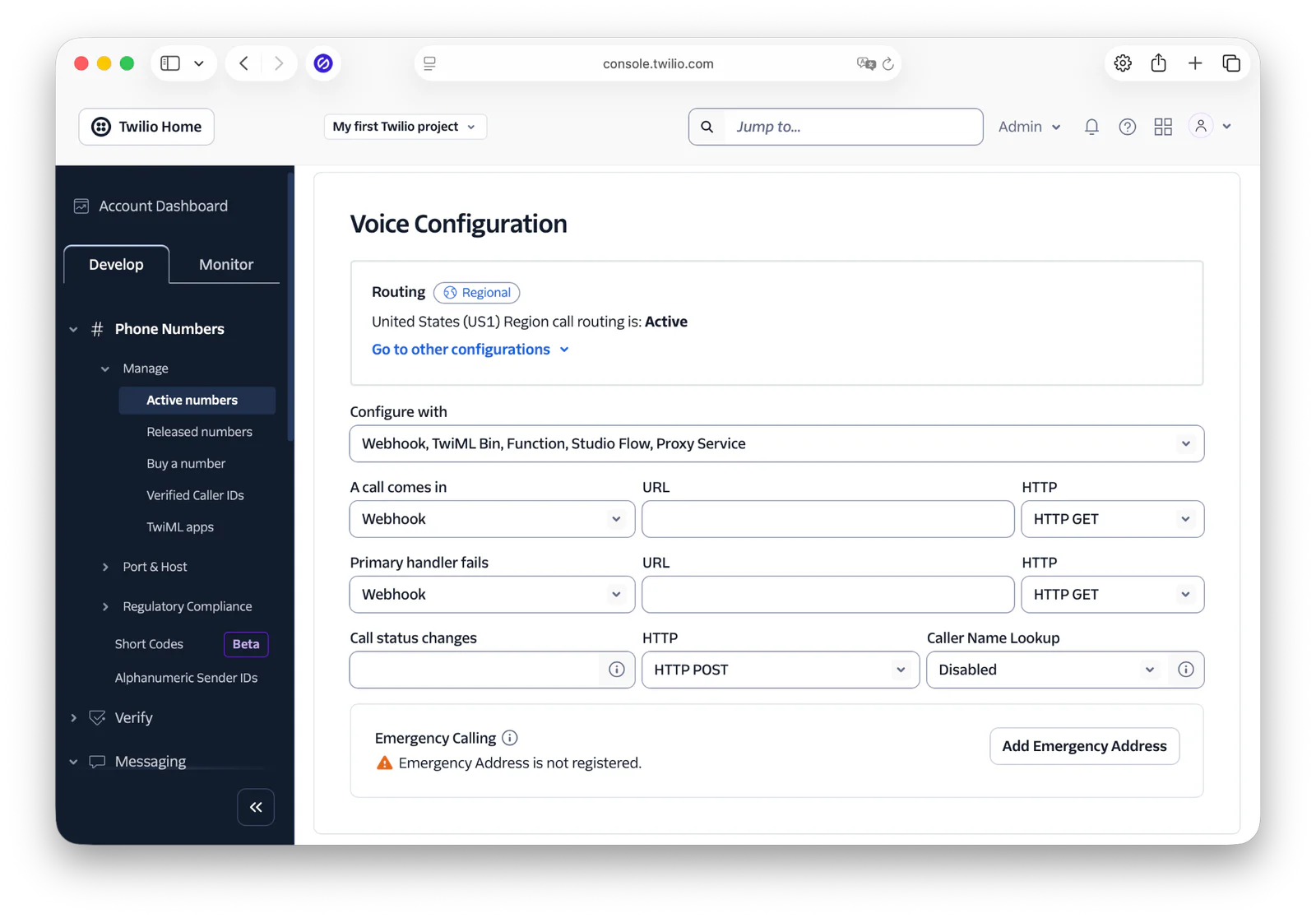

Screenshot of Twilio's Voice Configuration settings page showing call routing and webhook options.

Under the Voice Configuration section, set A Call Comes In to Webhook and enter the URL for your TwiML endpoint, e.g.,: https://1234abcd.ngrok.app/twiml.

Replace 1234abcd.ngrok.app with your actual ngrok hostname — including the protocol. Set the HTTP method to HTTP POST, then click Save Configuration.

Testing your agent

Call your Twilio phone number. You should hear Hoot's greeting within a second or two of the call connecting:

> "Thanks for calling Owl Air! I'm Hoot. I can help with flight status, baggage policy, loyalty points, or booking changes. Which of those can I help you with?"

Try a few test questions to verify the full flow is working:

  • "What's the baggage policy?" - Hoot should describe carry-on and checked bag rules in natural spoken language.
  • "How do loyalty points work?" - Hoot should explain the earn and redemption rates.
  • "Can I change my flight?" - Hoot should give the change fee policy, with amounts spelled out in words.
  • "When does check-in open?" - Hoot should mention the twenty-four hour window.
  • "What's the status of flight OA205?" - Hoot should call the lookup_flight_status tool and report that the flight is delayed by forty minutes. You will see the tool call and its result printed in your terminal.
  • "What's the status of flight OA318?" - Hoot should report the flight is cancelled.
  • "What's the status of flight OA999?" - Hoot should gracefully report that no flight was found with that number.

Watch your terminal as you speak. You will see each caller turn printed as it arrives, Hoot's streamed response tokens accumulating, and the complete response logged once the turn is finished.

If Hoot does not respond, check that your ngrok tunnel is still running and that the DOMAIN environment variable matches your current ngrok hostname. ngrok generates a new hostname each time you restart the free tier, so you will need to update your Twilio webhook URL and restart mezzio-swoole whenever you restart ngrok.

If you hear an error message on the call or see an error message in your terminal logs, check the error code against the Conversation Relay error code reference in the Twilio documentation.

What's next

The agent you built here covers the core Conversation Relay pattern, but there are several natural extensions worth exploring.

Proactive topic re-offering - If a caller seems uncertain, Hoot will stay silent and wait. You can fix this with a single addition to the system prompt: Instruct Hoot to re-offer the four topic areas if the caller has not asked a clear question after one or two exchanges. No code change required.

Human handoff - The system prompt already tells Hoot to offer to connect callers with a live agent. To implement it, detect when the model's response includes that offer and send {"type": "end-session", "handoffData": "caller needs live support"} from the WebSocket handler. You will also need to add an action attribute to the <ConversationRelay> element in your TwiML (e.g. action="/handoff"). Twilio POSTs to that URL when the session ends, passing the handoffData string, where you can return new TwiML to route the call to a queue or a direct number using standard <Dial> logic.

Caller personalization - You can pass data into the setup message using <Parameter> elements inside <Connect> in your TwiML. For example, <Parameter name="customerName" value="Alex"/> makes customParameters.customerName available in the setup message, so you can have Hoot greet the caller by name. In a real deployment you would look up the caller's name from the From phone number before generating the TwiML.

Conclusion

You have built a fully functional AI phone agent using Twilio Conversation Relay, PHP, and the OpenAI API. Conversation Relay handled the speech-to-text and text-to-speech pipeline, while your WebSocket server connected the model to the call and managed the conversation history, including live flight lookups via tool calling. See the Conversation Relay documentation for the full list of attributes and message types.

Matthew Setter is a PHP and Go Editor in the Twilio Voices team. He’s also the author of Mezzio Essentials and Deploy with Docker Compose. You can find him at msetter@twilio.com. He's also on LinkedIn and GitHub.

Related Posts

Related Resources

A newspaper article

Twilio Docs

From APIs to SDKs to sample apps

API reference documentation, SDKs, helper libraries, quickstarts, and tutorials for your language and platform.
An Open book

Resource Center

The latest ebooks, industry reports, and webinars

Learn from customer engagement experts to improve your own communication.
User group reactions

Ahoy

Twilio's developer community hub

Best practices, code samples, and inspiration to build communications and digital engagement experiences.
