Guide

Leveraging interaction data

Connect certain Destinations as Sources to leverage additional signals about customer engagement.

Leveraging interaction data

Collecting data from your websites, apps, and servers is only part of the equation. Your users are giving you valuable signals when they open your emails, click on embedded links, start livechat conversations, answer a survey, or open a push notification. This lesson will show you how to collect and leverage interaction data to make your data-driven campaigns more intelligent.

Setting up Source integrations

There are a subset of Destinations on the Twilio Segment platform that also send data back into Twilio Segment. You can find these under Cloud Apps in our sources documentation. There are two types of cloud app sources, event sources, and object sources.

Event Sources

The setup for event sources usually involves creating a source in Twilio Segment, and then copying the write key into a partner's UI. The events that partners send back to Twilio Segment will depend on their product, but typically this will involve events from one of our email, livechat, or a/b testing specs. For example, Braze, a marketing automation platform that supports push notifications, in-app messages, and email supports sending the following events back into Twilio Segment:

Event Name

Description

Application Uninstalled

User uninstalled the App.

Email Sent

An email was successfully sent

Email Delivered

An email was successfully delivered to a User's mail server.

Email Opened

User opened an email.

Email Link Clicked

User clicked a link in an email. Email click tracking must be enabled.

Email Bounced

Braze attempted to send an email, but the User's receiving mail server did not accept it.

Email Marked As Spam

User marked an email as spam.

Unsubscribed

User clicked the unsubscribe link in an email.

Push Notification Sent

A push notification was successfully sent

Push Notification Tapped

User tapped on a push notification.

Push Notification Bounced

Braze was not able to send a push notification to this User.

In-App Message Viewed

User viewed an in-app message.

In-App Message Clicked

User tapped or clicked a button in an in-app message.

News Feed Viewed

User viewed the native Braze News Feed.

News Feed Card Viewed

User viewed a Card within the native Braze News Feed.

News Feed Card Clicked

User tapped or clicked on a Card within the native Braze News Feed.

Each track event will also contain the following event properties:

Property Name

Type

Description

app_id

string

The API Identifier of the App on which a user received a message or performed an action, if applicable.

campaign_id

string

The API Identifier of the Campaign associated with the event, if applicable.

canvas_id

string

The API Identifier of the Canvas associated with the event, if applicable.

canvas_variation_id

string

The API Identifier of the Canvas Variation associated with the event, if applicable.

canvas_step_id

string

The API Identifier of the Canvas Step associated with the event, if applicable.

context.traits.email

string

For Email events, the email address that the email was sent to.

button_id

string

For In-App Message Clicked events, the ID of the button the user clicked on.

card_id

string

For News Feed Card Viewed and News Feed Card Clicked events, the API Identifier of the News Feed Card.

Once you've connected the source, send a test email and consult the Debugger in Twilio Segment to see the events coming through.

Object Sources

Object data sources will pull data from our cloud app partners and write them into a data warehouse, like Redshift or BigQuery. This could be non-user data like subscriptions in Stripe, accounts in Salesforce, tickets in Zendesk etc. The main use case for this kind of data is to do analytics and reporting based off of this data. Having this all in one place means you can make dashboards that combine these different cloud apps, along with the first party data you're collecting from your website, mobile apps. Our customers will often using a BI tool like Looker, Mode, or Periscope, that sits on top of this data warehouse.

There are some use cases where customers want to get the object data back into an event destination. For example, you might want to get a list of all users that have an open Zendesk ticket, and then push that list to your advertising and email tools to exclude them from marketing emails. Trying to upsell your customer when they're having a bad support experience is a great way to lose your customer's trust in your product or service.

To import this kind of data, we have a feature called SQL Traits part of our Personas product which will help you accomplish this. Please consult the lesson on leveraging SQL traits to learn more.

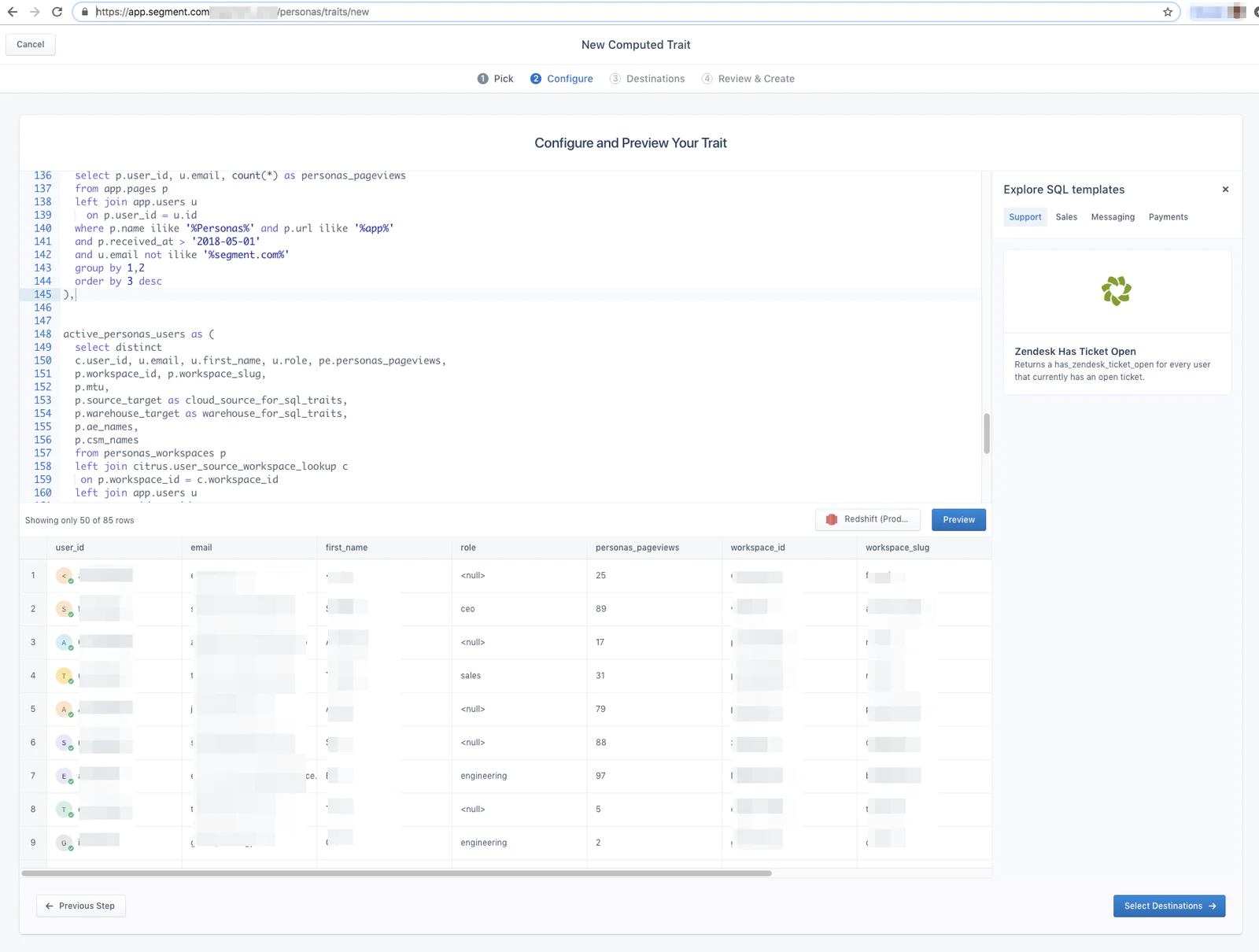

Screenshot of a web app with a SQL editor and a user trait data preview table showing columns user id email role and pageviews connected to Redshift with a sidebar of SQL templates and buttons to preview and select destinations

Using Source data

Once you have your cloud app events flowing back into Twilio Segment, it's time to leverage this data. The first use case we commonly see is for analytics. Marketing automation tools typically have some kind of reporting capability, but it's usually not their primary focus. To get more granular on understanding how your campaigns are performing, or how an email is doing, you want to be leveraging one of the analytics tools on our platform, or building your dashboard based on the events we're pushing into your data warehouse. Here's an example email funnel you can quickly build in Amplitude.

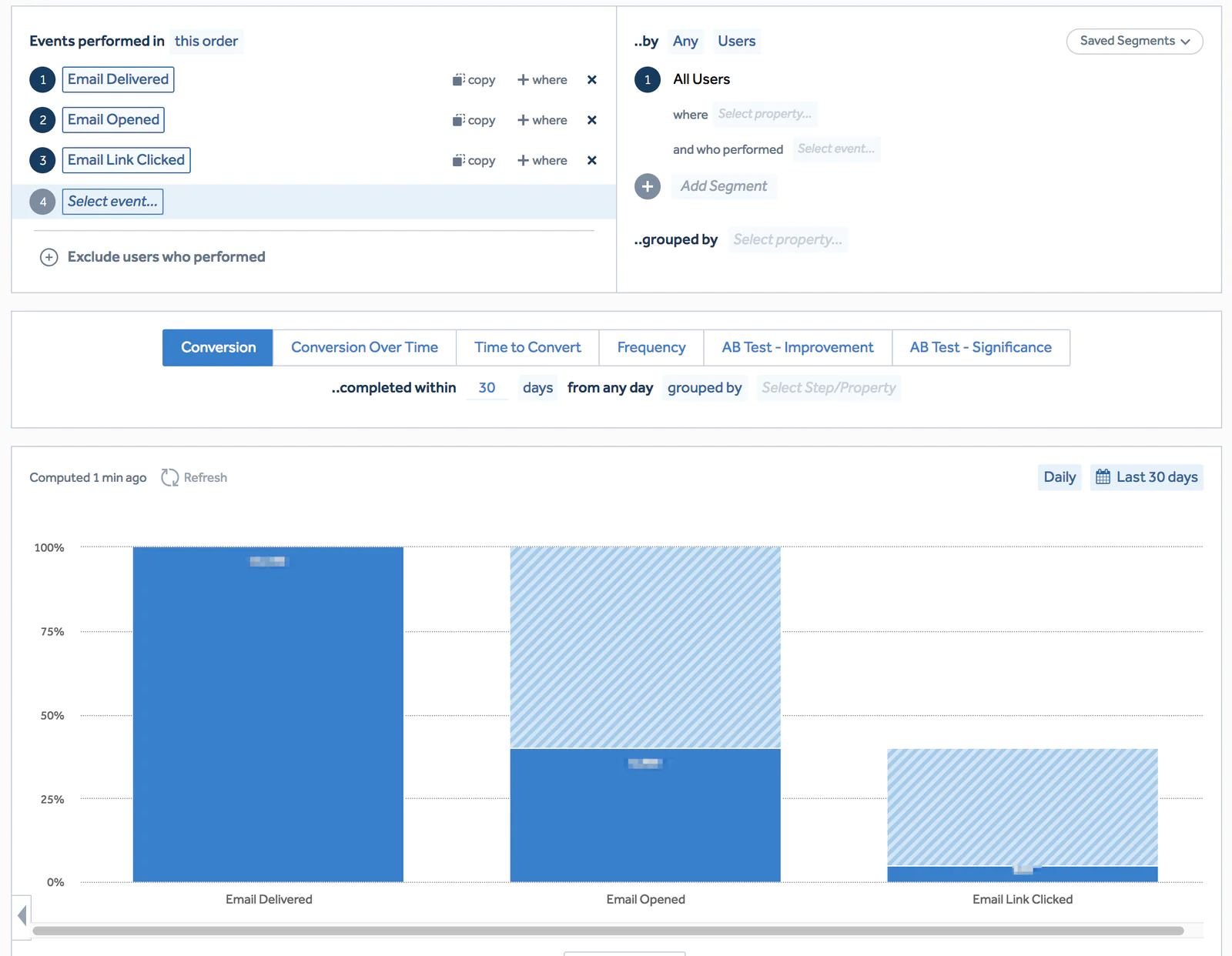

Screenshot of an analytics funnel for an email campaign. Steps are Email Delivered, Email Opened, and Email Link Clicked with All Users and last 30 days selected. A bar chart shows all deliveries, about one third open, and a small fraction click.

On the customer-facing side of the business, you might want to leverage this interaction data across your support, sales, and marketing teams. A good example is treating customers that are opening your emails differently from customers that haven't interacted at all. For example, you could create an audience of users that haven't purchased or visited your website in the last 6 months, yet have still opened an email from your team. If you are using Twilio Segment Personas, you can also then push this audience directly into an advertising platform like Facebook or Google Ads. You will get a better CPA on a re-engagment ad campaign if you include the email interaction data and filter out users that are completely inactive.

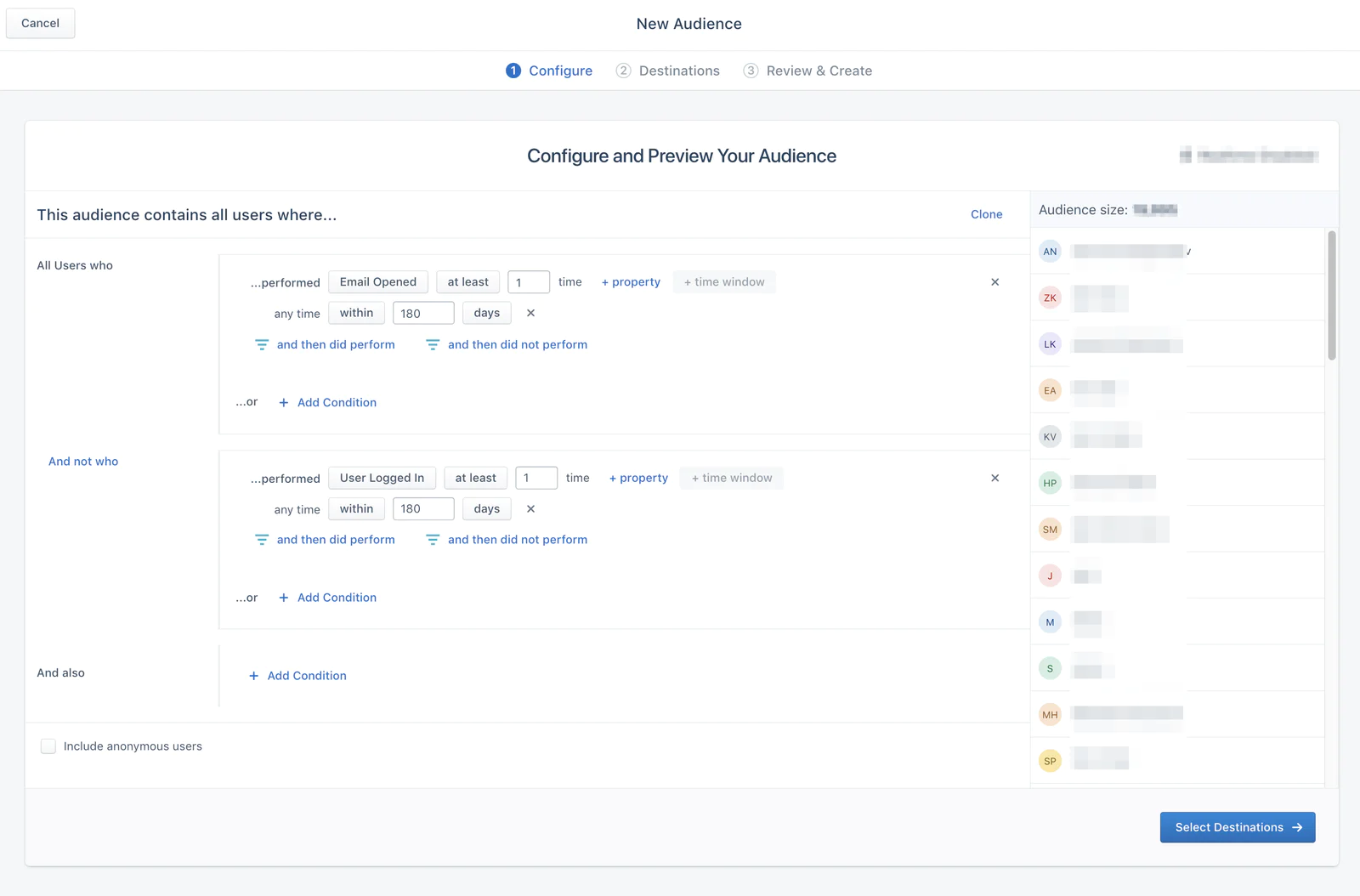

Screenshot of an audience builder. Filters show all users who opened an email at least once within 180 days and not users who logged in at least once within 180 days. Right sidebar lists audience size and sample users, with a select destinations button at the bottom.

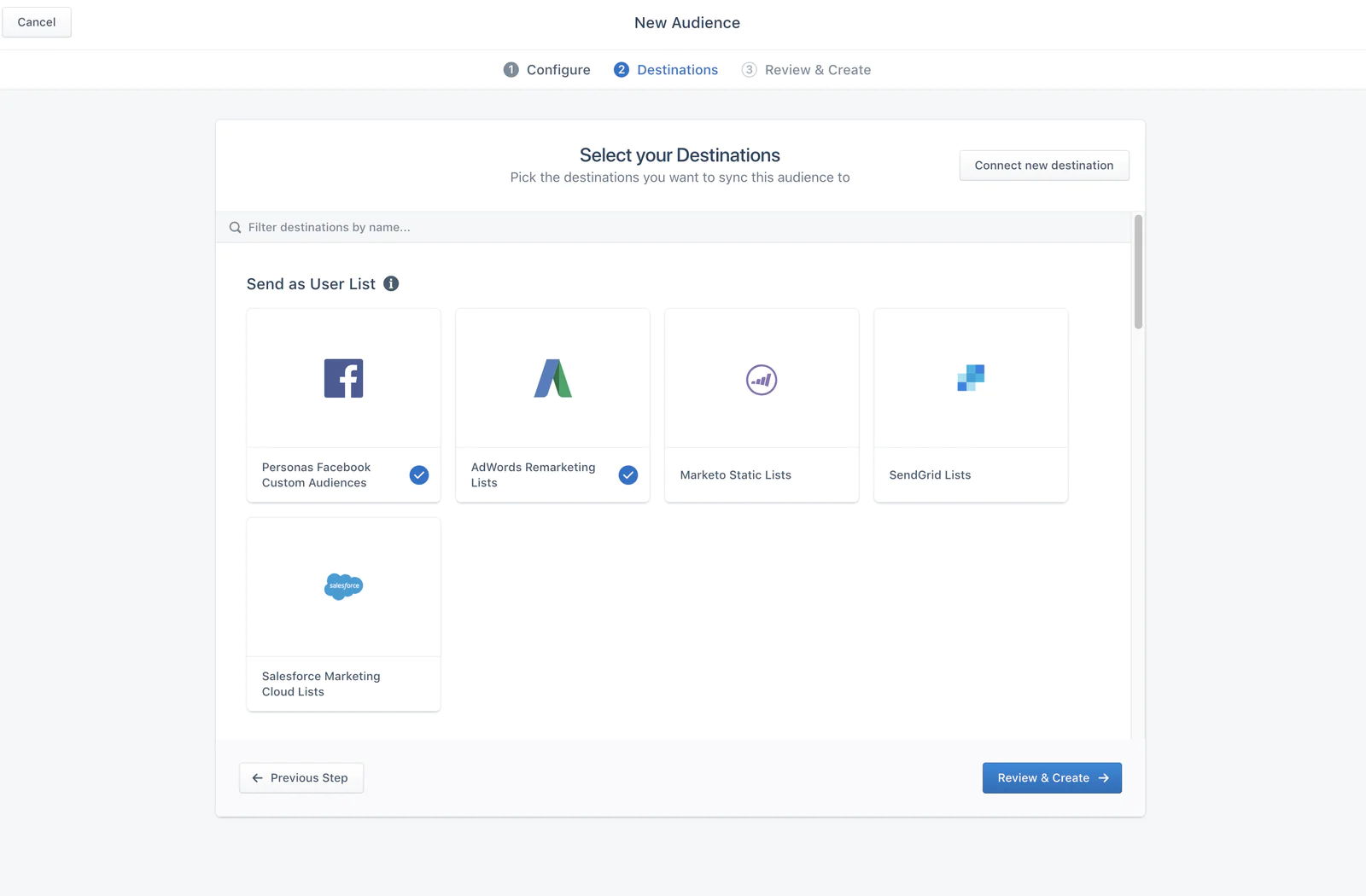

Screenshot of the New Audience setup selecting destinations. Options include Facebook Custom Audiences, Google Ads Remarketing, Marketo Static Lists, SendGrid Lists, and Salesforce Marketing Cloud. Review and create button visible.
