Build a Twilio + Zoho CRM Voice Integration

Are you using Zoho CRM's API with your PHP applications? If not, you're missing out on some very powerful functionality.

You can manage and search records across all available modules (e.g., accounts, contacts, deals, and leads), manage attachments, appointments, notes, and so much more.

Does that sound like the kind of functionality your customers would love?

If so, by the end of this tutorial, you'll know how to log incoming voice calls in your Zoho CRM account, (including their duration, purpose, start time, and type) along with an audio and text copy of the call. This is all thanks to Twilio's Programmable Call Recording functionality.

Prerequisites

Before you begin, make sure you have the following:

A Twilio account with a phone number that can receive voice calls. Sign up for free today if you don't have an account.
A Zoho CRM Professional account, or sign up for the 15-day free trial
Git
PHP 8.4 or above
Composer installed globally
Your preferred code editor or IDE, such as Neovim, PhpStorm, or Visual Studio Code
A phone that can make voice calls. Alternatively, you can use the Twilio Dev Phone. It's great for testing your Twilio apps when you don't have access to SMS and calling capabilities.
Some terminal experience is helpful, though not required

Application overview

Before we begin, here's how the application will work. When a customer calls your Twilio phone number, they'll hear the following automated voice message:

Please leave a message at the beep. Press the hash or pound key when finished.

After the caller hears this, several things will happen:

The customer can leave a voice message and press either the hash or pound key (#) to end the call.
Twilio will then send a POST request to the application's /call/receive endpoint, with the details of the call stored in the request data. The data will include the call's status, the URL of the call recording, a text transcription of the call, and the caller's phone number.

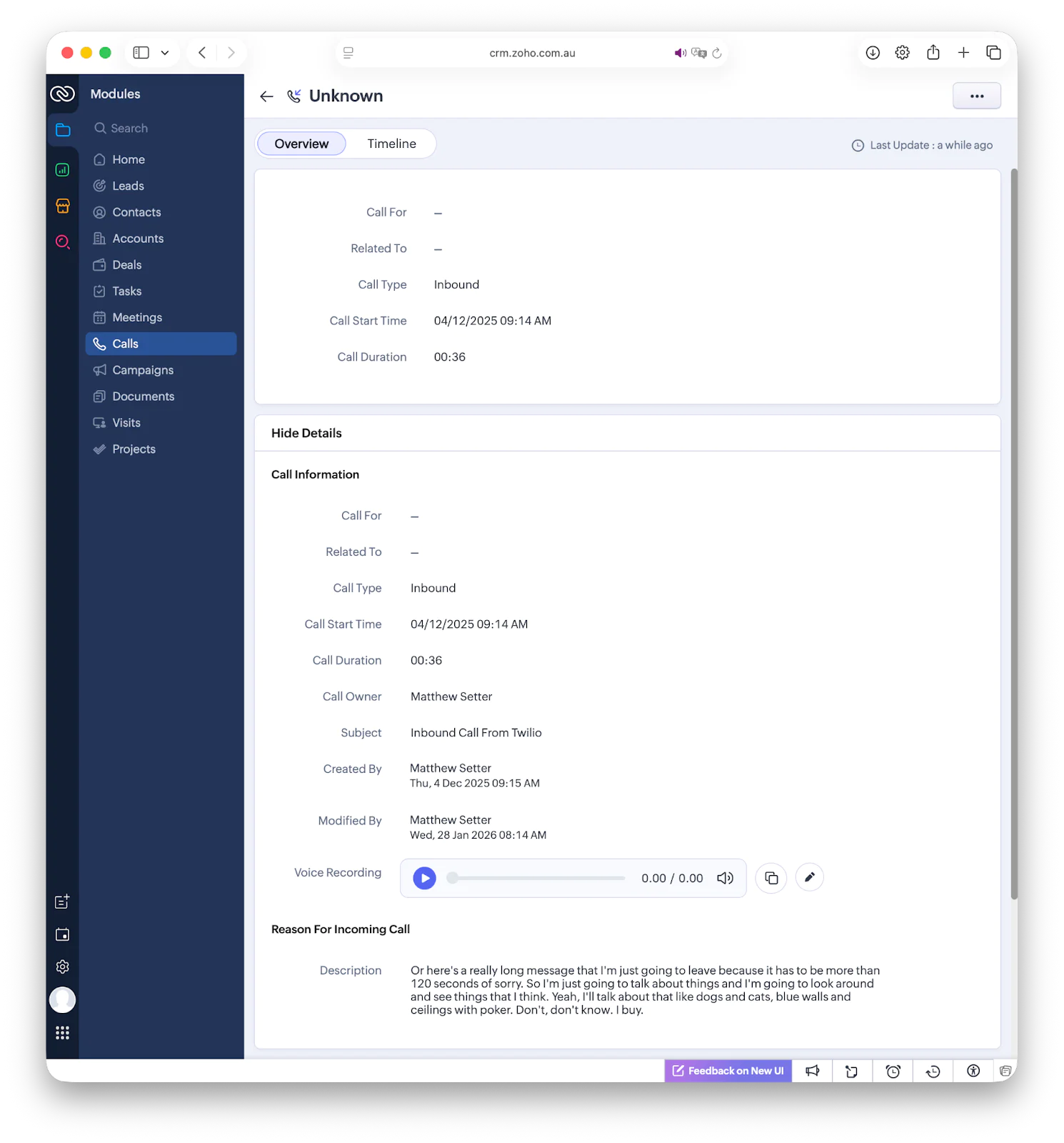

A request will be made to Zoho CRM's API to create a new inbound call record. This record stores the following information from the call:
Agenda
Duration
Purpose
Start time
Type
Text transcription
Voice recording that Twilio created
The user will then hear "Thank you for recording your message. It will be logged in Zoho CRM." and the call will end.

Whilst this might sound very involved in order to get the application working, this tutorial builds on the previous one in this series. If you’ve completed that, then there's not as much work to do.

So you fully understand how the application works, I strongly encourage you to read through the previous tutorial.

Set up the project

The first thing we need to do is to set up the base project. You can do this wherever you usually store your PHP projects, by running the following commands:

git clone git@github.com:settermjd/twilio-zohocrm-integration.git
cd twilio-zohocrm-integration
git checkout 1.0.0
composer install
cp -v .env.example .env

Here’s what the above commands do:

Clone the completed code from the previous tutorial
Change into the cloned project directory
Create a new branch from the project's 1.0.0 tag
Install the PHP dependencies
Create a new .env file from the example copy, .env.example.

Feel free to name the branch whatever you like, if you don't like "development".

Set the required environment variables

The application uses a number of environment variables to keep configuration settings and sensitive data out of the code, storing them in a file named .env and making them available to the application via PHP Dotenv.

Retrieve your Zoho details

Open .env in the project's top-level directory and set the value of ZOHOCRM_DC to the data center assigned to your account, and the value of ZOHOCRM_URI to the base URI most applicable to you, followed by "/crm/v8". As an example, I live in Australia, so I'd set ZOHOCRM_DC to "AU" and ZOHOCRM_URI to "https://www.zohoapis.com.au/crm/v8".

If you're not sure which data center is assigned to your account, open your account profile. Click the Profile icon in the top right-hand corner. In the pop-out that appears, you'll see which data center your account is in.

Next, let’s retrieve your Zoho SOID. This is your Zoho organisation's unique ID, required in the next step. To retrieve it:

Log in to the Zoho CRM Dashboard

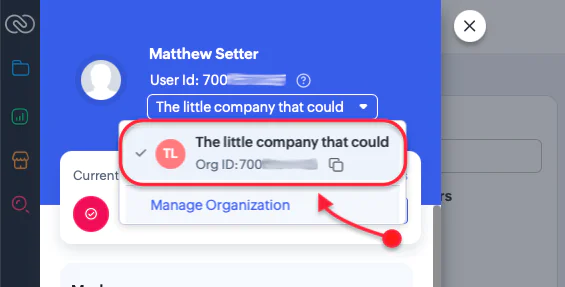

Click the Profile icon near the bottom of the left-hand side navigation menu, underneath the Setup icon (the cog)
Click the down arrow next to your organisation's name and copy the Org ID that appears, by clicking the copy icon

Set your Organisation's ID as the value of ZOHO_SOID in your .env file
Generate a Zoho CRM API Key and Secret

Next, let’s generate your Zoho CRM API key and secret. These are required to retrieve an access token, which the application needs to make authenticated requests to Zoho CRM's API.

To do this:
1. Make sure you’re still logged in to your Zoho CRM account
2. In the left-hand side navigation menu, navigate to Setup > Developer Hub > APIs and SDKs > SDKs
3. In the "Server Side SDKs" section, click "Register New Client" to create a new client for accessing the Zoho CRM API

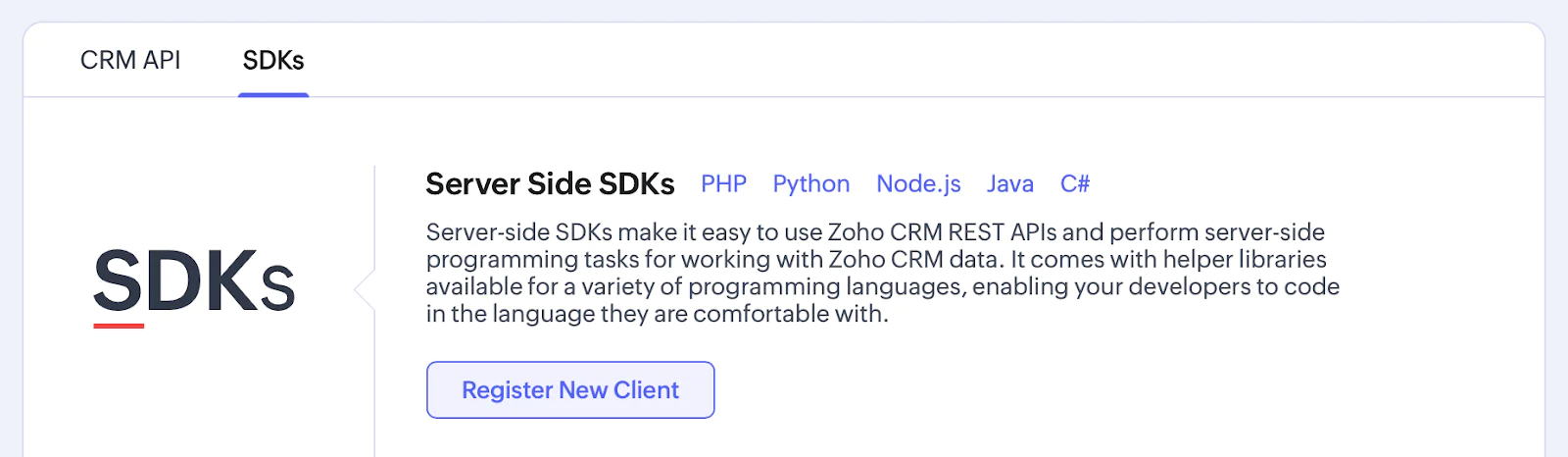

The SDKs page of the Zoho CRM Setting section. The image only has the Server Side SDKs section, with the remainder of the page having been removed.

Enter your password to verify your identity
Click "GET STARTED"

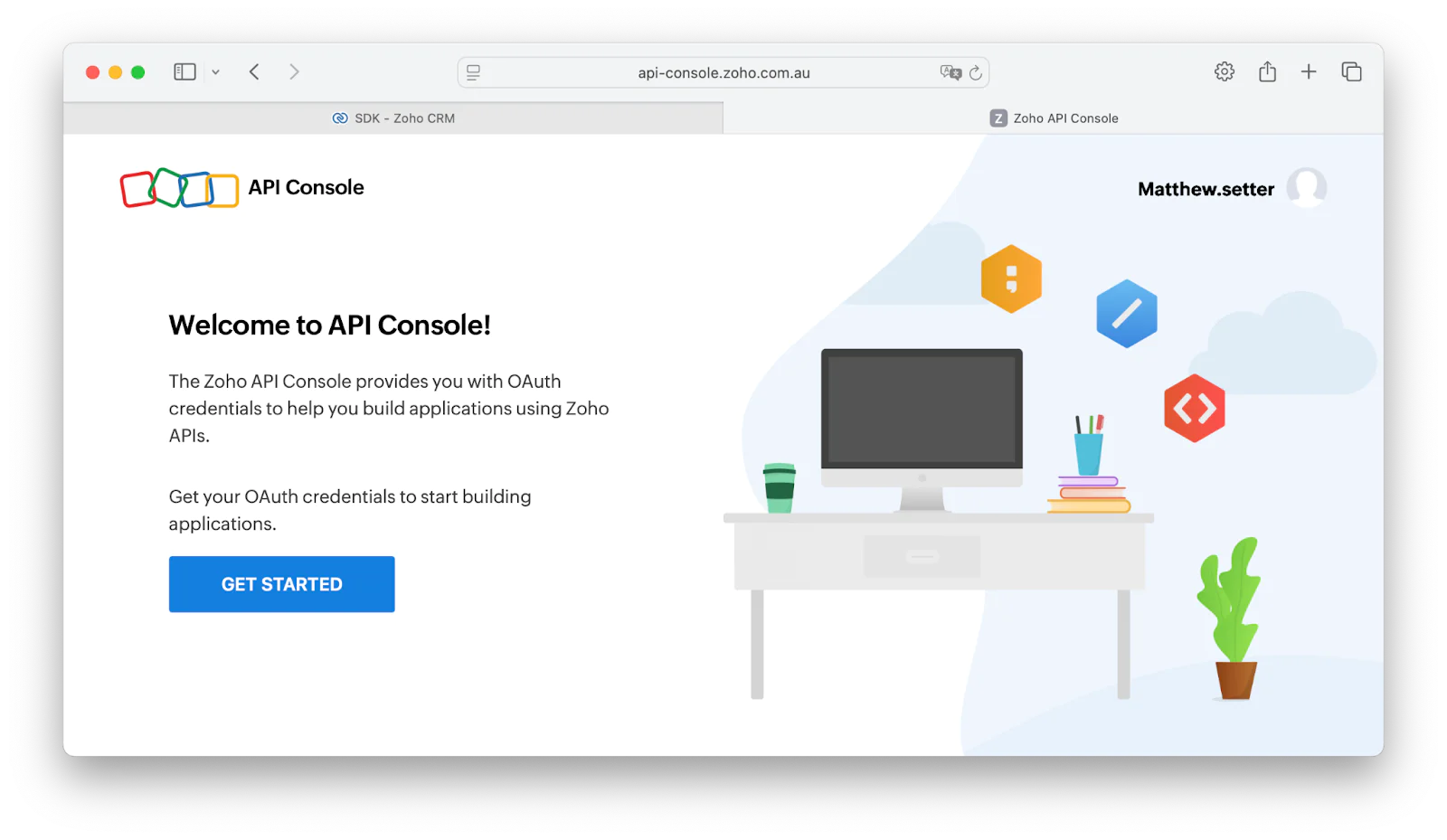

The "Welcome to API Console!" form in Zoho CRM.

Click "CREATE NOW" in the "Self Client" option

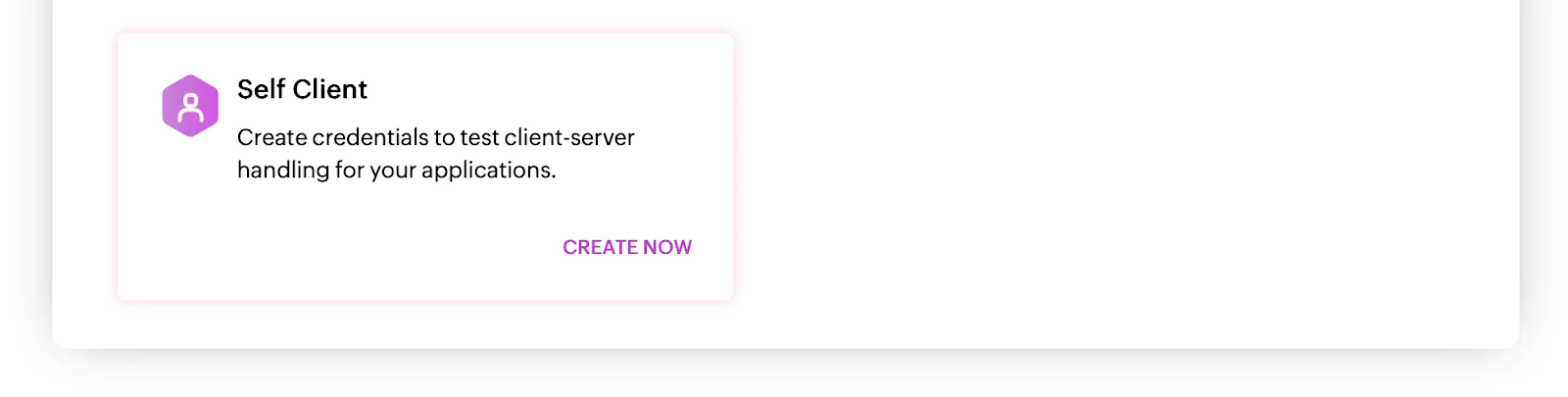

The Zoho CRM API's New Client page with only the Self Client option visible. The remainder of the page has been cropped out.

In the "Create New Client" dialog, leave the options as they are and click "CREATE"

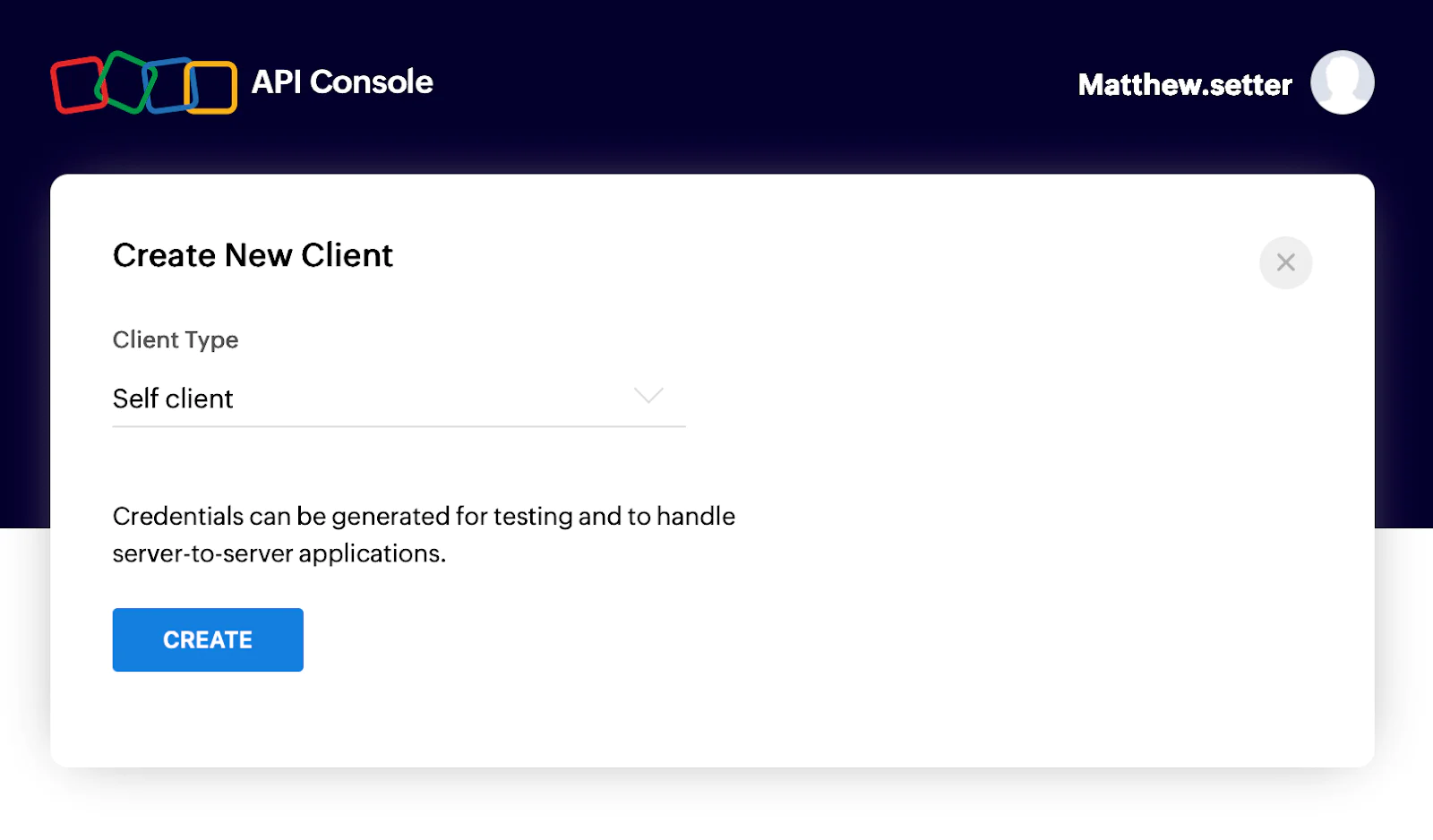

The Zoho CRM Create New Client dialog/window, with Client Type set to Self client.

In the "Are you sure to enable self-client?" confirmation popup, click "OK"

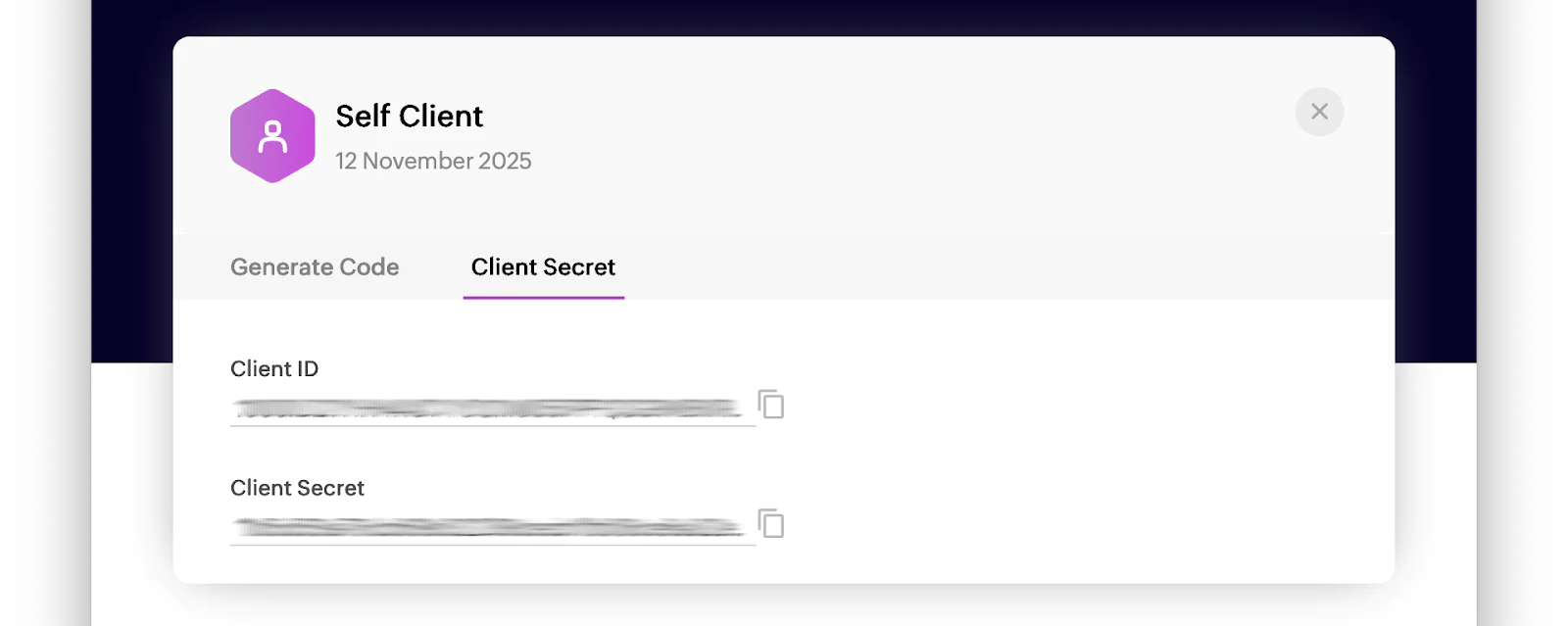

Copy the Client ID and Client Secret

Set them as the values of ZOHO_CLIENT_ID and ZOHO_CLIENT_SECRET, respectively, in your .env. file
Retrieve your Twilio credentials and phone number

Finally, retrieve your Twilio credentials. This is to ensure the app can authenticate with Twilio's Programmable Messaging API for sending SMS notifications, and your Twilio phone number, so Twilio knows who's sending the SMS.

To retrieve the information:
1. Log in to your Twilio Console
2. From the Account Info panel, copy your Account SID, Auth Token, and phone number

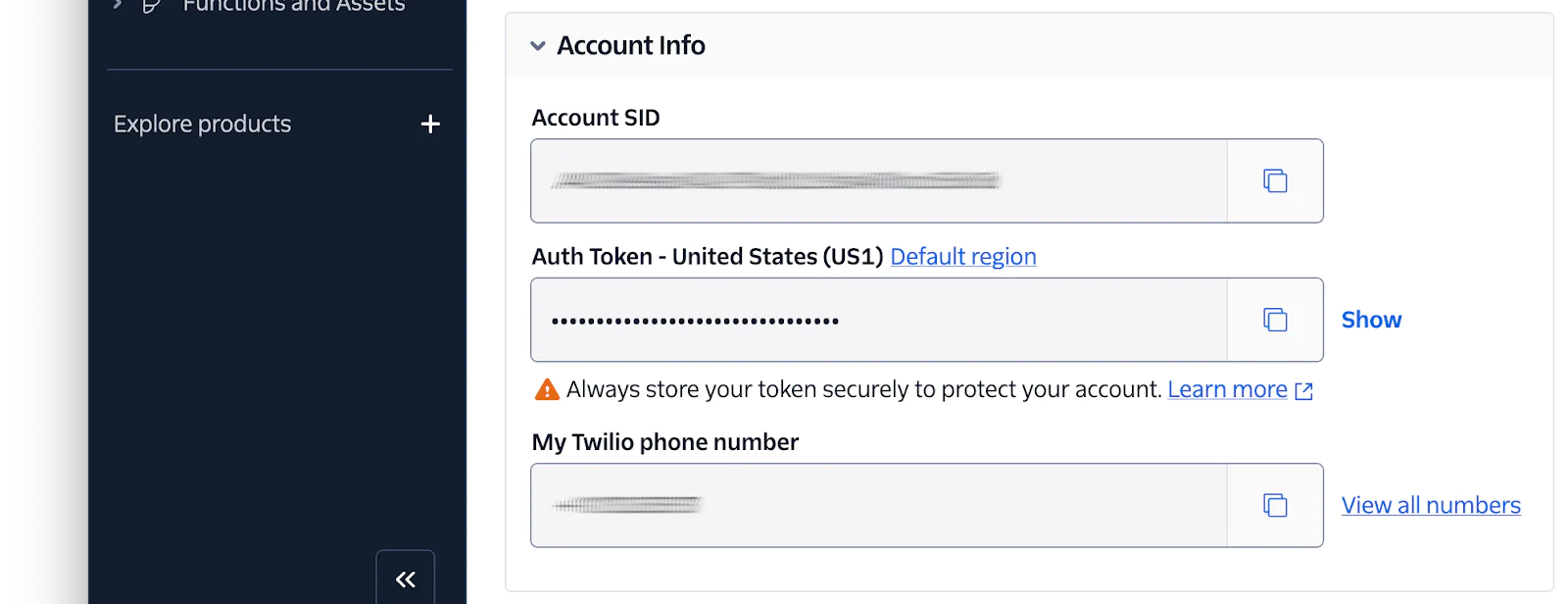

The Account Info panel of the Twilio Console's Account Dashboard. The Account SID and phone number values have been redacted.

Paste this information into your .env file as the values for TWILIO_ACCOUNT_SID, TWILIO_AUTH_TOKEN, and TWILIO_PHONE_NUMBER, respectively
Add the ability to record voice calls

Now, let's extend the existing PHP application to implement the new functionality. Start by updating setupRoutes() in src/Application.php to match the following code:

public function setupRoutes(): void
{
    $this->app->post('/', [$this, 'handleDefaultRoute']);
    $this->app->post('/call/receive', [$this, 'receiveCall']);
    $this->app->post('/call/record', [$this, 'recordCall']);
    $this->app->post('/call/end', [$this, 'endCall']);
}

The three new lines in the code above create three new routes for the application:

The first route handles the initial incoming call, and presents an IVR to the caller
The second route creates a voice call record with Zoho CRM
The third route ends the call

Add the following functions at the end of src/Application.php.

public function receiveCall(
    ServerRequestInterface $request,
    ResponseInterface $response,
): ResponseInterface {
    $voiceResponse = new VoiceResponse();
    $voiceResponse->say("Please leave a message at the beep.\nPress the hash or pound key when finished.");
    $voiceResponse->record([
        'action'             => sprintf('%s/call/end', $this->options['PUBLIC_URL']),
        'finishOnKey'        => '#',
        'method'             => 'POST',
        'transcribe'         => true,
        'transcribeCallback' => sprintf('%s/call/record', $this->options['PUBLIC_URL']),
    ]);
    $response->getBody()->write($voiceResponse->asXML());

    return $response->withHeader("Content-Type", 'application/xml');
}

public function recordCall(
    ServerRequestInterface $request,
    ResponseInterface $response,
): ResponseInterface {
    /** @var TwilioRestClient $twilioClient */
    $twilioClient = $this->app->getContainer()->get(TwilioRestClient::class);
    $formData = $request->getParsedBody();
    $call = $twilioClient->calls($formData['CallSid'])->fetch();
    $callData              = new LoggedCall();
    $callData->callType    = CallType::INBOUND;
    $callData->callStarted = $call->startTime;

    [$minutes, $seconds]    = explode(':', gmdate('i:s', (int) $call->duration));

    $callData->callDuration = new DateInterval(sprintf(self::DATE_FORMAT, $minutes, $seconds));
    $callData->subject        =  "Inbound Call From Twilio";
    $callData->voiceRecording = $formData['RecordingUrl'];
    $callData->callPurpose    = CallPurpose::PROSPECTING;
    $callData->callResult     = CallResult::REQUESTED_MORE_INFO;
    $callData->description    = $formData['TranscriptionText'];

    /** @var ZohoCrmService $zohoCrmService */
    $zohoCrmService = $this->app
        ->getContainer()
        ->get(ZohoCrmService::class);
    $result = $zohoCrmService->recordVoiceCall($callData);
    $response->getBody()->write($result->getBody()->getContents());

    return $response;
}

public function endCall(
    ServerRequestInterface $request,
    ResponseInterface $response,
): ResponseInterface {
    $voiceResponse = new VoiceResponse();
    $voiceResponse->say("Thank you for recording your message. It will be logged in Zoho CRM.");
    $voiceResponse->hangup();
    $response->getBody()->write($voiceResponse->asXML());

    return $response;
}

Then, import the following namespaces.

use App\Entity\CallPurpose;
use App\Entity\CallResult;
use App\Entity\CallType;
use App\Entity\LoggedCall;
use Twilio\TwiML\VoiceResponse;
use DateInterval;
use DateTime;

use function explode;
use function gmdate;

The code above defines three functions which handle the application's three new routes:

"/call/receive" — (receiveCall)
"/call/record" — (recordCall)
"/call/end" — (endCall)

Let’s look at each in detail.

receiveCall: Responds to incoming phone calls using the TwiML Say and Record verbs, creating a simplistic IVR (Interactive voice response):

Also known as a phone tree, [an IVR] provides an automated telephony system for callers using voice and touch-tones (DTMF).

The IVR tells the caller to leave a message at the beep and press the pound or hash key (#) to end the call. Once the call ends, Twilio:

Records and makes a text transcription of the call
Makes a POST request to the application's /call/record endpoint (handled by the recordCall() function) with the caller and recipient's phone numbers (this happens regardless of whether the transcription was successful or not), and the text of the transcription
Ends the call by making a request to the application's /call/end route, handled by the endCall() function

recordCall: Logs a voice call with Zoho CRM, using the information sent by Twilio. The function retrieves the call details from Twilio and uses the collective information to log a new, inbound, voice call with Zoho CRM.

As part of this process, the function:

Links the voice recording made by Twilio to the call record
Sets the call's description to the text transcription of the call
Sets the call's purpose to "Prospecting"
Sets the call's type to "Inbound"
Sets the call's result to "Requested more info"
Sets the call's subject to "Inbound Call from Twilio" followed by the call's start time

The values for the call's purpose, type, and result are completely arbitrary. I chose them solely for the purposes of modelling what you could do, rather than what you should or must do.

endCall: Uses the Say and Hangup TwiML verbs to thank the user for making the call, then ends the call.

Add classes and enums to model call details and properties

With those changes made, we now need to create a new class for modelling the logged call, and three enums for modelling the available options for the call's purpose, type, and result. This might feel a little over-engineered, but it helps keep the code cleaner.

We'll start with the call model. In src/Entity, create a new file named LoggedCall.php. Then, in that new file, past the code below:

<?php

declare(strict_types=1);

namespace App\Entity;

use DateInterval;
use DateTime;

class LoggedCall
{
    public CallPurpose|null $callPurpose = null;
    public CallResult|null $callResult   = null;
    public CallType $callType            = CallType::INBOUND;
    public DateInterval $callDuration;
    public DateTime $callStarted;
    public OutgoingCallStatus $outgoingCallStatus = OutgoingCallStatus::NONE;
    public string $callAgenda     = "";
    public string $description    = "";
    public string $subject        = "";
    public string $voiceRecording = "";
    public string $callFor;
    public string $relatedTo;
}

The class provides a basic model of a logged call in Zoho CRM, storing a range of call properties, including:

Description
Duration
Purpose
Start time
Type
Voice recording

The fields have intentionally been set as public for the sake of simplicity. Feel free to define property hooks to make the class more robust.

Next, in src/Entity, create a new file named CallType.php, and in that new file, past the code below:

<?php

declare(strict_types=1);

namespace App\Entity;

enum CallType: string
{
    case INBOUND  = 'Inbound';
    case MISSED   = 'Missed';
    case OUTBOUND = 'Outbound';
}

The enum models the three call types that Zoho CRM supports.

To the best of my knowledge, the documentation doesn't provide details on a call's available types. However, you can find the information by querying Zoho CRM's Fields Meta Data API.

Next, in src/Entity, create a new file named CallPurpose.php. Then, in that new file, paste the code below:

<?php

declare(strict_types=1);

namespace App\Entity;

enum CallPurpose: string
{
    case ADMINISTRATIVE = 'Administrative';
    case DEMO           = 'Demo';
    case DESK           = 'Desk';
    case NEGOTIATION    = 'Negotation';
    case PROJECT        = 'Project';
    case PROSPECTING    = 'Prospecting';
    case NONE           = '-None-';
}

Similar to CallType, CallPurpose models the seven options that a call's purpose can be set to.

Next, in src/Entity, create a new file named CallResult.php, and in that new file, past the code below:

<?php

declare(strict_types=1);

namespace App\Entity;

enum CallResult: string
{
    case INTERESTED          = 'Interested';
    case INVALID_NUMBER      = 'Invalid number';
    case NONE                = '-None-';
    case NOT_INTERESTED      = 'Not interested';
    case NO_RESPONSE_BUSY    = 'No response/Busy';
    case REQUESTED_CALL_BACK = 'Requested call back';
    case REQUESTED_MORE_INFO = 'Requested more info';
}

This enum models the various results a call result can be set to in Zoho CRM.

Update ZohoCrmService

With the model and enums created, the final step is to update ZohoCrmService so that the class can record a voice call in your Zoho CRM account. To do that, add the following function to src/Service/ZohoCrmService.php:

public function recordVoiceCall(LoggedCall $callDetails): ResponseInterface
{
    $requestData = [
        'data' => [
            [
                'Call_Agenda'              => $callDetails->callAgenda,
                'Call_Duration'            => $callDetails->callDuration->format("%I:%s"),
                'Call_Duration_in_seconds' => "s",
                'Call_Purpose'             => $callDetails->callPurpose->value,
                'Call_Result'              => $callDetails->callResult->value,
                'Call_Start_Time'          => $callDetails->callStarted->format(DateTimeInterface::ATOM),
                'Call_Type'                => $callDetails->callType->value,
                'Description'              => $callDetails->description,
                'Outgoing_Call_Status'     => $callDetails->outgoingCallStatus->value,
                'Subject'                  => $callDetails->subject,
                'Voice_Recording__s'       => $callDetails->voiceRecording,
            ],
        ],
    ];
    $this->logger->debug('Zoho CRM Service Call Data', $requestData);

    return $this->httpClient->request(
        'POST',
        'Calls',
        [
            'body' => json_encode($requestData),
        ]
    );
}

Then, add the following use statements at the top of the class:

use App\Entity\LoggedCall;
use DateTimeInterface;
use Psr\Http\Message\ResponseInterface;

use function json_encode;

This function makes an API call to Zoho CRM using Guzzle to log a new call record. It does this by creating an appropriately formatted JSON body with the data provided by the LoggedCall object passed to the function.

Start the application

Now the application is built, let’s expose it to the public internet. Start the PHP built-in webserver by running the following command:

php -S 127.0.0.1:8080 -t public

Then, expose it to the public internet with ngrok, by running the following command in a new terminal tab or session:

ngrok http 8080

I've used ngrok in the above example, but feel free to use an equivalent tool if you prefer.

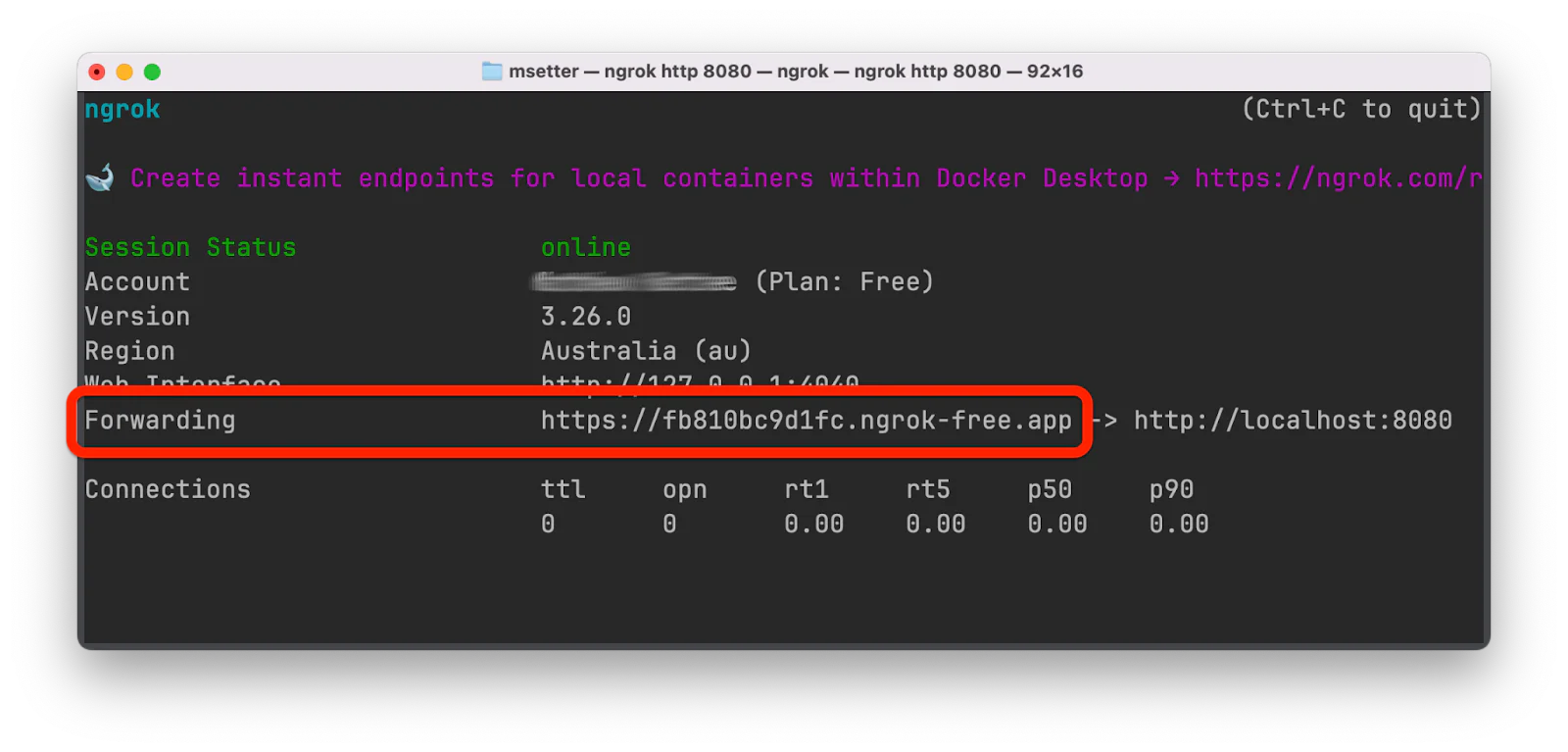

After ngrok starts, it should print output to the terminal, similar to this:

A screenshot of grok running in a terminal on macOS with the Forwarding URL highlighted.

Copy the Forwarding URL and set it as the value of PUBLIC_URL in .env.

Update your phone number's configuration

The final step is to update your Twilio phone number's configuration so that when the number is called it connects to the application's /call/receive route.

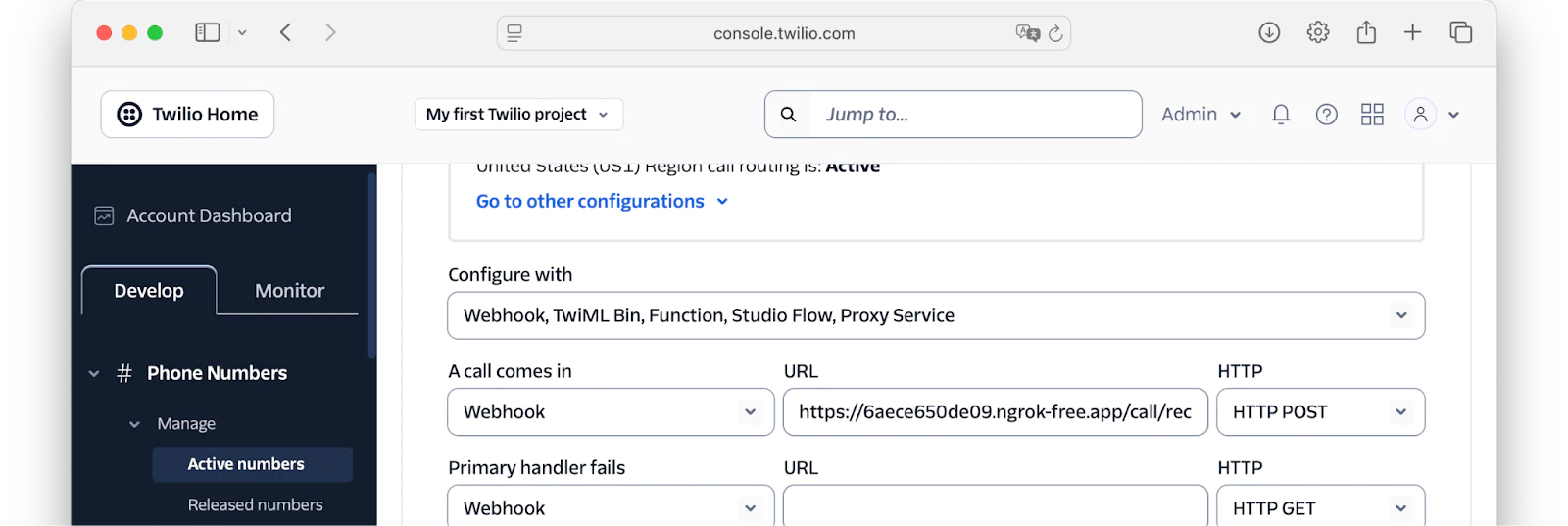

To do that, go back to your Twilio Console. There, in the left-hand side navigation menu, navigate through Phone Numbers > Manage > Active numbers. Click on your Twilio phone number, then click the Configure tab. From there, scroll down to Voice configuration, and set:

Configure with to "Webhook, TwiML Bin, Function, Studio Flow, Proxy Service"
A call comes in to "Webhook", URL field to the ngrok Forwarding URL you copied above, plus "/call/receive", and HTTP drop down to "HTTP POST"

Scroll all the way to the bottom, and click Save configuration.

Twilio console interface showing phone number configuration with webhook URL settings and HTTP methods.

Test that the integration works

Now it’s time to test if your application works. Make a call to your Twilio phone number. If you’ve successfully followed the steps above and configured your number, you'll be asked to leave a message and press # to end the call. Leave a message that is at least five seconds in length and press #. You'll then hear the message that the call's ended, so hangup.

Next, log in to your Zoho CRM Dashboard, and open the Calls module. There, you'll see a new call record has been created.

CRM interface displaying call log records and filters for managing inbound and outbound calls.

Click on the call record to see the full details. Check it has a link to the audio recording of the voice call and a text transcription of the call set in the description field.

CRM interface showing call details, duration, and a voice recording with transcription.

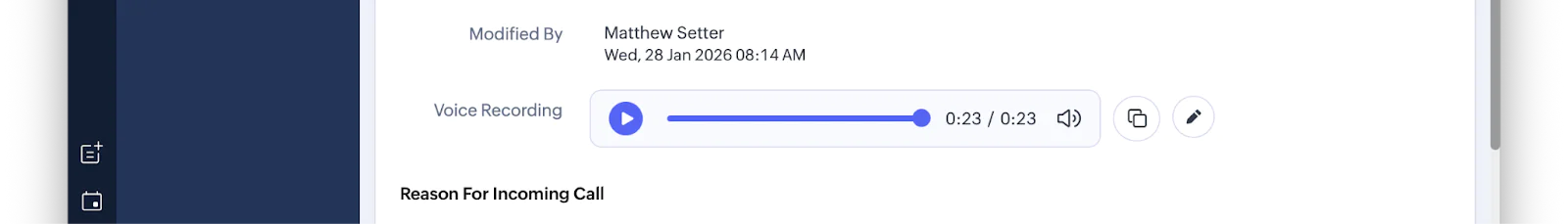

On the first page load, the Voice Recording field will seem to be empty, showing a recording time of "0.00". However, if you press play and wait half a second, Zoho CRM will load and play the recording, as you can see in the screenshot below.

Screenshot of an audio recording interface showing modification details by Matthew Setter on Wed, 26 Jan 2026 02

Trying building a Twilio + Zoho CRM Voice integration

Now that you've integrated Zoho CRM's API functionality with Twilio, you’re able to add incoming call records to your Zoho CRM account. These records will contain an audio recording of the call, and a text transcription.

Think of all the ways you can build on this functionality to benefit your business. Some of those ways could be adding reminders to follow up inbound calls, creating sophisticated IVR (Interactive voice response), and categorising calls based on the option(s) the caller chooses.

What could you build with Zoho CRM and Twilio to benefit your customers and augment the power of your business?

What's Next?

If you'd like to learn more about Zoho CRM's or Twilio's APIs, check out these tutorials:

Steps to generate a Zoho CRM OAuth Token
How to search records in Zoho CRM
How to retrieve individual records in Zoho CRM
… If you get stuck, try out our AI Agent for the Twilio Docs

Matthew Setter is (primarily) the PHP, Go, and Rust editor on the Twilio Voices team. He’s also the author of Mezzio Essentials and Deploy with Docker Compose . You can find him at msetter[at]twilio.com. He's also on LinkedIn and GitHub.

The phone icon in the post's main image was created by Freepik on Flaticon.
